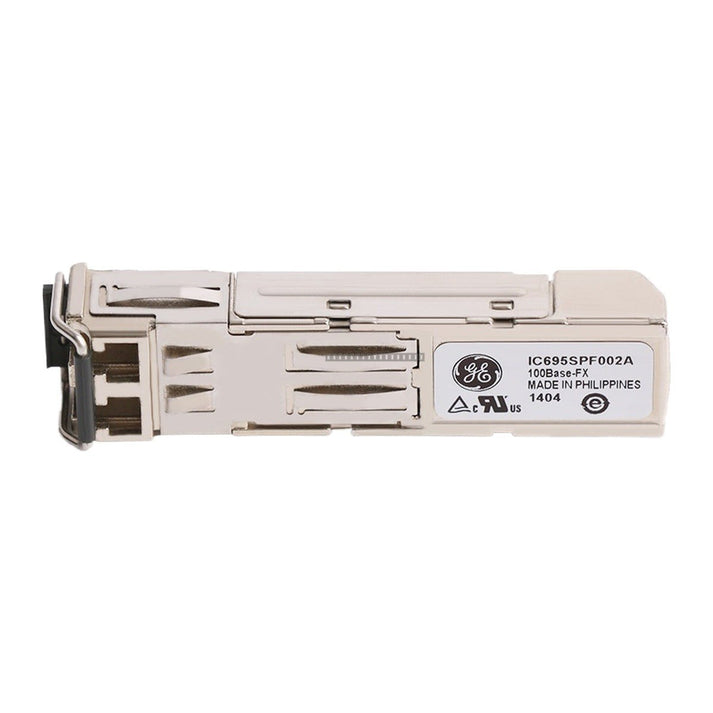

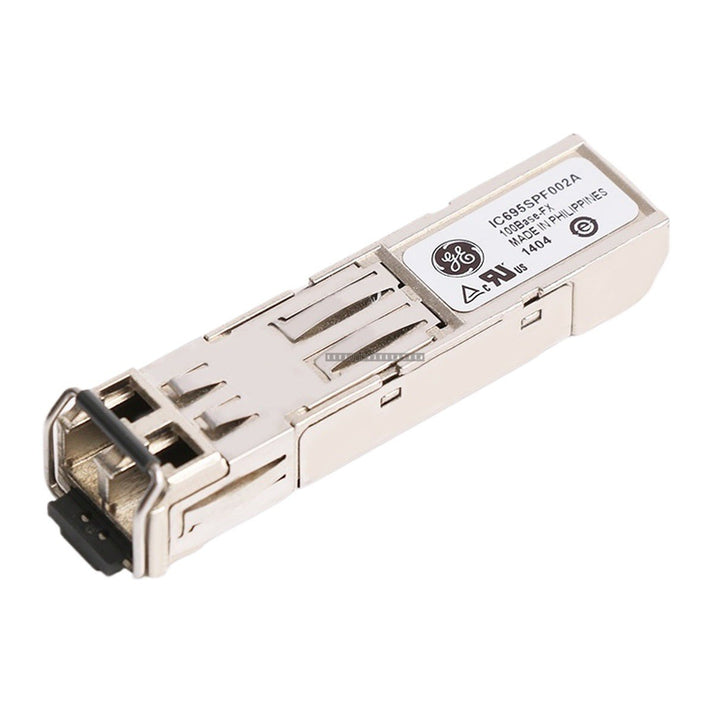

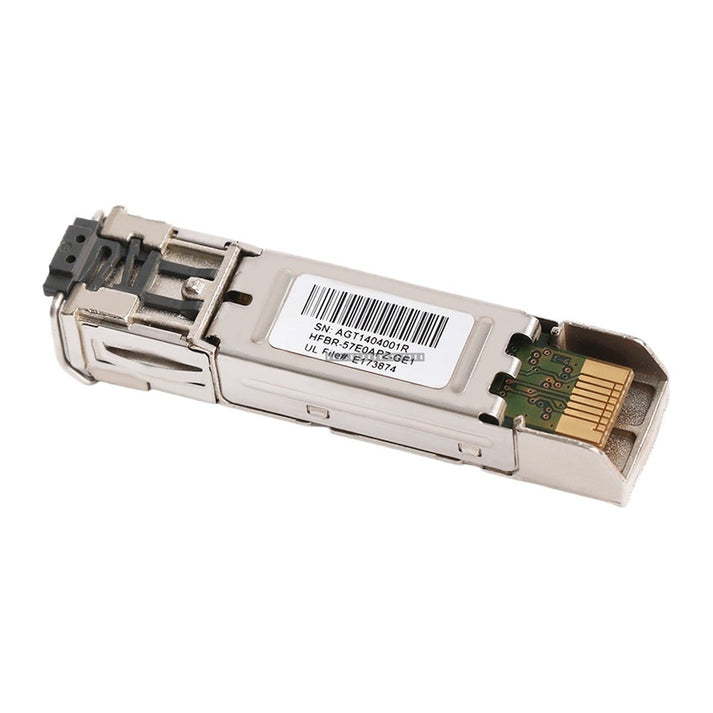

The General Electric IC695SPF002A is a Small Form-Factor Pluggable (SFP) scanner module designed for integration within the PACSystems RX3i control platform. This module facilitates high-speed communication and network connectivity, supporting multi-mode fiber (MMF) infrastructure for extended range applications.

Features

• Supports 100 Mbps communication speeds for reliable data transfer.
• Compatible with multi-mode fiber (MMF) cabling up to 2 kilometers.
• Equipped with two RJ-45 ports and two SFP cages for flexible connectivity options.
• Integrated SD card support for data logging and configuration storage.
• Onboard LED indicators for real-time status and diagnostic monitoring.
• Operates on a power supply range of 3.3 to 5 Volts.

Applications

This scanner module is primarily used in industrial automation environments where the PACSystems RX3i system requires robust, long-distance communication over fiber-optic media. It is suitable for distributed I/O networks, remote monitoring stations, and high-EMI industrial zones where fiber optics provide superior signal integrity compared to copper cabling.

Technical Specifications

Installation Guidelines

• Ensure the PACSystems RX3i rack is powered down before inserting or removing the module to prevent electrical damage.
• Handle the module by the edges; avoid touching the SFP cage pins or internal circuitry to prevent ESD damage.
• Ensure the module is fully seated in the designated RX3i slot and secured according to system chassis specifications.
• Use appropriate fiber optic cleaning tools before inserting transceivers into the SFP cages to ensure optimal signal quality.
• Route fiber optic cables away from high-voltage power lines to prevent mechanical stress and potential signal interference.

FAQ

What is the maximum distance for the fiber connection?
The IC695SPF002A supports multi-mode fiber connections up to a maximum distance of 2 kilometers.

Does this module require external power?
The module is powered directly through the PACSystems RX3i backplane/slot interface, operating within a 3.3 to 5 Volt range.
