Description

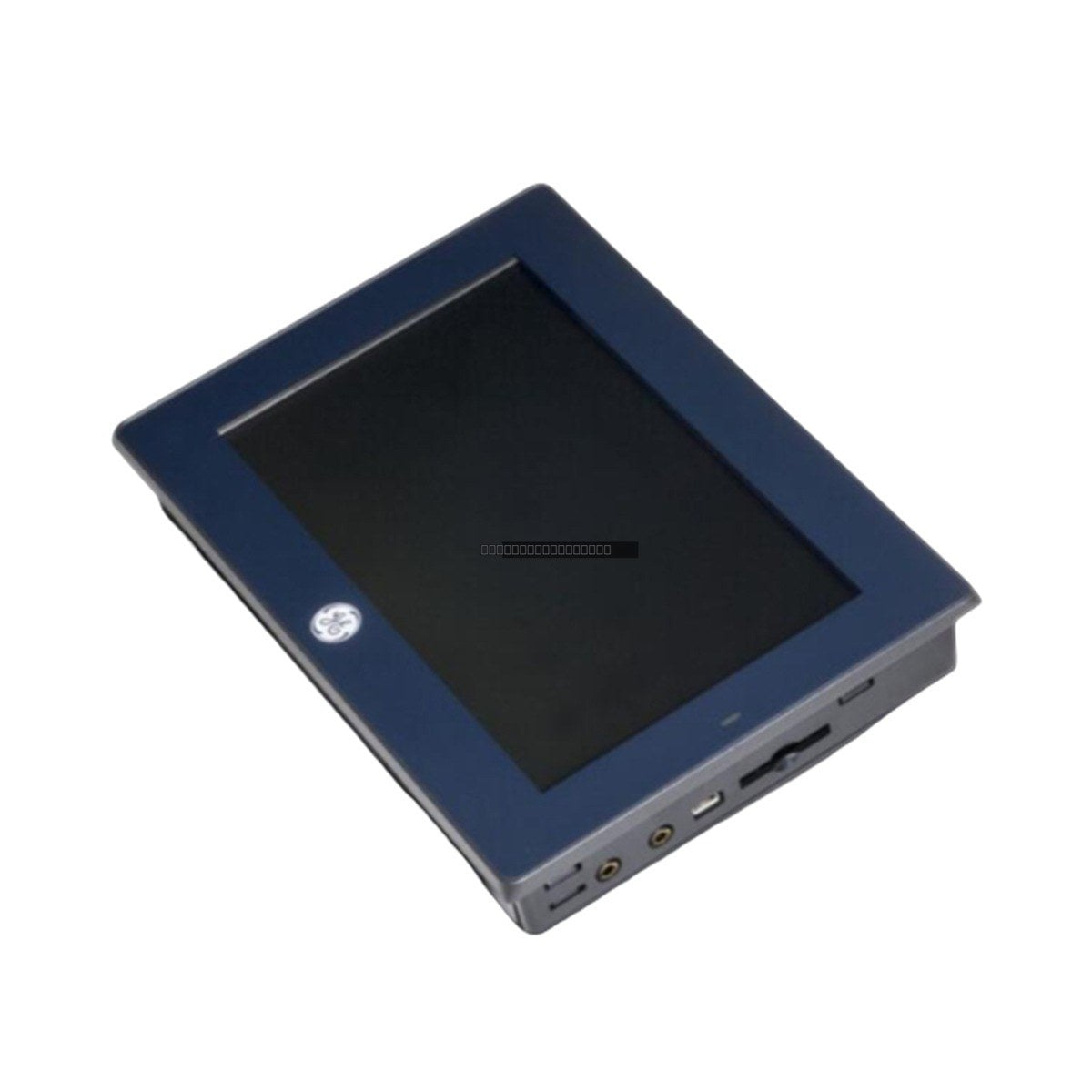

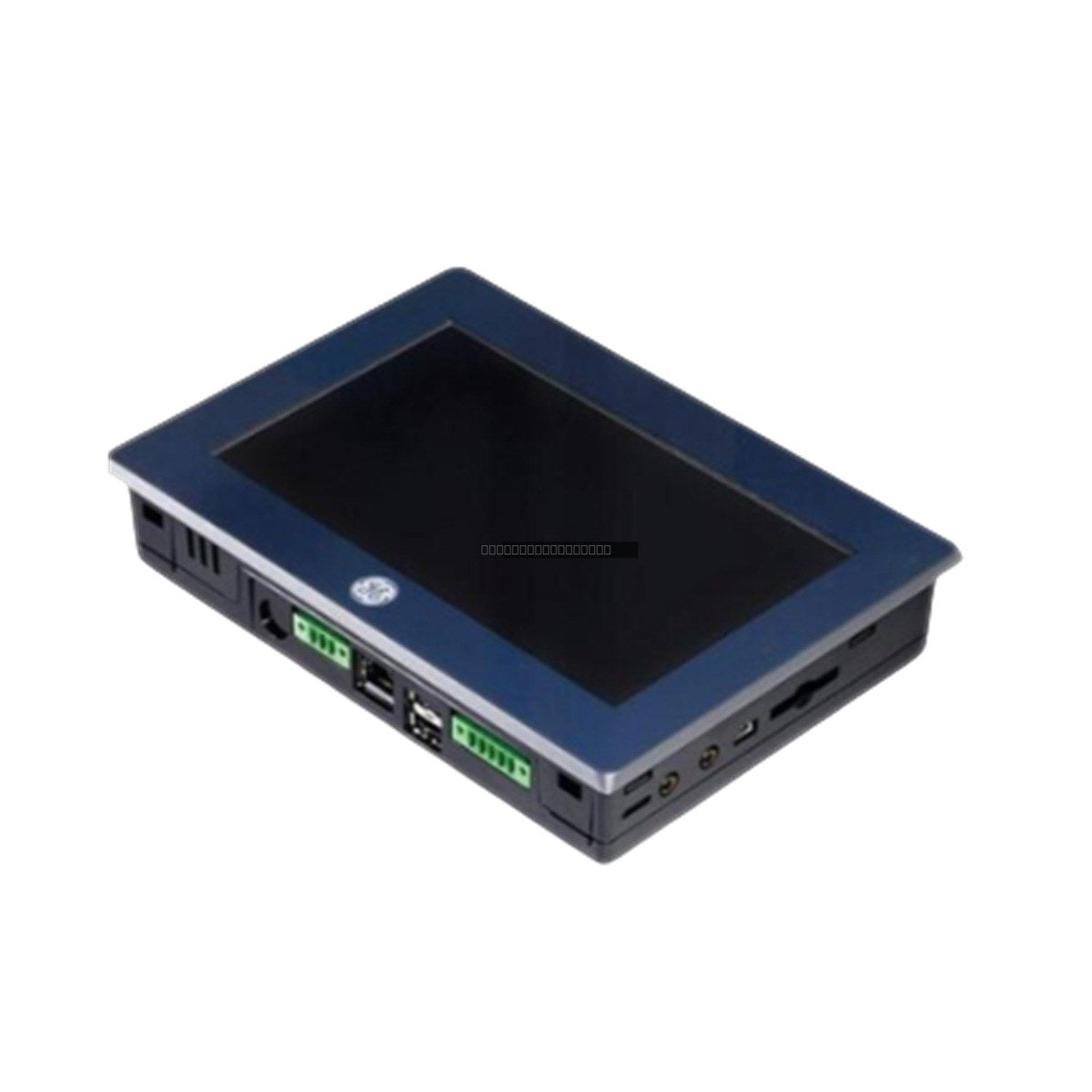

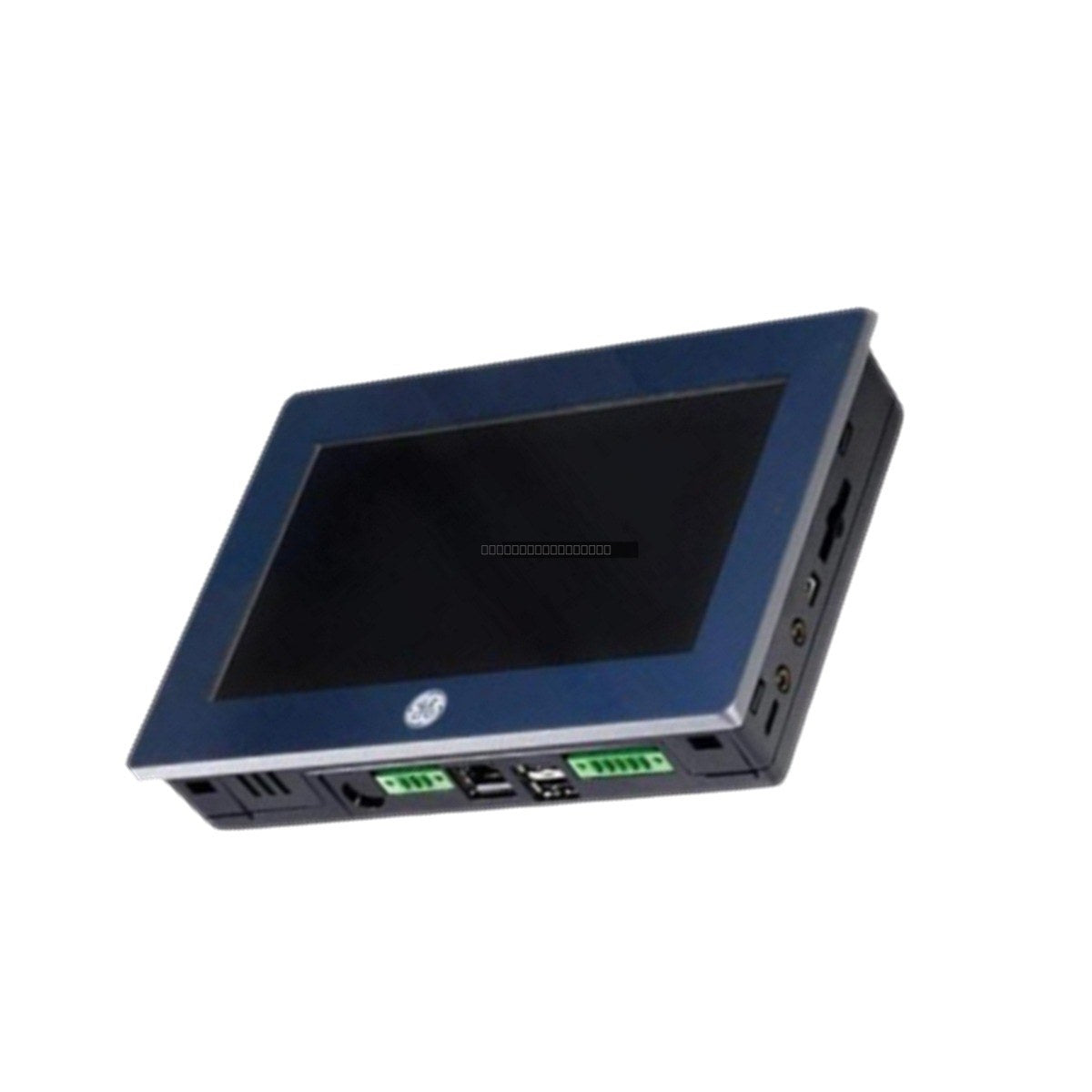

The General Electric IC755CSS06RDA is a high-performance HMI unit from the PACSystems QuickPanel+ series. This industrial operator interface is engineered to provide seamless integration, control, and data historian capabilities within complex automation environments. Featuring a responsive interface and robust processing power, it serves as a centralized visualization and control node for plant-floor operations.

Features

• Integrated HMI, control, and data historian functionality.
• Multi-touch interface for enhanced operator responsiveness and process visualization.
• Built-in web browser with multimedia support for advanced diagnostic and reporting tasks.
• Configurable email and text alert system for real-time process monitoring.
• Open architecture supporting compatibility with a wide range of third-party industrial components.
• Remote diagnostic capabilities to simplify maintenance and troubleshooting.

Technical Specifications

Installation Guidelines

• Ensure the device is mounted in an enclosure that provides adequate ventilation to maintain operating temperature limits.
• Verify that the power supply is stable and within the +24VDC +/- 20% range before connection.
• Use shielded communication cables for RS-232 connections to minimize electromagnetic interference (EMI).
• Handle the unit with care to avoid damage to the analog resistive touch surface.
• Ensure proper grounding of the HMI chassis to the control panel common ground to prevent ground loops and electrical noise.
• Always disconnect power before inserting or removing SD memory cards or connecting peripheral cables.

FAQ

What is the primary operating system for the IC755CSS06RDA?

This unit runs on Microsoft Windows Embedded Compact 7, providing a stable and reliable platform for industrial HMI applications.

Does this model support external storage?

Yes, the unit is equipped with an integrated SD/SDHC card slot for data logging, project storage, or firmware updates.

What type of touch interface does this HMI use?

The IC755CSS06RDA utilizes an analog resistive single-touch panel designed for durability in industrial environments.
