Description

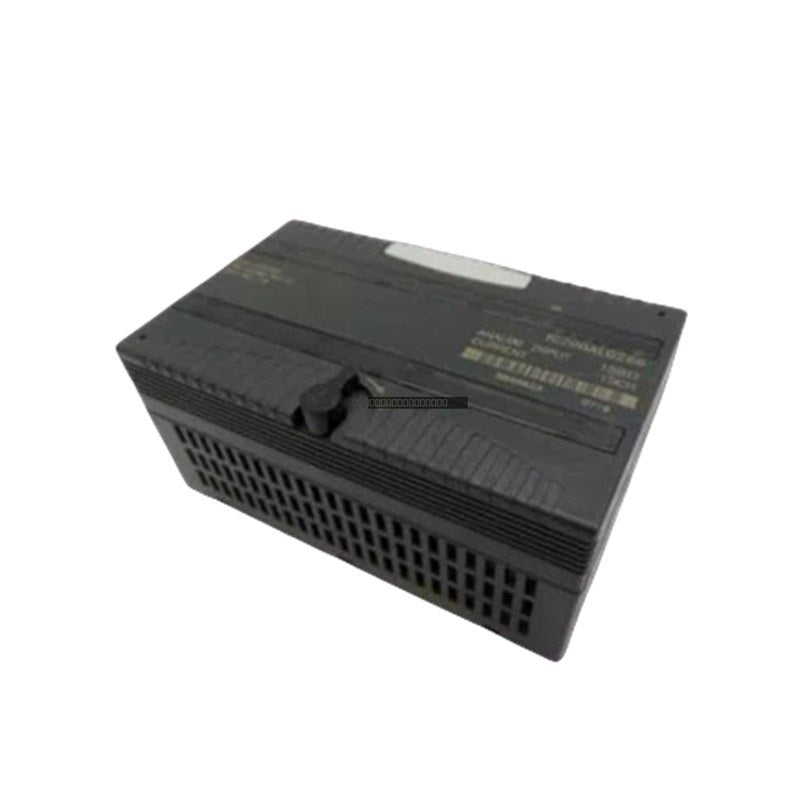

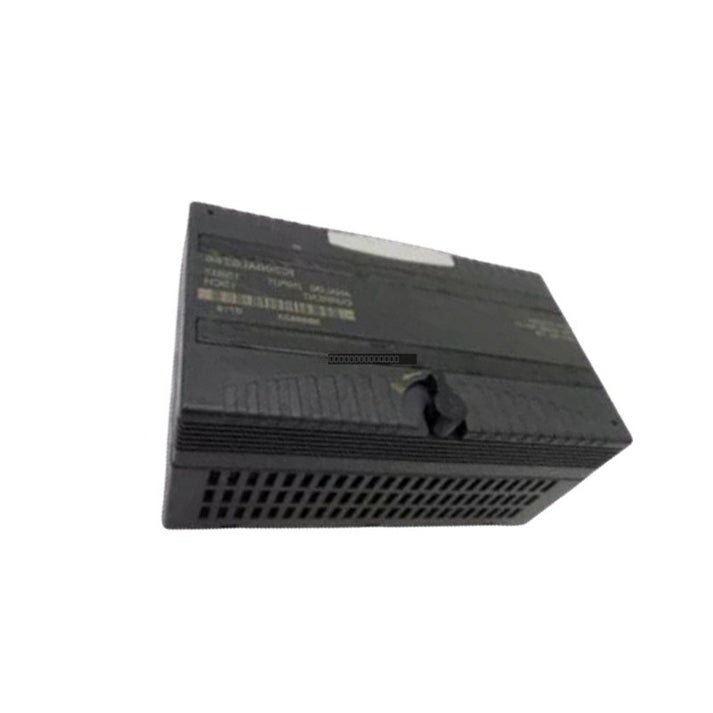

The General Electric IC200ALG266F is a high-performance analog input module designed for the VersaMax I/O system. This module provides 15 single-ended input channels, grouped together, allowing for efficient data acquisition in industrial automation environments. It is specifically engineered to process current signals, supporting standard 4-20 mA or 0-20 mA ranges with high precision.

Features

• 15 single-ended analog input channels in a single group.
• Supports 4-20 mA and 0-20 mA current input ranges.
• 15-bit resolution for accurate signal conversion.
• Optimized update rate of 7.5 ms per module.
• Integrated 24 Hz filter response.
• Compact VersaMax form factor for space-constrained control cabinets.

Technical Specifications

Installation Guidelines

• Ensure the VersaMax backplane is powered down before installing or removing the module to prevent electrical damage.
• Mount the module securely onto the I/O carrier, ensuring the locking mechanism is engaged.
• Use shielded twisted-pair cabling for analog signal connections to minimize EMI interference.
• Maintain proper grounding practices for the I/O system to ensure signal integrity and safety.
• Verify that the input signal range matches the module configuration settings within the PLC software.

FAQ

What is the primary function of the IC200ALG266F?
This module is an analog input module used to convert current signals from field devices into digital data for processing by the VersaMax PLC system.

Does this module support voltage inputs?
No, the IC200ALG266F is specifically designed for current-based inputs (4-20 mA / 0-20 mA).

How are the channels configured?
The module features 15 single-ended channels that are organized into a single group.
