Description

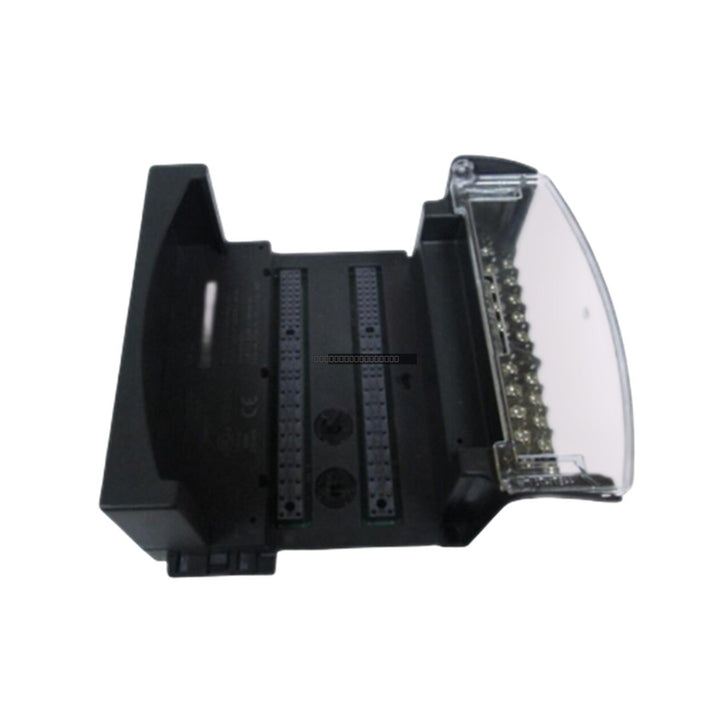

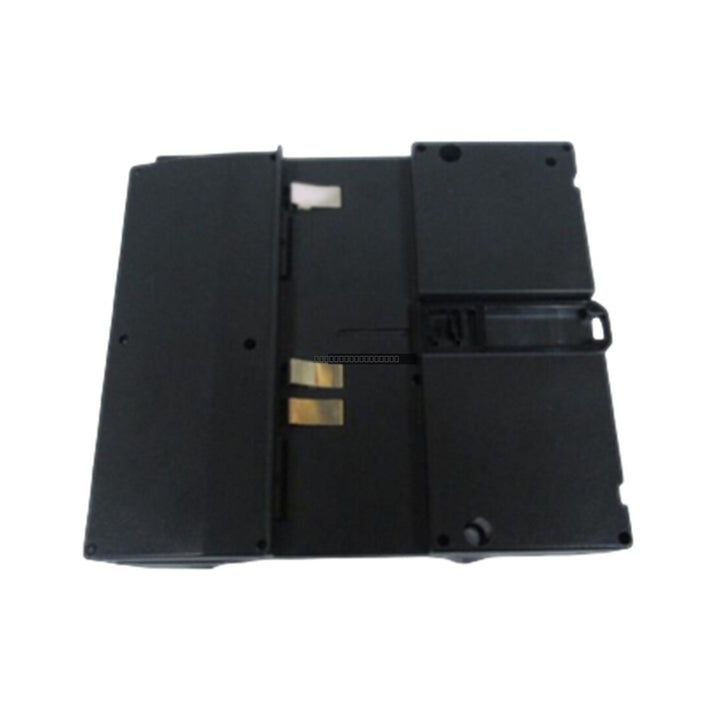

The General Electric IC200CHS001A is a box-style I/O carrier designed for the VersaMax PLC series. This carrier provides the necessary mounting and electrical interface for VersaMax I/O modules, facilitating reliable signal distribution and field wiring connections in industrial automation environments. It is engineered to support up to 32 I/O points, offering a compact solution for distributed or centralized control architectures.

Features

• Supports up to 32 I/O points for high-density signal management.
• Equipped with 36 box-style screw terminals for secure field wiring.
• Designed for standard DIN-rail mounting, ensuring quick and efficient installation.
• Rated for a maximum voltage of 264 VAC, accommodating a wide range of industrial control applications.
• Robust construction suitable for demanding automation environments.

Technical Specifications

Installation Guidelines

• Ensure all power to the I/O system is disconnected before installing or removing modules from the carrier.
• Mount the carrier onto a standard 35mm DIN rail, ensuring it is securely locked in place.
• When wiring, ensure that terminal screws are tightened to the specified torque range (0.37 to 0.5 lb-ft) to prevent loose connections and potential signal degradation.
• Maintain proper cable routing to minimize electromagnetic interference (EMI) from high-voltage lines or high-frequency drives.
• Verify that the total current draw of the I/O modules does not exceed the capacity of the power supply connected to the carrier.

FAQ

What is the primary function of the IC200CHS001A?
The IC200CHS001A serves as a base carrier for GE VersaMax I/O modules, providing both the mechanical mounting interface and the electrical terminal blocks for field wiring.

Can this carrier be used with all VersaMax modules?
This carrier is specifically designed for box-style I/O modules within the VersaMax family. Please verify compatibility with your specific module part number before installation.

What is the maximum current rating per point?
The carrier supports a maximum of 2 Amps per point.
