Description

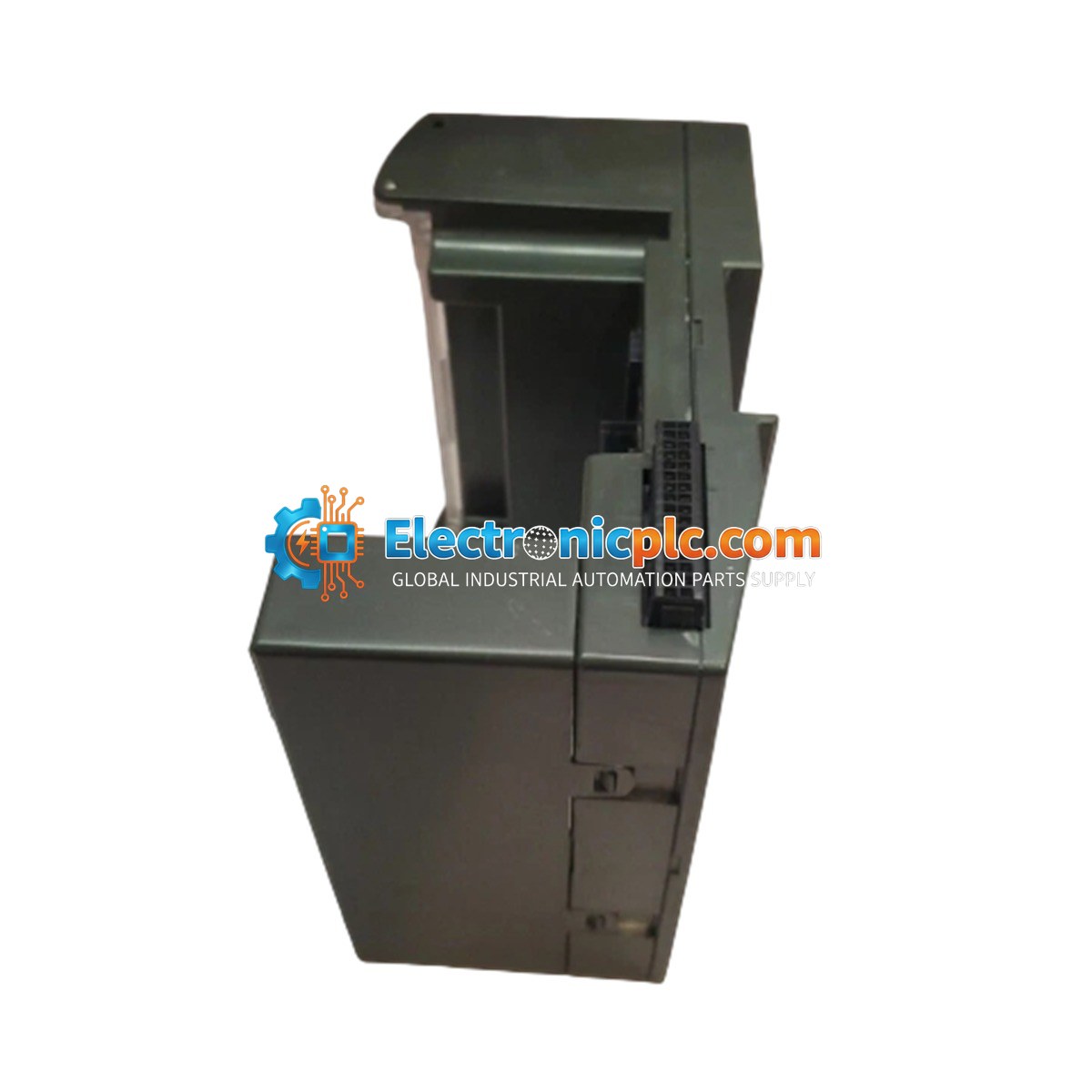

The General Electric IC200CHS002B is a box-style I/O carrier designed for the VersaMax PLC system. This carrier provides the necessary physical mounting and electrical interface for VersaMax I/O modules, facilitating reliable field wiring connections in industrial automation environments. It features an integrated terminal block design, allowing for direct connection of field devices to the I/O modules.

Features

• Designed for VersaMax I/O modules
• Box-style terminal configuration with 36 terminals
• Supports field voltages up to 264 VAC
• Integrated field termination for simplified wiring
• DIN rail mountable for standard industrial enclosures
• Supports up to 2 Amps per point current rating

Technical Specifications

Installation Guidelines

• Ensure the power is disconnected from the system before installing or removing the carrier or any attached I/O modules.
• Mount the carrier on a standard DIN rail in a horizontal orientation.
• Maintain proper clearance for ventilation and maintenance: 2 inches (5.1 cm) at the top and bottom, and 1 inch (2.54 cm) on the sides.
• Use appropriate wire gauges (AWG #14 to #22) to ensure secure connections and prevent overheating.
• Follow standard ESD (Electrostatic Discharge) practices when handling the module to prevent damage to internal electronics.
• Ensure all field wiring is properly routed and secured to minimize mechanical stress on the terminals.

FAQ

What is the primary function of the IC200CHS002B?

The IC200CHS002B acts as a base carrier for VersaMax I/O modules, providing the mechanical support and electrical terminal points required to connect field sensors and actuators to the PLC system.

Can this carrier be used with non-VersaMax modules?

No, this carrier is specifically engineered for the General Electric VersaMax series and is not compatible with other PLC I/O families.
