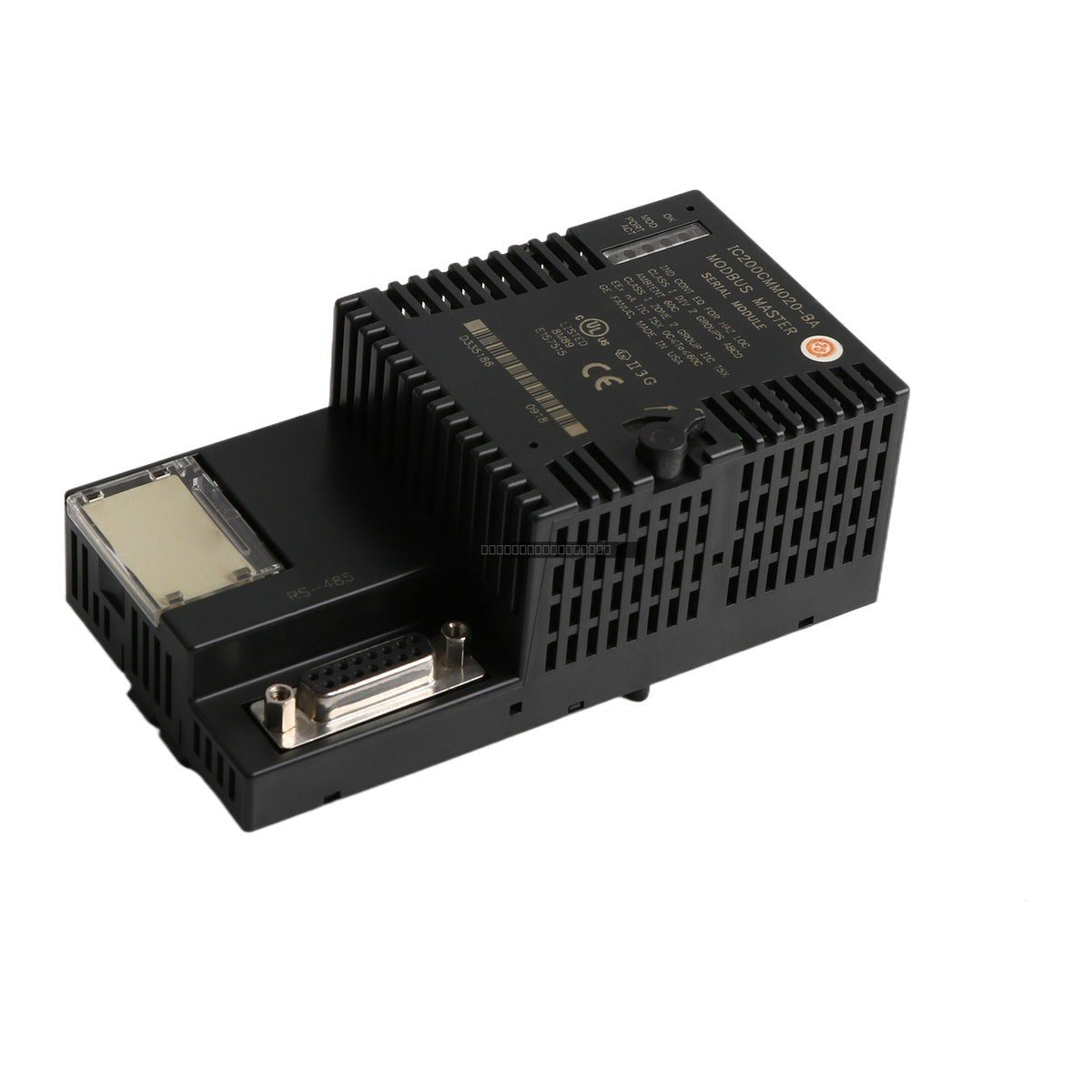

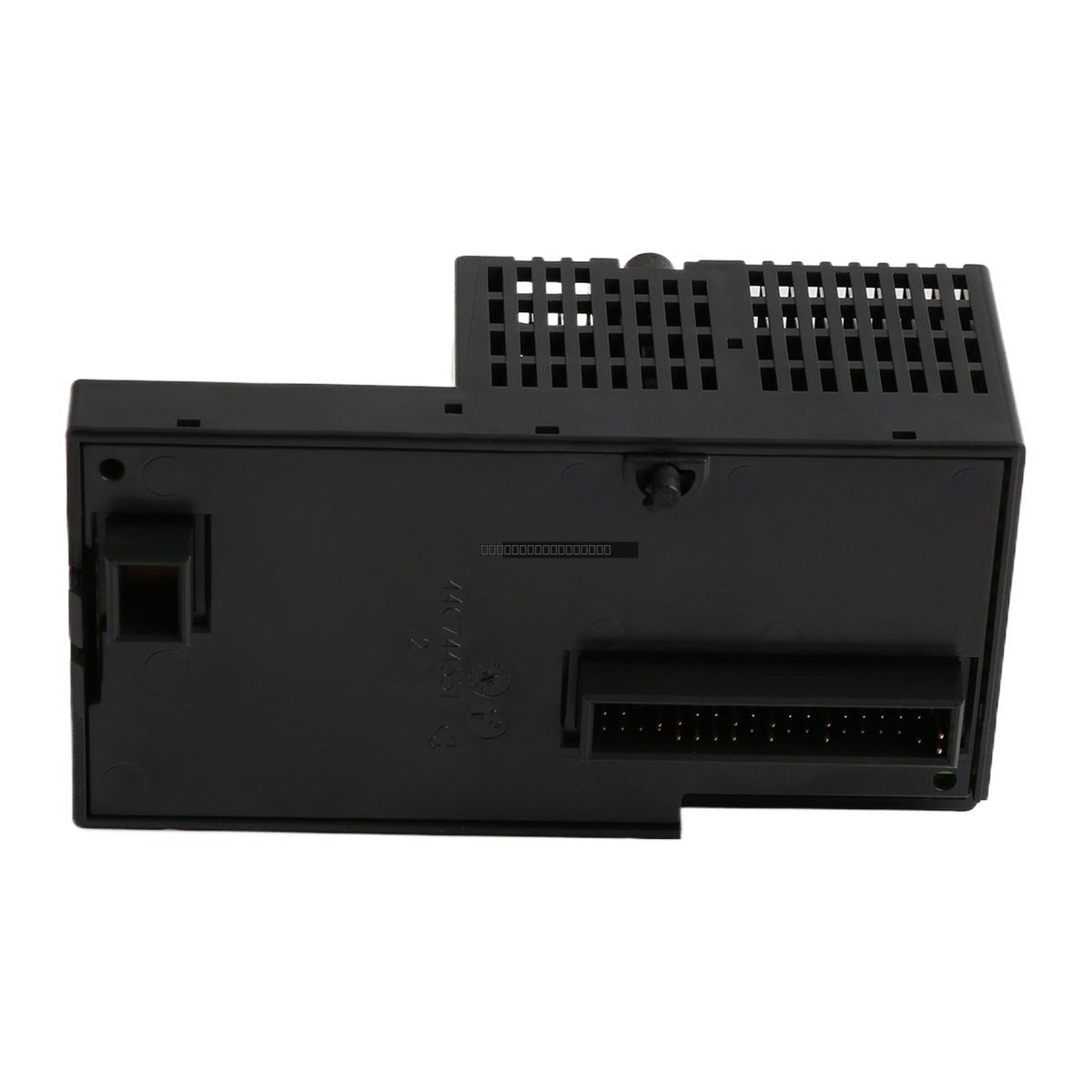

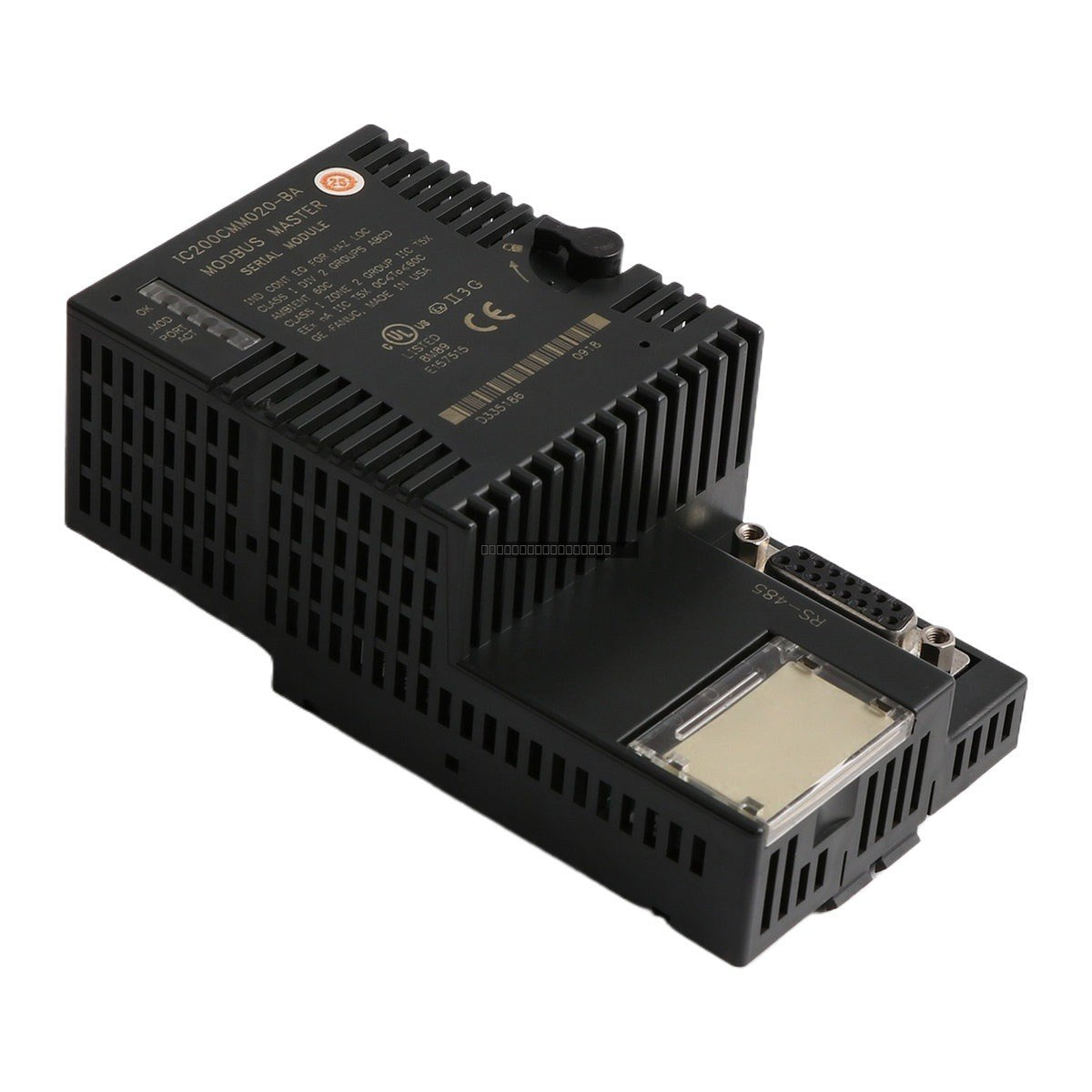

The General Electric IC200CMM020 is a specialized serial communications expansion module designed for the VersaMax I/O system. It functions as a Modbus RTU Master, enabling seamless integration between VersaMax I/O stations and various external Modbus slave devices, such as variable frequency drives (VFDs), controllers, and barcode readers.

Features

• Provides a dedicated Modbus Master port for Genius Network Interface Units (NIU).
• Supports communication with up to 247 RTU slave devices.
• Integrates data transfer over the Genius LAN, compatible with controllers supporting Genius Global Data.
• Equipped with internal spike protection to mitigate transient voltage surges.
• Features noise-filtered signal transmission for reliable operation in high-EMI industrial environments.
• Integrated current-limit switch provides overload auto-shutdown if the serial port load exceeds 200mA.

Applications

This module is primarily utilized in industrial automation environments where VersaMax I/O stations require connectivity to third-party Modbus-enabled field devices. It is commonly deployed in manufacturing, process control, and remote I/O monitoring systems.

Technical Specifications

Installation Guidelines

• Power Down: Always disconnect power from the I/O station before installing or removing modules. This system does not support hot-swapping.
• Mounting: Ensure the module is securely seated on the VersaMax carrier.
• Wiring: Use shielded twisted-pair cabling for RS-485 connections to maintain signal integrity.
• Environment: Install in an enclosure rated for the intended environment, ensuring adequate ventilation to maintain operating temperatures below 40 degC.
• Grounding: Follow standard industrial grounding practices to protect against electrical noise and transient surges.

FAQs

What is the primary function of the IC200CMM020?

The IC200CMM020 acts as a Modbus RTU Master, allowing a VersaMax I/O station to exchange data with external Modbus slave devices.

How many modules can be installed in a single station?

You may install up to two IC200CMM020 serial communication modules per Genius NIU I/O station.

Can the module power external devices?

Yes, the serial port can supply 5V power to external devices, with a maximum current limit of 200mA before the internal protection switch triggers a shutdown.
