Description

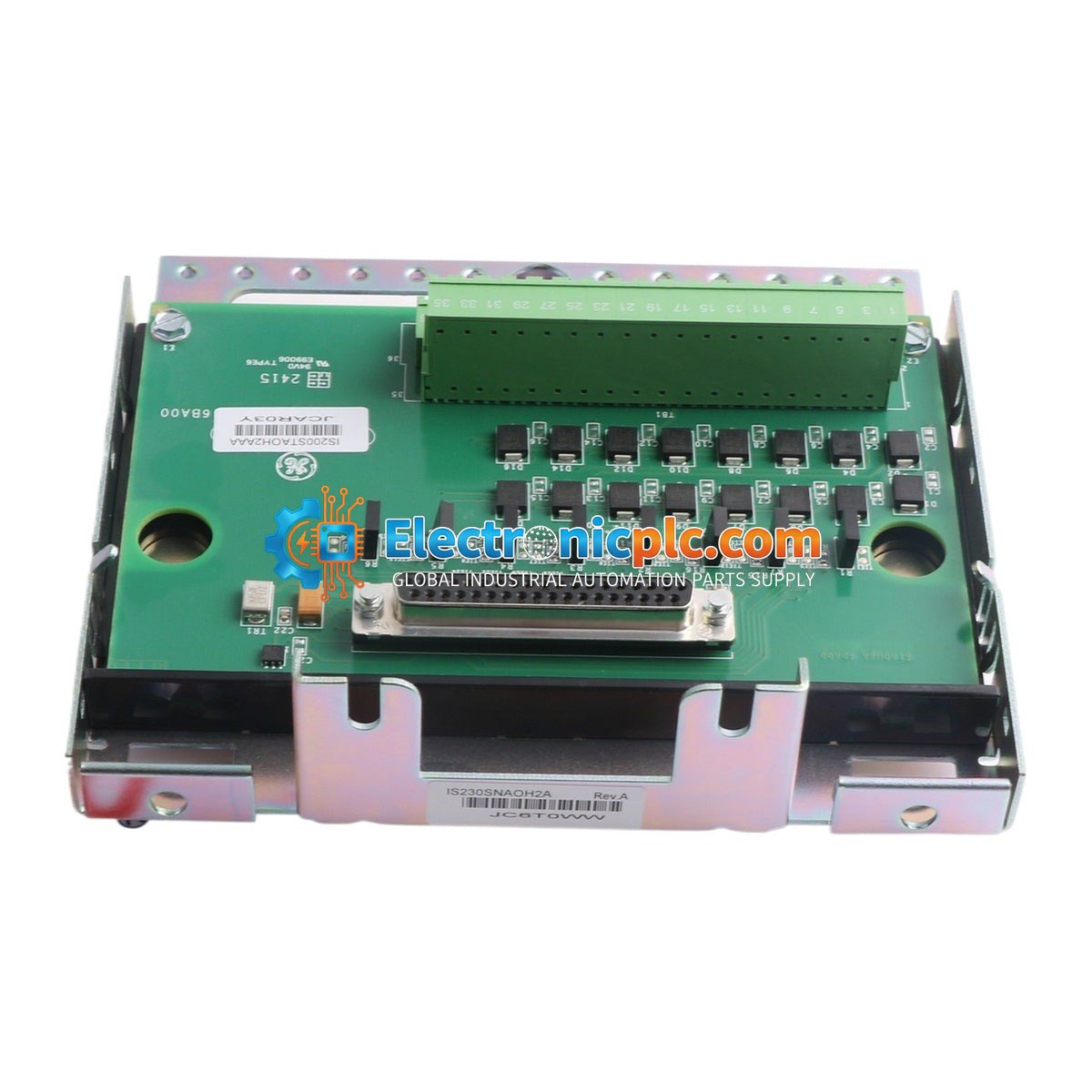

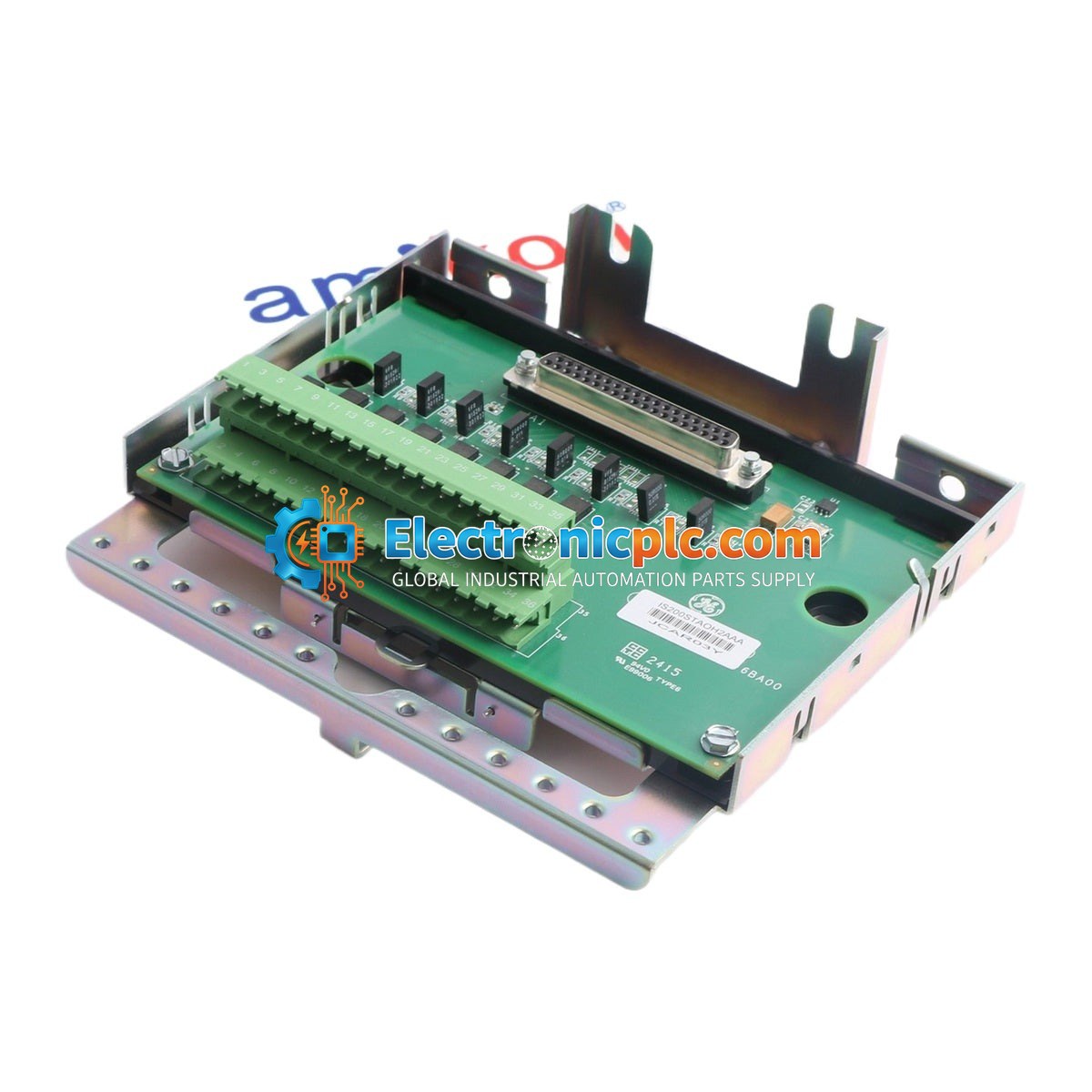

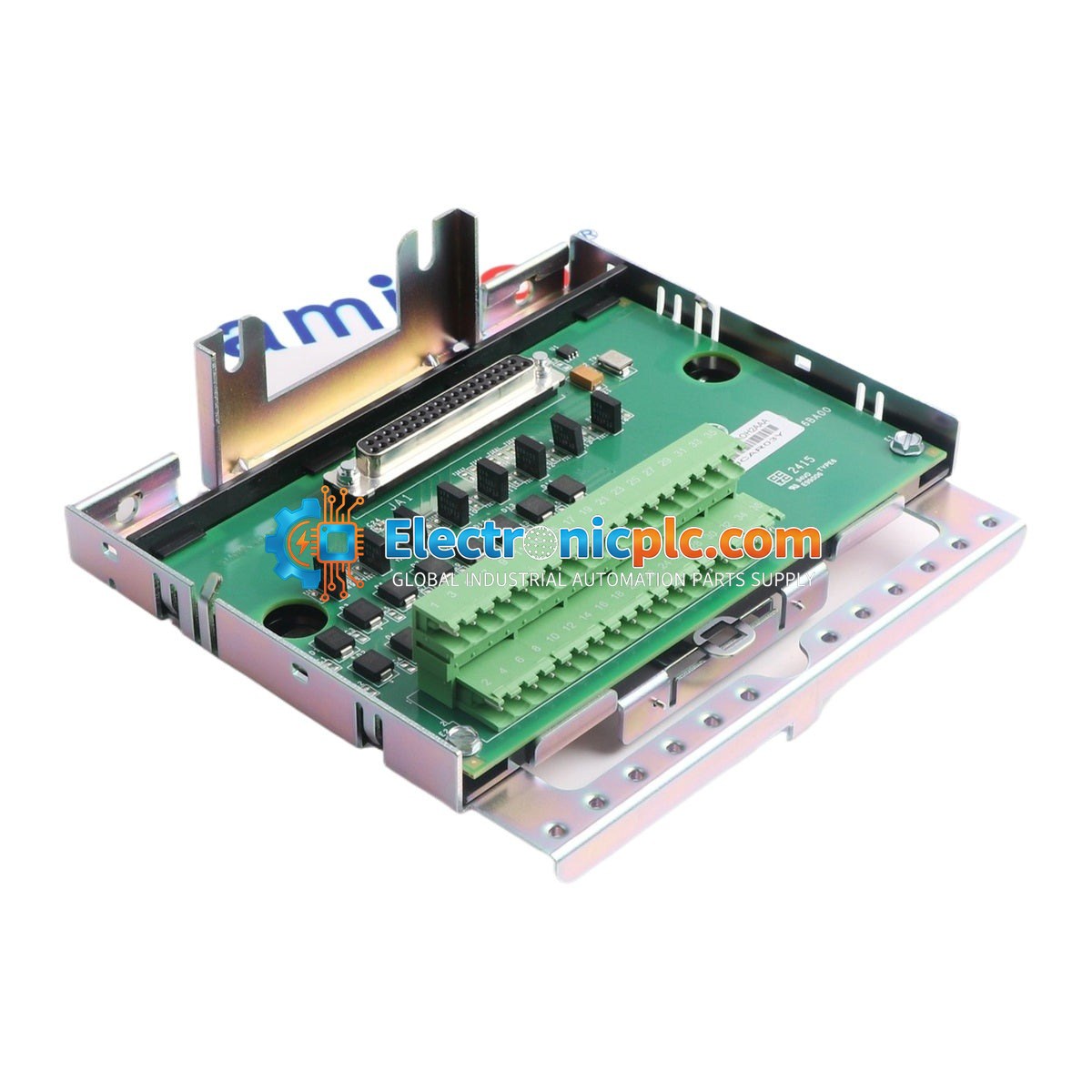

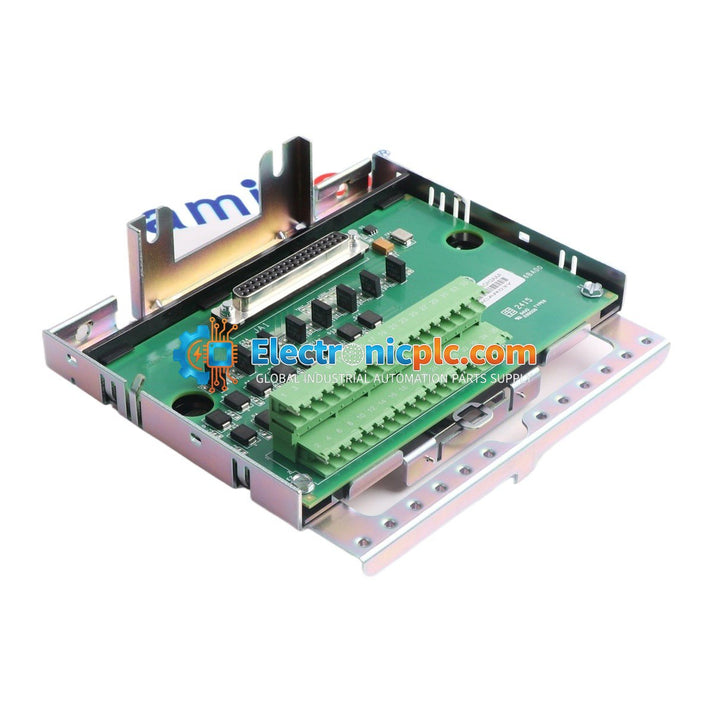

The General Electric IS230SNAOH2A is a terminal board designed for use within the Mark VIe control system. This component serves as a critical interface for analog output signals, providing reliable connectivity and signal routing for industrial control applications. As a core part of the Mark VIe series, it ensures high-performance signal integrity and system-wide compatibility.

Features

• Designed for the GE Mark VIe control series
• Supports 8 analog output channels
• Analog output current range: 0-20 mA
• Customer load resistance capacity: Up to 900 Ohms
• Utilizes surface mount technology for compact and reliable operation
• Operating temperature range: -30 to 65 degC

Technical Specifications

Installation Guidelines

• Ensure the control system is powered down before installing or removing the terminal board to prevent electrical damage.
• Handle the board using proper ESD (Electrostatic Discharge) protection measures to avoid damaging surface-mounted components.
• Ensure the board is securely seated in the designated Mark VIe rack slot to maintain proper electrical contact.
• Verify that all field wiring is properly terminated and shielded to minimize EMI/RFI interference.
• Maintain adequate ventilation around the control cabinet to ensure the operating temperature remains within the specified -30 to 65 degC range.

FAQ

What is the primary function of the IS230SNAOH2A?
The IS230SNAOH2A is a terminal board used in the Mark VIe system to facilitate 8 channels of analog output, typically used for controlling external actuators or process instruments.

Is the IS230SNAOH2A compatible with the IS200STAOH2AAA?
Yes, the IS200STAOH2AAA is listed as a spare or alternate model for this terminal board.

What is the maximum load resistance for this board?
The board supports a customer load resistance of up to 900 Ohms.
