Description

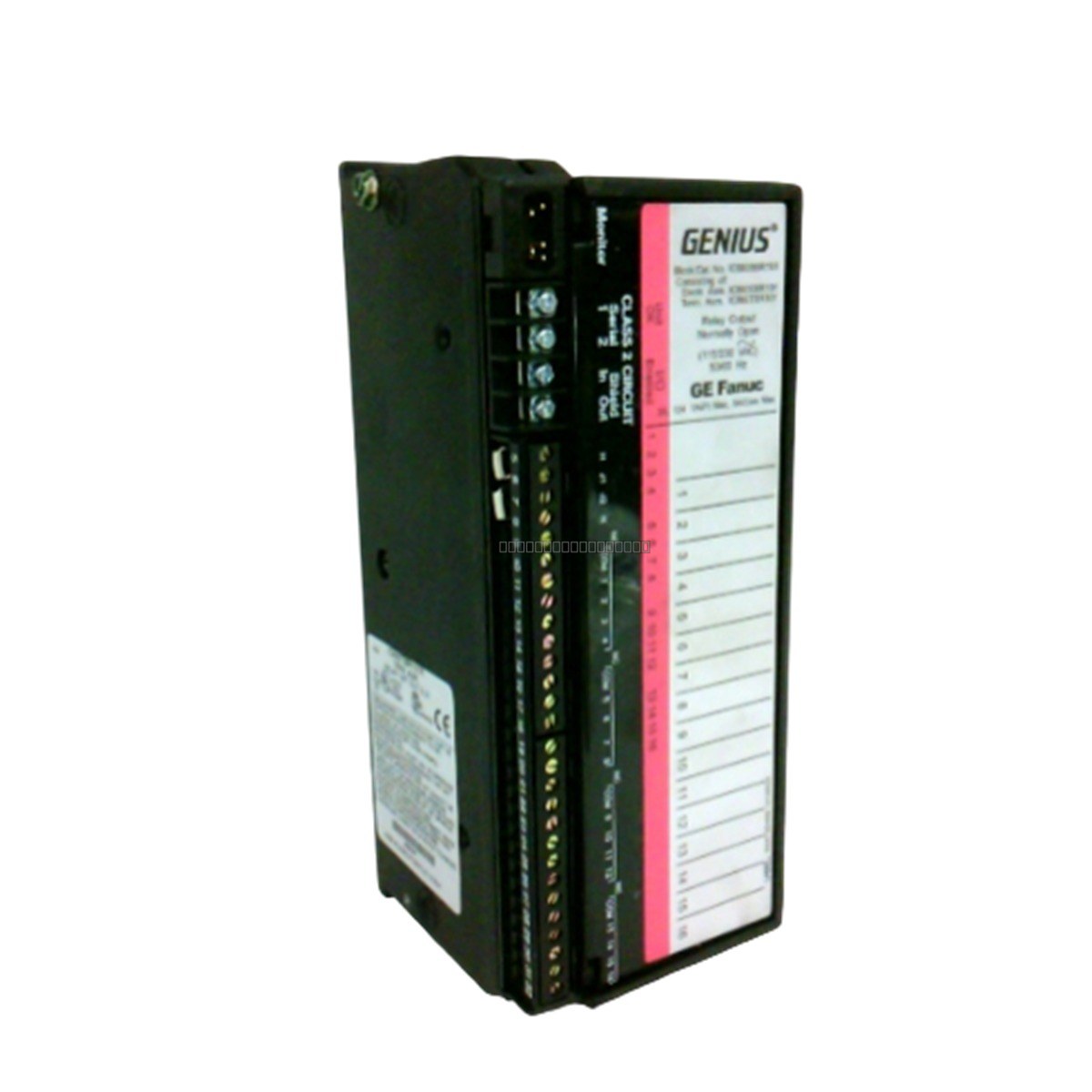

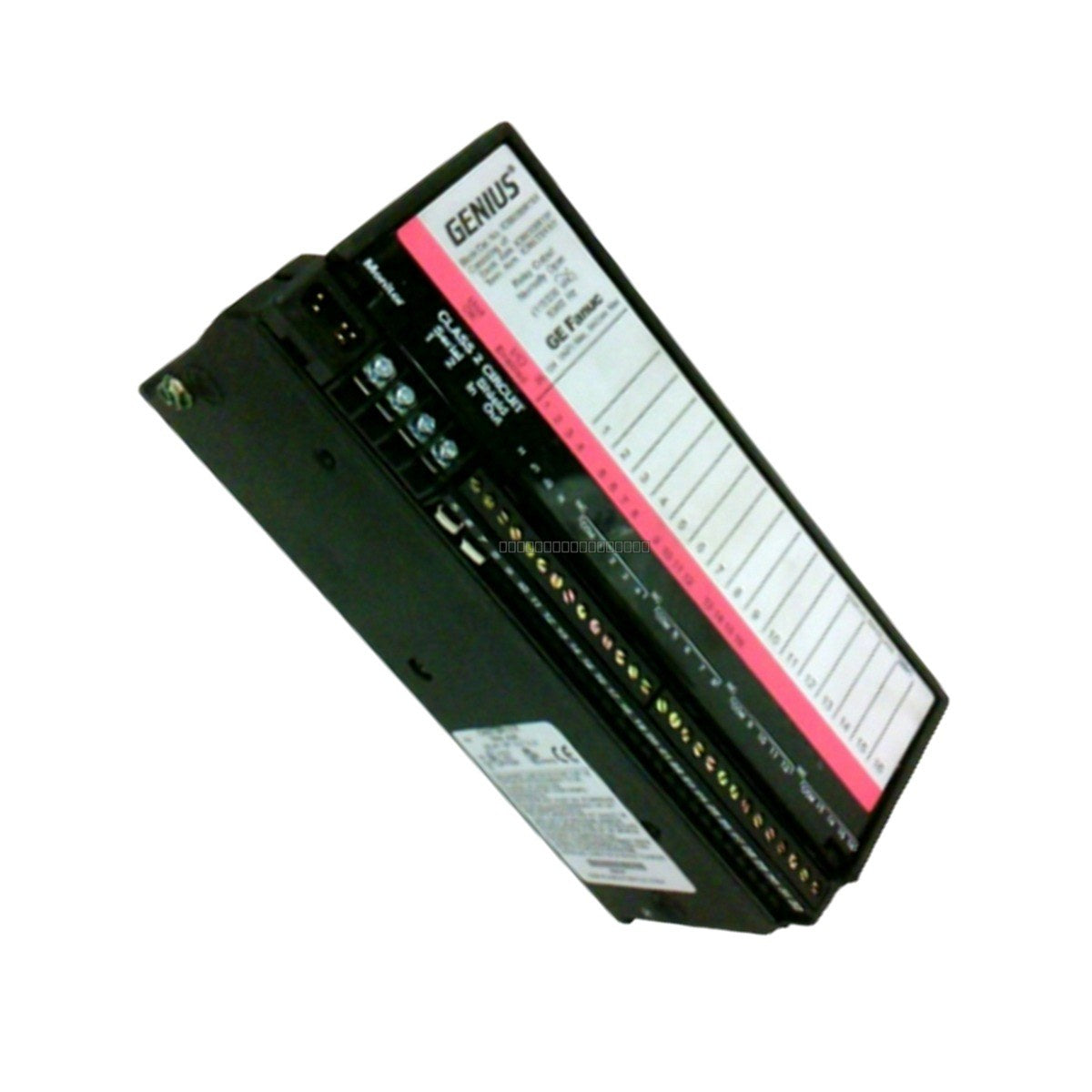

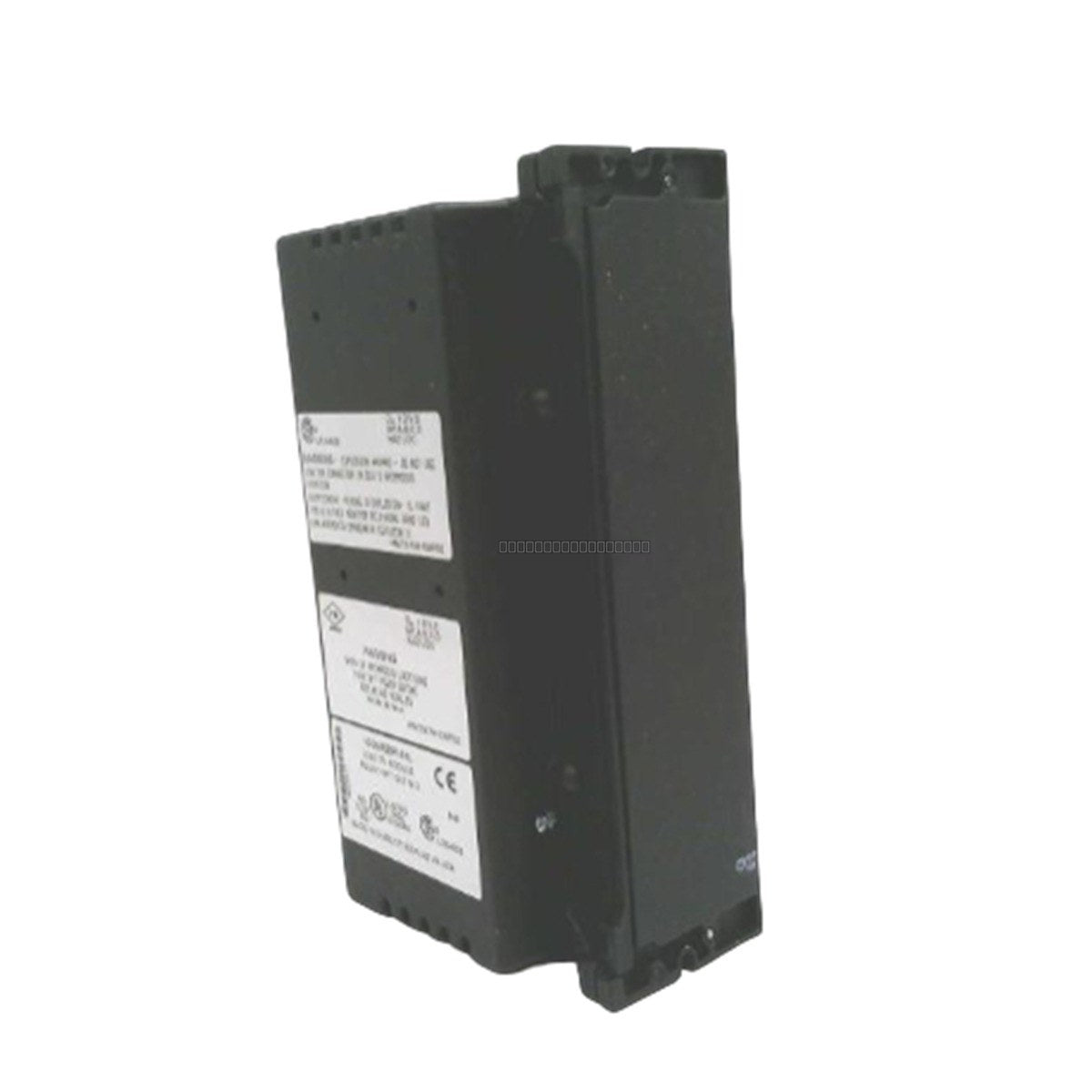

The General Electric IC660BBR101 is a 16-point Relay Output Block from the Genius I/O series. This module is designed for industrial control applications, providing reliable switching for output devices. It features a fixed coil and moving armature relay design, ensuring robust performance in demanding automation environments. The unit supports CPU redundancy, allowing for high-availability configurations in critical control systems.

Features

• 16 Normally Open (NO) relay outputs
• Supports CPU redundancy for enhanced system reliability
• Compatible with 115/230 VAC operating voltage ranges
• Designed for integration within the GE Genius I/O network architecture
• Fixed coil and moving armature relay construction

Technical Specifications

Installation Guidelines

• Ensure the control system power is disconnected before installing or removing the module.
• Mount the block in a location that allows for adequate ventilation to prevent overheating.
• Verify that the input voltage matches the specified operating range of the module before applying power.
• Ensure all field wiring is properly secured to the terminal blocks and that wire gauges meet local electrical standards.
• Maintain proper grounding practices to minimize electromagnetic interference (EMI) and ensure signal integrity.
• Handle the module with care to avoid damage to the internal relay components and electronic circuitry.

FAQ

What is the primary function of the IC660BBR101?

The IC660BBR101 is a Genius I/O output block used to interface a PLC or controller with field devices, providing 16 relay-switched outputs for control signals.

Does this module support redundant CPU configurations?

Yes, the IC660BBR101 is designed to support CPU redundancy, which is essential for applications requiring high system uptime and fault tolerance.

What is the operating voltage range for this unit?

The module is designed to operate within 93 to 132 VAC or 185 to 265 VAC, covering standard 115 VAC and 230 VAC industrial supply levels.
