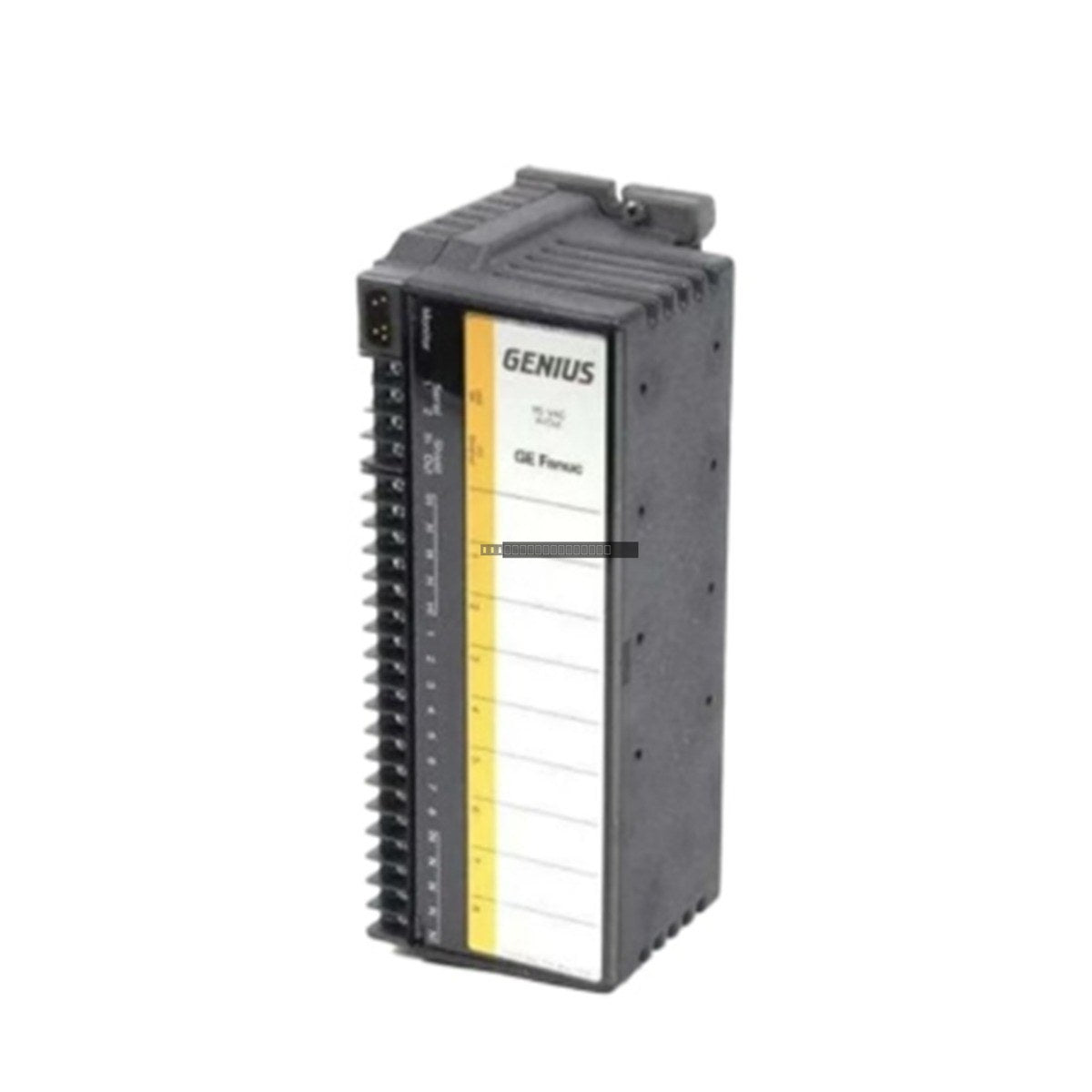

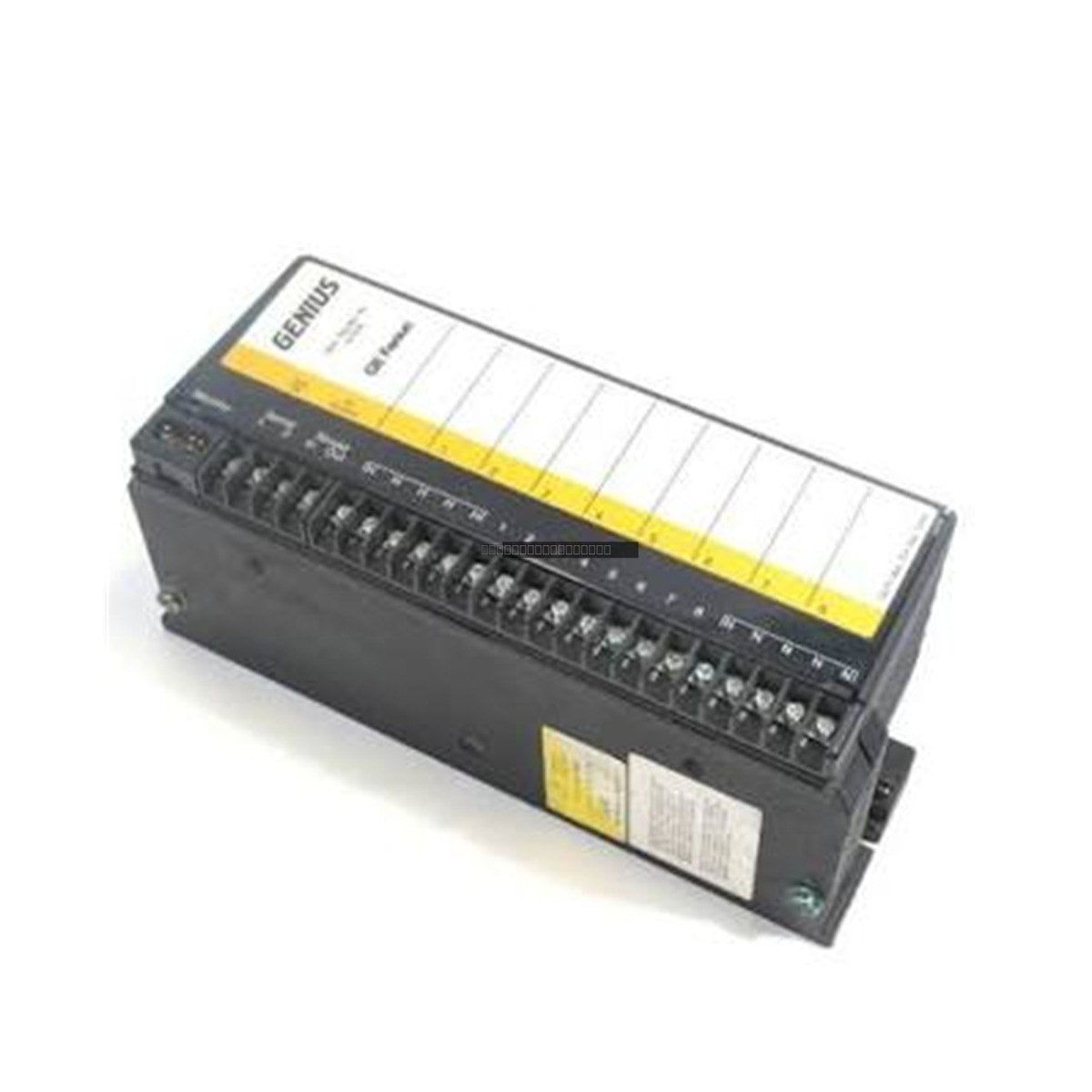

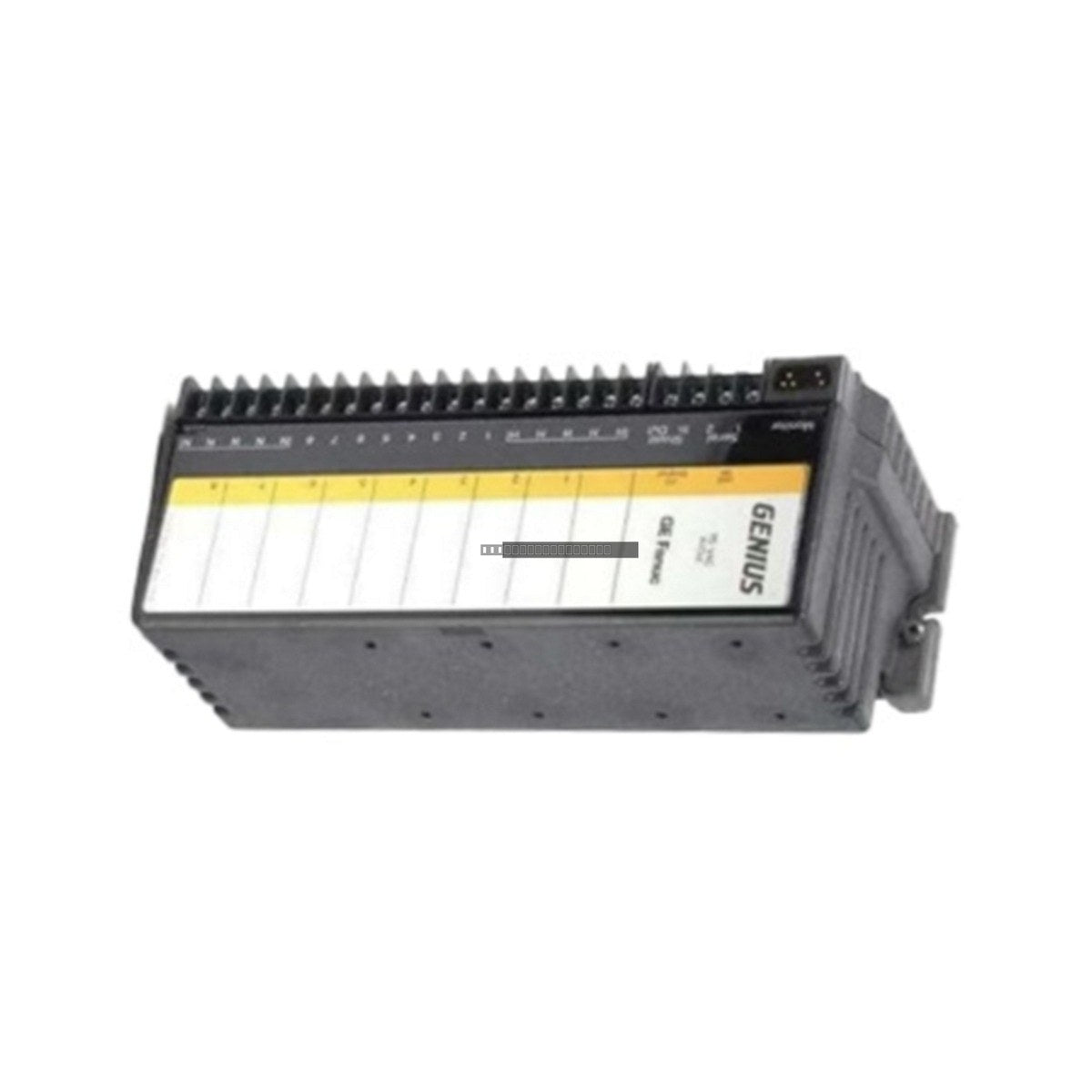

The General Electric IC660BBS101 is a component of the Genius I/O series, designed for reliable distributed control and data acquisition in industrial environments. This I/O block provides 8 circuits and is engineered to operate with a voltage rating of 115 Volts AC or 125 Volts DC, offering flexibility for various control system configurations.

Features

• 8-circuit I/O block configuration.
• Compatible with standard Genius I/O network architectures.
• Robust design suitable for industrial process control applications.
• Wide operating temperature range for diverse plant environments.

Applications

This module is typically utilized within GE Fanuc Genius I/O systems to facilitate communication between field devices and the primary controller. It is commonly found in manufacturing, power generation, and process automation facilities where distributed I/O is required for monitoring and control tasks.

Technical Specifications

Installation Guidelines

• Ensure the control system power is disconnected before installing or removing the module from the I/O rack.
• Verify that the mounting surface is clean and provides adequate clearance for heat dissipation.
• Use appropriate shielded cabling for Genius I/O bus connections to minimize electromagnetic interference (EMI).
• Ensure all terminal connections are secure and properly torqued to prevent intermittent signal loss.
• Handle the module using standard ESD (Electrostatic Discharge) precautions to protect internal circuitry.

FAQ

What is the primary function of the IC660BBS101?
The IC660BBS101 is an 8-circuit I/O block used in the Genius I/O system to interface field signals with the control network.

Does this module include failed switch diagnostics?
No, this specific model (IC660BBS101) does not include failed switch diagnostic capabilities.

What is the operating temperature range?
The module is designed to operate between 32 and 140 degrees Fahrenheit (0 to 60 degrees Celsius).
