Description

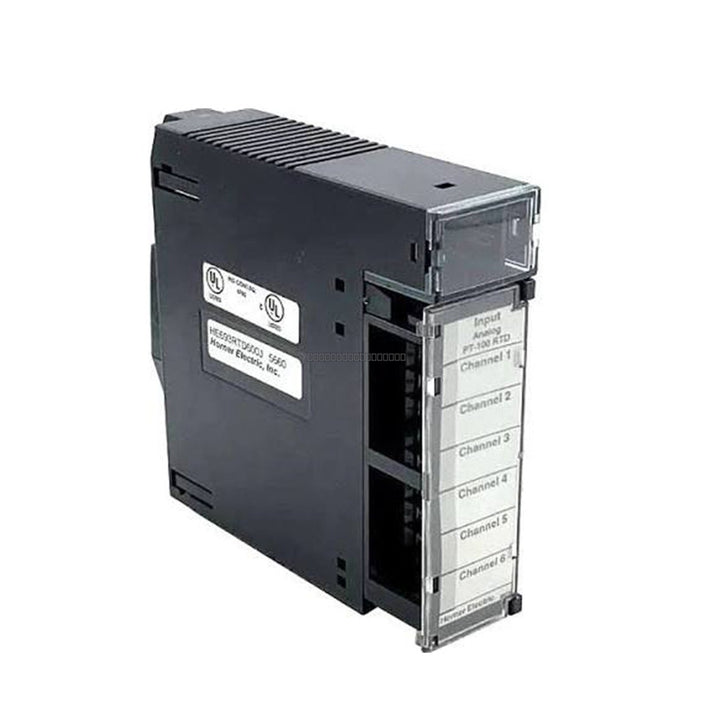

The HE693RTD600 is a high-precision 6-channel Resistance Temperature Device (RTD) input module designed for the GE Fanuc Series 90-30 PLC platform. This module enables direct connection of various RTD sensors, providing reliable temperature data acquisition without the need for external signal conditioning. It features 16-bit A/D conversion and robust fault protection, making it suitable for demanding industrial temperature monitoring applications.

Features

• 6-channel RTD input support for flexible sensor integration.
• 16-bit integrating A/D conversion for high-resolution data.
• Fault protection via Zener diode clamp for enhanced reliability.
• High input impedance (>1000 Meg Ohm) ensuring superior signal integrity.
• Integrated LED indicators for real-time status monitoring and fault identification.
• Built-in diagnostics for internal health checks and signal irregularity detection.
• Supports a wide range of RTD types including PT-100, Ni-120, Cu-10, and linear resistors.

Technical Specifications

Installation Guidelines

• Ensure the PLC rack is powered down before inserting or removing the module to prevent electrical damage.
• Install the module in an available slot within the Series 90-30 baseplate.
• Use shielded twisted-pair cabling for RTD connections to minimize EMI/RFI interference.
• Ensure proper grounding of cable shields at the module terminal block or designated ground point.
• Verify that the module is configured correctly in the PLC software, specifically setting the %AI size to 6.
• Maintain adequate ventilation around the PLC rack to ensure the ambient temperature remains within the 0 to 60 degC operating range.

FAQ

What is the HE693RTD600?

It is a 6-channel RTD input module designed for the GE Fanuc Series 90-30 PLC, allowing direct connection of RTD sensors for temperature monitoring.

What types of sensors does HE693RTD600 support?

The module supports various sensors including PT-90, PT-100 (multiple alpha values), Ni-120, Cu-10, Cu-50, Cu-53, Cu-100, Pt-1000, TD5R, and linear resistors.

What are the power requirements?

The module consumes 75 mA at 5 VDC from the PLC backplane.

How is the module configured?

Configuration is performed via the PLC software, requiring the setting of five parameters, including the %AI size (set to 6) and specific byte configurations as outlined in the technical manual.
