Product Overview

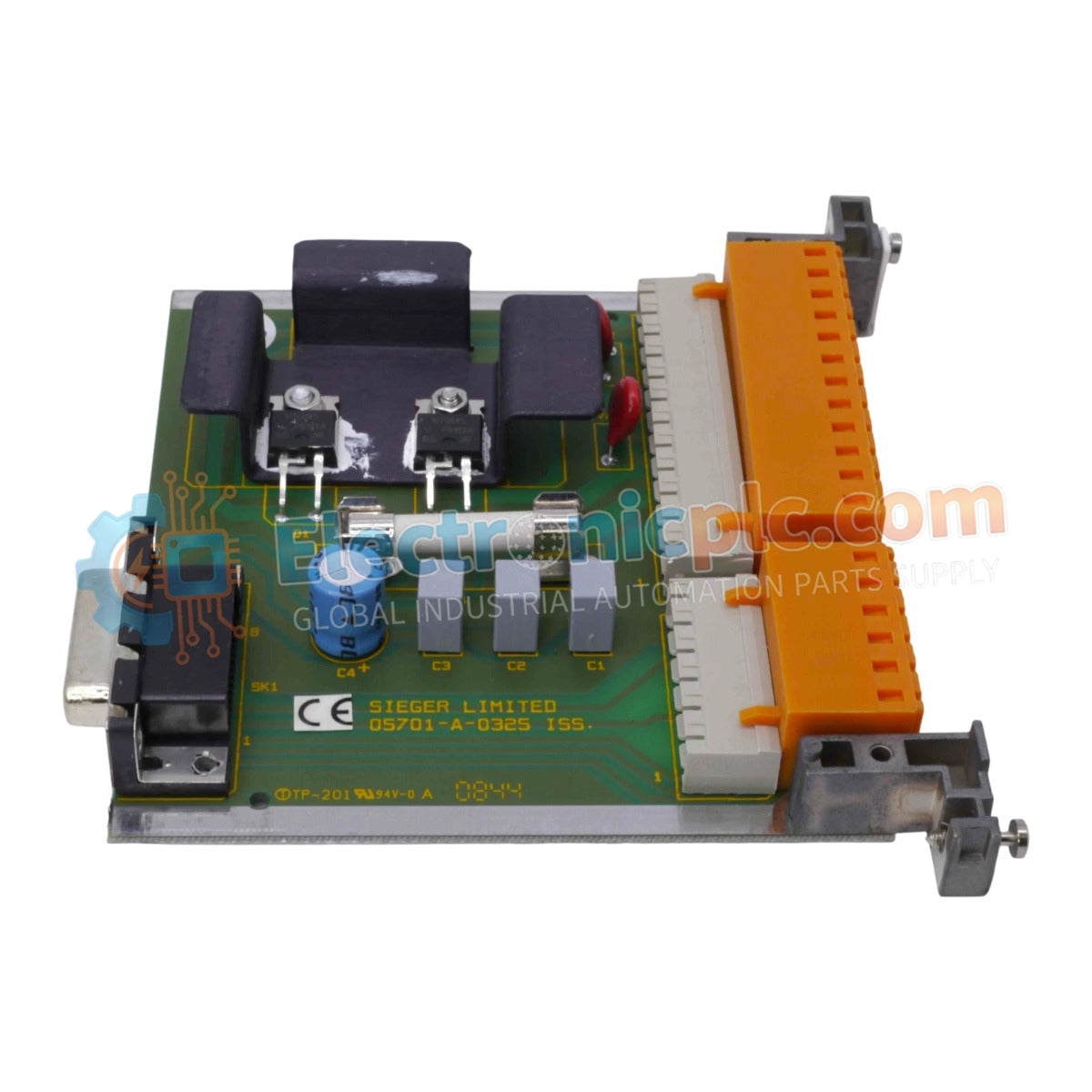

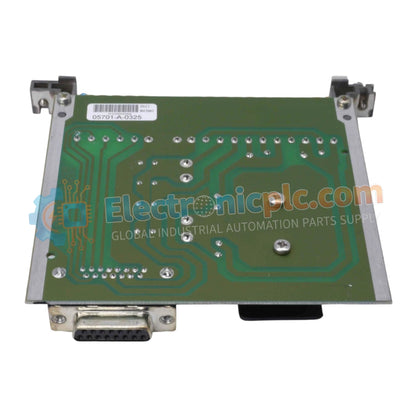

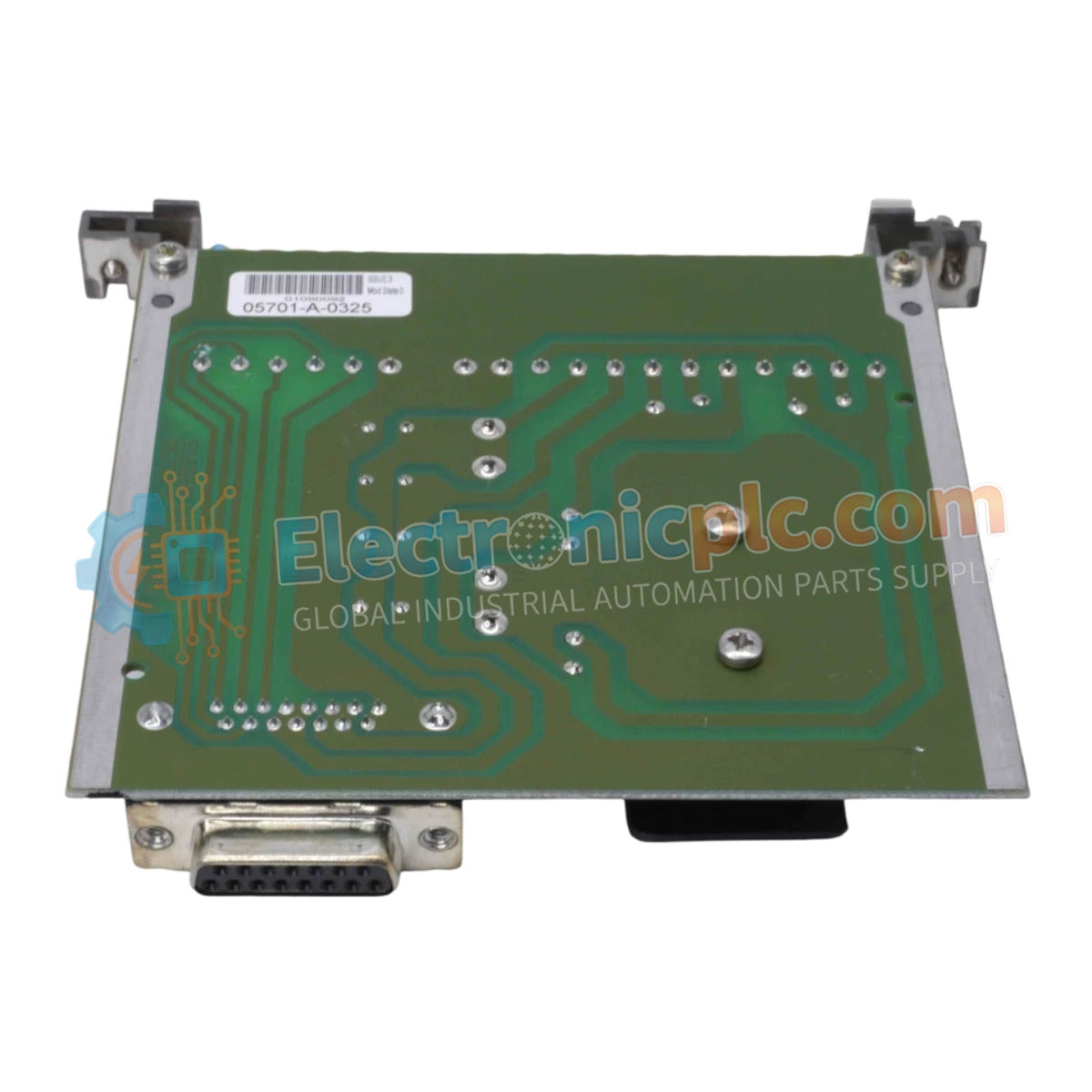

The Honeywell 05701-A-0325 functions as a high-performance DC Input Card for industrial automation environments. It captures external DC voltage signals and converts them into precise digital data for real-time monitoring and logic control. This 100% brand new unit ensures seamless signal integration across diverse control loops.

Technical Specifications

Engineering Advantages

Versatile Signal Handling
The module processes a wide range of DC voltages, eliminating the need for external signal conditioners in many standard automation architectures.

Configurable Resolution
Engineers adjust the 12-bit or 16-bit resolution settings to balance between data throughput and precision based on specific process requirements.

High-Current Relay Integration
Integrated relays handle up to 2A per channel, allowing direct connection to field actuators and reducing auxiliary hardware footprints.

Compact Form Factor
The 120 × 75 × 25 mm frame optimizes cabinet space in densely populated control panels.

Thermal Resilience
The robust design maintains operational integrity in extreme industrial climates ranging from –20°C to +60°C.

FAQs

Does this unit support direct replacement for older Honeywell input modules?
Yes, the 05701-A-0325 serves as a direct upgrade for existing systems requiring standard DC voltage input processing.

How do technicians configure the bit resolution?
Technicians configure the resolution via the system software interface during the initial module commissioning phase.

Can the relay outputs drive inductive loads directly?
The relays support 2A per channel, but users should install flyback diodes or appropriate suppression hardware when driving highly inductive loads to extend contact life.

Does the module require external power for input isolation?
The module operates on 24 VDC; however, users should ensure common-mode voltages remain within the specified range for accurate signal conversion.
