The Honeywell 2MLF-AC8A is an 8-channel analog input module designed for the MasterLogic-200 series. This 100% brand new module converts current signals into accurate digital data for industrial...
التوافر: الكمية المتبقية: 99
توصيل موثوق به في جميع أنحاء العالم
ضمان استرداد الأموال خلال 30 يومًا
هل تحتاج إلى مزيد من التفاصيل؟ اقرأ سياسة الشحن وسياسة الاسترداد الكاملة.

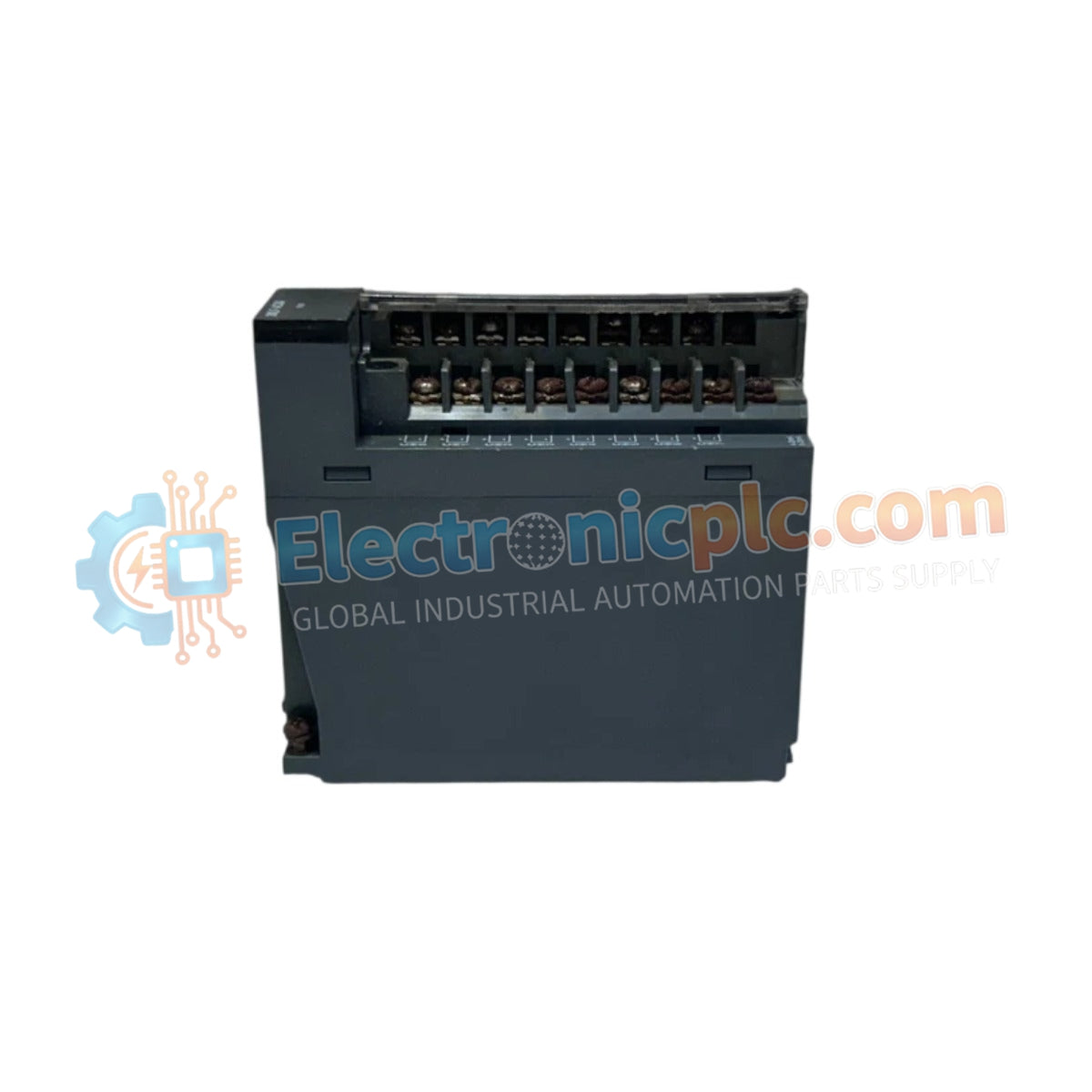

The Honeywell 2MLF-AC8A is an 8-channel analog input module designed for the MasterLogic-200 series. This 100% brand new module converts current signals into accurate digital data for industrial monitoring and control applications.
| Specification | Details |
|---|---|
| Model Number | 2MLF-AC8A |
| Series | MasterLogic-200 |
| Channels | 8 |
| Input Range | 4–20 mA, 0–20 mA |
| Resolution | 16-bit |
| Conversion Speed | 250 µs/channel |
| Input Resistance | 250 Ω |
| Maximum Input | ±15V, ±30 mA |
| Isolation | Photo-coupler isolation |
| Mounting | DIN rail |
| Dimensions | 125 × 50 × 130 mm |
| Weight | 0.14 kg |
| Operating Temperature | –20°C to +60°C |
High-Speed Conversion
Fast 250 µs/channel processing improves response time.
Accurate Signal Processing
16-bit resolution ensures precise analog data acquisition.
Compact Installation
DIN rail design saves cabinet space.
Reliable Isolation
Photo-coupler isolation protects PLC systems from electrical interference.
What input signals are supported?
The module supports 4–20 mA and 0–20 mA current signals.
Is the module DIN rail mountable?
Yes, it is designed for DIN rail installation.
Does the module provide electrical isolation?
Yes, it includes photo-coupler isolation between inputs and PLC power.
