Product Overview

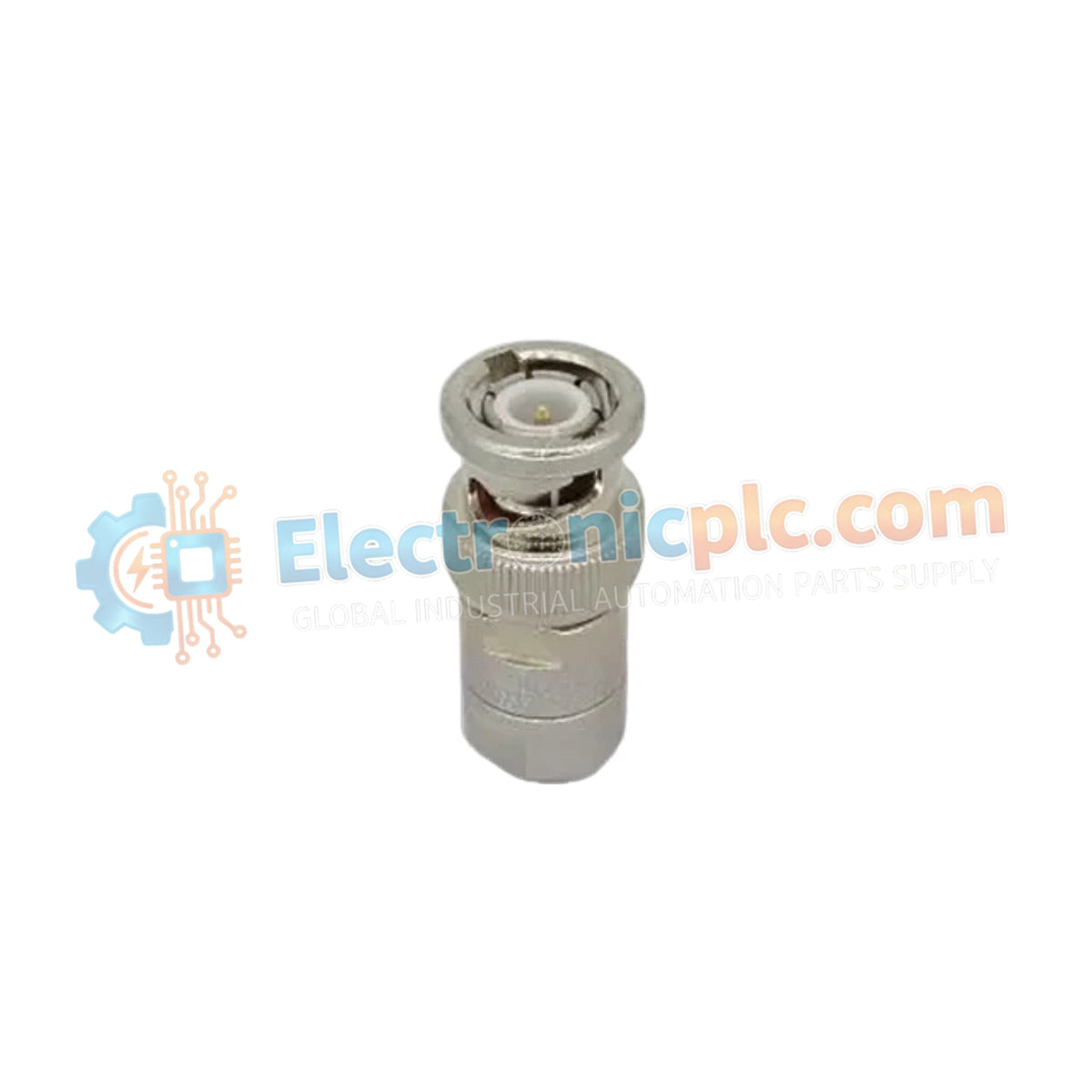

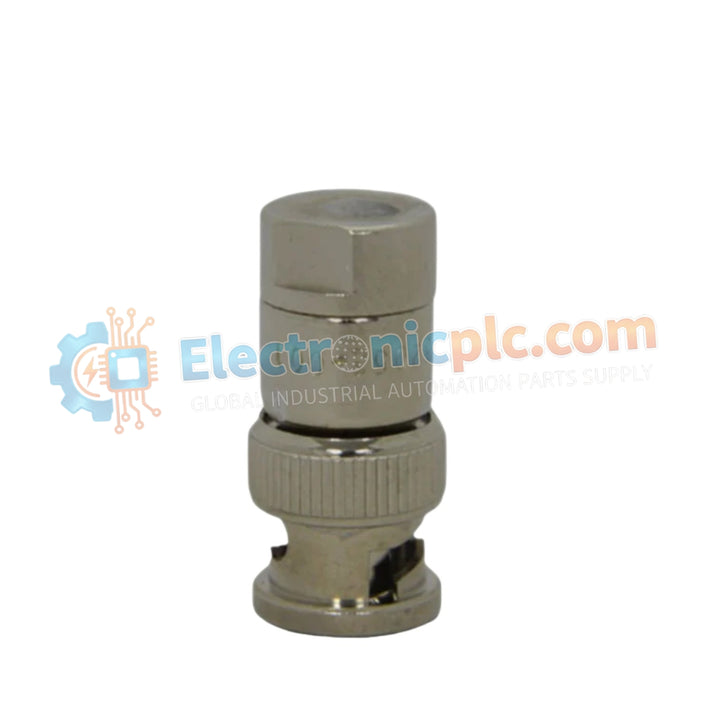

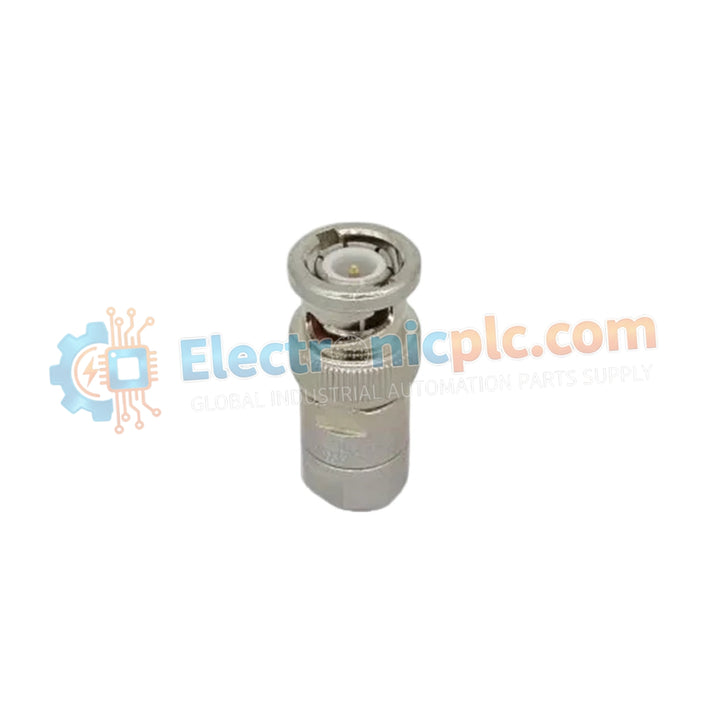

The Honeywell 30732052-001 functions as a precision-engineered 75-Ohm BNC male plug terminator designed for high-frequency coaxial data links within Honeywell process automation and control networks. This coaxial component matches the characteristic impedance of the transmission line, absorbing trailing electrical signals at the open end of a network segment or device port. By preventing signal reflections from bouncing back along the cable, the unit maintains clean waveform patterns and eliminates data corruption in critical communication lines. We supply this product as 100% brand new, authentic factory-original stock manufactured in the USA, ensuring precise electrical tolerances and robust physical durability for your network infrastructure.

Technical Specifications

Model Number: 30732052-001

Product Type: Coaxial Plug Terminator

Connector Type: BNC Male (Bayonet Neill–Concelman)

Characteristic Impedance: 75 Ohms

Country of Origin: United States of America (USA)

Physical Dimensions: 3.2 cm Length × 1.2 cm Width × 1.2 cm Height

Net Weight: 0.5kg

Body Construction: Heavy-duty industrial metal alloy

Engineering Advantages

Impedance-Matched Reflection Elimination: The internal resistive element provides an exact 75-Ohm termination path. This matches standard industrial video and high-speed data cables, stopping the signal echoes that cause jitter, packet loss, and data framing errors in high-frequency environments.

Rugged Bayonet Coupling: The standard BNC male interface features a secure bayonet locking mechanism. Technicians can twist-lock the terminator onto any open female BNC port instantly, establishing a vibration-proof connection that resists accidental dislodging.

High-Density Thermal Mass: The robust 350 g construction provides excellent thermal dissipation and structural rigidity, allowing the terminator to maintain its exact internal resistance value even when subjected to ambient temperature fluctuations inside crowded control cabinets.

Shielded Industrial Design: The solid metal enclosure shields the internal resistive load from surrounding electromagnetic interference (EMI) and radio frequency interference (RFI), preventing the terminator from acting as an antenna for environmental noise.

FAQs

Is this Honeywell 30732052-001 terminator brand new or a surplus item?

We sell this product strictly as a 100% brand new, original factory component. It arrives in its original packaging with fresh, unmarred mating surfaces to guarantee a low-resistance contact point.

Can I use this 75-Ohm terminator on a 50-Ohm BNC network bus?

No. You must match the terminator impedance directly to the cable and system specifications. Mixing a 75-Ohm terminator with a 50-Ohm system creates an impedance mismatch, which causes the exact signal reflections you are trying to prevent.

Where does this specific Honeywell BNC plug terminator come from?

Honeywell manufactures the 30732052-001 plug terminator in the USA, adhering to high-grade industrial hardware and electronic performance standards
