Description

The Honeywell 51153818-202 is a specialized node address jumper designed for use with Honeywell I/O modules, specifically the RUSIO-3224 and RUSLS-3224 series. This component is essential for configuring the processor node address within the IOTA (Input/Output Terminal Assembly), ensuring correct communication and identification within the control system architecture.

Features

• Designed for precise node address configuration in IOTA assemblies.
• Compatible with RUSIO-3224 and RUSLS-3224 module series.
• Constructed from durable gray plastic for industrial environments.

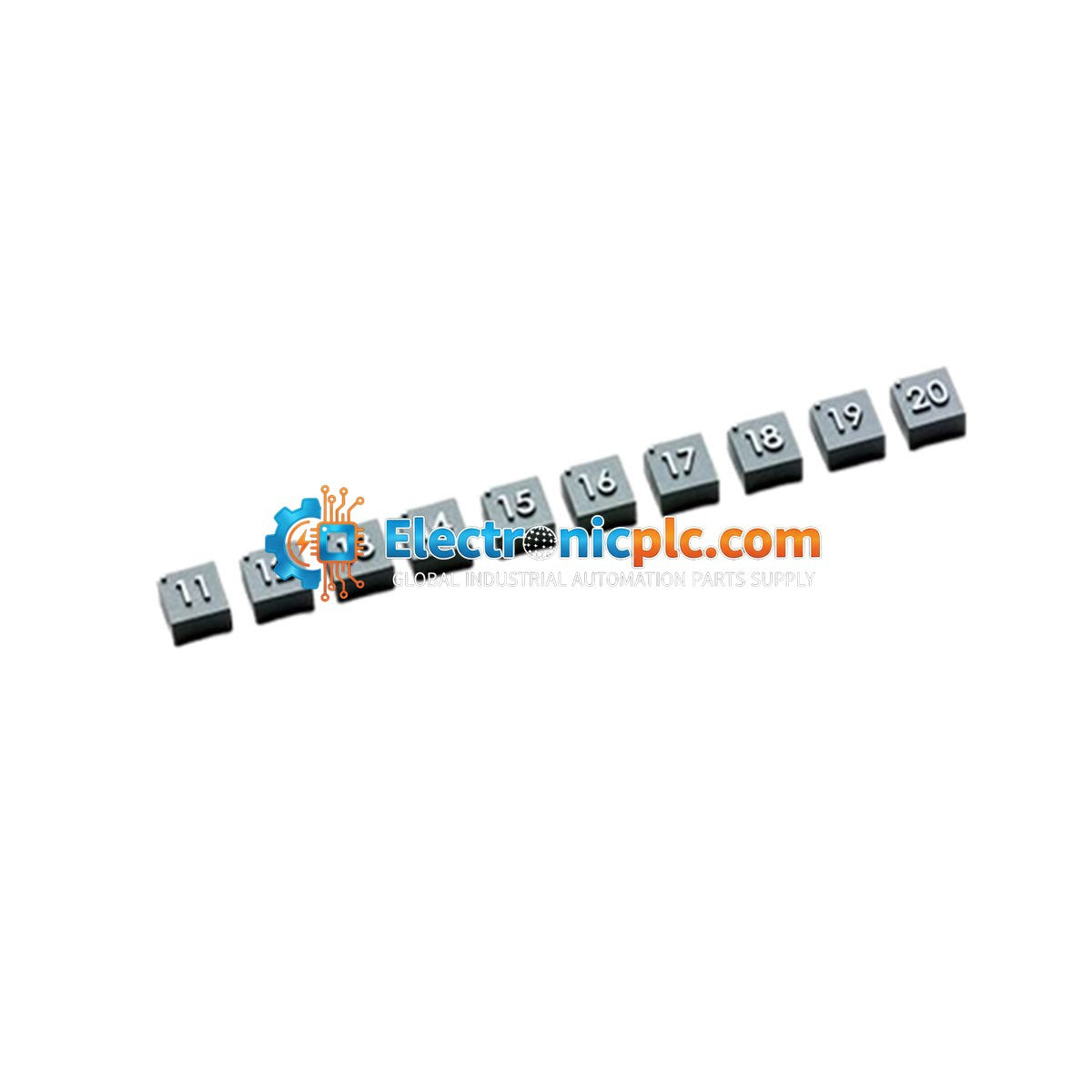

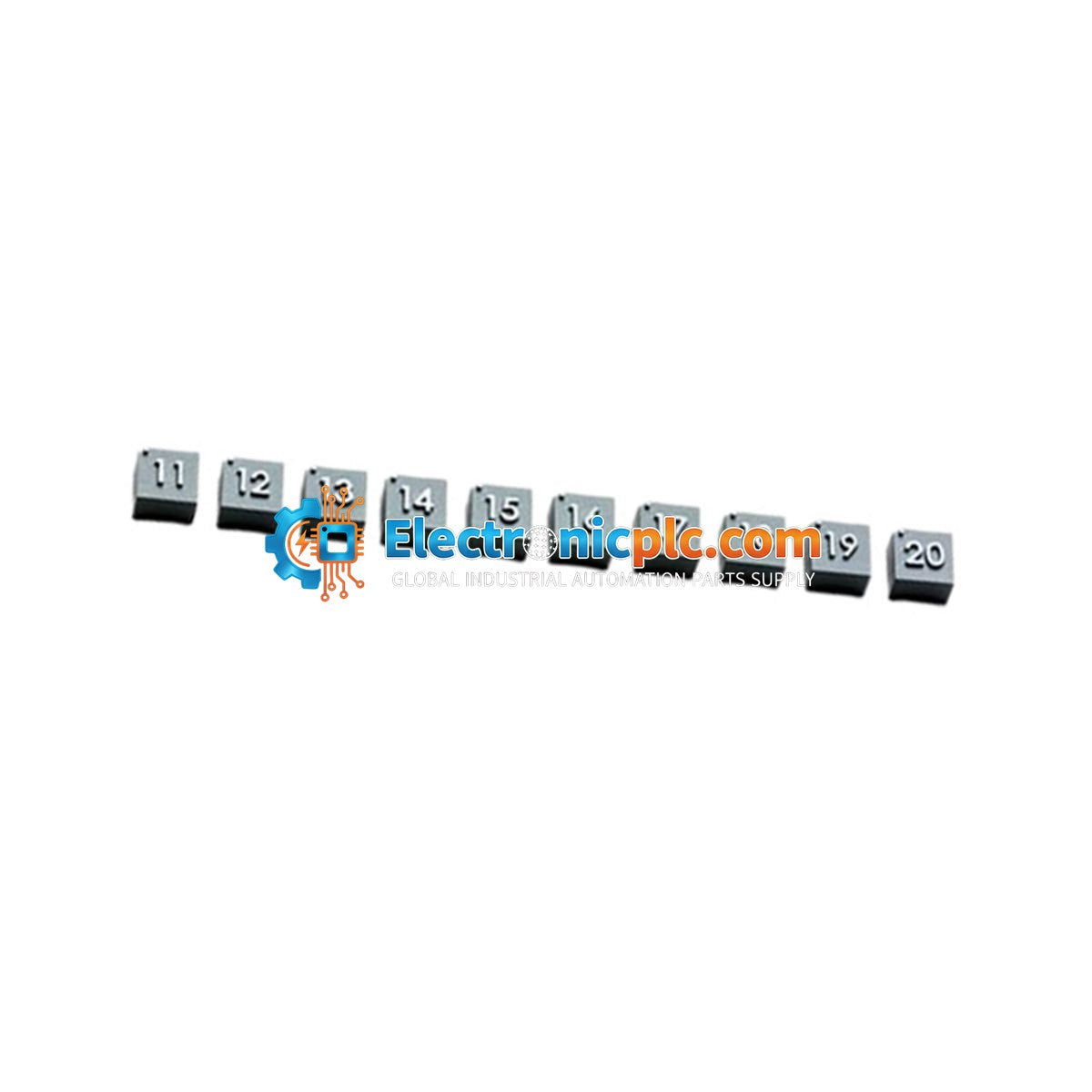

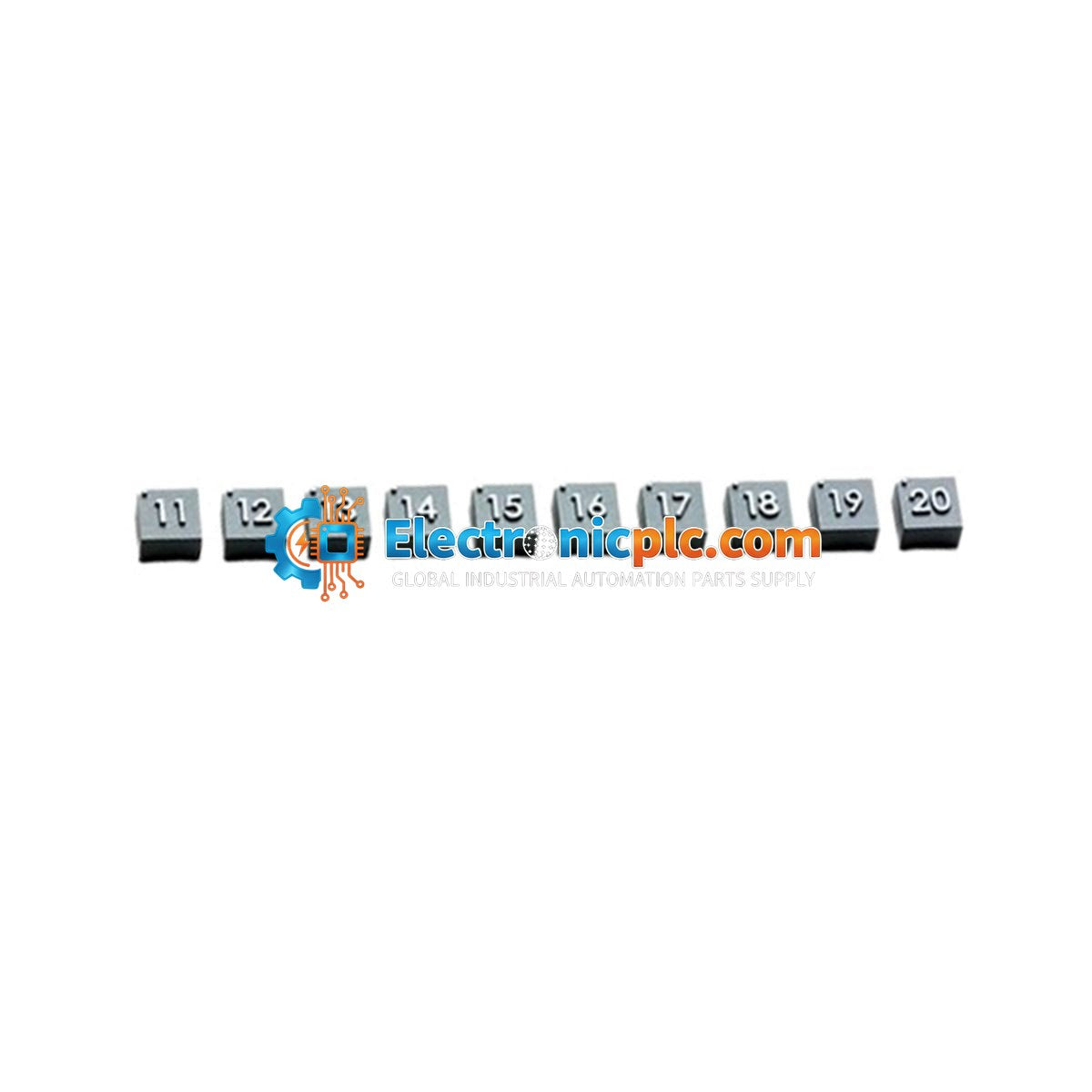

• Features a clearly visible two-digit identifier for easy verification during installation and maintenance.

Applications

This jumper is utilized in Honeywell distributed control systems (DCS) where specific node addressing is required for I/O modules to interface correctly with the processor. It is a critical component for system commissioning and hardware configuration.

Technical Specifications

Installation Guidelines

• Ensure the control system is powered down before attempting to install or remove any jumpers or modules to prevent electrical faults.
• Handle the jumper with care to avoid damaging the contact pins or the plastic housing.
• Verify the two-digit identifier on the jumper matches the required node address configuration specified in your system documentation.
• Ensure the jumper is fully seated in the designated IOTA slot to maintain reliable electrical contact.
• Follow standard ESD (Electrostatic Discharge) precautions when handling electronic components to prevent damage to the IOTA or module circuitry.

FAQ

What is the primary function of the 51153818-202 jumper?

This jumper is used to set the node address for processors within the RUSIO-3224 or RUSLS-3224 modules, allowing the IOTA to correctly identify and communicate with the module.

Is this jumper compatible with other Honeywell modules?

The 51153818-202 is specifically designated for use with the RUSIO-3224 and RUSLS-3224 series. Please consult your specific system hardware manual to confirm compatibility before installation.
