Description

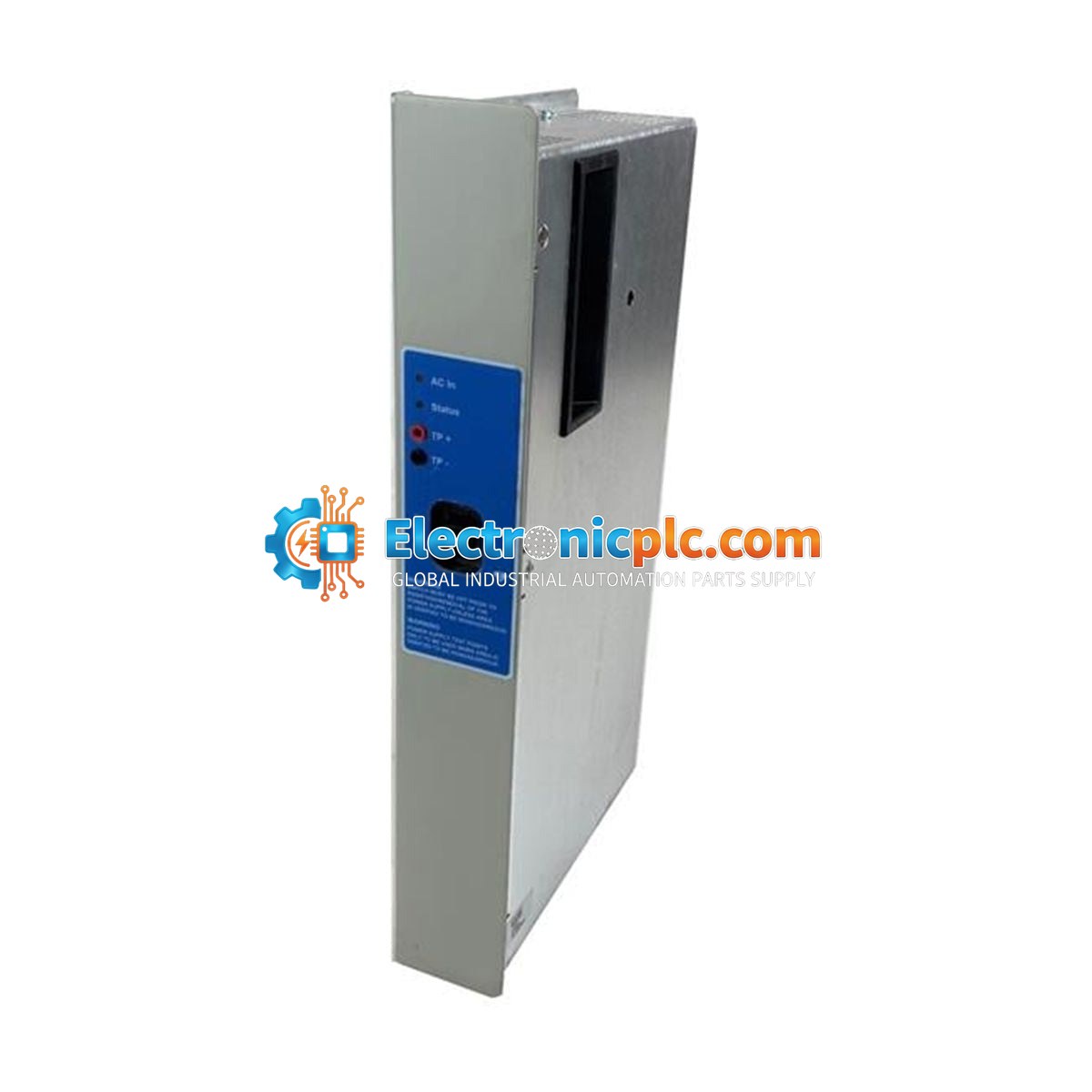

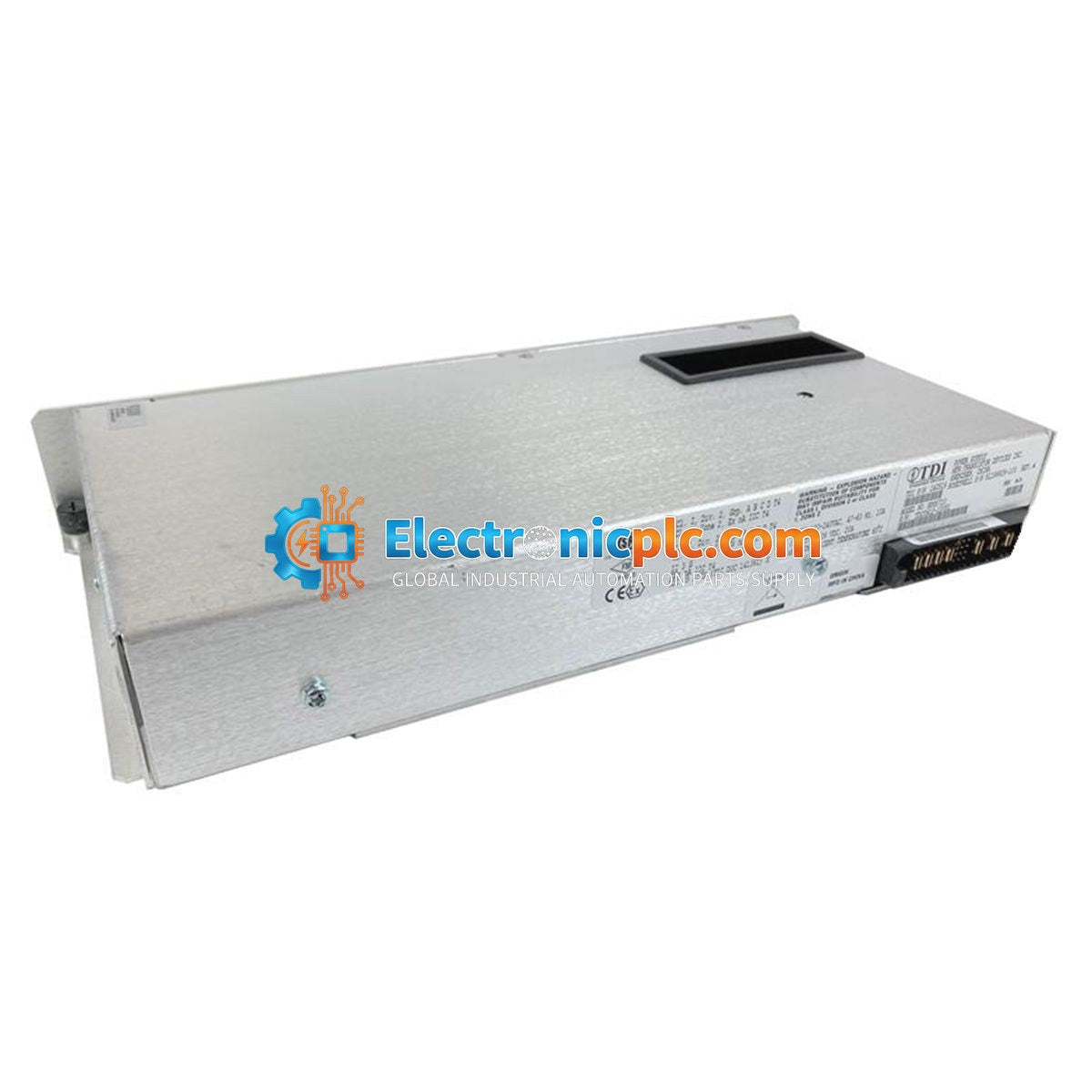

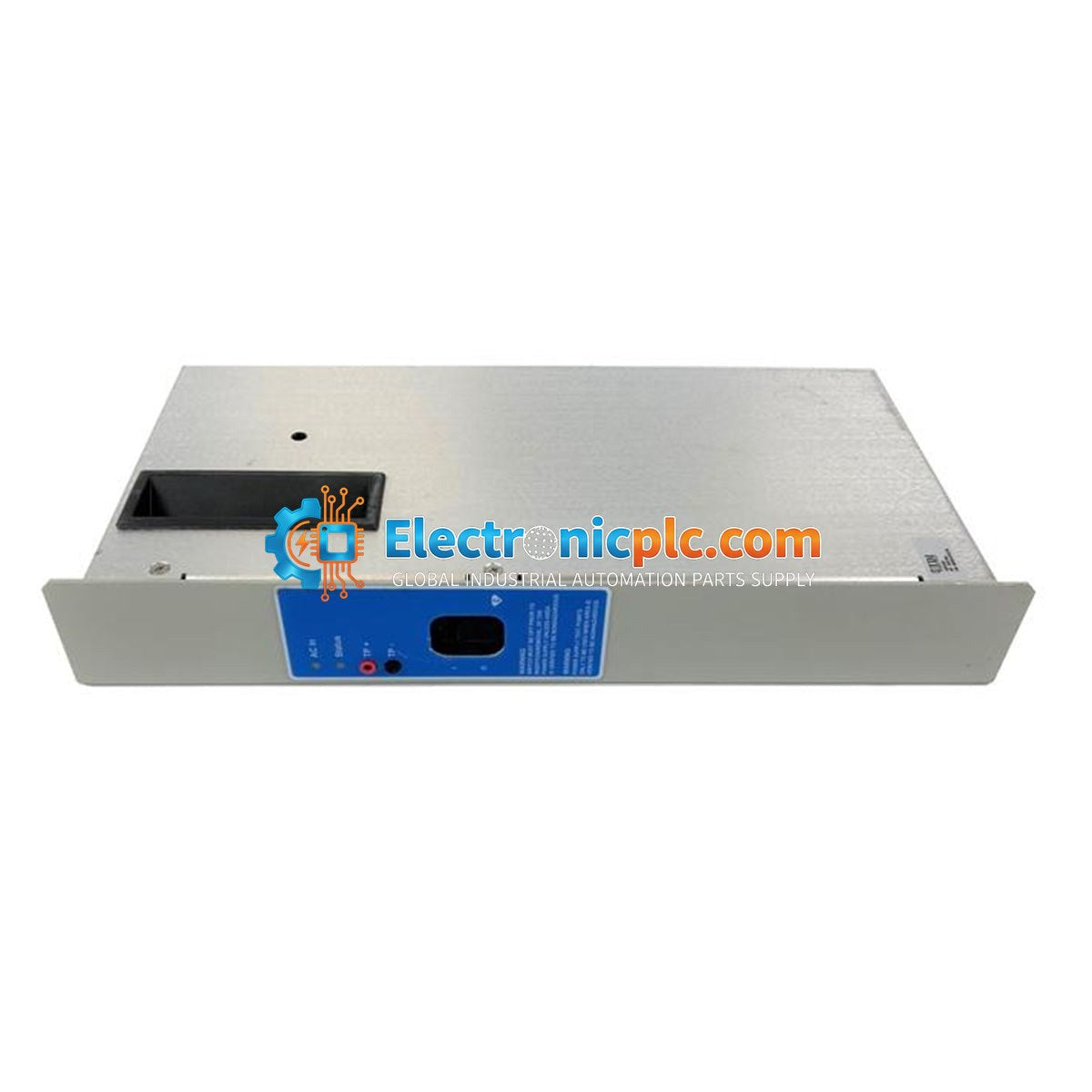

The Honeywell 51199929-100 (SPS5710) is a robust industrial power supply module engineered for reliable AC to DC power conversion in process automation control systems. This unit provides a stable, regulated 24 to 26 VDC output, essential for maintaining the operational integrity of PLC racks, I/O subsystems, and distributed control hardware in demanding industrial environments.

Features

• High-Capacity Output: Delivers up to 20 A of regulated DC power to support extensive control system loads.
• Universal Input Range: Supports 100 to 240 VAC input at 47 to 63 Hz, ensuring compatibility with diverse global industrial power grids.
• Hazardous Area Rated: Designed for deployment in Class I Division 2 and Zone 2 hazardous locations.
• Integrated Protection: Features internal circuitry for overload, overvoltage, and thermal stress management to safeguard connected components.
• Industrial Durability: Built with reinforced insulation and high-grade components for continuous duty in harsh electrical environments.

Applications

This power supply is specifically designed for critical infrastructure, including oil and gas facilities, power generation plants, and large-scale manufacturing systems where consistent power distribution is required to minimize control system downtime.

Technical Specifications

Installation Guidelines

• Power-Down: Always disconnect the main AC power source before installing or removing the module from the rack.
• Mounting: Ensure the module is securely seated in the designated chassis slot to maintain proper electrical contact and structural stability.
• Cooling: Maintain adequate clearance around the module to allow for natural convection cooling; avoid blocking ventilation paths.
• Grounding: Follow standard industrial grounding practices for the control cabinet to minimize EMI and ensure safety.
• Wiring: Use appropriate wire gauges for the input and output connections to handle the 10 A input and 20 A output current ratings safely.

FAQ

What is the primary function of the Honeywell 51199929-100?

This module serves as a high-efficiency AC to DC power supply, converting standard industrial AC voltages into a regulated 24-26 VDC output for powering automation control hardware.

Is this module suitable for hazardous locations?

Yes, the 51199929-100 is rated for Class I Division 2 and Zone 2 hazardous area environments, making it suitable for use in facilities with potential explosive atmospheres.

What is the maximum output current for this power supply?

The module is rated for a continuous output current of up to 20 A under standard operating conditions.
