Description

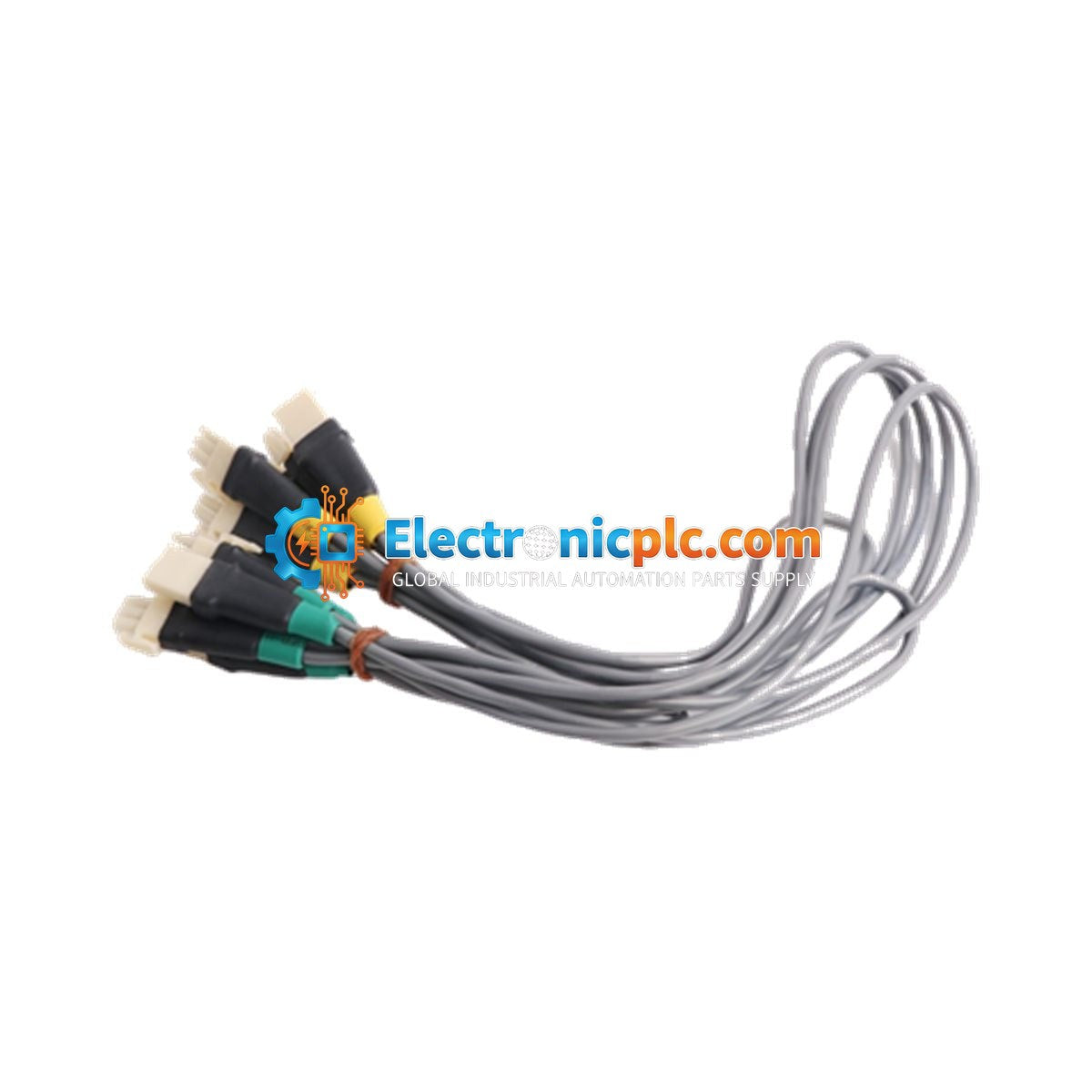

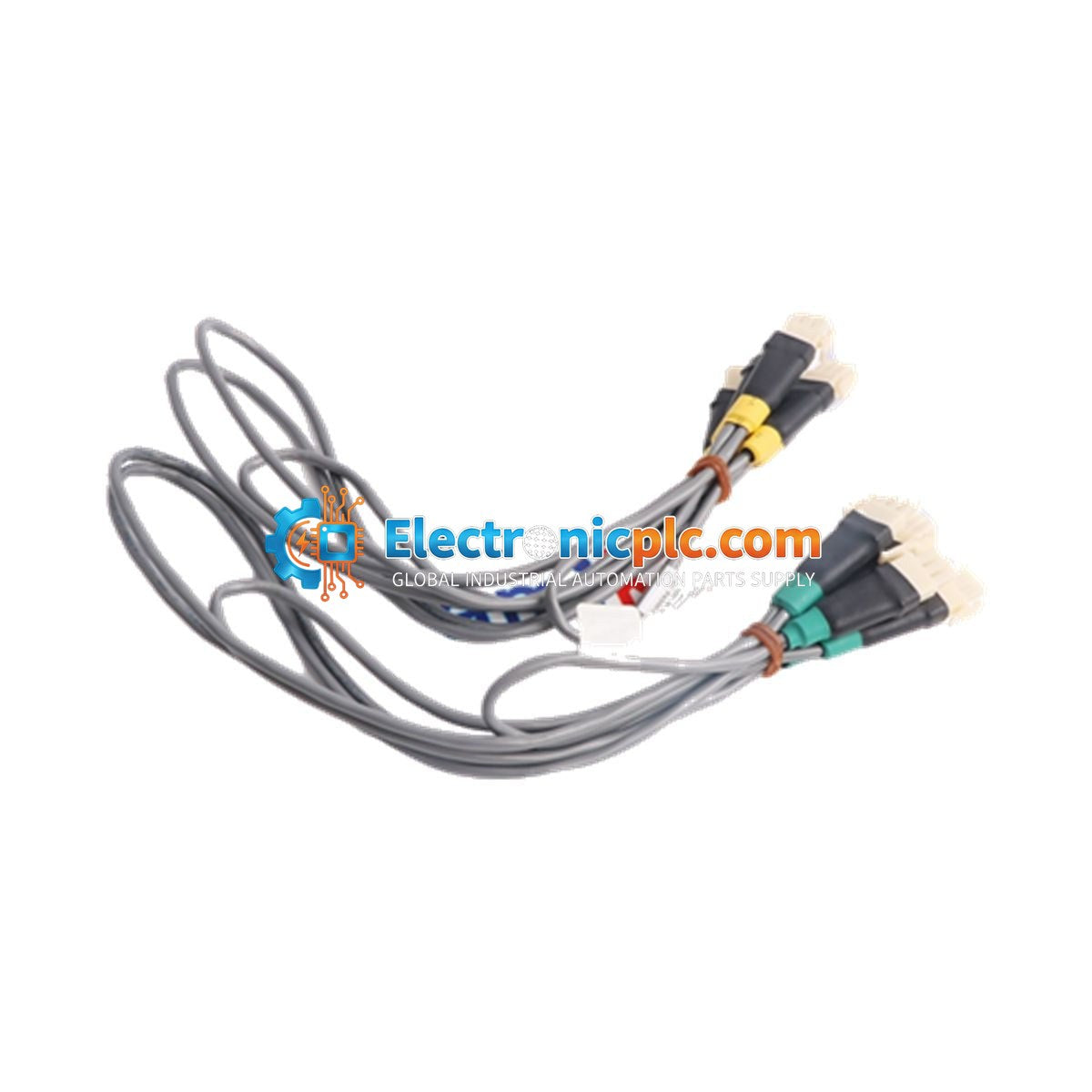

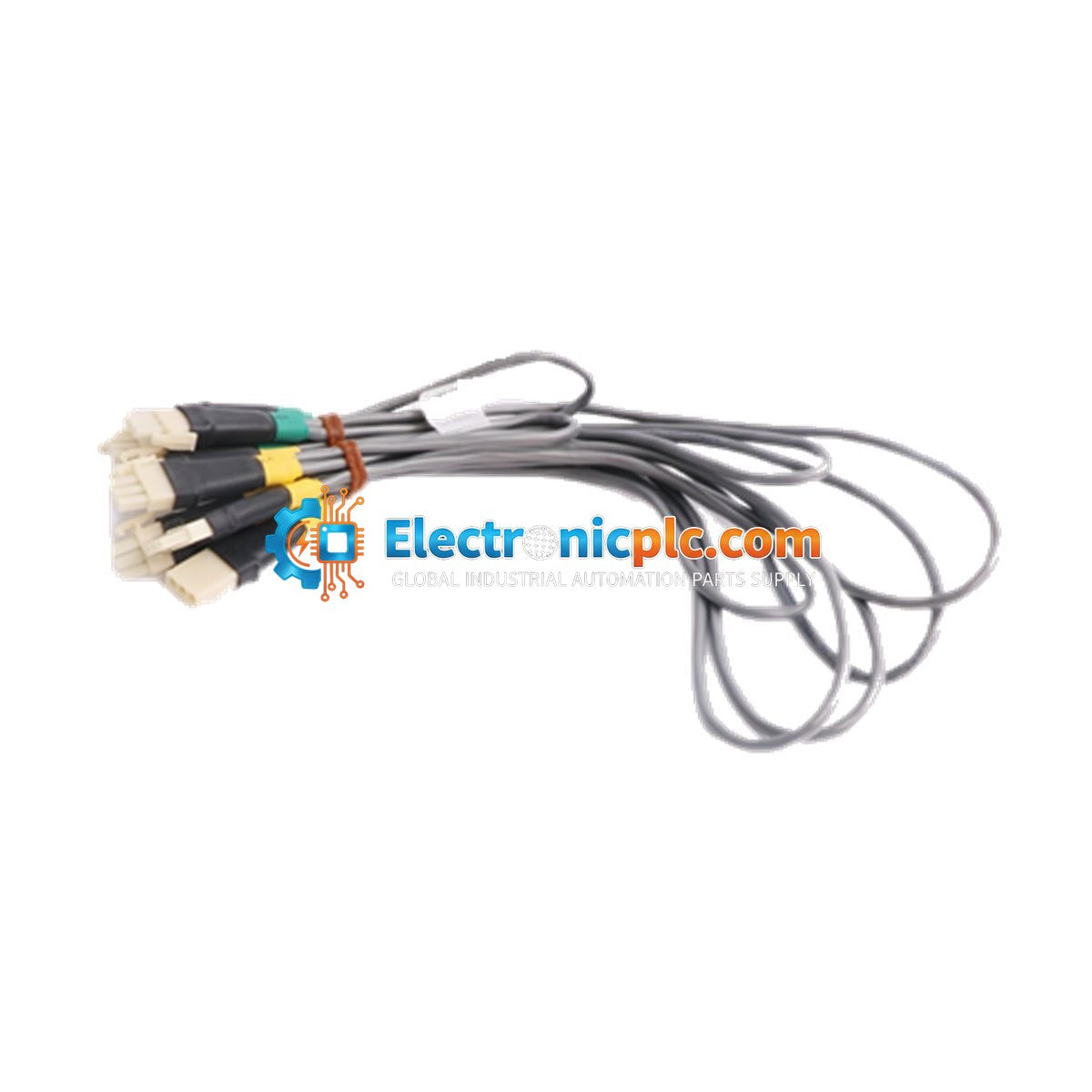

The Honeywell 51202329-102 is a specialized I/O link cable designed for reliable signal and power transmission within Honeywell industrial control systems. This cable is engineered to support robust communication between field devices and I/O modules, ensuring stable data integrity in demanding industrial environments.

Features

• High-speed data transmission capability up to 230.4 kbps.
• 4-core conductor configuration including dedicated power, ground, and signal lines.
• Designed for integration with standard I/O link architectures.
• Robust insulation rated for 15–60 V DC operation.
• Flexible design with a defined bending radius for easier installation in tight control cabinets.

Technical Specifications

Installation Guidelines

• Ensure the cable is routed away from high-voltage power lines and sources of electromagnetic interference (EMI) to maintain signal integrity.
• Observe the minimum bending radius of 7.5 times the cable diameter during installation to prevent internal conductor damage or insulation stress.
• Verify that all connections are secure and that the wiring matches the specific pinout requirements of the connected I/O module.
• Always power down the associated I/O modules before connecting or disconnecting the cable to prevent electrical arcing or damage to the communication ports.
• Use appropriate cable ties or cable management trays to support the weight of the cable and prevent strain on the connectors.

FAQ

What is the primary application of the 51202329-102 cable?

This cable is primarily used as an I/O link interface cable to facilitate communication and power distribution between field-level sensors/actuators and Honeywell control system I/O modules.

Can this cable be used in high-temperature environments?

The cable is rated for an operating temperature range of -25 degC to +70 degC, making it suitable for most standard industrial control room and cabinet environments.
