Description

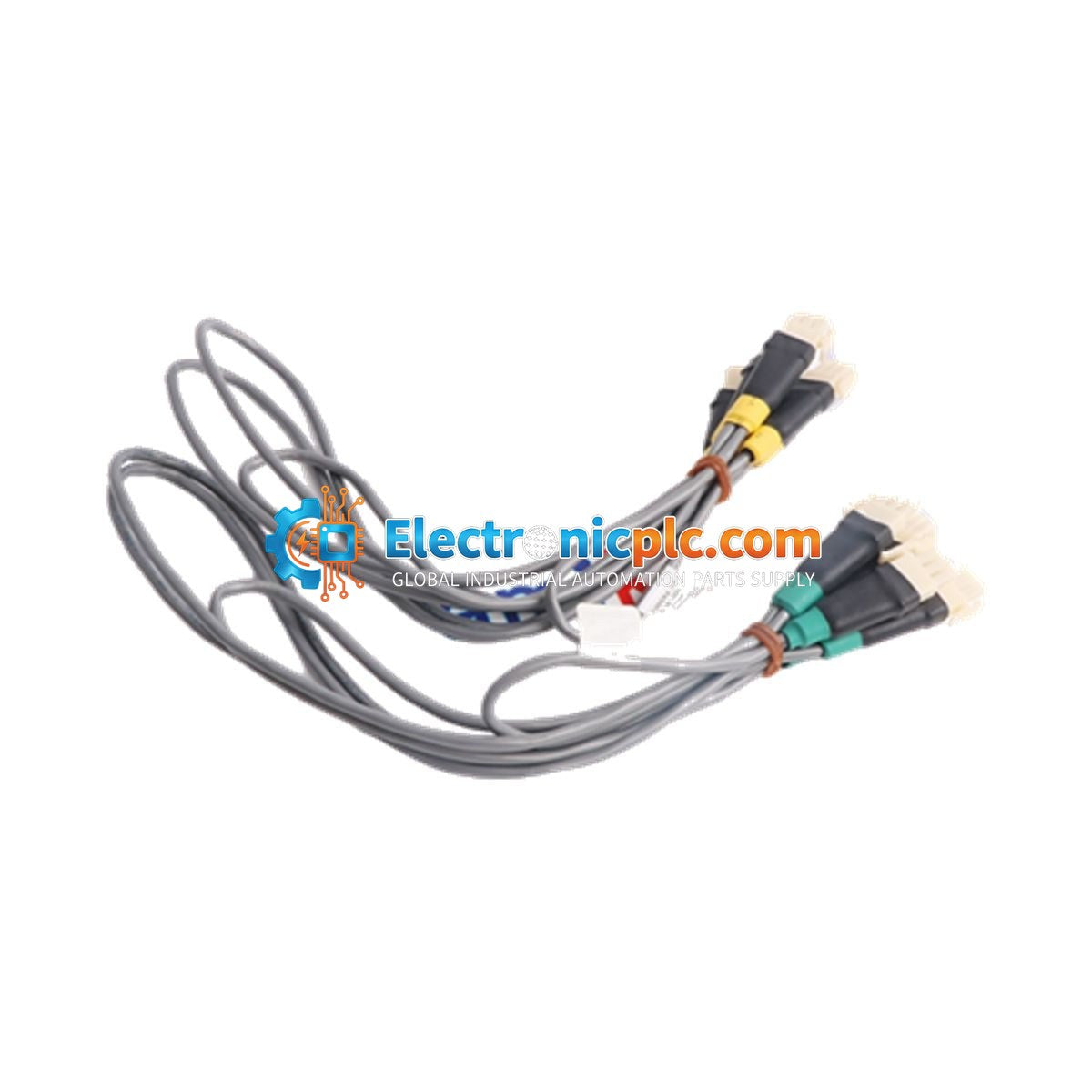

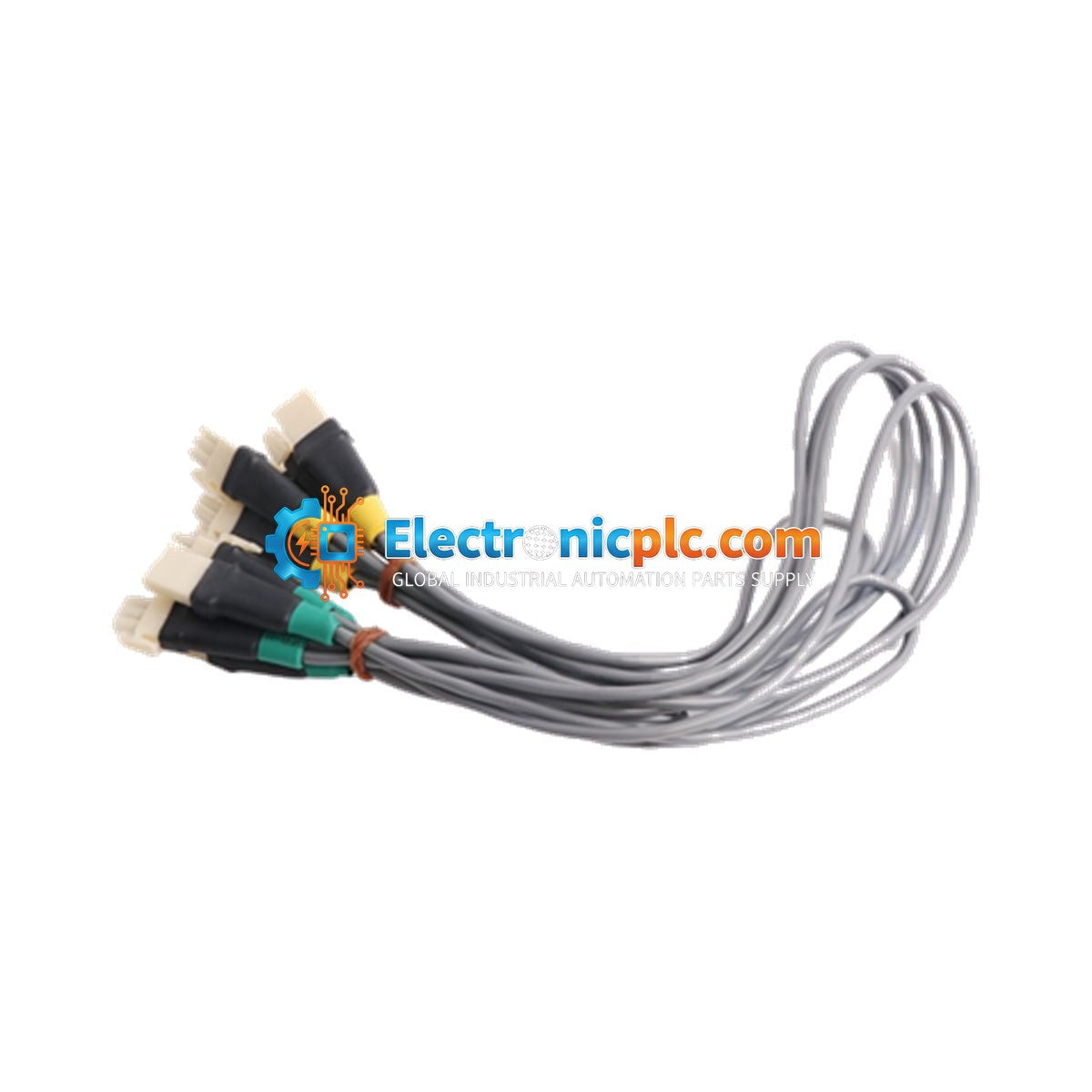

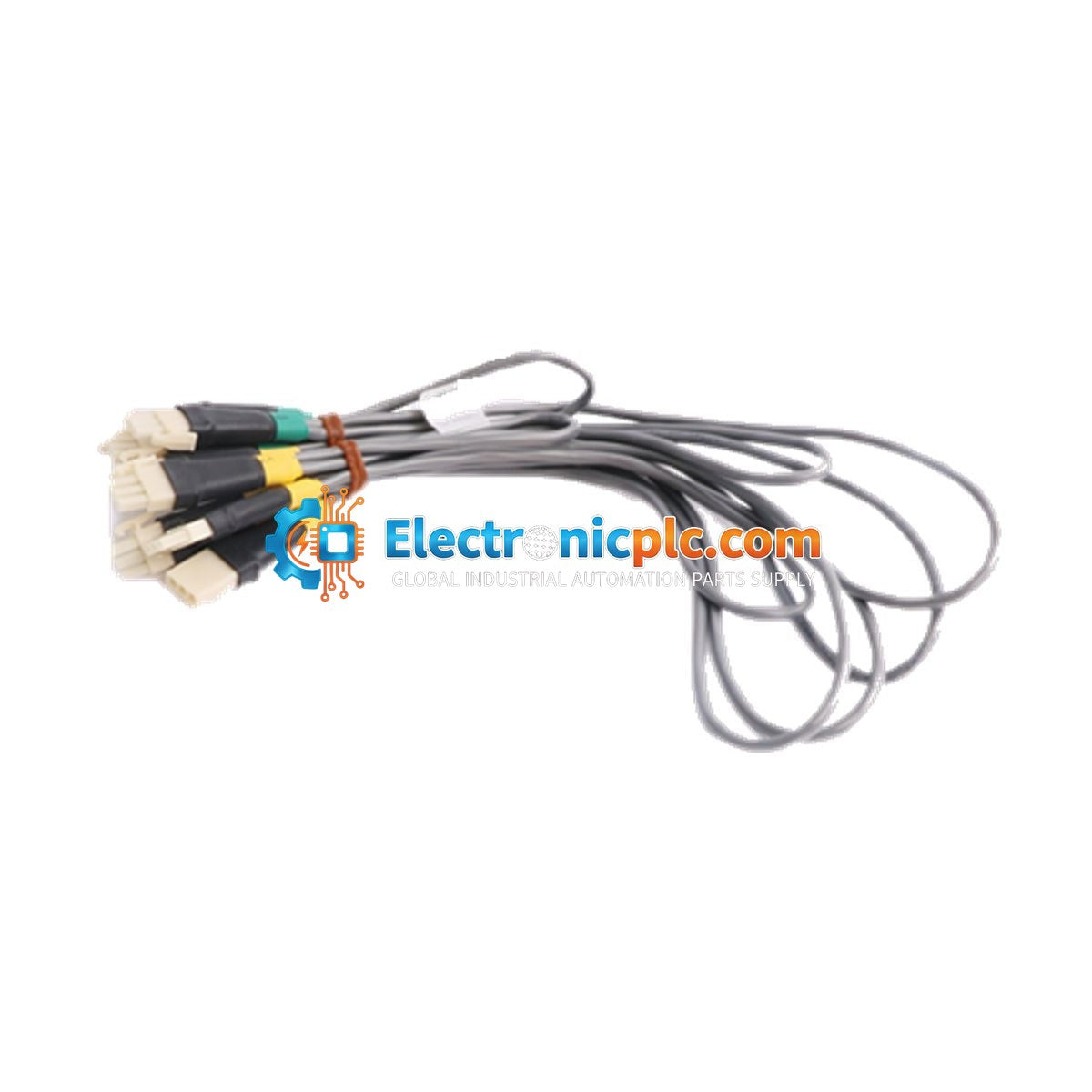

The Honeywell 51202329-402 is an industrial I/O Link Cable engineered for reliable signal and communication transmission between control modules, termination assemblies, and field I/O devices. Primarily utilized within Honeywell Experion PKS and C300-based distributed control systems, this cable ensures stable data integrity and deterministic communication in demanding process environments, including oil and gas, chemical processing, and power generation facilities.

Features

• Shielded industrial-grade construction to minimize electromagnetic interference (EMI) and maintain signal quality.
• Factory-terminated connectors designed for consistent, high-reliability installation.
• Optimized for low-loss signal transmission across internal control cabinet distances.
• Mechanical reinforcement to withstand industrial vibration and environmental stressors.
• Compatible with standard Honeywell distributed control system backplanes and IOTA (Input/Output Termination Assembly) modules.

Applications

This cable is intended for use in industrial automation architectures where reliable, low-latency communication between controllers and field I/O is critical. It is suitable for fixed routing within control cabinets to connect I/O link components in DCS (Distributed Control System) environments.

Technical Specifications

Installation Guidelines

• Ensure the cable is routed away from high-voltage power lines and high-EMI sources to maintain signal integrity.
• Use appropriate cable management (e.g., cable ties or ducts) to secure the cable within the cabinet, preventing mechanical strain on the connectors.
• Ensure that connectors are fully seated and locked into the corresponding IOTA or module ports.
• Perform installation while the system is powered down to prevent potential electrical faults or communication errors during connection.
• Avoid sharp bends or kinks in the cable to maintain the integrity of the internal shielding and conductors.

FAQ

Is this cable suitable for outdoor use?

No, the 51202329-402 is designed for internal control cabinet routing and is not rated for direct exposure to outdoor environmental conditions.

Can I re-terminate the connectors in the field?

This cable features factory-terminated connectors to ensure signal reliability. Field re-termination is not recommended as it may compromise the shielding and electrical performance of the I/O link.
