Description

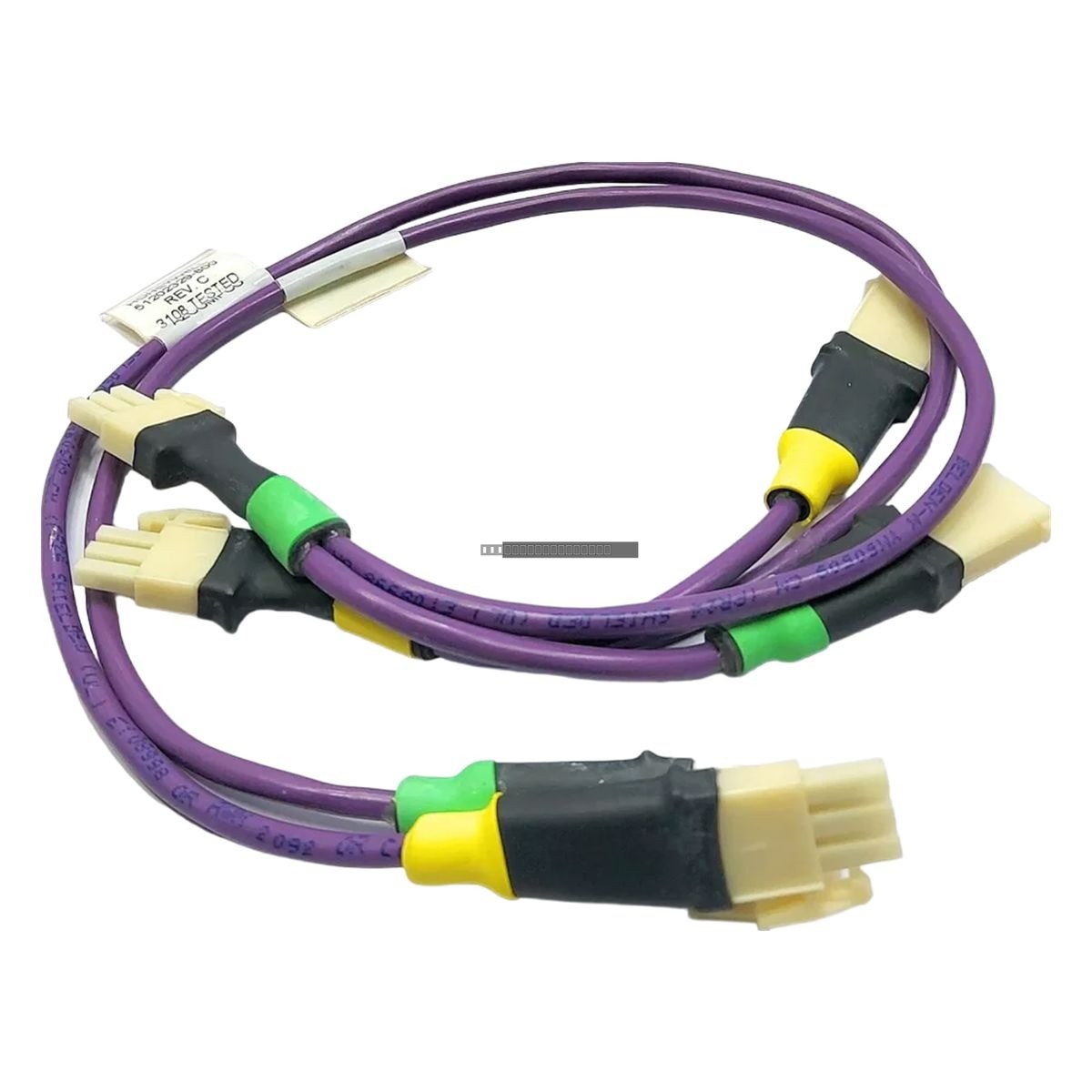

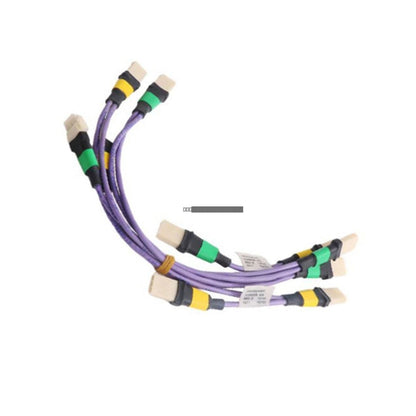

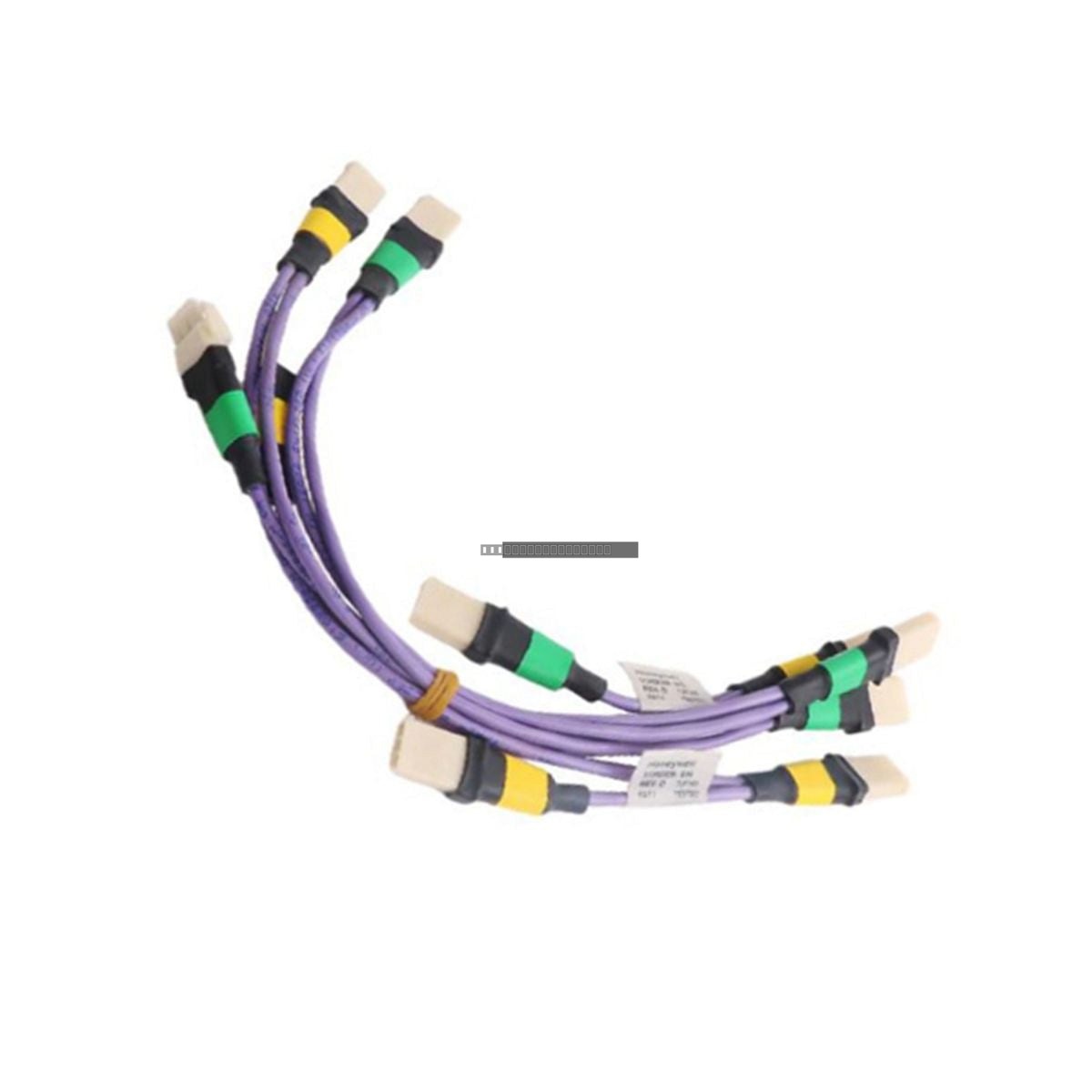

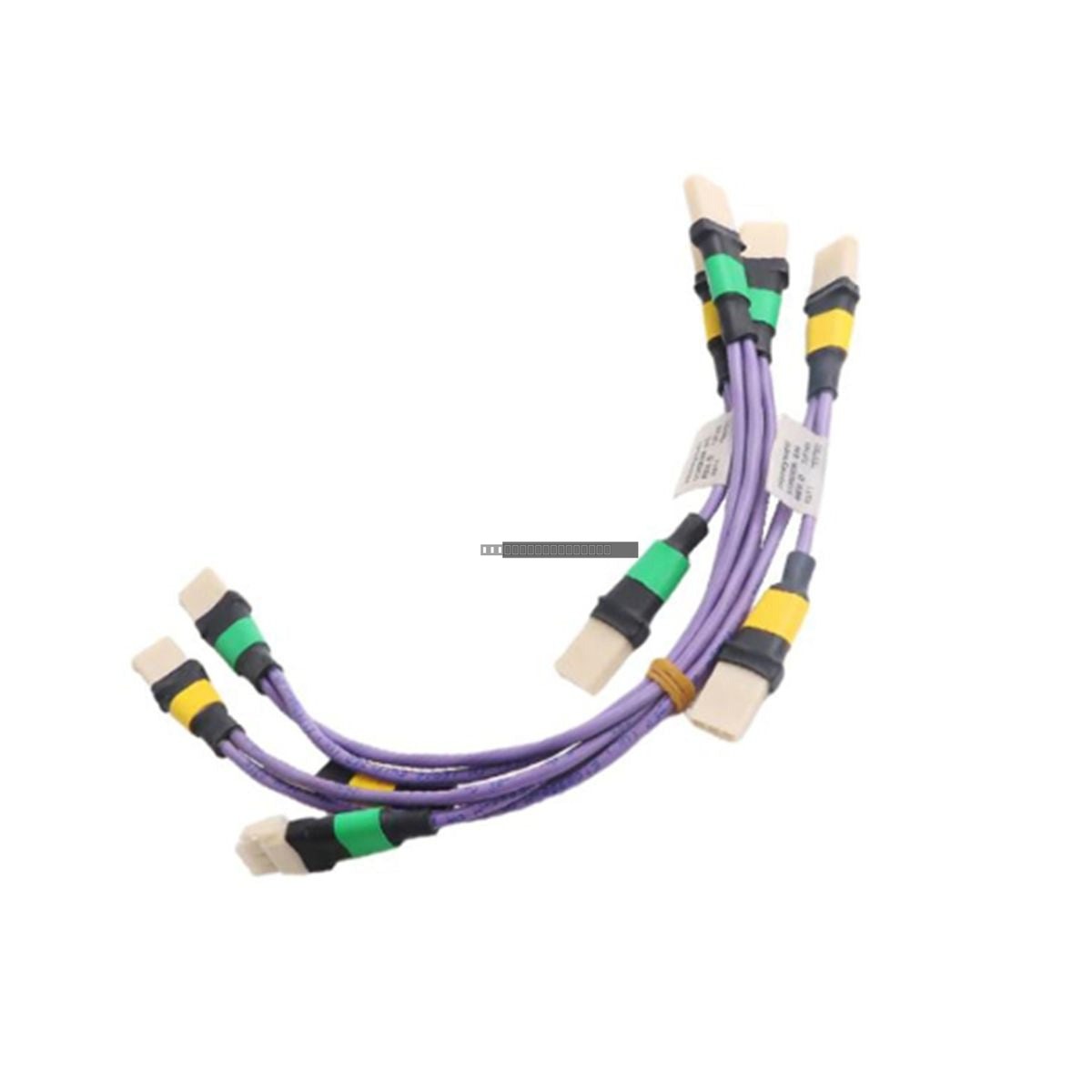

The Honeywell 51202329-616 is a specialized I/O link cable assembly featuring a violet header, engineered for robust signal transmission within Honeywell distributed control system (DCS) architectures. This cable serves as a critical interface between controller hardware and field termination assemblies, ensuring consistent data exchange and signal integrity. Designed for high-availability industrial applications, it simplifies cabinet wiring, reduces installation time, and helps maintain reliable communication paths in demanding process environments.

Features

• Factory-terminated connectors for consistent electrical performance and reduced field installation errors.
• Violet header identification for easy visual segregation and cable management within dense control cabinets.
• Industrial-grade shielded construction to minimize electromagnetic interference (EMI) in noisy plant environments.
• Passive design requiring no external power, facilitating straightforward integration into existing I/O subsystems.

Applications

This cable assembly is widely utilized in large-scale automation environments, including:

• Petrochemical and chemical processing plants.
• Power generation and utility control systems.
• Refinery automation and process manufacturing facilities.
• Distributed control system (DCS) cabinet-to-rack I/O interconnections.

Technical Specifications

Installation Guidelines

• Ensure the control system is powered down before connecting or disconnecting the cable assembly.
• Route signal cables away from high-voltage power lines and high-EMI sources to prevent signal degradation.
• Verify that the violet header is correctly oriented and fully seated in the corresponding I/O port to ensure a secure mechanical and electrical connection.
• Handle with care to avoid sharp bends or mechanical stress on the connector-to-cable interface.
• Use consistent cable management practices (e.g., cable ties or wire ducts) to maintain organized cabinet layouts and facilitate future maintenance.

FAQ

Is this cable compatible with all Honeywell I/O systems?

The 51202329-616 is designed for specific Honeywell DCS I/O link applications. Please verify your system hardware documentation or the specific I/O module part numbers to ensure compatibility with this cable assembly.

Does this cable require external power?

No, this is a passive cable assembly used for signal transmission and does not require external power for operation.
