Description

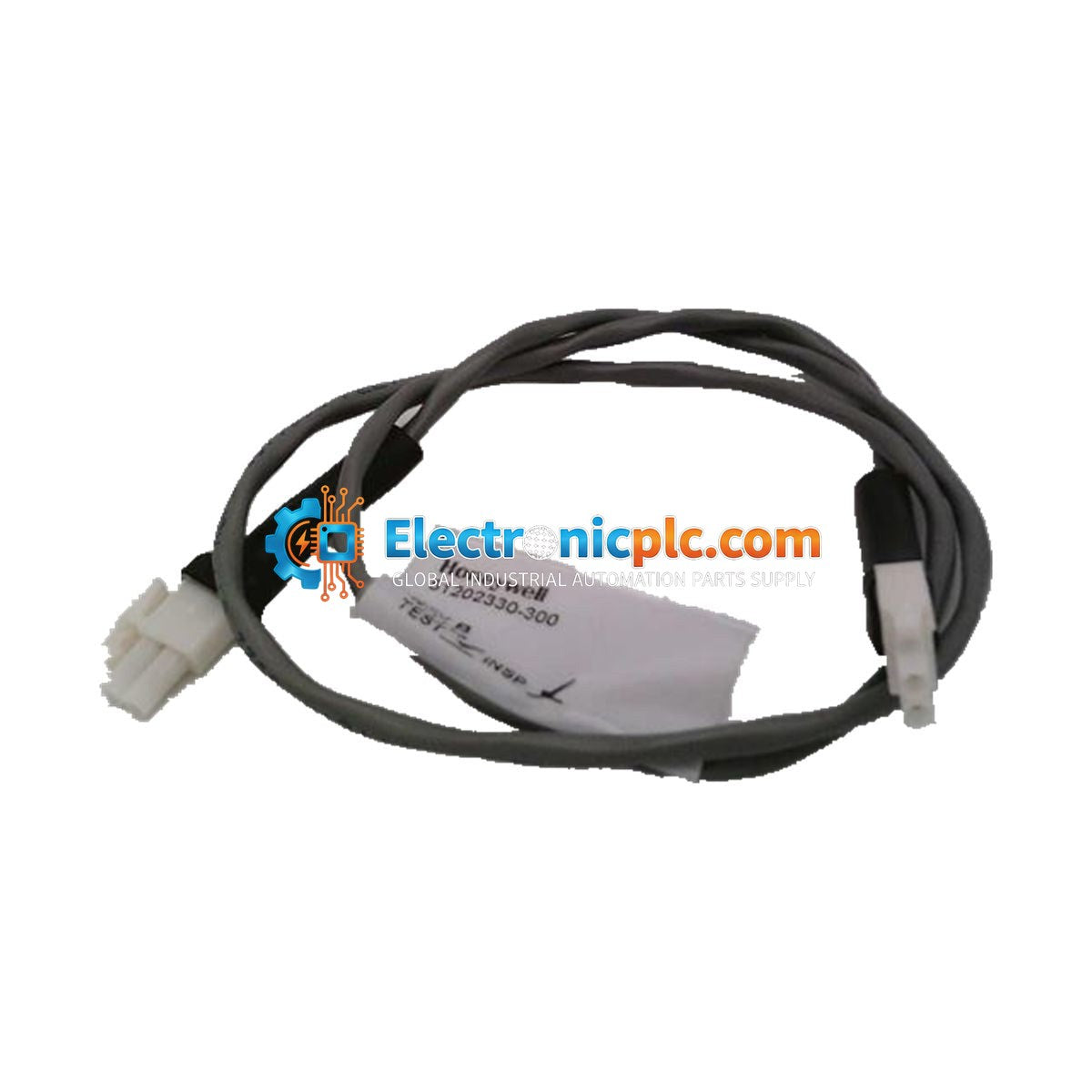

The Honeywell 51202330-300 is a dedicated cable set designed for use with battery RAM charger systems within the Experion LX control platform. This component facilitates essential power connectivity for backup battery modules, ensuring reliable operation of the control system during power transitions. As a manufacturer-discontinued item, this cable set is critical for maintaining legacy Experion LX hardware configurations.

Features

• Engineered for specific Honeywell battery RAM charger applications
• Integrated 1-pair, 6-pin connector interface for secure signal and power transmission
• Designed for compatibility with 3-inch IOTA (Input/Output Termination Assembly) form factors
• Robust construction for industrial control environments

Technical Specifications

Installation Guidelines

• Ensure the control system is powered down before attempting to connect or disconnect the cable set to prevent electrical shorts or damage to the IOTA pins.
• Inspect the 6-pin connector for any signs of oxidation or debris prior to installation to ensure a reliable electrical contact.
• Route the cable away from high-voltage power lines and sources of significant electromagnetic interference (EMI) to maintain signal integrity.
• Verify that the cable is properly seated and the locking mechanism is engaged to prevent accidental disconnection due to vibration.

FAQ

Is this cable compatible with other Honeywell systems?

This cable is specifically designed for the Experion LX platform and its associated battery RAM charger hardware. We recommend verifying your specific IOTA part number to ensure compatibility with your existing control architecture.

Is this part still in production?

No, the 51202330-300 has been discontinued by the manufacturer. We supply these units as spare parts for maintenance and lifecycle support of legacy installations.
