Description

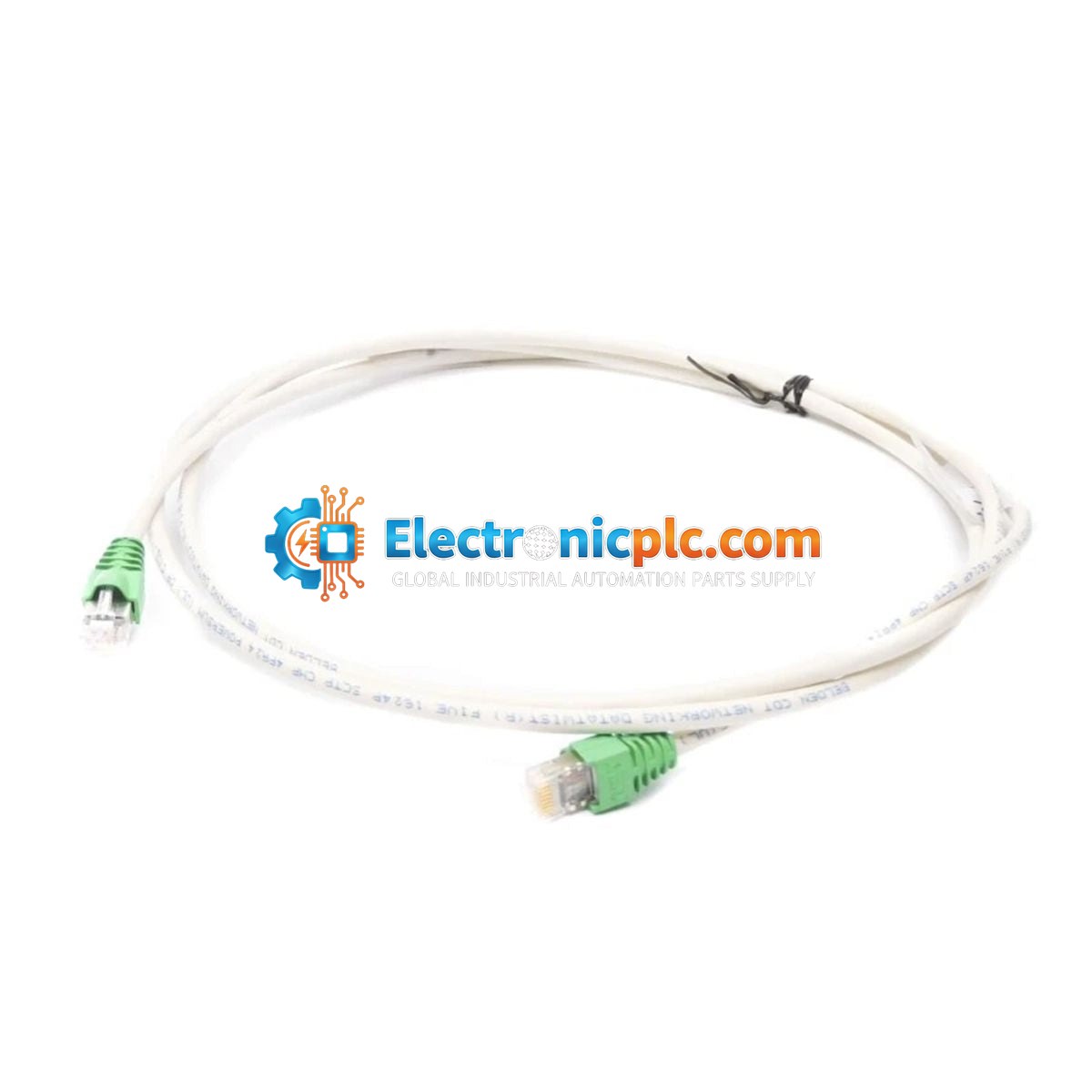

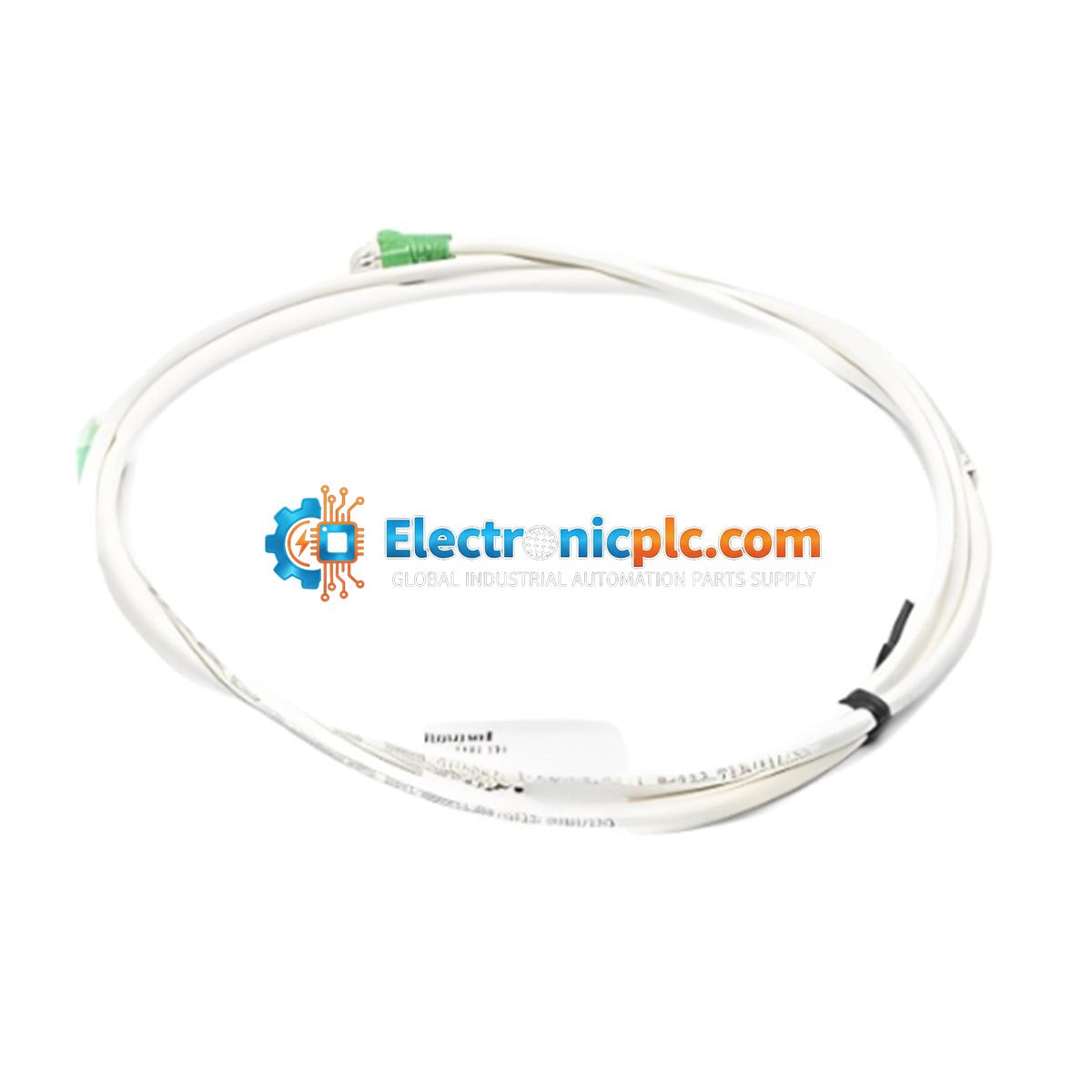

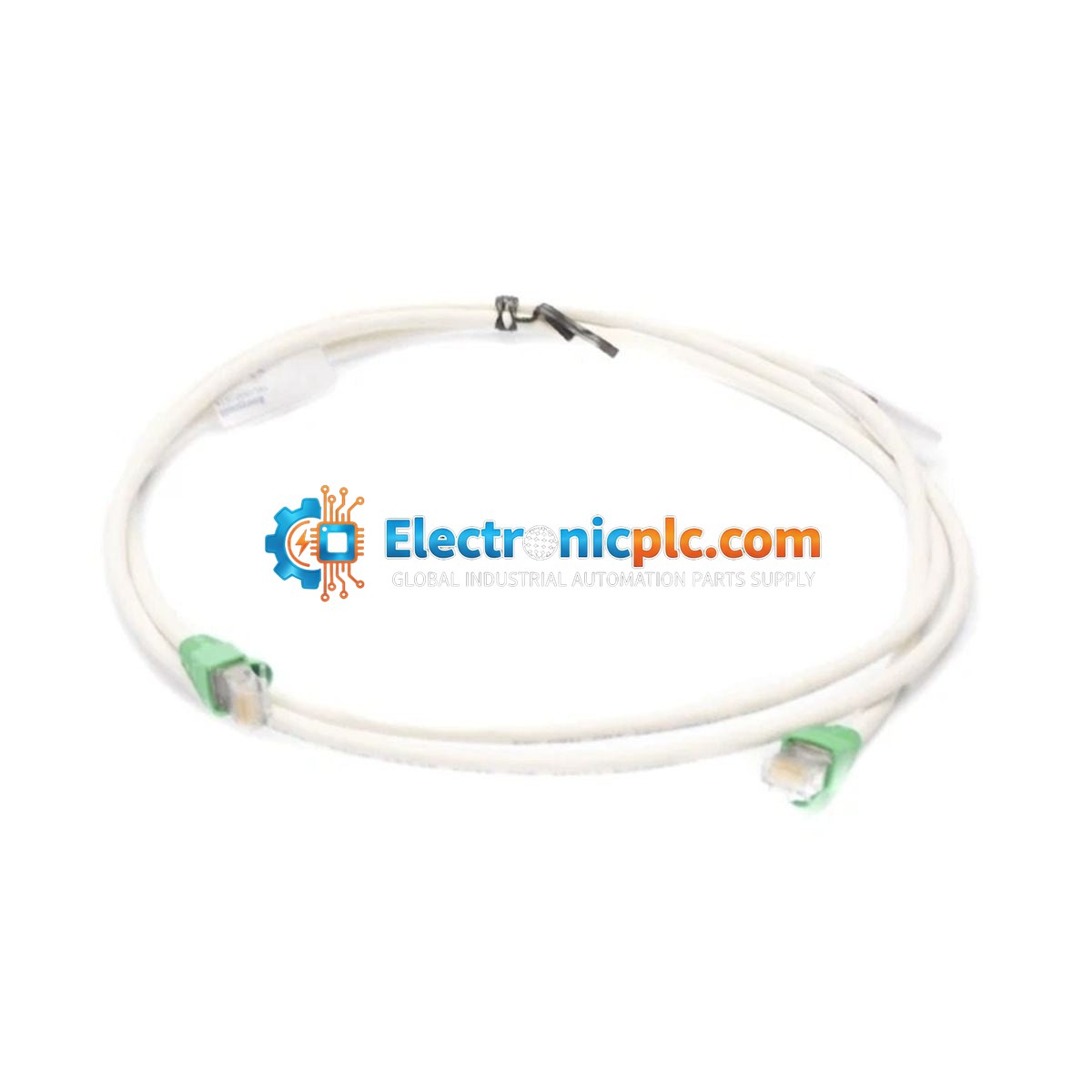

The Honeywell 51305482-210 is a high-quality 10-meter CAT5e Ethernet cable designed for use within the Experion LX control system architecture. This cable is engineered to support 100-Base-T networking standards, ensuring reliable data communication between control system components, I/O modules, and supervisory networks.

Features

• Category: CAT5e
• Length: 10.0 meters (±1% tolerance)
• Data Rate: Supports up to 100Mbps
• Conductor: 24 AWG stranded copper for flexibility and durability
• Termination Standard: T568B
• Operating Temperature Range: -20 degC to +60 degC

Technical Specifications

Installation Guidelines

• Ensure proper cable routing to avoid high-EMI sources such as power lines, VFDs, or large motors.
• Maintain minimum bend radius requirements to prevent internal conductor damage.
• Verify that the T568B termination matches the requirements of the connected Honeywell hardware ports.
• Avoid excessive tension during installation; use cable ties to secure the cable without crushing the jacket.
• Ensure all connections are fully seated to prevent intermittent signal loss or CRC errors in the communication link.

FAQ

What is the primary application for this cable?

This cable is specifically intended for Honeywell Experion LX system networking, providing a robust physical layer connection for 100-Base-T Ethernet communications.

Can this cable be used in high-temperature environments?

The cable is rated for operation between -20 degC and +60 degC. Ensure the installation environment does not exceed these limits to maintain signal integrity and jacket longevity.
