Description

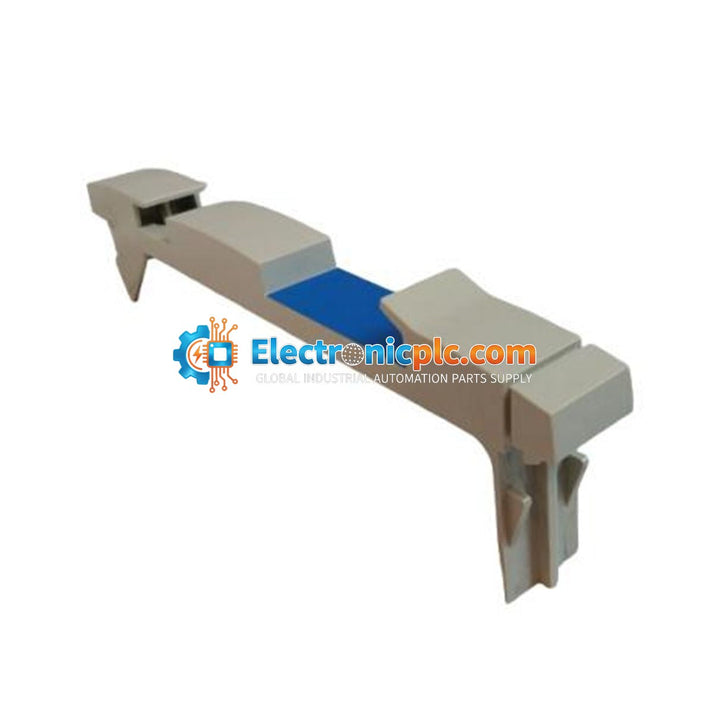

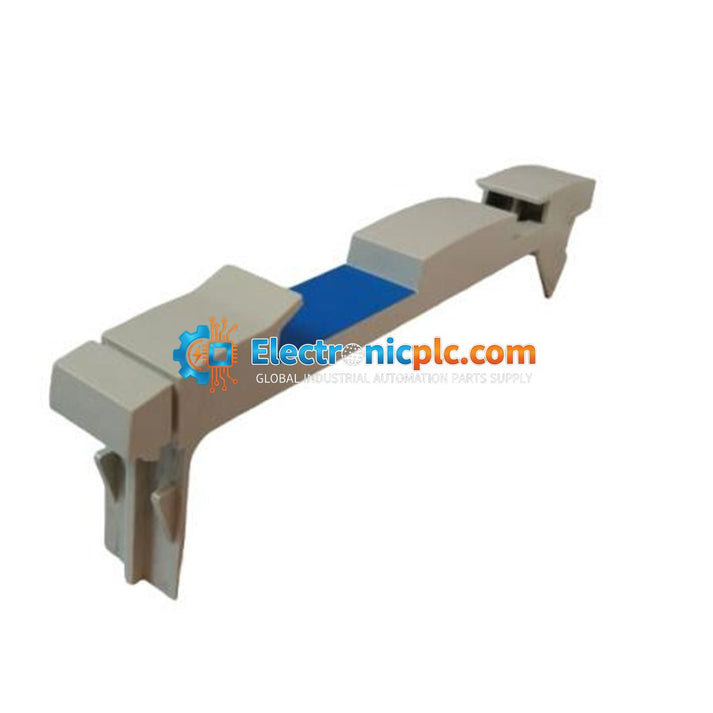

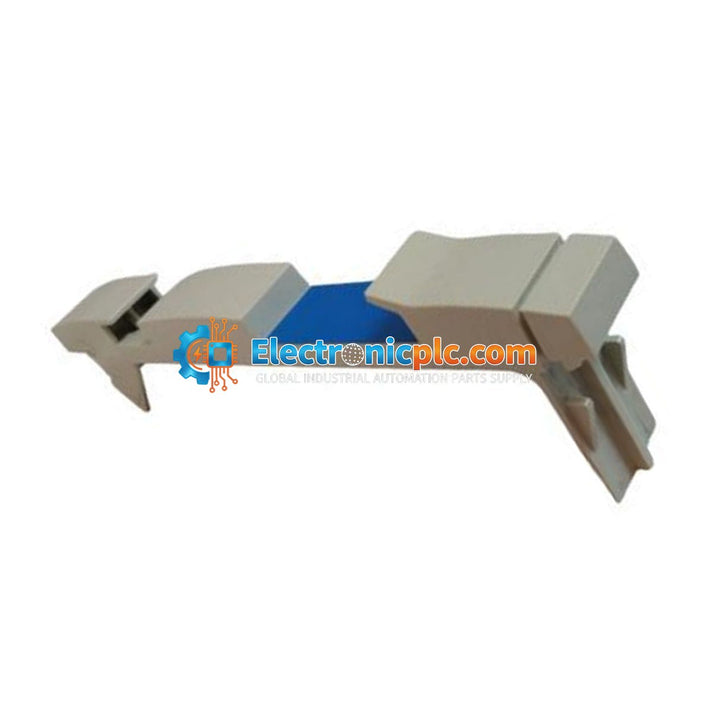

The Honeywell 51306344-101 is a 3-inch filler panel designed for use within the Experion LX control system architecture. This component is utilized to cover empty slots in the system chassis or rack, ensuring proper airflow management, maintaining environmental integrity, and providing a clean, professional appearance for the control cabinet.

Features

• Designed specifically for Honeywell Experion LX series enclosures.
• Standard 3-inch width for precise slot coverage.
• Constructed with a durable powder-coated finish to resist corrosion and wear.
• Ensures structural integrity and proper cabinet ventilation by sealing unused module bays.

Technical Specifications

Installation Guidelines

• Ensure the control system power is managed according to site safety protocols before performing any work inside the cabinet.
• Align the filler panel with the empty slot rails in the Experion LX chassis.
• Secure the panel using the integrated mounting hardware to ensure a flush fit with adjacent modules.
• Maintain proper spacing to ensure that airflow remains consistent with the cooling requirements of active modules in the rack.

FAQ

What is the purpose of the 51306344-101 filler panel?

This panel is used to fill empty slots in a Honeywell Experion LX rack. It prevents dust ingress, maintains the aesthetic uniformity of the system, and helps direct airflow correctly through the cabinet.

Is this part compatible with other Honeywell systems?

This specific filler panel is designed for the Experion LX series. Please verify your chassis dimensions and series compatibility before installation.
