Description

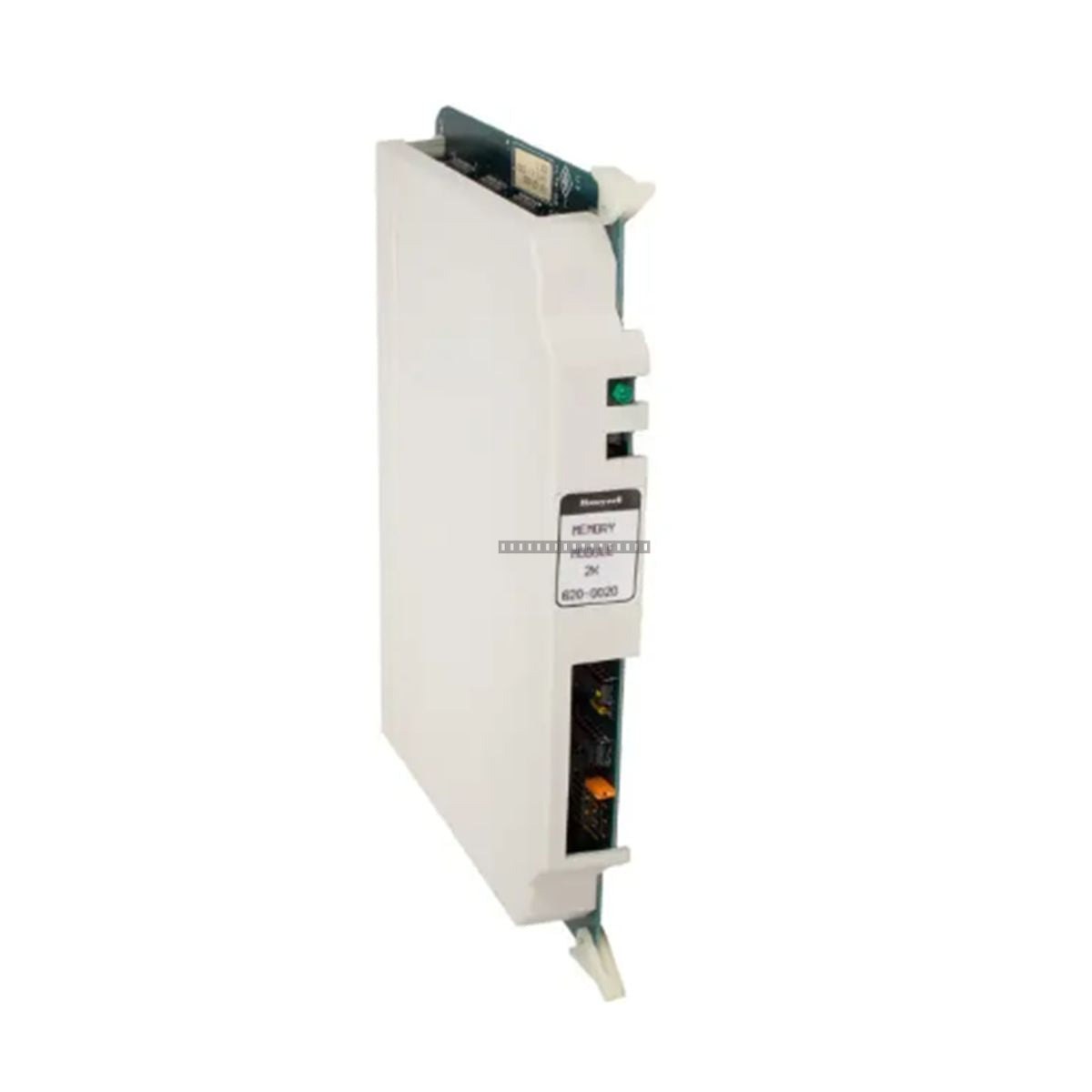

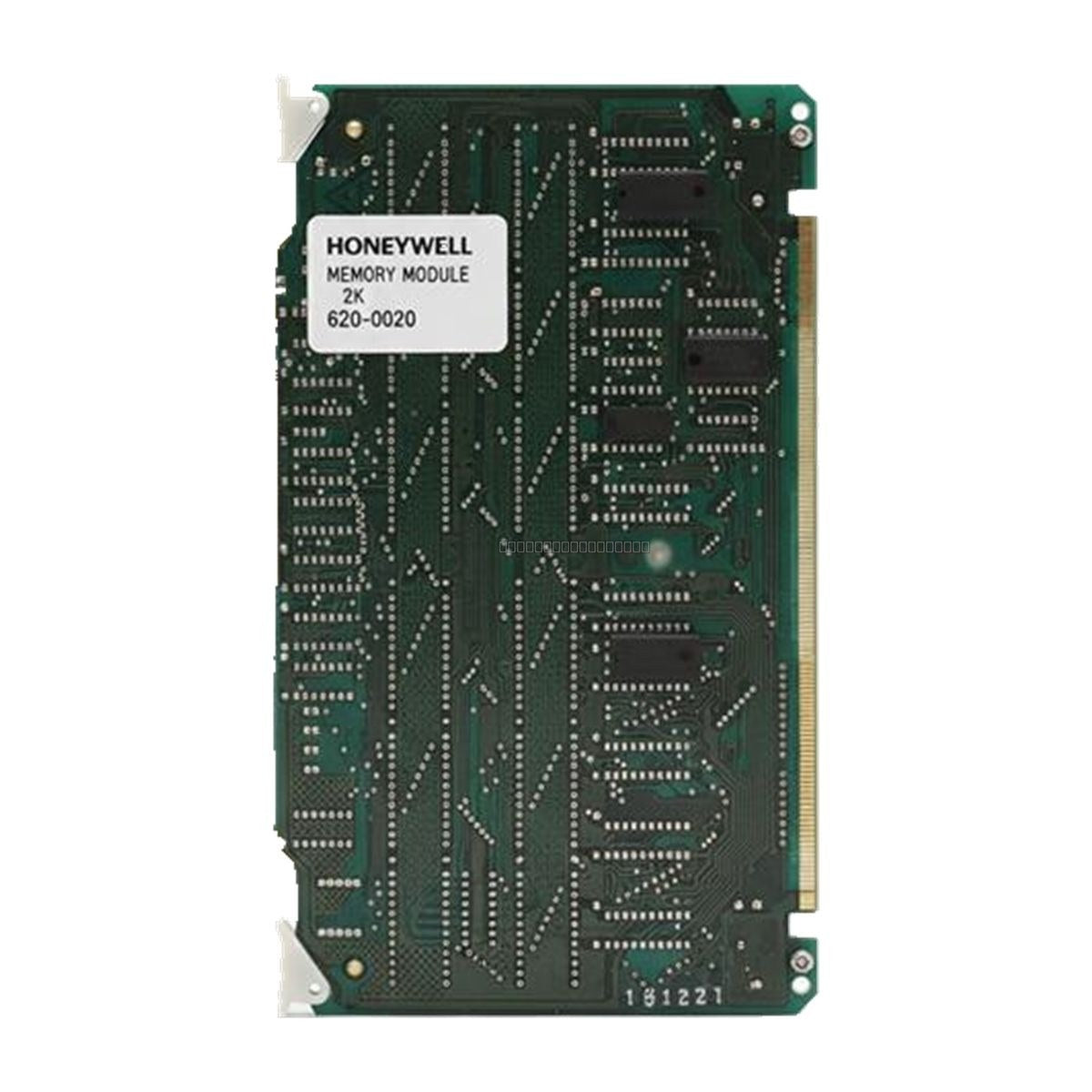

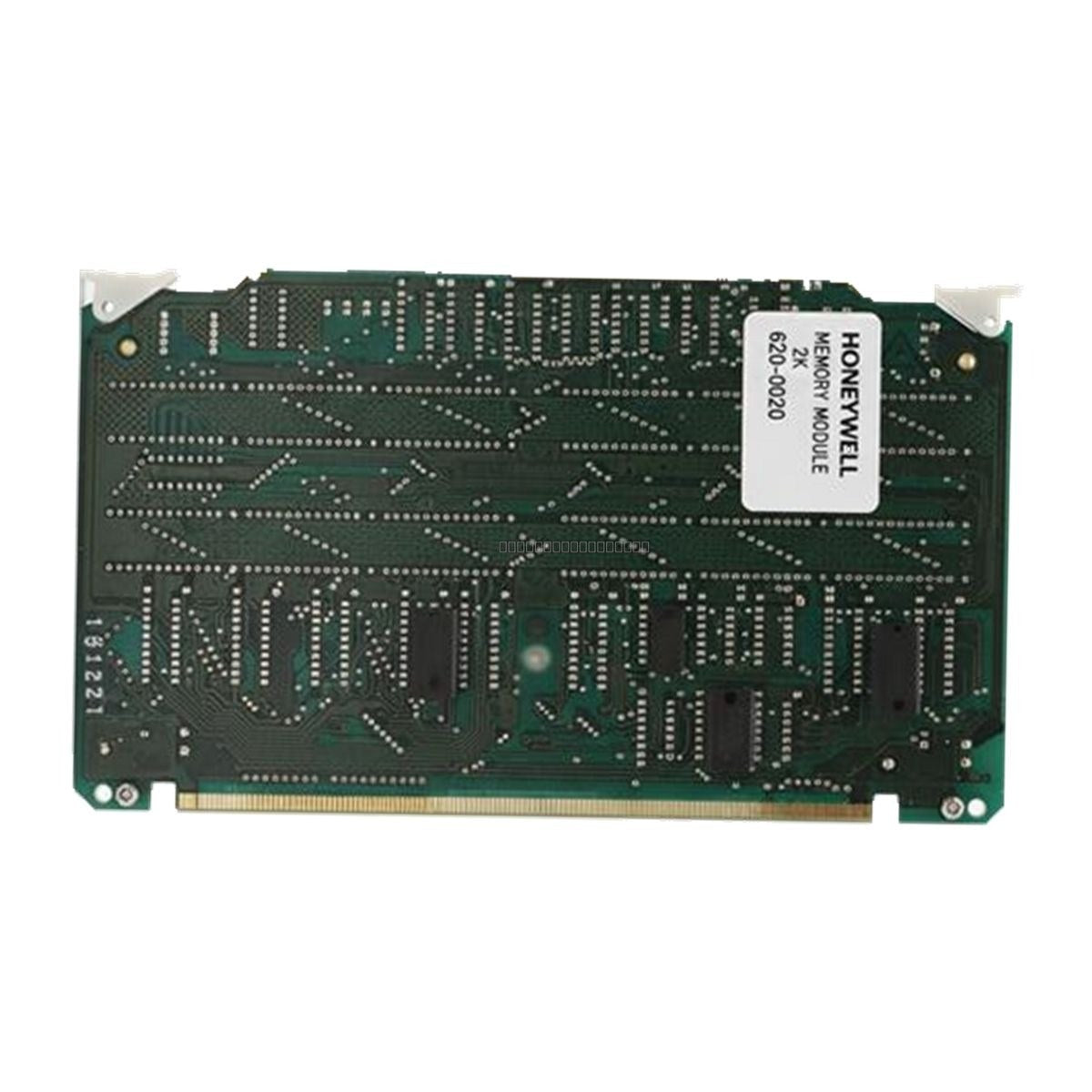

The Honeywell 620-0020 is an industrial memory board engineered for program storage, data retention, and system memory expansion within Honeywell automation and control platforms. Providing 2 KB of memory capacity, this module is essential for storing critical operating parameters, application data, and control logic. Its robust, board-level architecture ensures reliable integration into controller racks and processor assemblies, supporting consistent performance in demanding environments such as power generation, chemical processing, and utility automation.

Features

• 2 KB memory capacity for application and parameter storage.
• Plug-in board architecture for seamless integration with compatible controller backplanes.
• Low-power design to minimize system loading.
• Engineered for continuous industrial operation and long-term data integrity.
• Compact form factor suitable for high-density automation cabinets.

Applications

This memory board is designed for use in Honeywell industrial control systems where reliable data preservation and rapid memory access are required to maintain system availability and reduce recovery time during maintenance or system restoration.

Technical Specifications

Installation Guidelines

• Ensure the system power is completely disconnected before installing or removing the memory board.
• Handle the module by its edges to prevent electrostatic discharge (ESD) damage to sensitive components.
• Verify that the board is correctly aligned with the backplane connector before applying pressure to seat it.
• Ensure the module is fully inserted and secured in the rack or chassis to prevent intermittent connections due to vibration.
• Maintain proper ventilation within the control cabinet to ensure the ambient temperature remains within the specified 0 to 60 deg C operating range.

FAQ

What is the primary function of the 620-0020 memory board?

The 620-0020 serves as a dedicated memory expansion and storage module, providing 2 KB of capacity to store control logic, application data, and system parameters for Honeywell controllers.

Is this module suitable for high-temperature environments?

The module is rated for an operating temperature range of 0 to 60 deg C. It should be installed in an environment that does not exceed these limits to ensure reliable data retention and hardware longevity.
