Description

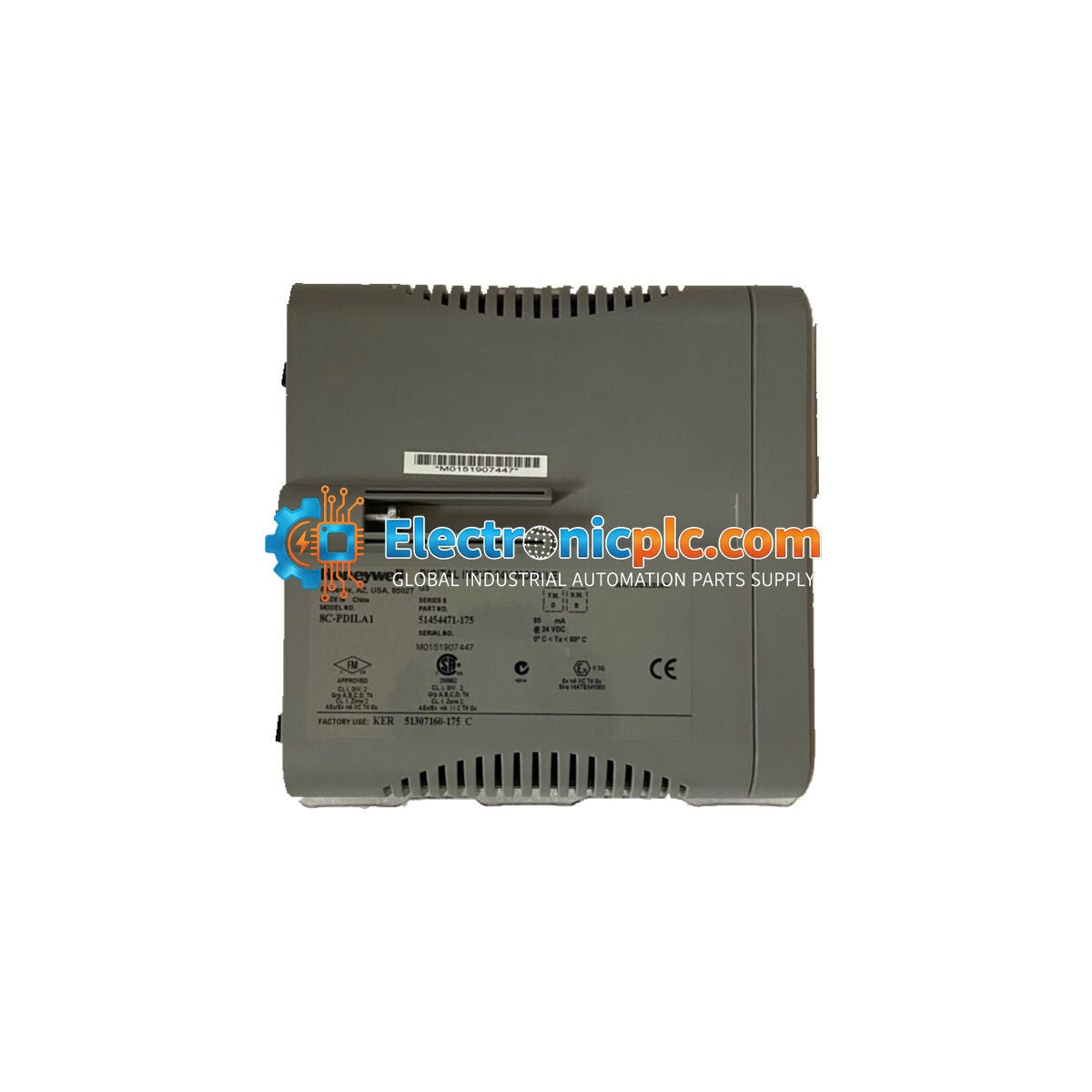

The Honeywell 8C-PDILA1 (51454471-175) is a 32-channel 24VDC Digital Input module designed for the Honeywell Series 8 I/O family. This module is conformal coated, providing robust protection against moisture, dust, chemicals, and extreme temperatures in demanding industrial environments. It provides high-density input monitoring in a compact form factor, utilizing an Input/Output Termination Assembly (IOTA) for both module mounting and field wiring terminations.

Features

• 32-point digital input capacity for 24VDC signals.
• Conformal coated circuitry for enhanced environmental durability.
• Supports optional redundancy when paired with a second IOM on a compatible IOTA, requiring no external cabling or control devices.
• Extensive internal diagnostics for continuous data integrity monitoring.
• Galvanic isolation (System to Field) when using external user-supplied power.
• Compact design with integrated heat management for high-density cabinet layouts.

Applications

• Oil Refining & Petrochemicals: Monitoring valves and ESD interlocks in hazardous zones.
• Power Generation: Tracking breaker status, utility status, and generator states.
• Chemical Manufacturing: Monitoring pipeline states and batch process limits.
• Water & Wastewater Treatment: Interface for pump, tank, and flow contact sensors.

Technical Specifications

Installation Guidelines

• ESD Precautions: Always use an anti-static wrist strap when handling the module to prevent damage to sensitive electronic components.
• Mounting: The module must be seated onto a compatible IOTA (e.g., 8C-TDILA1 for non-redundant or 8C-TDILB1 for redundant applications). Align the module pins with the IOTA sockets and press firmly until the latches engage.
• Wiring: The module uses two-level detachable terminals. Ensure field wiring is properly landed and secured. The module is designed for vertical mounting to facilitate top or bottom cabinet cable entry.
• Powering: Field power is supplied through the IOTA. Ensure the external power source is within the 18-30 VDC range.
• Safety: Always power down the system before inserting or removing the IOM from the IOTA to prevent electrical arcing or data corruption.

FAQ

What is the difference between the 8C-PDILA1 and the 8C-TDILA1?

The 8C-PDILA1 is the active electronic I/O module, while the 8C-TDILA1 is the passive Input/Output Termination Assembly (IOTA) that provides the physical base for mounting and field wiring connections.

Does this module provide field power?

No, the module requires an external, user-supplied 24V DC power source for field excitation, which is routed through the IOTA.

Is this module redundant?

The module supports optional redundancy. Redundancy is achieved by installing a second IOM onto a compatible redundant-capable IOTA, requiring no external redundancy control hardware.
