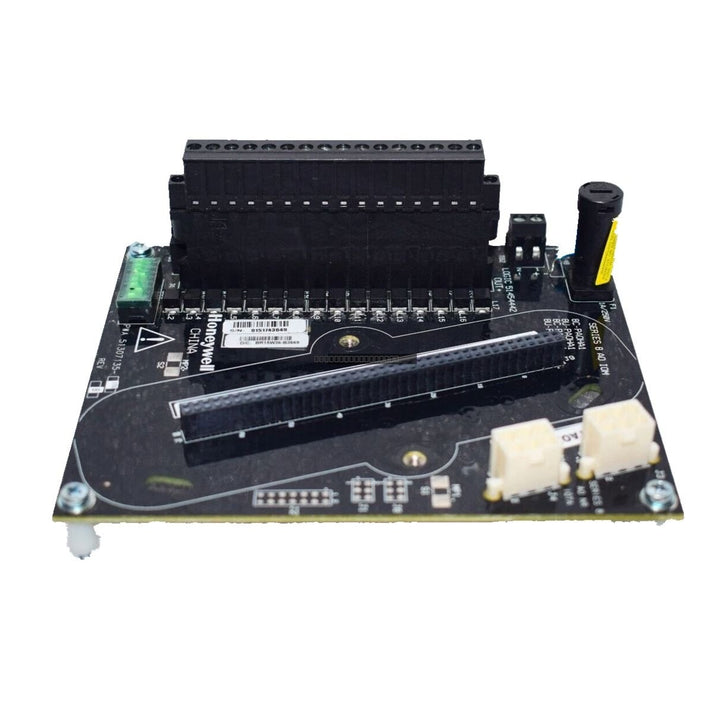

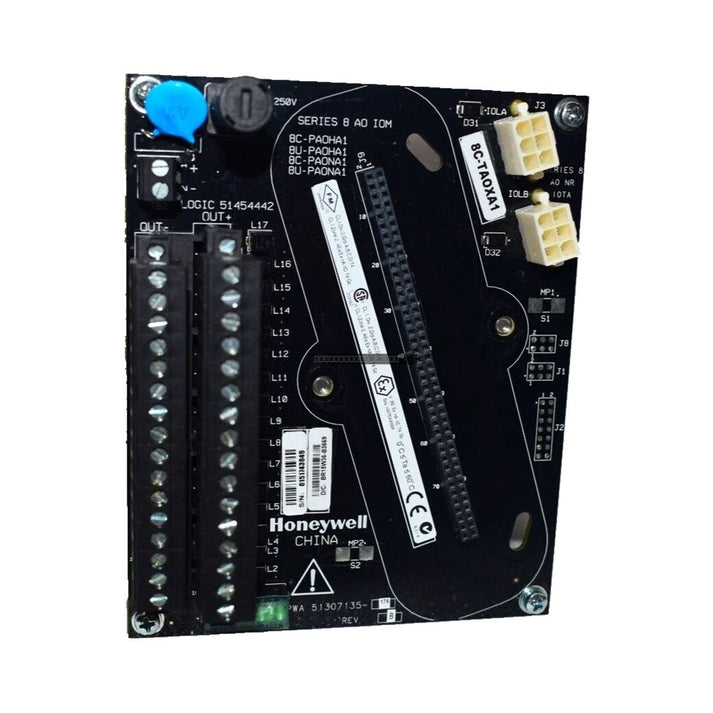

The Honeywell 8C-TAOXB1 (51307137-175) is a high-performance Analog Output module designed for the Experion LX control system. This module provides 16 channels of isolated analog output, facilitating precise control over field devices in demanding industrial environments. Engineered for reliability, the unit includes extensive self-diagnostics to monitor channel health and supports optional redundancy configurations to ensure maximum system availability.

Features

• 16-channel analog output capability
• Integrated self-diagnostics for proactive maintenance and fault detection
• Supports redundant operation for critical process control applications
• Designed for integration within the Honeywell Series 8 I/O architecture
• High resolution output for precise process regulation

Technical Specifications

Installation Guidelines

• Ensure the control system is powered down before inserting or removing the module from the I/O carrier.
• Verify that the module is securely seated in the designated slot to ensure proper backplane communication.
• Use shielded twisted-pair cabling for analog signals to minimize electromagnetic interference (EMI) in high-noise industrial settings.
• Maintain proper ventilation in the cabinet to stay within the specified operating temperature range of 0 to 60 degC.
• Follow standard ESD (Electrostatic Discharge) procedures when handling the module to prevent damage to internal circuitry.

FAQ

What is the primary function of the 8C-TAOXB1?
This is an Analog Output module used to convert digital control signals from the PLC/DCS into analog current signals (typically 4-20 mA) to drive field actuators, valves, or positioners.

Does this module support redundancy?
Yes, the 8C-TAOXB1 is designed to support optional redundancy, allowing for seamless failover if configured within a supported Experion LX architecture.

What is the resolution of the output?
The module offers a resolution of +/- 0.05% of the full-scale range, providing high accuracy for process control loops.
