Description

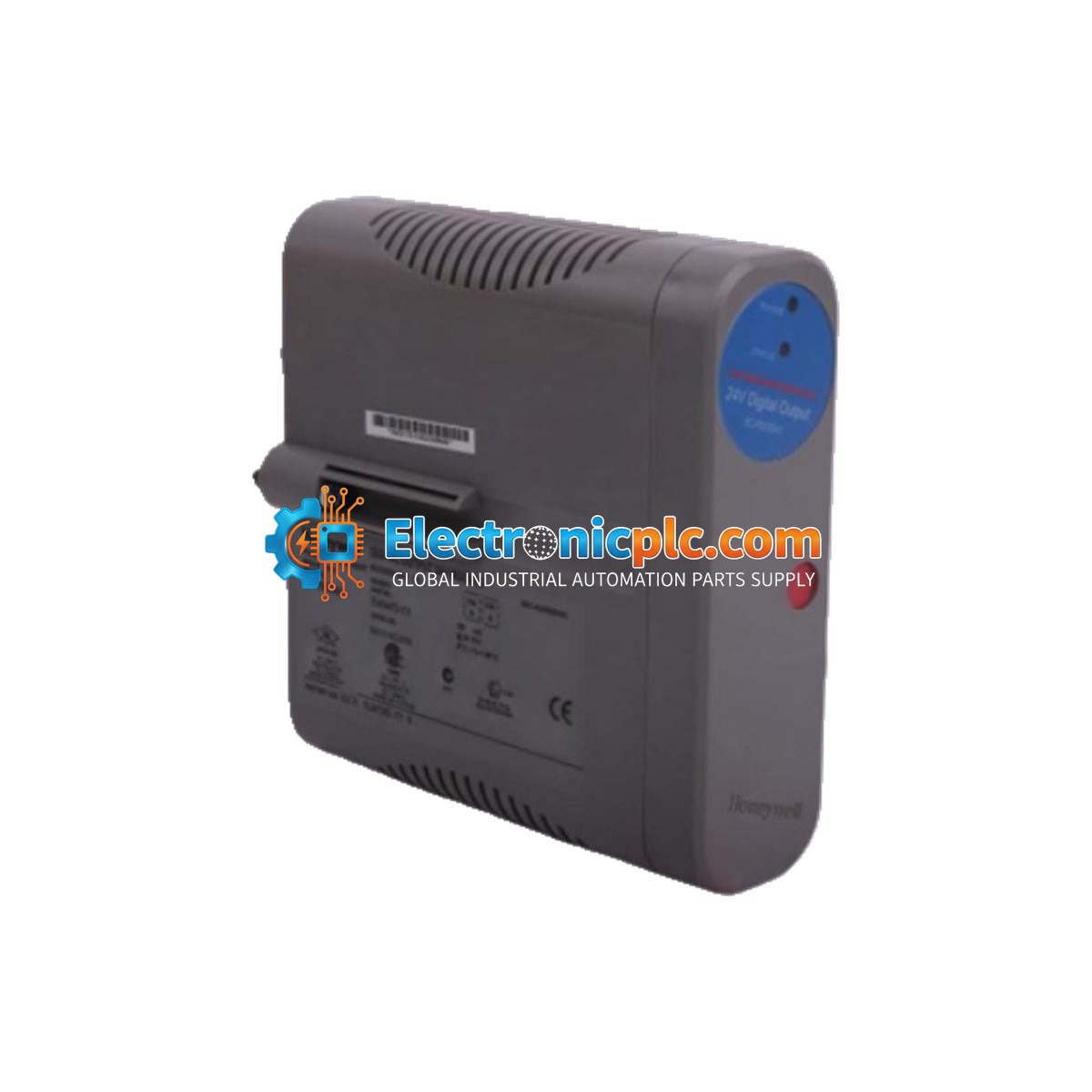

The Honeywell 8U-PDODA1 is a high-density, 32-channel digital output module designed for industrial automation and distributed control systems. Engineered for reliability in demanding environments such as power plants, oil refineries, and large-scale manufacturing, this module provides robust discrete control for actuators, relays, and solenoids. Its field-isolated architecture ensures critical electrical separation between system and field wiring, minimizing the risk of fault propagation and enhancing overall operational safety.

Features

• 32-channel source-type digital output interface.
• Field-isolated design for enhanced electrical safety.
• Supports hot-swapping (removal and insertion under power) to minimize maintenance downtime.
• Integrated short-circuit protection via series fuses (one fuse per eight channels).
• Deterministic switching performance with turn-on/turn-off times up to 10 ms.
• Galvanic isolation of 1000 VAC RMS between system and field power.

Applications

This module is suitable for mission-critical process automation tasks, including:

• Discrete control of field actuators and solenoids.
• Interface for relay control in power generation facilities.
• High-density output management in refinery control systems.
• Redundant control configurations requiring zero-gap switchover.

Technical Specifications

Installation Guidelines

• Ensure the system is powered down before installation or removal, unless the specific system environment explicitly supports hot-swapping procedures.
• Maintain proper grounding practices to ensure the integrity of the field isolation.
• Route field wiring away from high-EMI sources to prevent signal interference.
• Ensure adequate ventilation in the cabinet to maintain operating temperatures within the 0 to 60 deg C range.
• Use appropriate shielded cabling for field connections to reduce noise susceptibility.

FAQ

Is this module compatible with redundant systems?

Yes, the 8U-PDODA1 is designed to support zero-gap switchover behavior, making it suitable for redundant control configurations where uninterrupted output state transitions are required.

What is the protection mechanism for the outputs?

The module features short-circuit protection implemented via series fuses. There are four fuses in total, with each fuse protecting a group of eight channels.
