Description

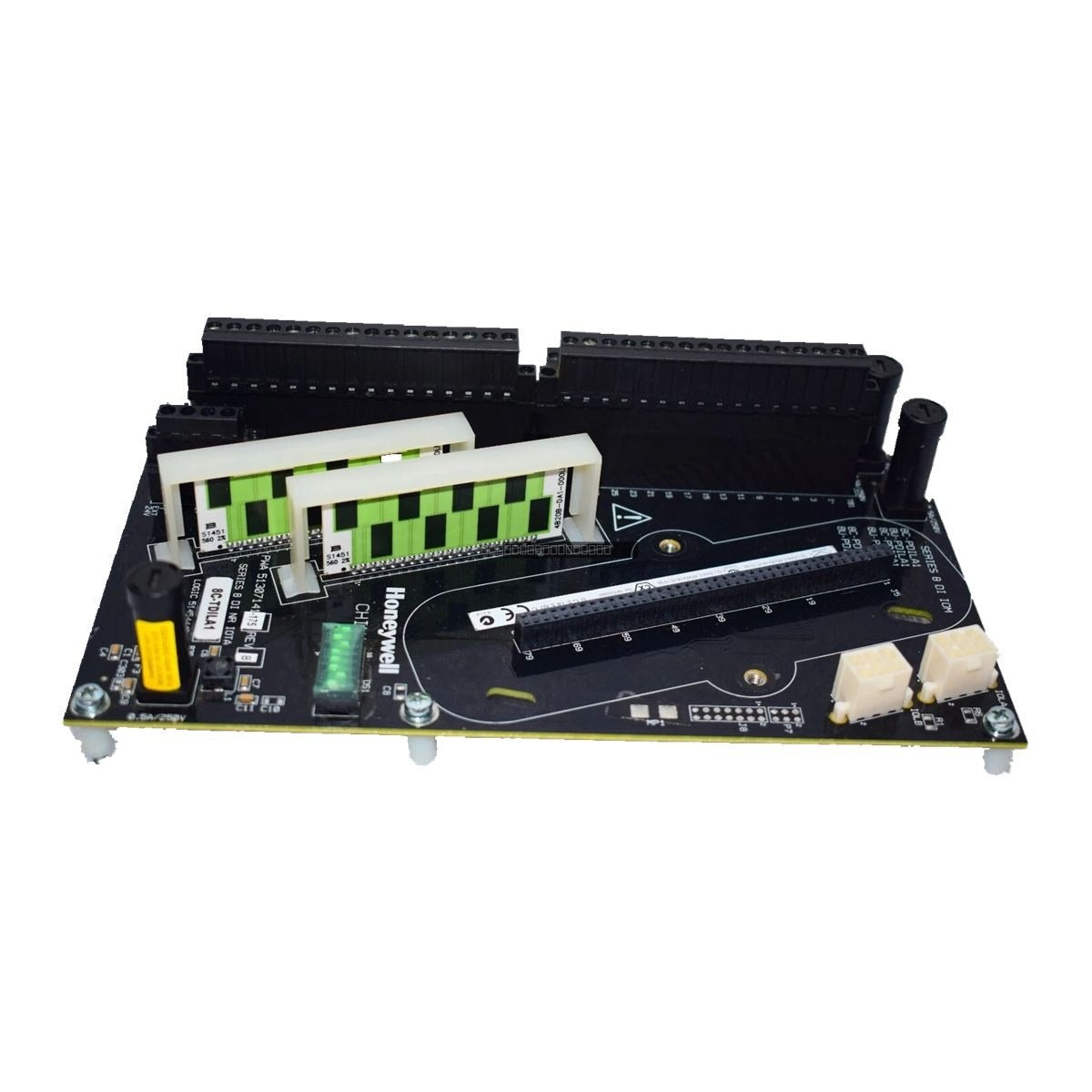

The Honeywell 8U-TAIXA1 is a 16-channel single-ended Analog Input IOTA (Input Output Termination Assembly) designed for integration within Experion PKS distributed control systems. This module provides reliable signal acquisition for 4-20 mA process loops, supporting both 2-wire and self-powered transmitters. Engineered for demanding industrial environments, it features robust galvanic isolation and high-resolution A/D conversion to ensure measurement precision and signal integrity in applications ranging from chemical processing to power generation.

Features

• 16-channel single-ended analog input configuration.
• Supports 4-20 mA current input signals via a 250 Ohm resistor path.
• 16-bit A/D conversion architecture for high-resolution process monitoring.
• Galvanic isolation rated to 1000 VAC RMS / 1000 VDC using Icoupler technology.
• Supports online insertion and removal (RIUP) to maintain process uptime during maintenance.
• Integrated RC filtering and crosstalk suppression for noise immunity.

Technical Specifications

Installation Guidelines

• Ensure the system power is managed according to facility safety protocols; while the module supports RIUP, verify local site procedures before hot-swapping.
• Mount the IOTA securely to the designated rail or backplane assembly within the cabinet.
• Maintain proper grounding practices to minimize EMI/RFI interference in high-noise environments.
• Use shielded cabling for analog signal runs to protect against external noise and ensure signal stability.
• Verify that the ambient temperature remains within the specified 0 to 60 deg C range to prevent thermal degradation of the components.

FAQ

Does the 8U-TAIXA1 support hot swapping?
Yes, this module is designed for removal and insertion under power (RIUP), allowing for maintenance without requiring a full system shutdown.

What is the primary function of this IOTA?
The 8U-TAIXA1 serves as a termination assembly and signal interface for 16 analog inputs, converting 4-20 mA field signals into digital data for the Experion PKS controller.
