Description

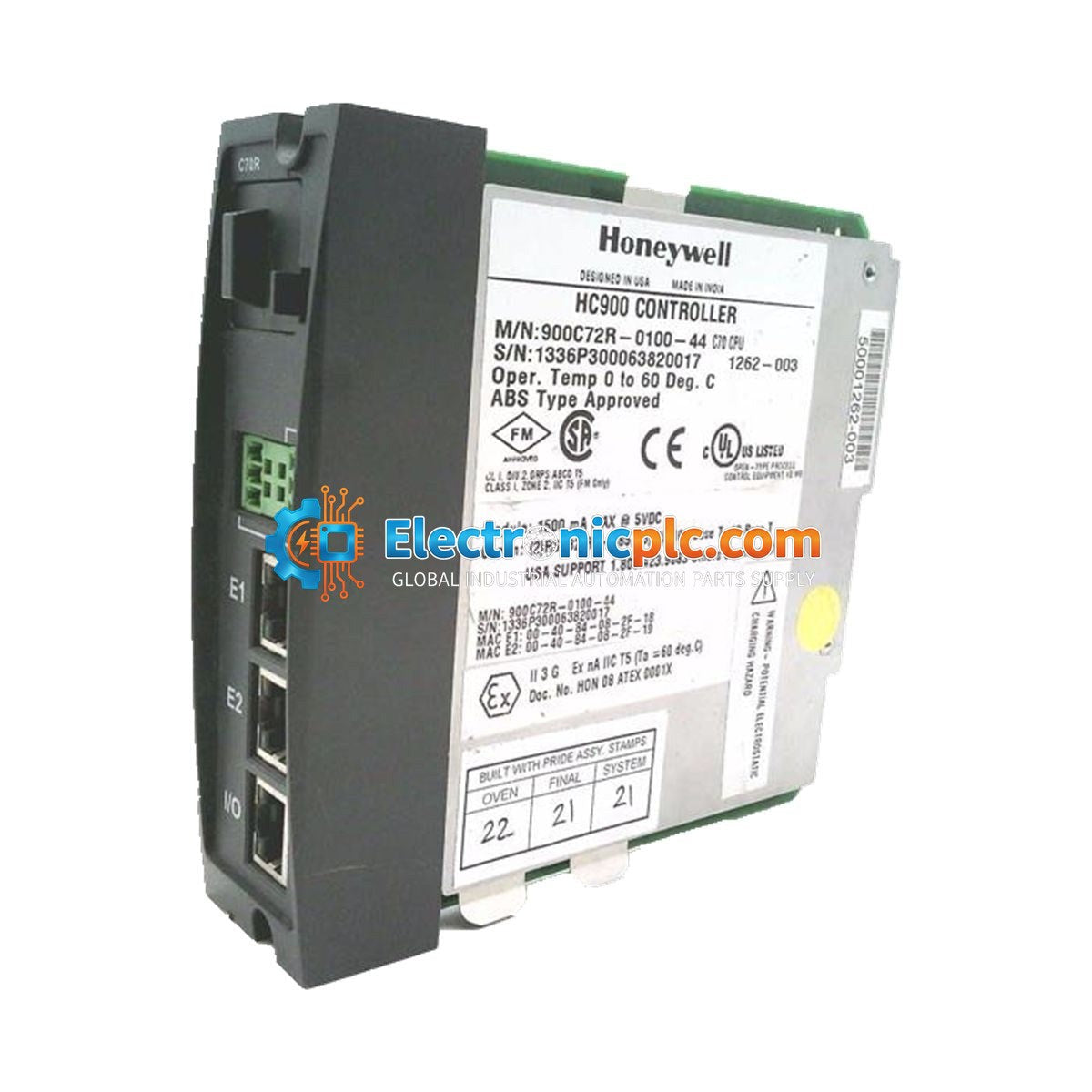

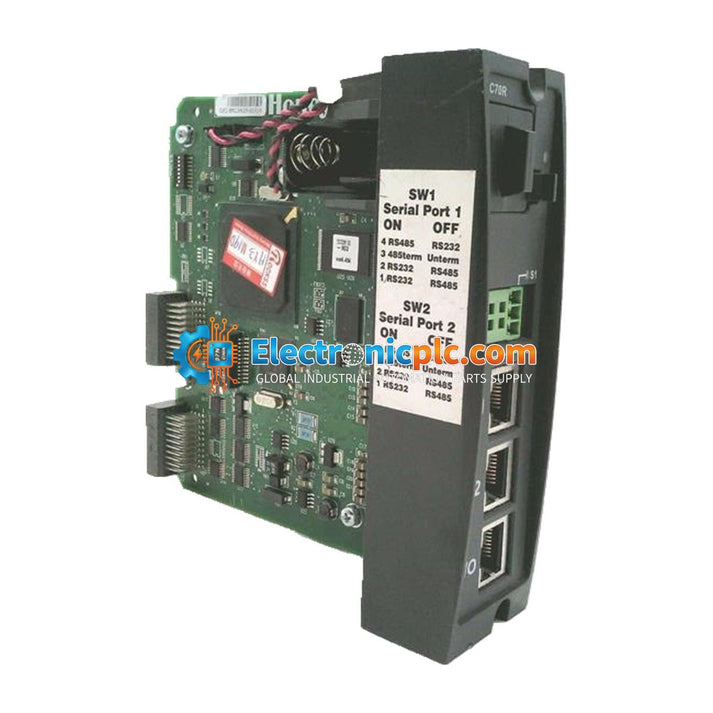

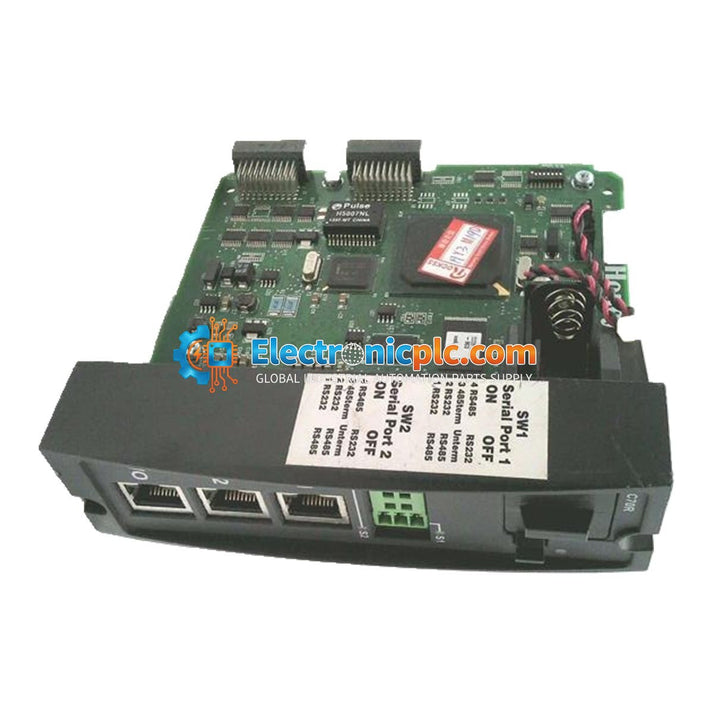

The Honeywell 900C72R-0100-44 is a high-performance C70R CPU module engineered for demanding industrial automation and distributed control system (DCS) applications. This controller provides robust, real-time processing capabilities essential for critical process industries, including oil and gas, power generation, and chemical manufacturing. By leveraging an embedded Linux operating system and industrial-grade hardware, the module ensures deterministic execution of control logic and reliable data logging.

Features

• Embedded Linux OS for deterministic control and multitasking.
• 4 GB DDR4 RAM and 64 GB eMMC storage for high-speed data processing and logging.
• Dual Ethernet ports supporting redundant or segmented network architectures.
• Integrated RS-232 serial port for legacy device and system connectivity.
• Dual USB 2.0 ports for local service, diagnostics, and data access.
• Designed for high-availability operation in continuous process environments.

Applications

This CPU module is primarily utilized within the Honeywell C70 controller platform. It is suitable for complex process control tasks, supervisory control, and data acquisition (SCADA) integration where high system availability and deterministic performance are required.

Technical Specifications

Installation Guidelines

• Ensure the controller rack is properly grounded before installing the module.
• Handle the module using standard ESD (Electrostatic Discharge) precautions to prevent damage to internal components.
• Verify that the power supply is disconnected before inserting or removing the module from the rack.
• Ensure adequate ventilation around the rack to maintain operating temperatures within the 0 to 60 deg C range.
• Route communication cables away from high-voltage power lines to minimize electromagnetic interference (EMI).

FAQ

Is this module compatible with existing C70 controller racks?

Yes, the 900C72R-0100-44 is designed for direct integration into the Honeywell C70 controller rack system, supporting scalable expansion and centralized process coordination.

What is the primary operating system for this controller?

This module utilizes an embedded Linux operating system, which provides the deterministic scheduling and multitasking capabilities required for industrial process control.
