Description

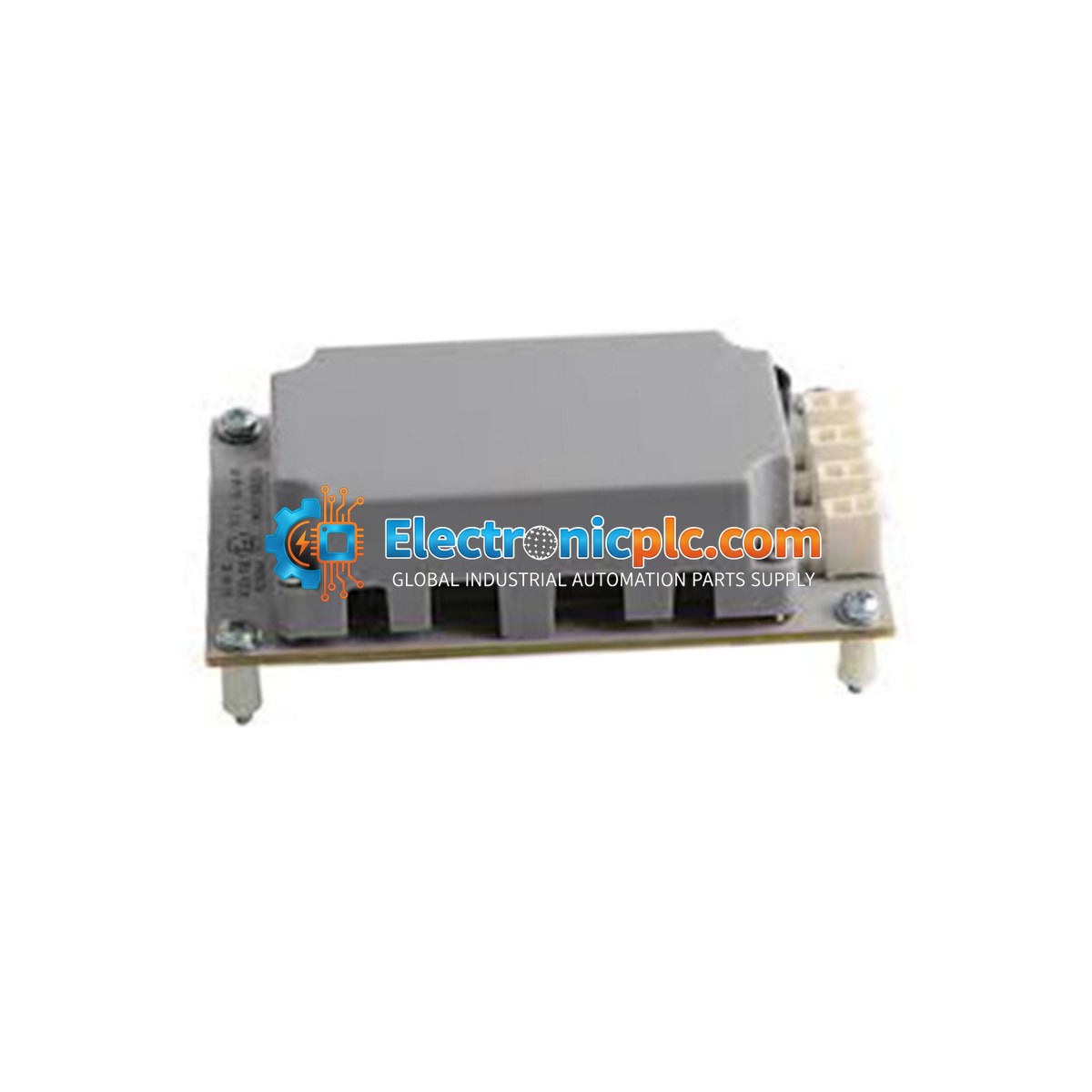

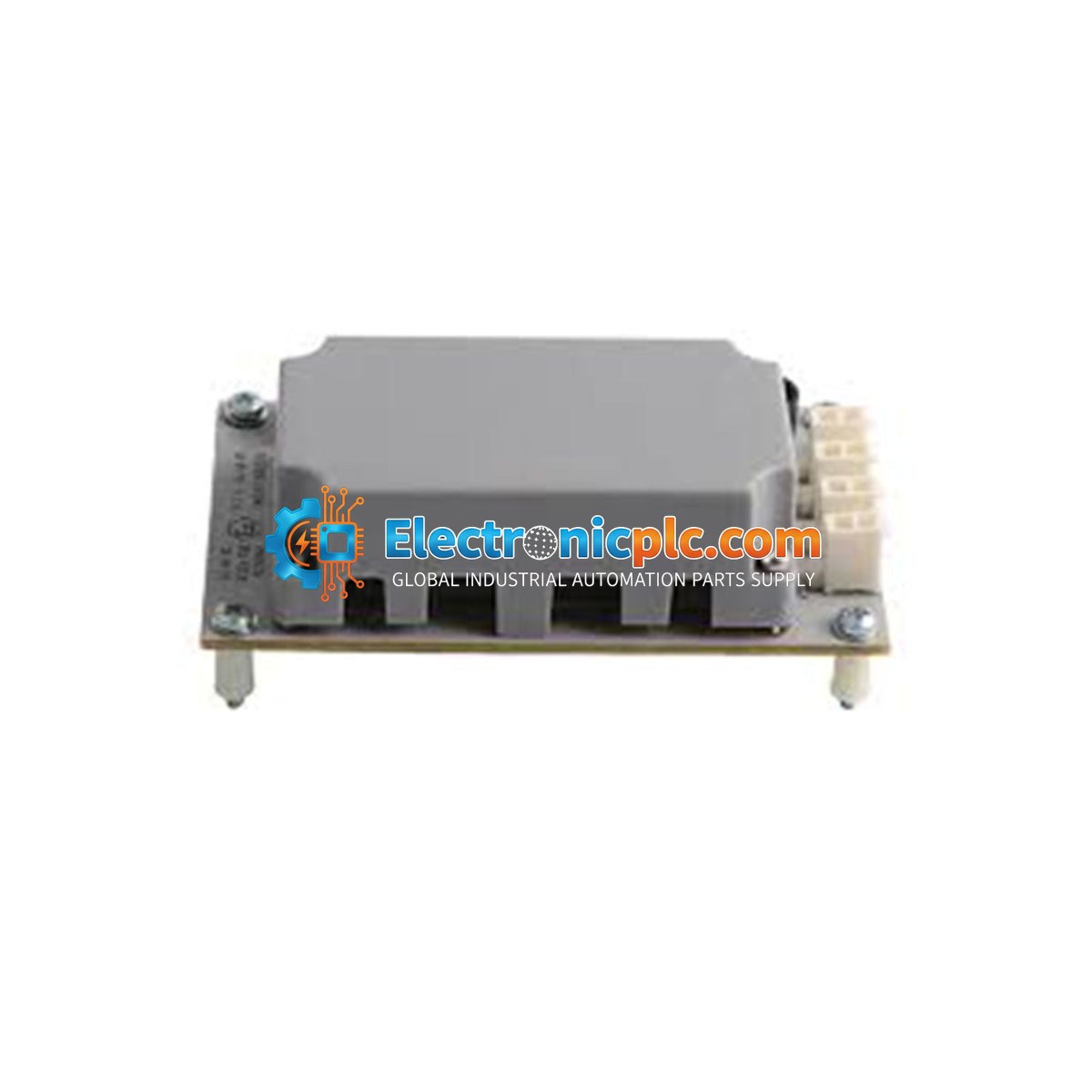

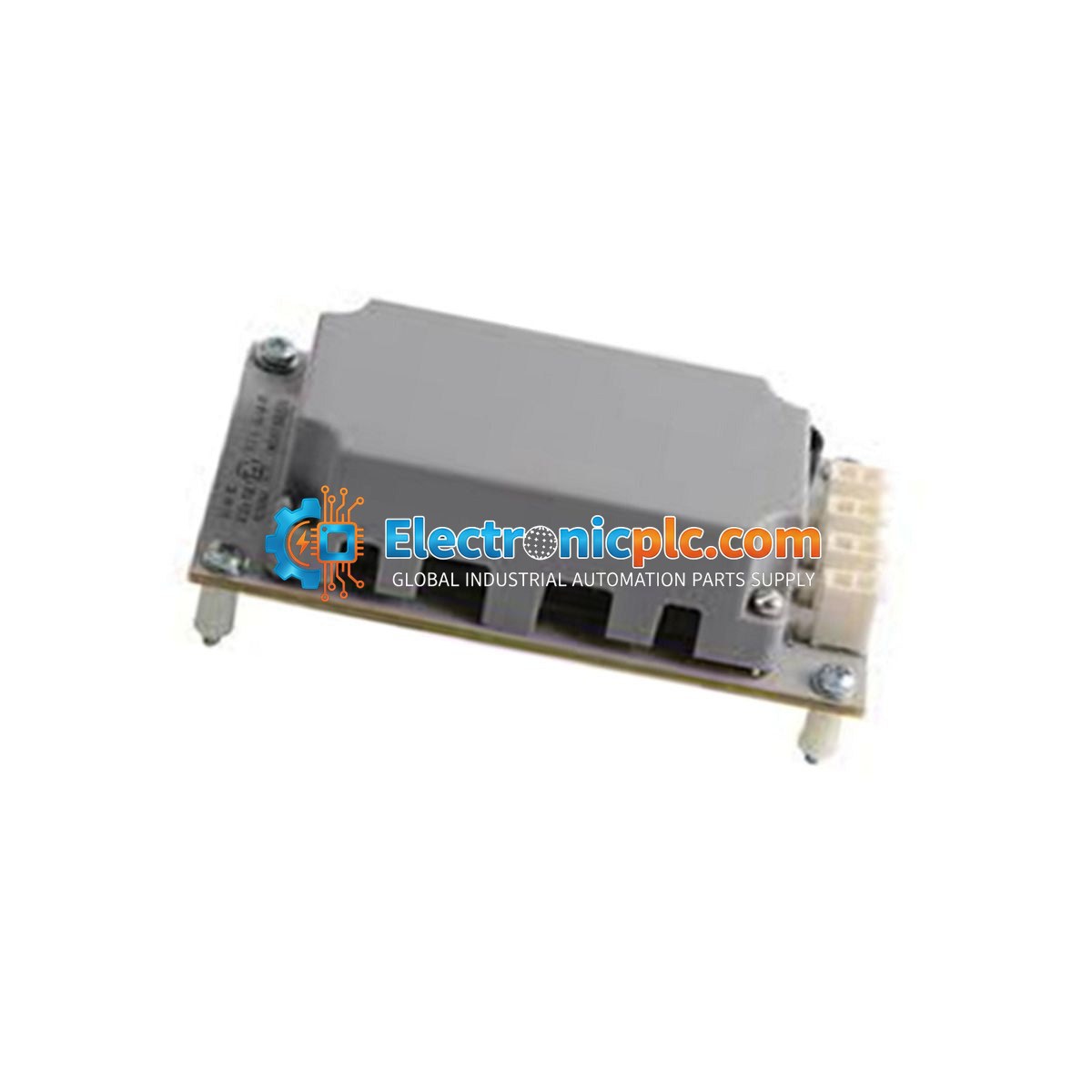

The Honeywell CC-SCMB02 (Part Number 51199932-200) is a dedicated RAM Charger Assembly designed for use within the Experion PKS C300 controller environment. This module serves as a critical component for memory backup, ensuring the integrity and retention of controller data during power cycles or power loss events.

Features

• Designed specifically for Honeywell C300 controller systems.
• Provides essential memory backup functionality for volatile RAM.
• Compact assembly for efficient integration into existing control cabinets.
• Ensures operational continuity and data persistence during power fluctuations.

Applications

This module is utilized in industrial automation environments relying on the Honeywell Experion PKS platform. It is typically deployed in process control applications where the C300 controller requires reliable memory retention for configuration, logic, and process data.

Technical Specifications

Installation Guidelines

• Ensure the control system is powered down before attempting to install or remove the RAM charger assembly.
• Handle the module using standard ESD (Electrostatic Discharge) protection practices to prevent damage to internal circuitry.
• Verify that the assembly is securely seated in the designated slot within the C300 controller housing.
• Ensure that all connections are clean and free of debris to maintain proper electrical contact.
• Consult the specific Honeywell Experion PKS hardware installation manual for your controller revision to confirm correct mounting procedures.

FAQ

What is the primary function of the CC-SCMB02?

The CC-SCMB02 acts as a RAM charger assembly, providing the necessary power backup to maintain memory integrity in the C300 controller during power loss.

Is this module compatible with other Honeywell series?

This specific assembly is engineered for the C300 controller architecture. It is not intended for use in legacy systems unless explicitly specified by Honeywell documentation.
