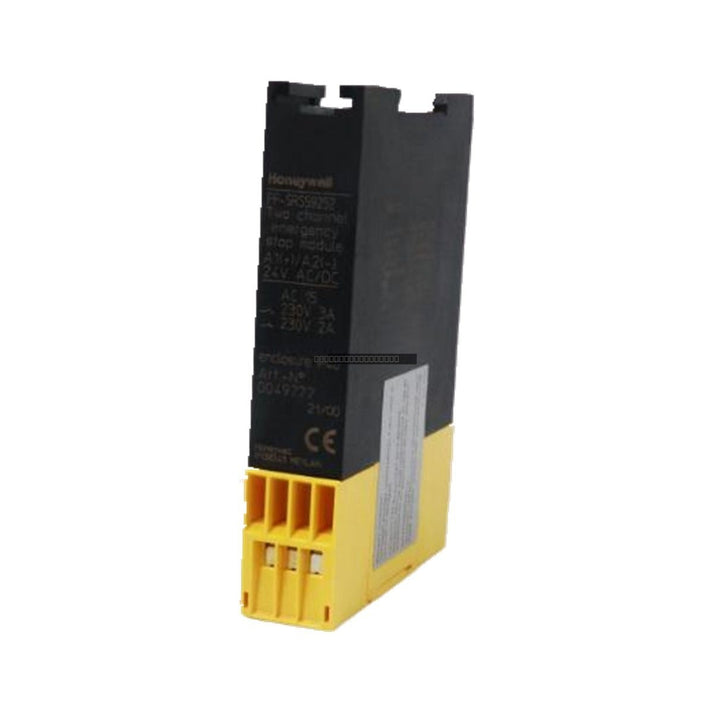

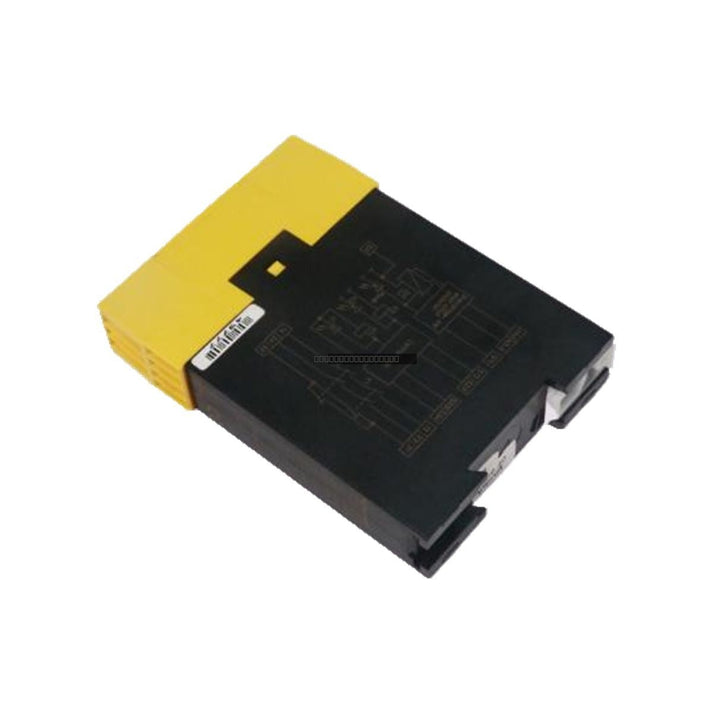

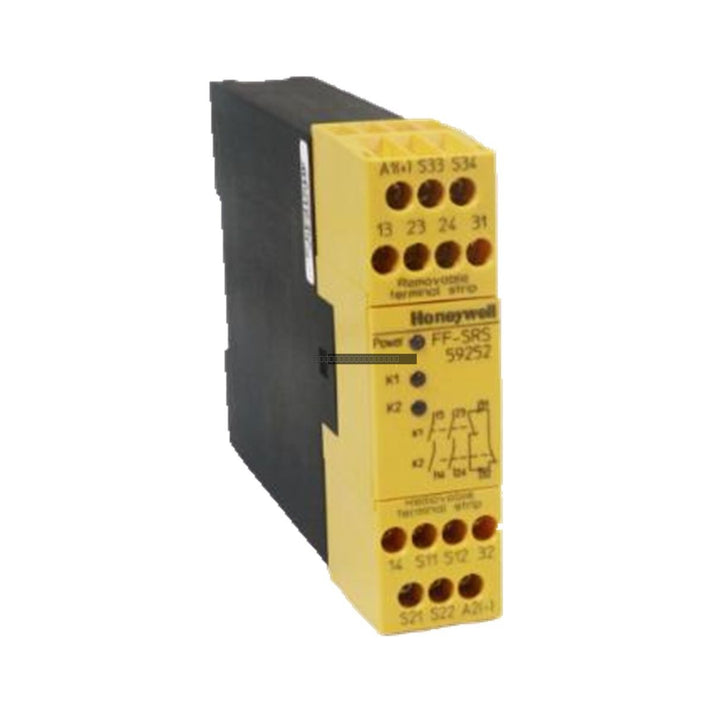

The Honeywell FF-SRS59252 is a specialized dual-channel emergency stop safety module engineered to maintain high-integrity safety interlock circuits within industrial automation environments. This module provides reliable monitoring for E-Stop inputs, ensuring that safety-rated shutdown systems respond predictably during emergency events or fault conditions.

Features

• Dual-channel input monitoring for enhanced safety redundancy.
• Cross-circuit supervision to detect discrepancies between channels.
• Force-guided relay contact architecture for fail-safe operation.
• Compact, space-efficient housing designed for standard DIN rail mounting.
• Deterministic safety response suitable for critical process industry applications.

Applications

This module is widely utilized in safety-critical sectors including oil and gas, power generation, mining, and heavy manufacturing. It is designed to integrate seamlessly into either hardwired safety loops or PLC-based control systems to ensure machine protection and operator safety.

Technical Specifications

Installation Guidelines

• Ensure the module is installed in a clean, dry environment within a control cabinet that meets IP protection standards.
• Always disconnect power before performing installation, wiring, or maintenance on the module.
• Mount the unit securely onto a standard DIN rail; ensure adequate clearance for heat dissipation.
• Verify that wiring is consistent with the dual-channel configuration to maintain safety integrity.
• Follow local electrical codes and grounding practices to minimize EMI interference in the safety loop.

FAQ

What is the primary function of the FF-SRS59252? The module serves as a safety relay that monitors dual-channel emergency stop inputs, triggering a safe state if a fault or emergency event is detected.

Is this module suitable for high-vibration environments? While designed for industrial cabinets, it is recommended to ensure the DIN rail mounting is secure and free from excessive mechanical shock to maintain relay contact integrity.

Does this module require a specific power supply? The device operates on 24 VAC. Ensure the power source is regulated to prevent voltage fluctuations that could impact the monitoring logic.
