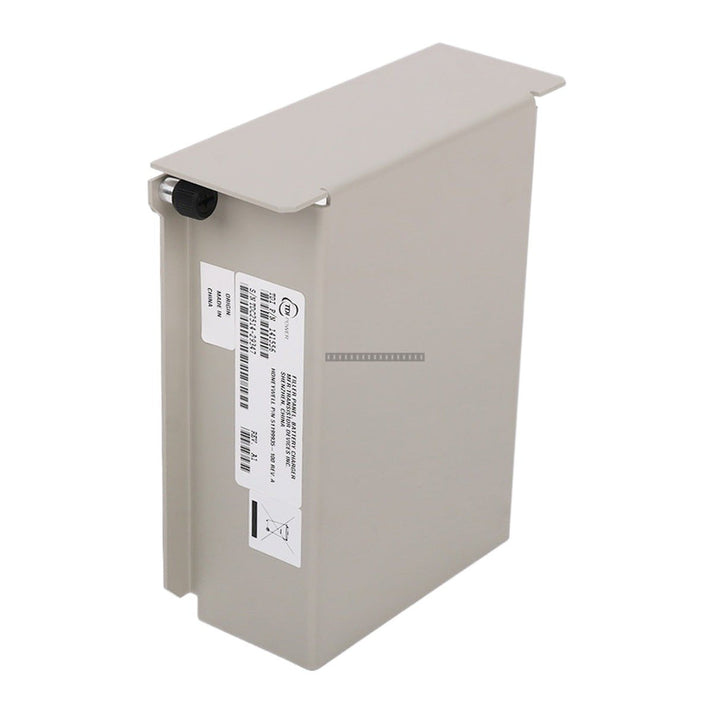

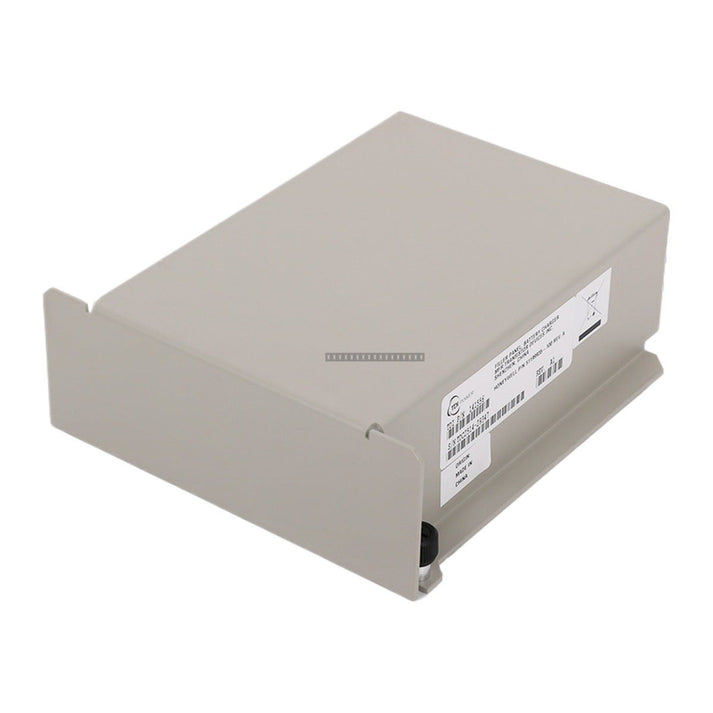

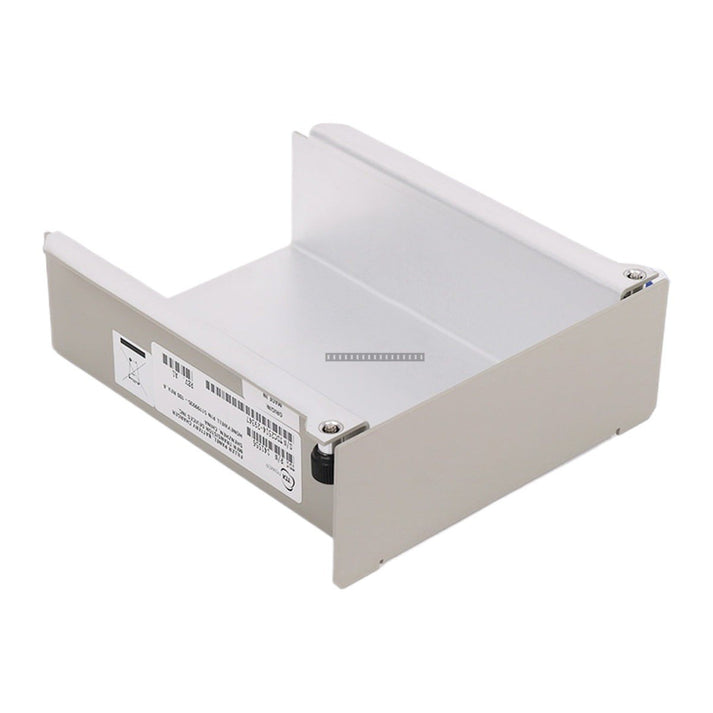

The Honeywell 51199935-100 is a dedicated filler panel designed for use within the C300 controller platform. This passive component is utilized to cover empty slots in the power supply or I/O rack assembly, ensuring proper airflow management, protection against dust and debris, and maintaining the physical integrity of the chassis.

Features

• Designed specifically for C300 power supply slot configurations
• Passive mechanical component with no active electronic circuitry
• Provides physical protection for internal backplane connectors
• Maintains enclosure IP20 rating and structural integrity
• Constructed with flame-retardant materials meeting UL 94 V-0 standards

Technical Specifications

Installation Guidelines

• Ensure the rack or chassis is powered down if required by site safety protocols before installing or removing modules.
• Align the filler panel carefully with the guide rails of the empty slot.
• Push the panel firmly until it is flush with the front of the rack assembly to ensure proper seating.
• Use filler panels in all unused slots to maintain optimal cooling airflow and prevent the ingress of foreign objects into the backplane area.
• Handle with standard ESD precautions if working in close proximity to sensitive electronic modules.

FAQ

What is the primary purpose of the 51199935-100 filler panel?

This panel is used to cover empty slots in a Honeywell C300 system rack. It serves to protect the backplane from environmental contaminants and ensures that the cooling airflow is directed correctly through the populated modules.

Does this module require any electrical configuration?

No, the 51199935-100 is a purely passive mechanical component. It contains no active electronics, draws no current, and does not require software configuration or addressing.
