Description

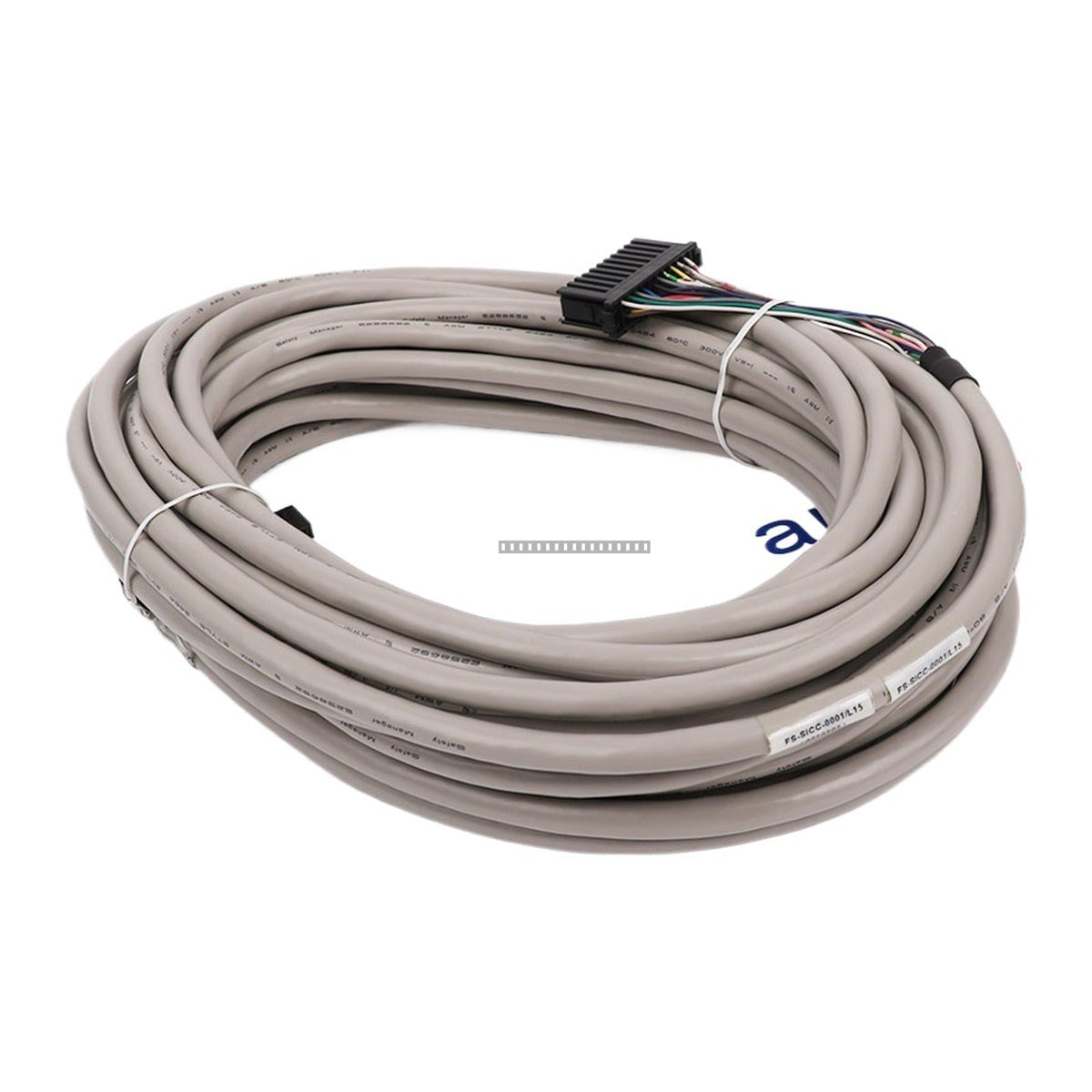

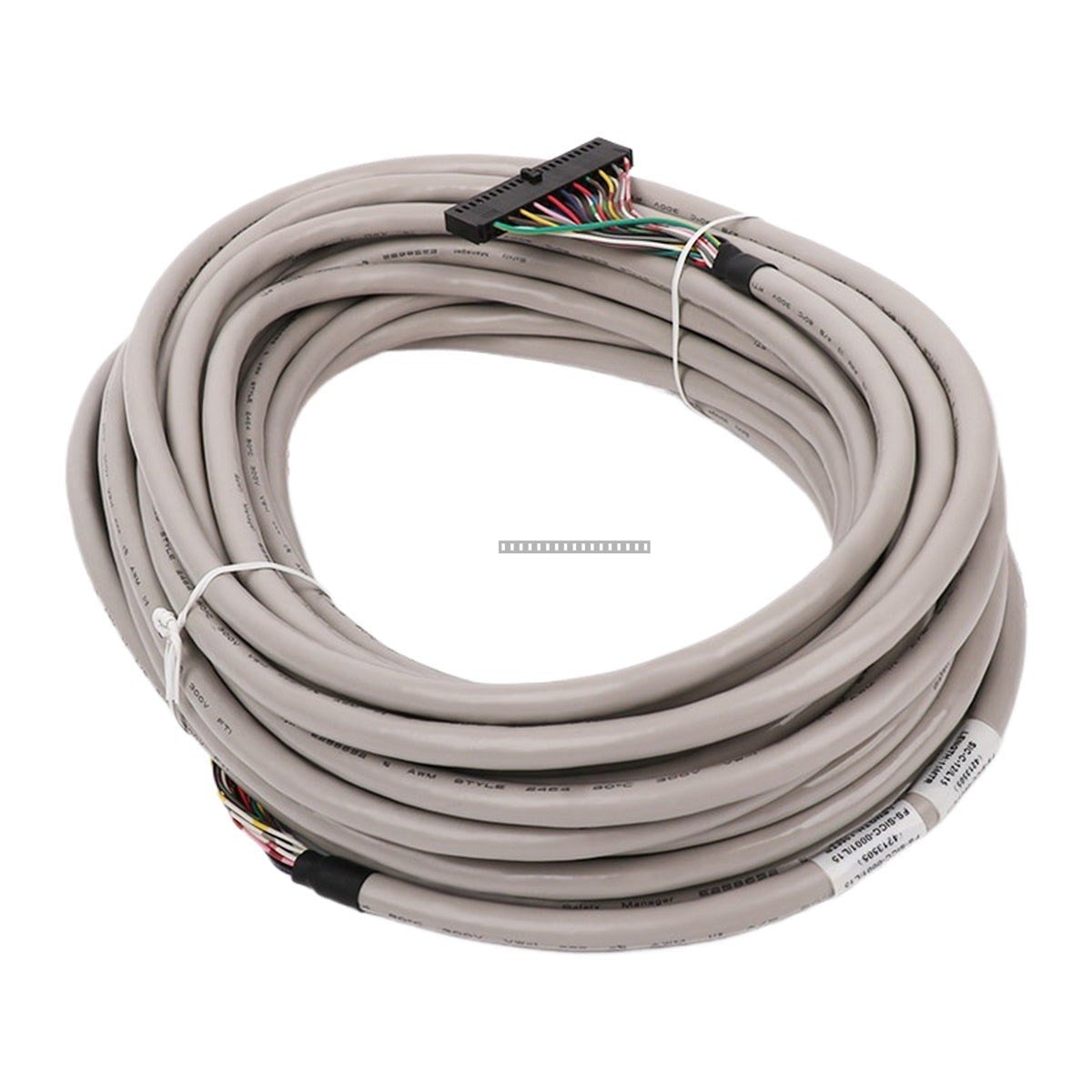

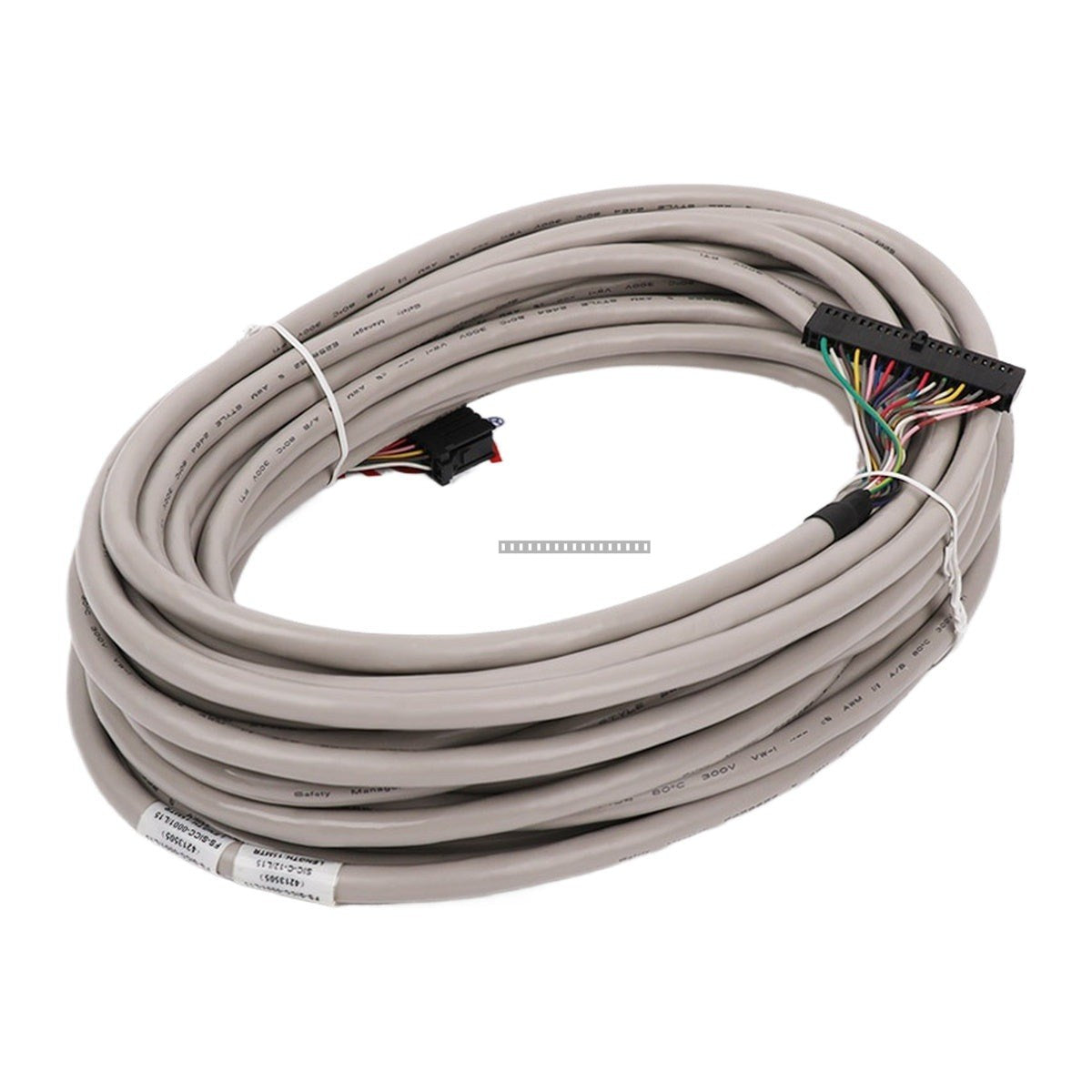

The Honeywell FS-SICC-0001/L15 is a high-performance system interconnection cable designed for use with FSC (Fail Safe Controller) chassis I/O systems. This cable facilitates reliable signal transmission between the controller chassis and Field Termination Assemblies (FTA). Engineered for industrial environments, it features robust shielding to maintain signal integrity in the presence of electromagnetic interference.

Features

• Designed for FSC chassis I/O connectivity.
• Double-shielded construction (foil and braid) for superior EMI/RFI protection.
• Constructed with 20 AWG stranded copper conductors for flexibility and durability.
• Rated for 60V DC maximum operation.
• High insulation resistance to ensure long-term signal reliability.

Technical Specifications

Installation Guidelines

• Ensure all power is disconnected from the chassis before connecting or disconnecting the cable.
• Route the cable away from high-voltage power lines and sources of high-frequency electrical noise to prevent signal degradation.
• Maintain the minimum bend radius during installation to avoid damaging the internal conductors or shielding.
• Ensure the cable connectors are fully seated and secured to the chassis and FTA ports to prevent intermittent connections.
• Verify that the cable shield is properly grounded at the designated termination points to maintain effective EMI protection.

FAQ

What does the L15 suffix indicate?
The L15 suffix indicates the cable length, which is 15 meters.

Is this cable suitable for high-EMI environments?
Yes, the FS-SICC-0001/L15 features double-layer shielding (foil and braid), which provides robust protection against EMI and RFI interference common in industrial control rooms.
