Description

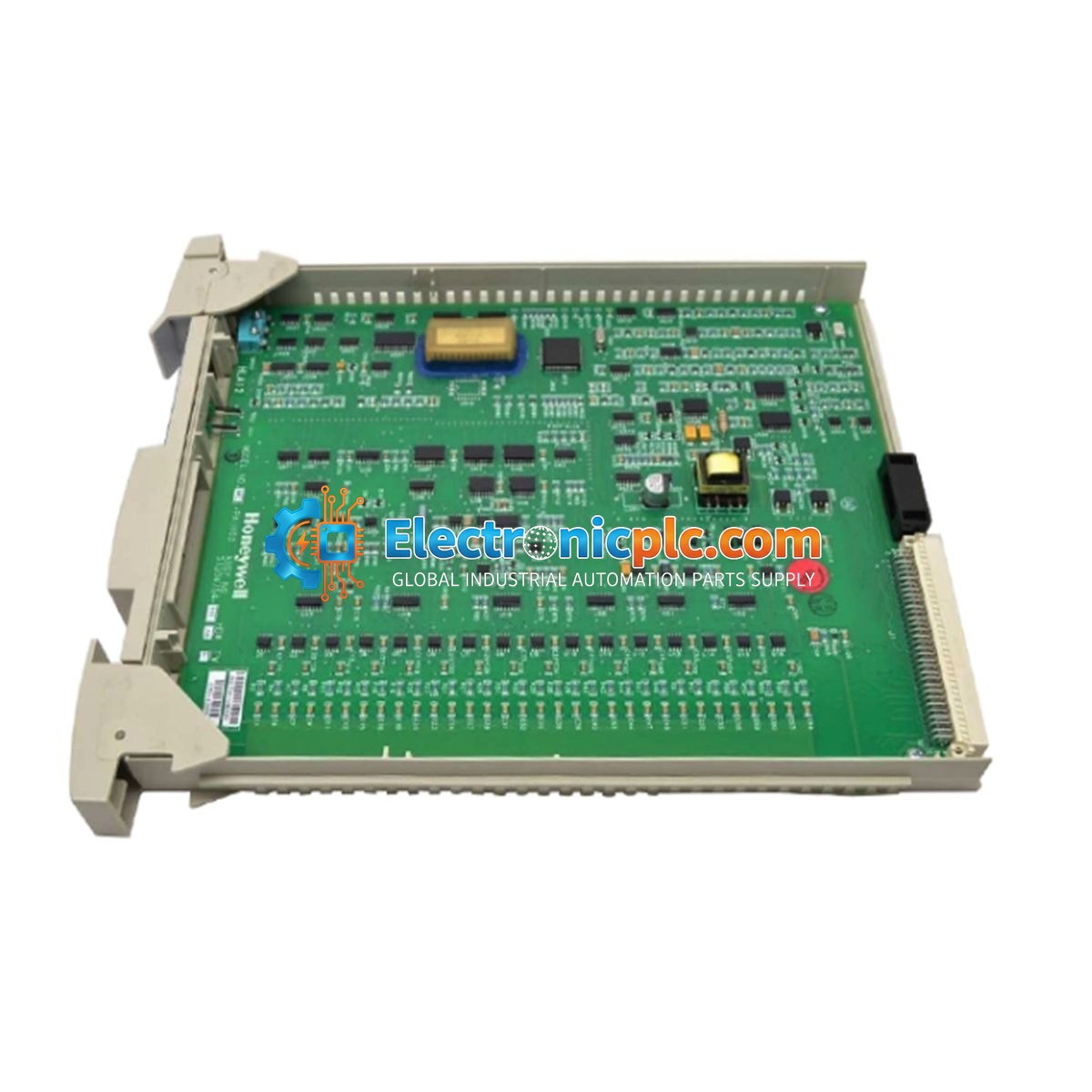

The Honeywell MC-GAIH83 is a high-level analog input and Smart Transmitter Interface (STI) module engineered for precision signal acquisition within industrial process control systems. This module is designed to condition and digitize analog signals, ensuring reliable data transmission to the control system even in electrically demanding environments. It is a critical component for maintaining process stability in sectors such as power generation, chemical processing, and refinery automation.

Features

• High-level analog input processing with integrated signal conditioning.
• STI (Smart Transmitter Interface) compatibility for seamless field transmitter integration.
• Crimp terminal interface for robust, vibration-resistant field wiring connections.
• Advanced internal filtering to maintain measurement accuracy in high EMI environments.
• Designed for continuous duty operation in mission-critical monitoring applications.

Applications

The MC-GAIH83 is widely utilized in heavy industrial facilities for:

• Refinery and petrochemical process automation.
• Power generation plant instrumentation and control.
• Continuous monitoring of industrial field transmitters.
• High-accuracy data acquisition in distributed control systems.

Technical Specifications

Installation Guidelines

• Ensure the system power is completely disconnected before inserting or removing the module from the backplane.
• Use shielded cabling for all analog input signals to minimize electromagnetic interference (EMI).
• Verify that all crimp terminal connections are secure to prevent signal degradation caused by high-vibration environments.
• Maintain proper ventilation within the cabinet to ensure the module operates within the specified 0 to 60 deg C temperature range.
• Follow standard ESD (Electrostatic Discharge) handling procedures when touching internal components or connectors.

FAQ

What is the primary function of the MC-GAIH83?
The MC-GAIH83 acts as a high-level analog input module that digitizes signals from field instruments, such as smart transmitters, for use in Honeywell control systems.

Does this module require specific wiring tools?
Yes, as it utilizes a crimp terminal interface, you should use appropriate crimping tools to ensure a reliable and secure electrical connection for your field wiring.

Can this module be used in high-vibration areas?
Yes, the crimp terminal design is specifically intended to provide stable mechanical and electrical connections in environments subject to industrial vibration.
