Description

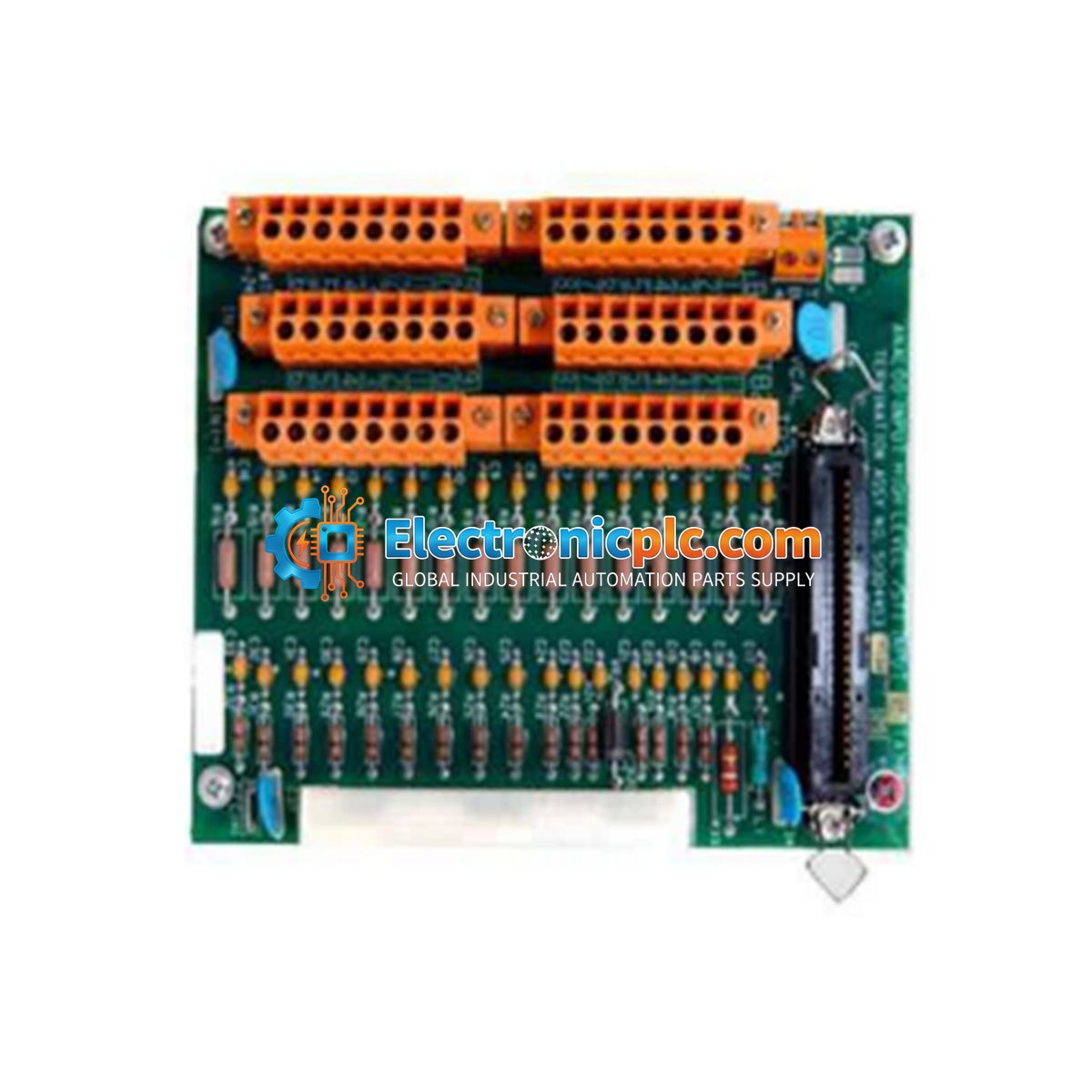

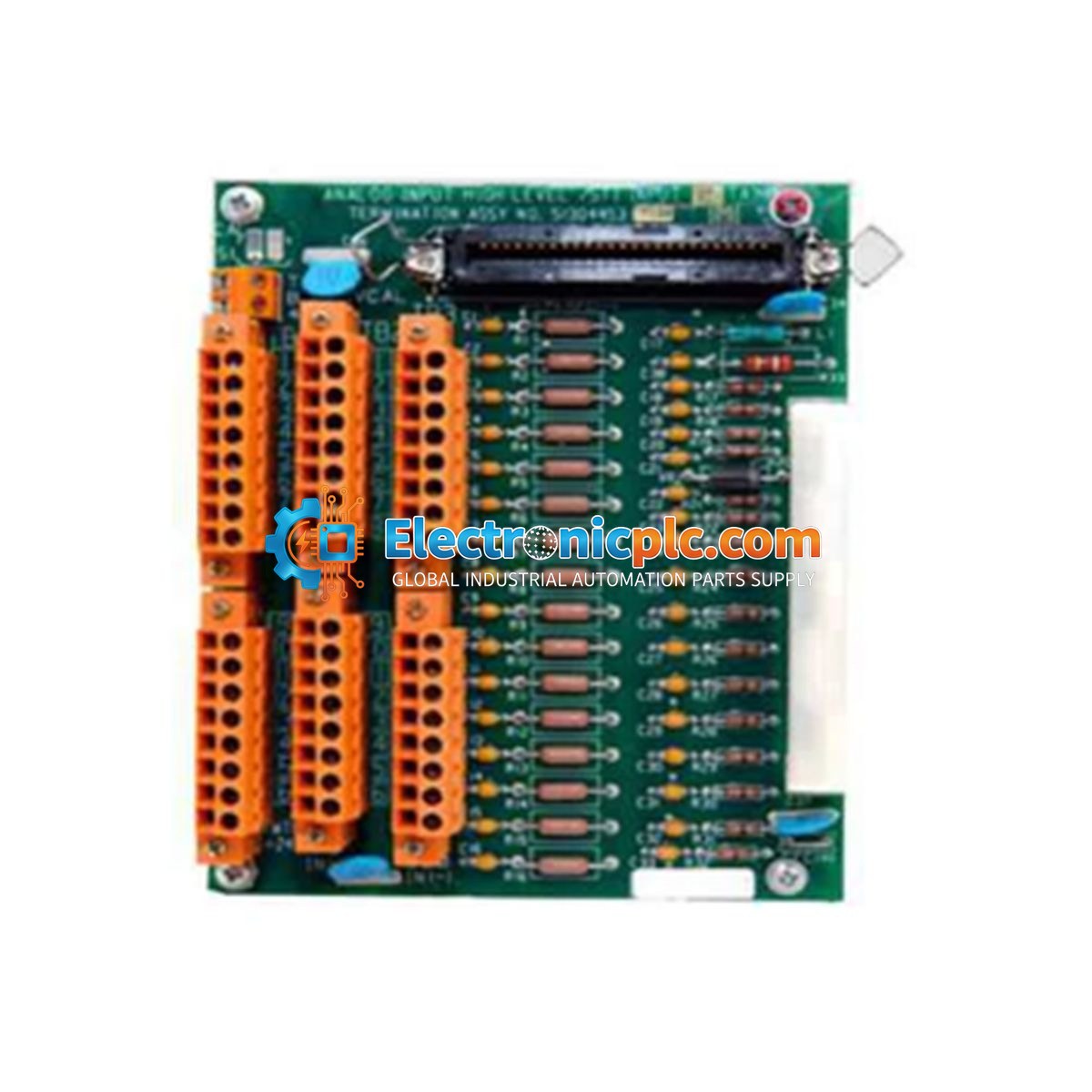

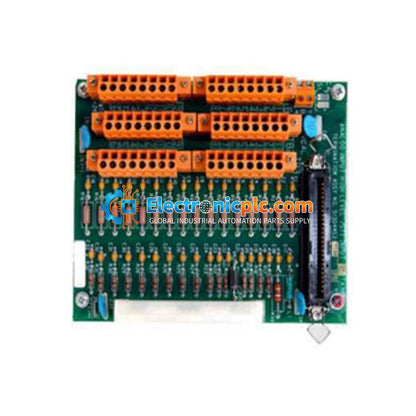

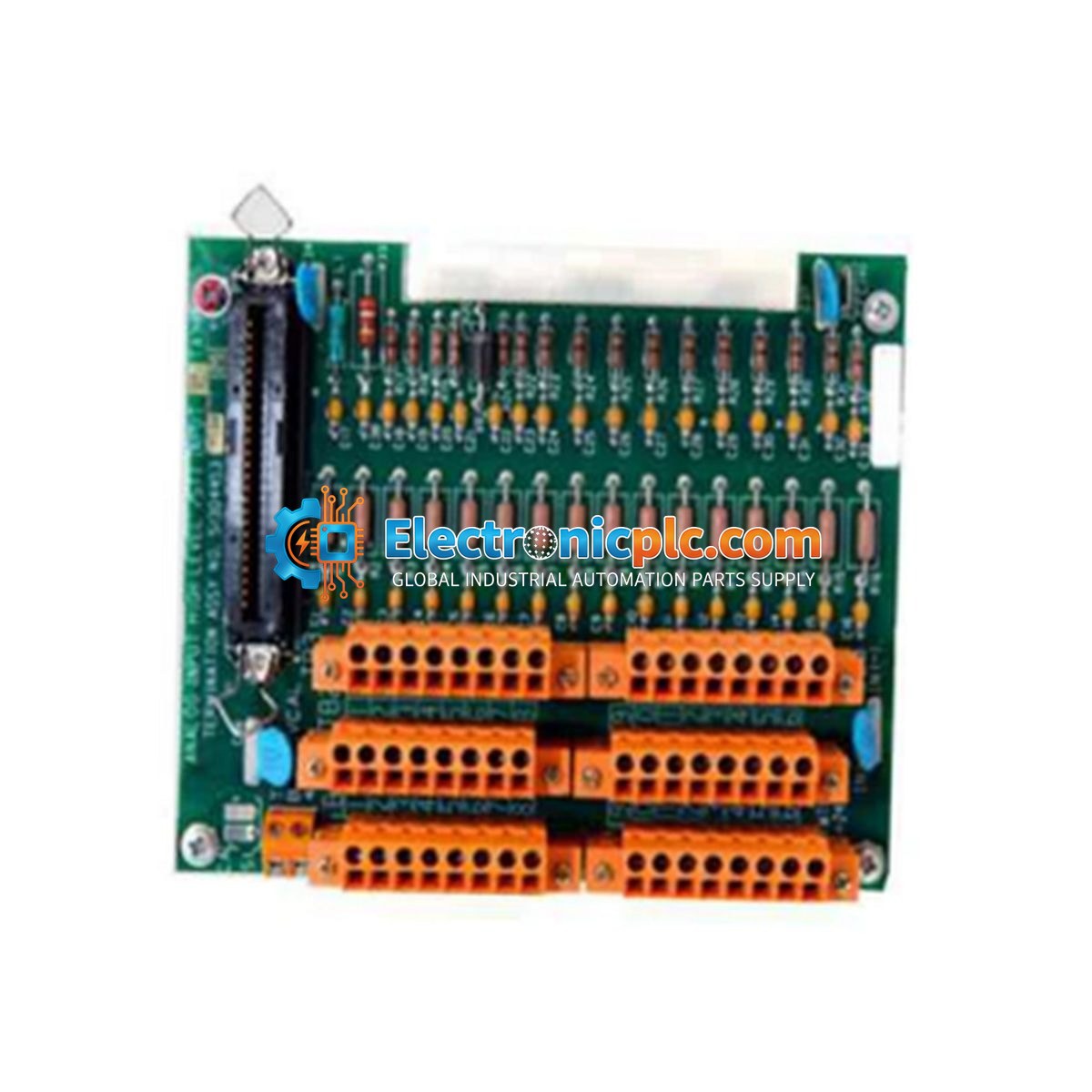

The Honeywell MC-TSTX03 is a high-level analog input Field Termination Assembly (FTA) designed for smart transmitter interface processing within Honeywell control systems. This module serves as a critical bridge between field instrumentation and the control network, facilitating high-density signal acquisition for process industries including oil refining, power generation, and chemical manufacturing. By centralizing transmitter interfacing and supporting redundant architectures, the MC-TSTX03 ensures continuous data availability and reduces overall wiring complexity in safety-critical control environments.

Features

• Supports 16 analog input channels for high-density field signal acquisition.
• Compatible with Honeywell digital enhanced bidirectional communication protocol.
• Designed for redundant operation to support hot standby configurations and increased system availability.
• Accommodates both single-variable and multi-variable smart transmitters.
• Integrated processor-level handling for analog signal conversion and digital communication.

Applications

The MC-TSTX03 is utilized in distributed process automation systems where stable, high-reliability signal conditioning is required. Typical applications include refinery control systems, power plant instrumentation, and large-scale industrial process control networks requiring continuous monitoring of smart field devices.

Technical Specifications

Installation Guidelines

• Ensure the control cabinet environment is clean and free of excessive dust or corrosive elements, as this module features non-conformal coating.
• Verify that the control system is powered down before inserting or removing the FTA module from the backplane to prevent electrical damage.
• Ensure proper grounding of the cabinet and shielding of field signal cables to minimize EMI/RFI interference.
• Follow standard ESD (Electrostatic Discharge) handling procedures when touching the module components.
• Confirm that all field wiring is securely terminated to the FTA terminals before commissioning the loop.

FAQ

Is this module compatible with non-Honeywell transmitters?

The MC-TSTX03 is specifically engineered for Honeywell digital enhanced bidirectional protocol devices. While it handles standard analog inputs, its primary function is optimized for Honeywell smart transmitter integration.

Does this module require external power?

No, the MC-TSTX03 is powered directly through the control system backplane as part of the standard Honeywell FTA architecture.
