Description

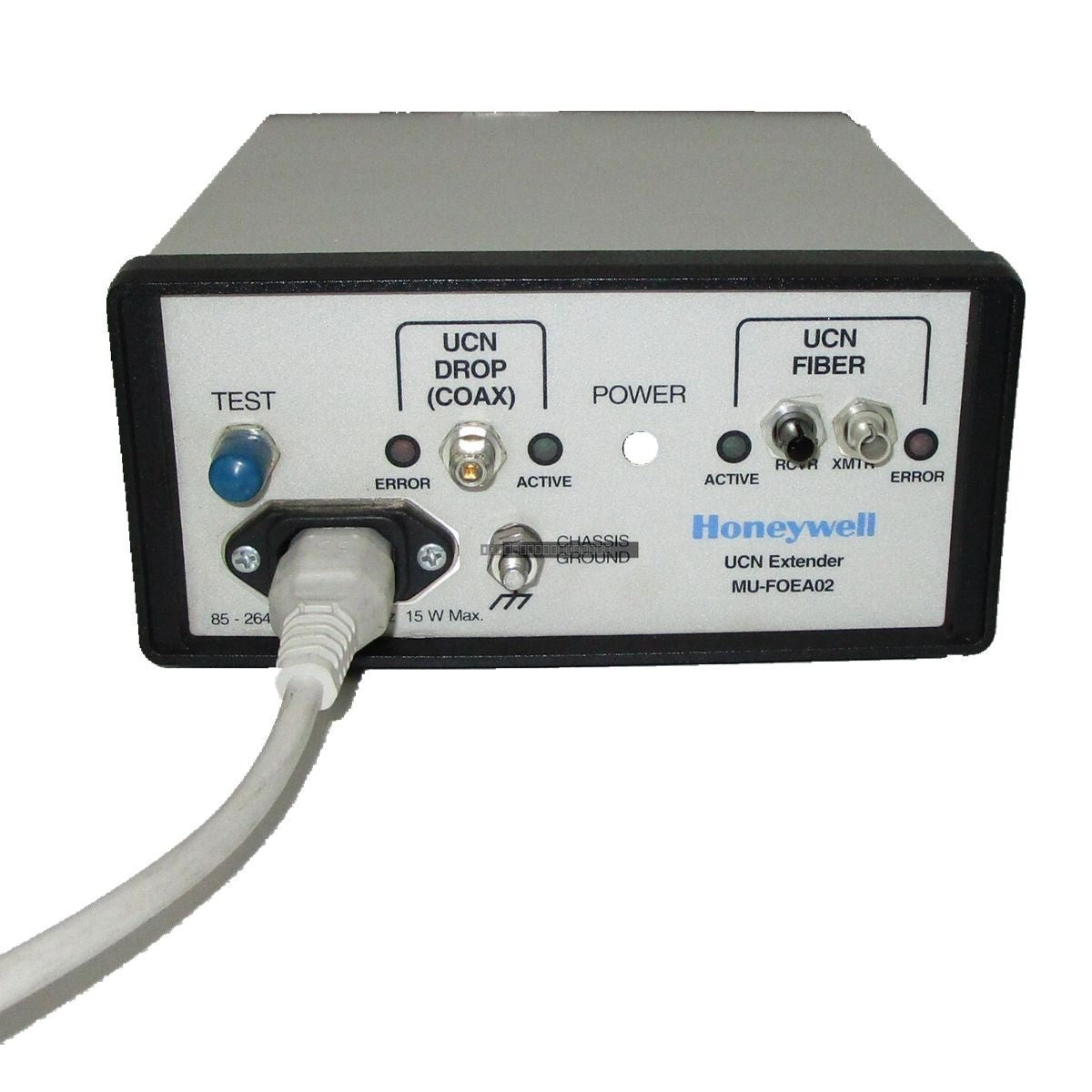

The Honeywell MU-FOEA02 (51197564-100) is a specialized communication module engineered for the Universal Control Network (UCN) within Honeywell TDC 3000 Distributed Control System (DCS) architectures. This device serves as a fiber optic extender, facilitating the transmission of UCN signals over extended distances. By converting electrical signals into optical data, the module provides superior noise immunity and electrical isolation, which are essential for maintaining signal integrity in large-scale industrial facilities such as refineries, petrochemical plants, and power stations.

Features

• Designed for seamless integration with Honeywell TDC 3000 UCN backplane systems.
• Enables long-distance communication between control cabinets and remote process units via fiber optic links.
• Provides robust electrical isolation, minimizing the impact of electromagnetic interference (EMI).
• Supports high-availability network configurations, including redundant communication paths.
• Maintains deterministic timing necessary for critical process control loops.

Applications

This module is intended for use in distributed process control environments where physical separation of control nodes is required. It is commonly deployed to bridge communication gaps in geographically dispersed control architectures while ensuring consistent data exchange and fault-tolerant operation.

Technical Specifications

Installation Guidelines

• Ensure the control system is powered down before inserting or removing the module from the backplane.
• Handle the module using standard ESD-safe practices to prevent damage to internal circuitry.
• Verify that the fiber optic connections are clean and securely seated to prevent signal attenuation.
• Ensure the module is properly seated in the designated UCN backplane slot to maintain correct electrical contact.
• Route fiber optic cabling away from high-voltage power lines to avoid potential physical damage and ensure long-term link stability.

FAQ

Does this module require firmware configuration?

No, the MU-FOEA02 typically operates as a transparent extender. Configuration is managed at the system level through the broader Honeywell control network architecture rather than via local module firmware.

Is this module compatible with redundant systems?

Yes, the module is engineered to support redundant communication paths, provided the overall system architecture is configured for dual-link operation.
