Description

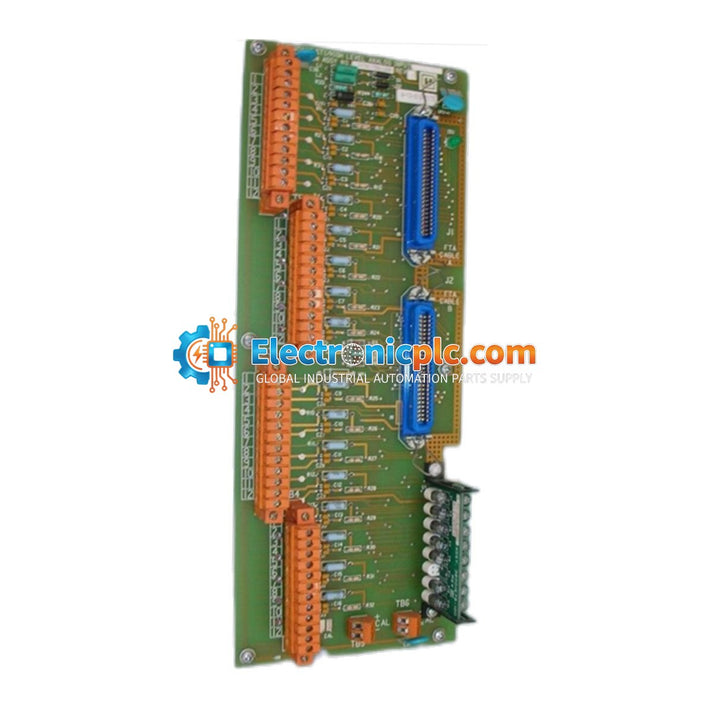

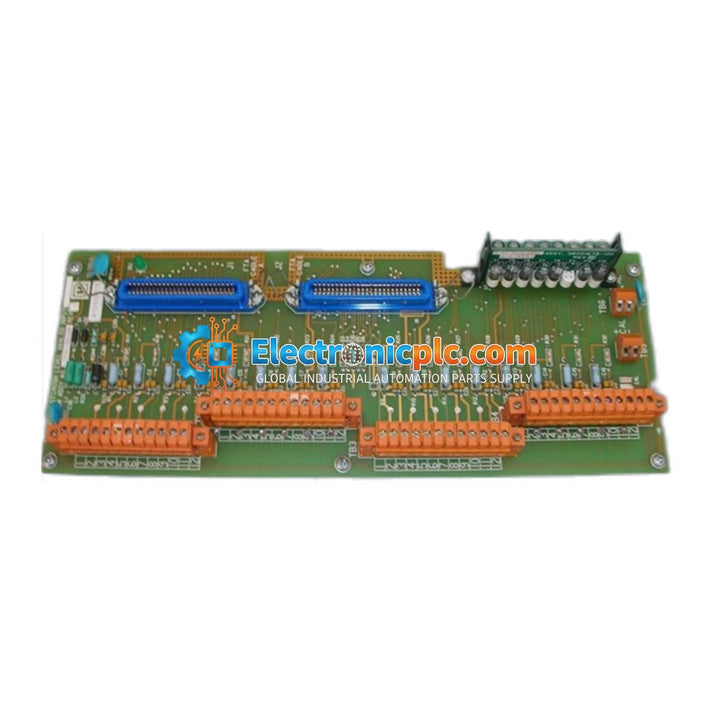

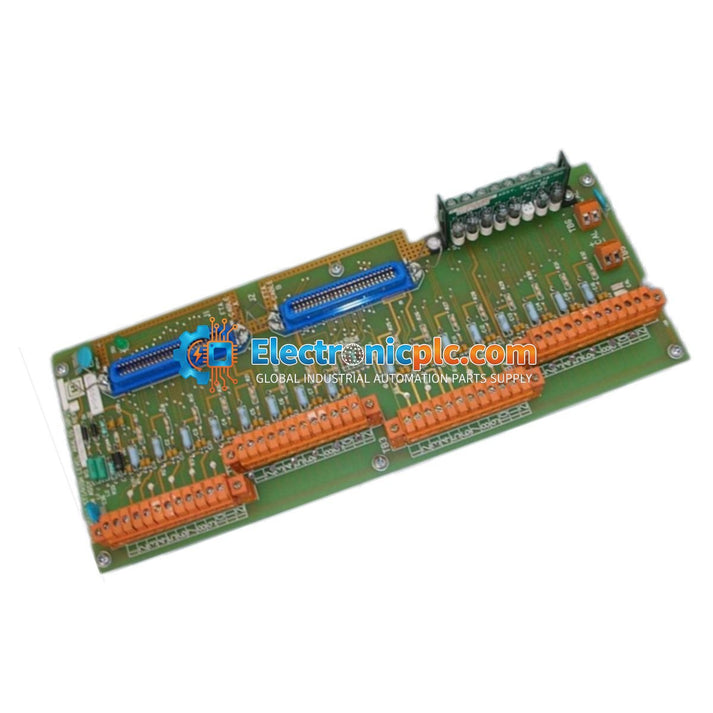

The Honeywell MU-TAIH22 is an Enhanced Power High Level Analog Input and Smart Transmitter Interface (STI) Field Termination Assembly (FTA). Engineered for 16-channel process signal acquisition, this module serves as a critical interface in industrial automation systems, facilitating the connection between field instrumentation and the control system. It is specifically designed to support high-level analog inputs while providing enhanced loop power distribution for connected transmitters, ensuring signal integrity and diagnostic capability in demanding process environments.

Features

• 16-Channel Capacity: Supports high-density signal termination for up to 16 analog field devices.
• STI Capability: Integrated Smart Transmitter Interface support allows for enhanced diagnostic data exchange and improved loop monitoring.
• Enhanced Power Architecture: Provides regulated and stable loop excitation for field-mounted transmitters.
• Signal Integrity: Designed to minimize inter-channel interference and ensure consistent signal transmission to the control subsystem.
• Simplified Maintenance: The FTA architecture isolates field wiring from control electronics, facilitating easier troubleshooting and reducing fault propagation.

Applications

The MU-TAIH22 is widely utilized in high-availability process control environments, including:

• Refinery and petrochemical processing units.
• Power generation plant instrumentation.
• Offshore oil and gas platforms.
• Heavy industrial chemical processing facilities.

Technical Specifications

Installation Guidelines

• ESD Precautions: Always follow standard electrostatic discharge (ESD) procedures when handling the module to prevent damage to sensitive electronic components.
• Wiring: Ensure all field wiring is properly secured to the terminal blocks. Use shielded cabling where required to maintain signal integrity and reduce EMI.
• Power Down: Always disconnect power to the FTA and associated I/O subsystem before installing or removing the module from the rack or cabinet.
• Environment: Ensure the installation location provides adequate ventilation and remains within the specified operating temperature range of -20 to 60 deg C.
• Grounding: Verify that the FTA chassis is properly grounded according to the site-specific control system grounding standards to ensure safety and noise immunity.

FAQ

What is the primary function of the MU-TAIH22?
The MU-TAIH22 acts as a field termination assembly that connects 16 analog field devices to a Honeywell control system, providing signal conditioning and enhanced loop power for smart transmitters.

Does this module require external power?
The module is designed for passive termination with system-supplied loop power, utilizing its enhanced power architecture to distribute excitation to field devices.
