Description

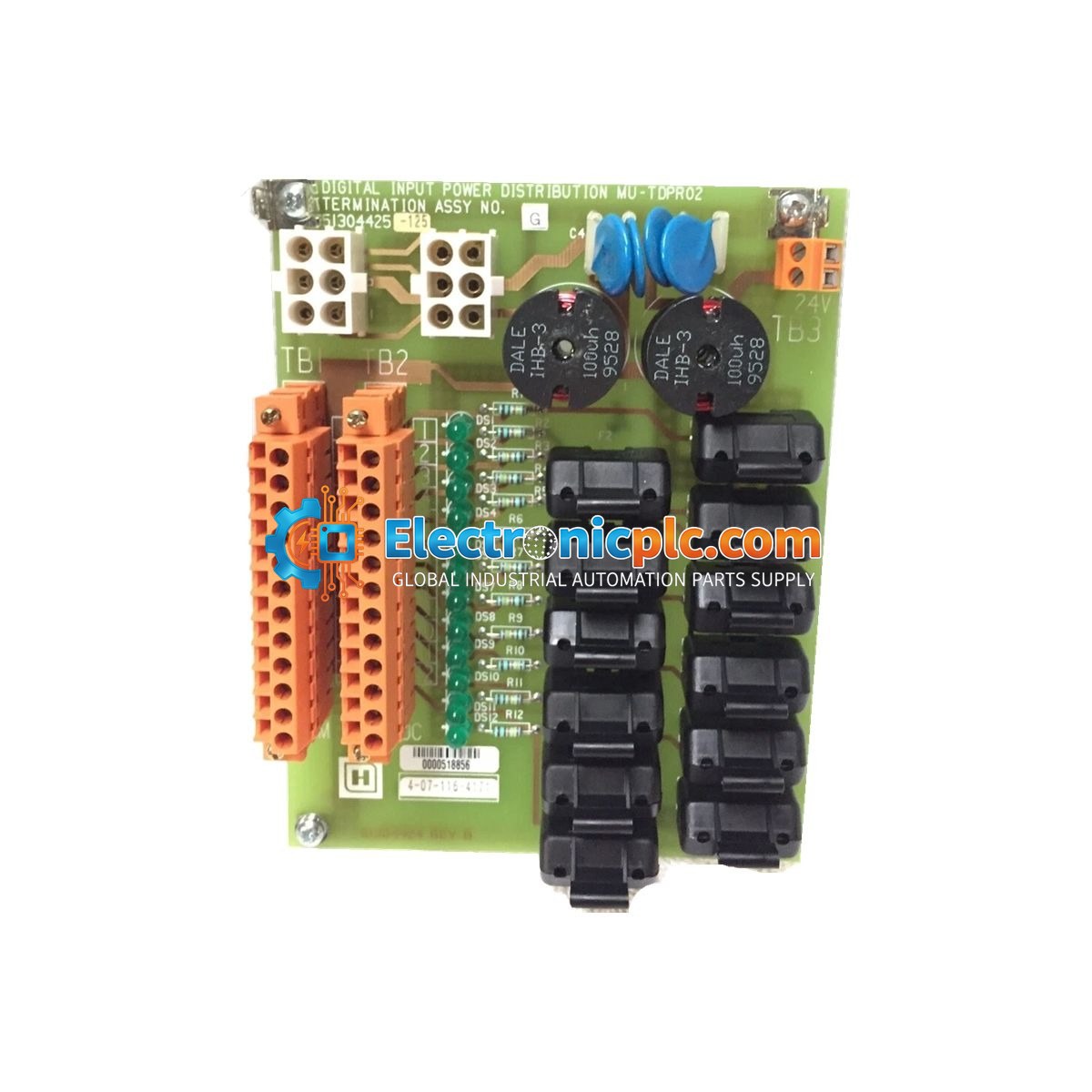

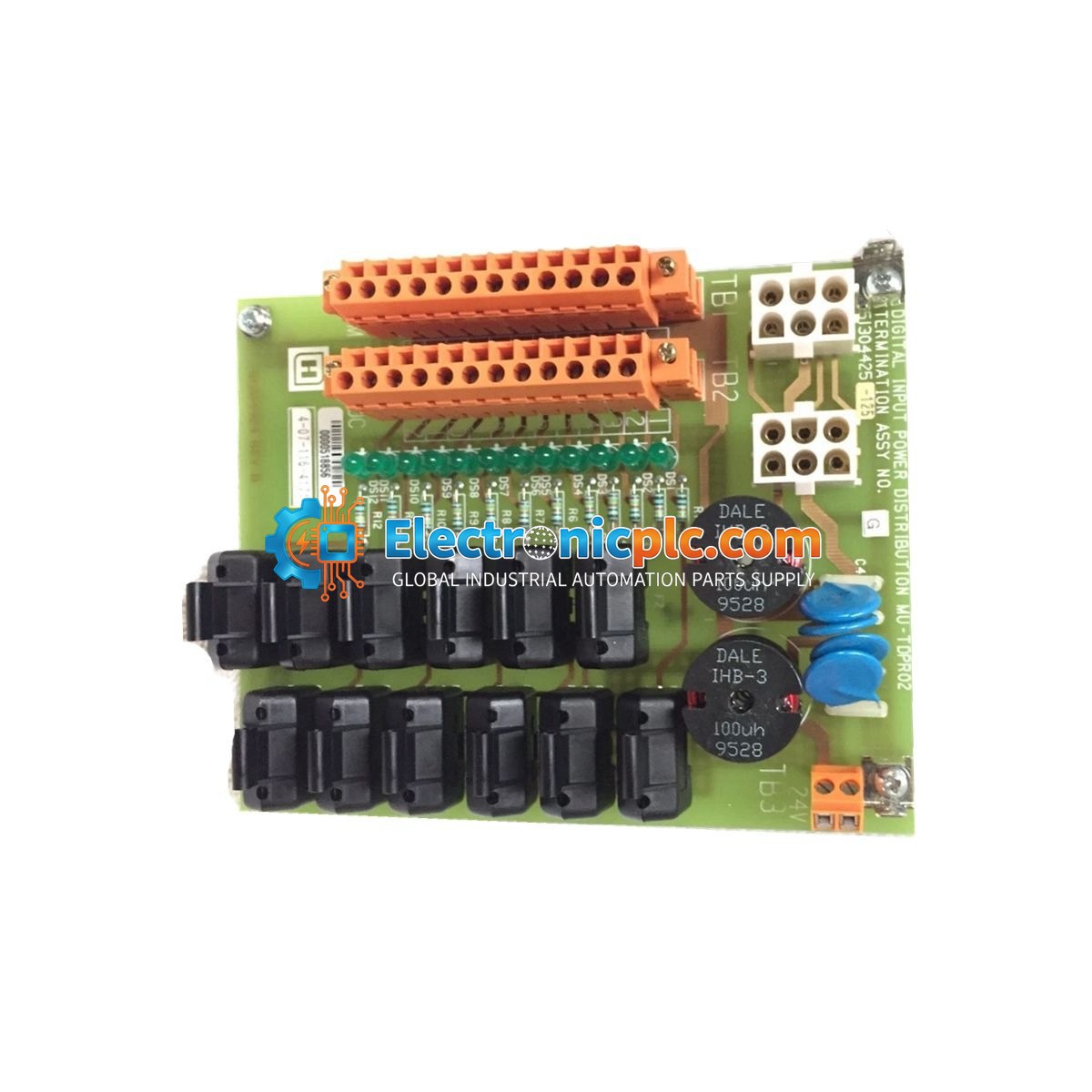

The Honeywell MU-TDPR01 is a digital input power termination assembly engineered for use within Experion and distributed process control systems. This module serves as a critical interface for field signal termination and power distribution, supporting 16 channels of digital input routing. By consolidating termination and power distribution, the MU-TDPR01 simplifies complex field wiring while ensuring signal integrity and stable referencing in demanding industrial environments such as oil and gas, chemical processing, and power generation.

Features

• Supports 16-channel digital input power routing and signal termination.
• Optimized for Honeywell Experion and distributed control system architectures.
• Reduces field wiring complexity and improves signal stability.
• Passive design ensures reliable operation with minimal power consumption.
• Engineered for high-density I/O configurations to maintain system integrity.

Applications

The MU-TDPR01 is suitable for various industrial automation applications, including:

• Refining and petrochemical processing plants.
• Power generation facilities.
• Upstream oil and gas production systems.
• Distributed control system (DCS) I/O cabinets requiring standardized signal termination.

Technical Specifications

Installation Guidelines

• Ensure the assembly is mounted in a clean, dry, and vibration-free environment within a control cabinet.
• Always power down the associated I/O rack or power supply before installing or removing field wiring to prevent electrical shorts.
• Use appropriate wire gauges and ferrules for termination to ensure secure connections and minimize contact resistance.
• Route field signal cables separately from high-voltage power lines to minimize electromagnetic interference (EMI).
• Verify that all signal return paths are properly grounded according to the specific system documentation for the Experion architecture.
• Handle with standard ESD precautions to prevent damage to sensitive electronic components if integrated with active circuitry.

FAQ

What is the primary function of the MU-TDPR01?

The MU-TDPR01 acts as a termination assembly that routes field power and signal paths for digital input modules, ensuring consistent signal referencing and organized wiring in a control system.

Is this module compatible with non-Honeywell systems?

The MU-TDPR01 is specifically designed for Honeywell Experion and related distributed control platforms. While it may function in other systems, it is optimized for the electrical and mechanical standards of Honeywell architecture.

Does this module require external power?

The MU-TDPR01 is a passive termination assembly. It does not have active internal logic and typically consumes negligible power, functioning primarily as a distribution path for field power supplied by the system.
