Description

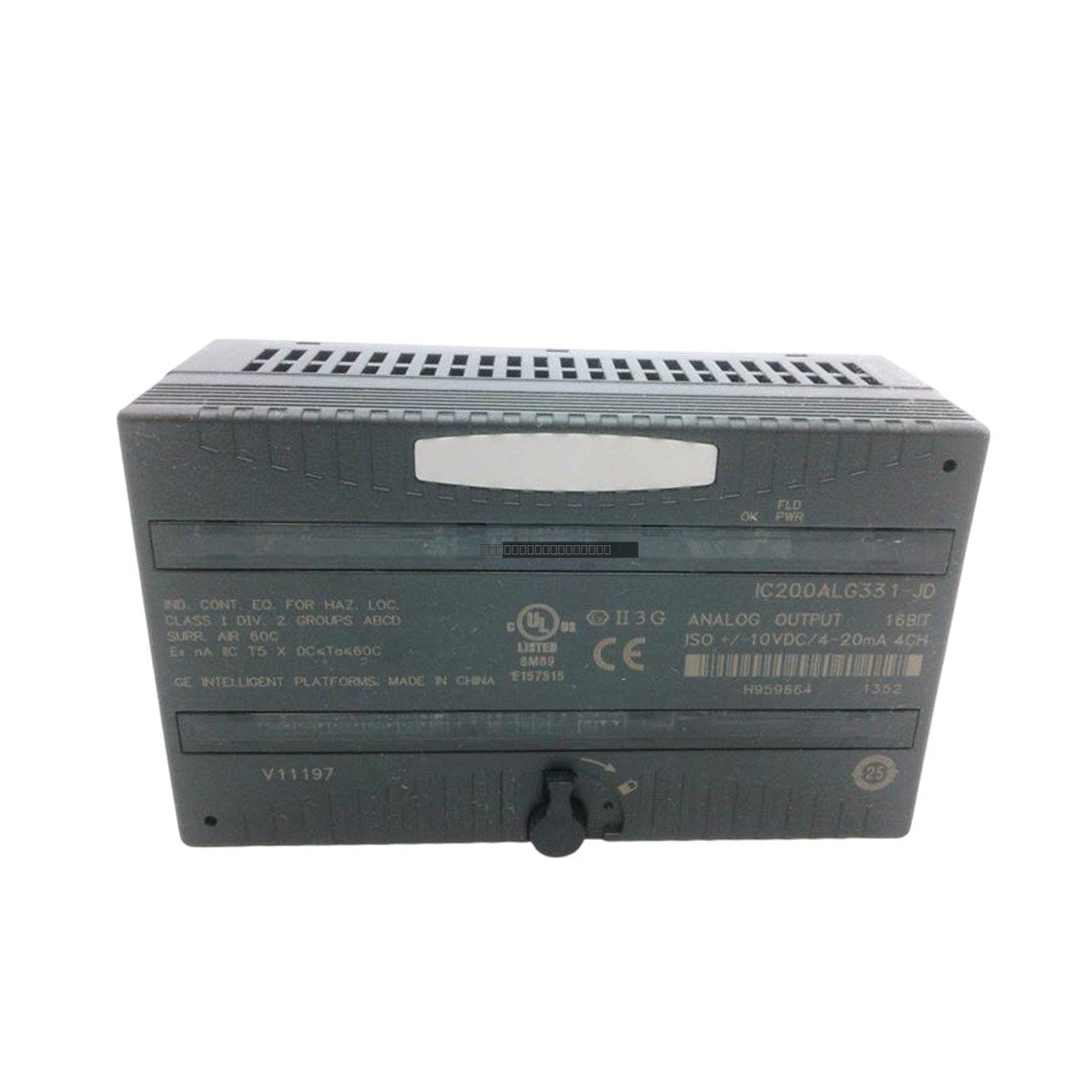

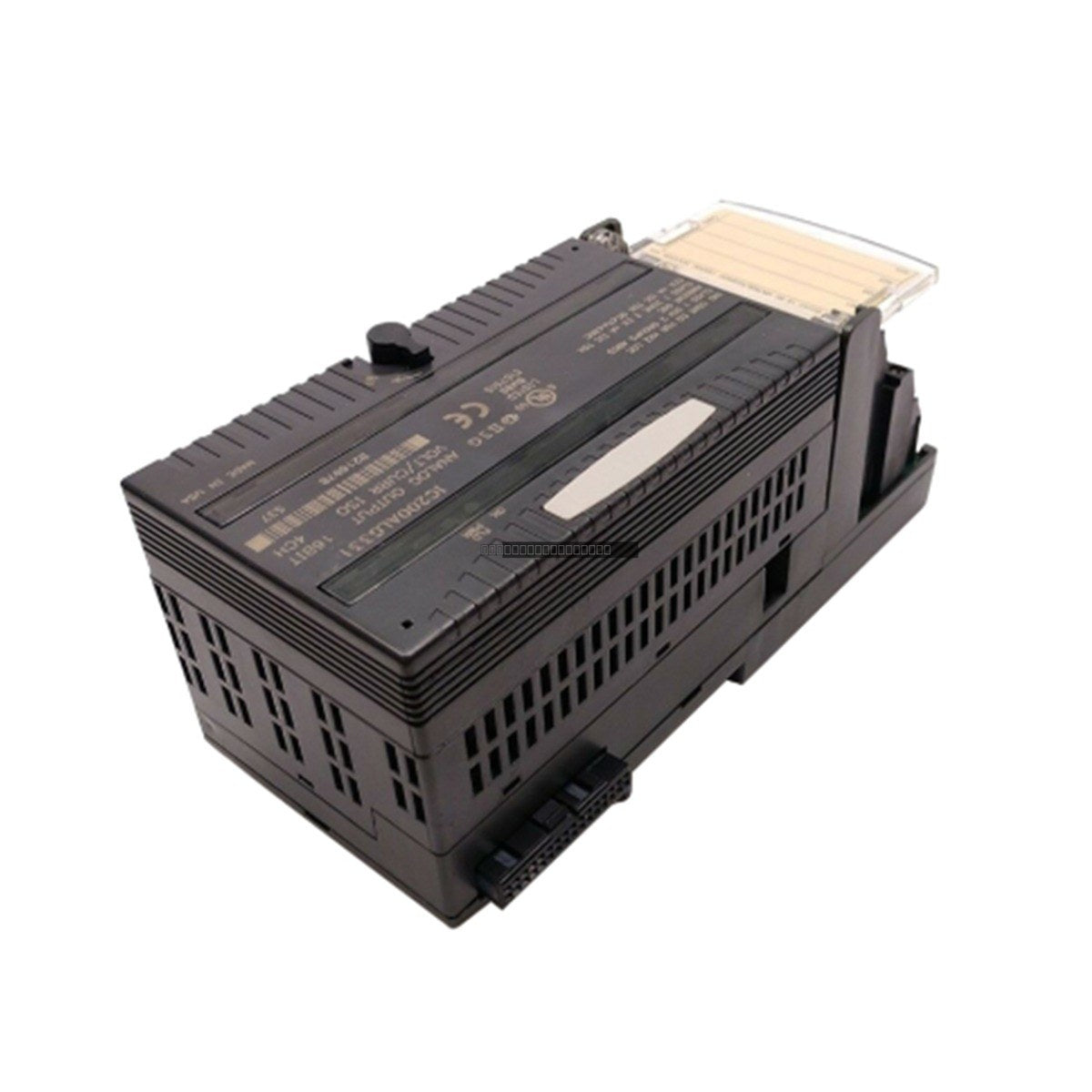

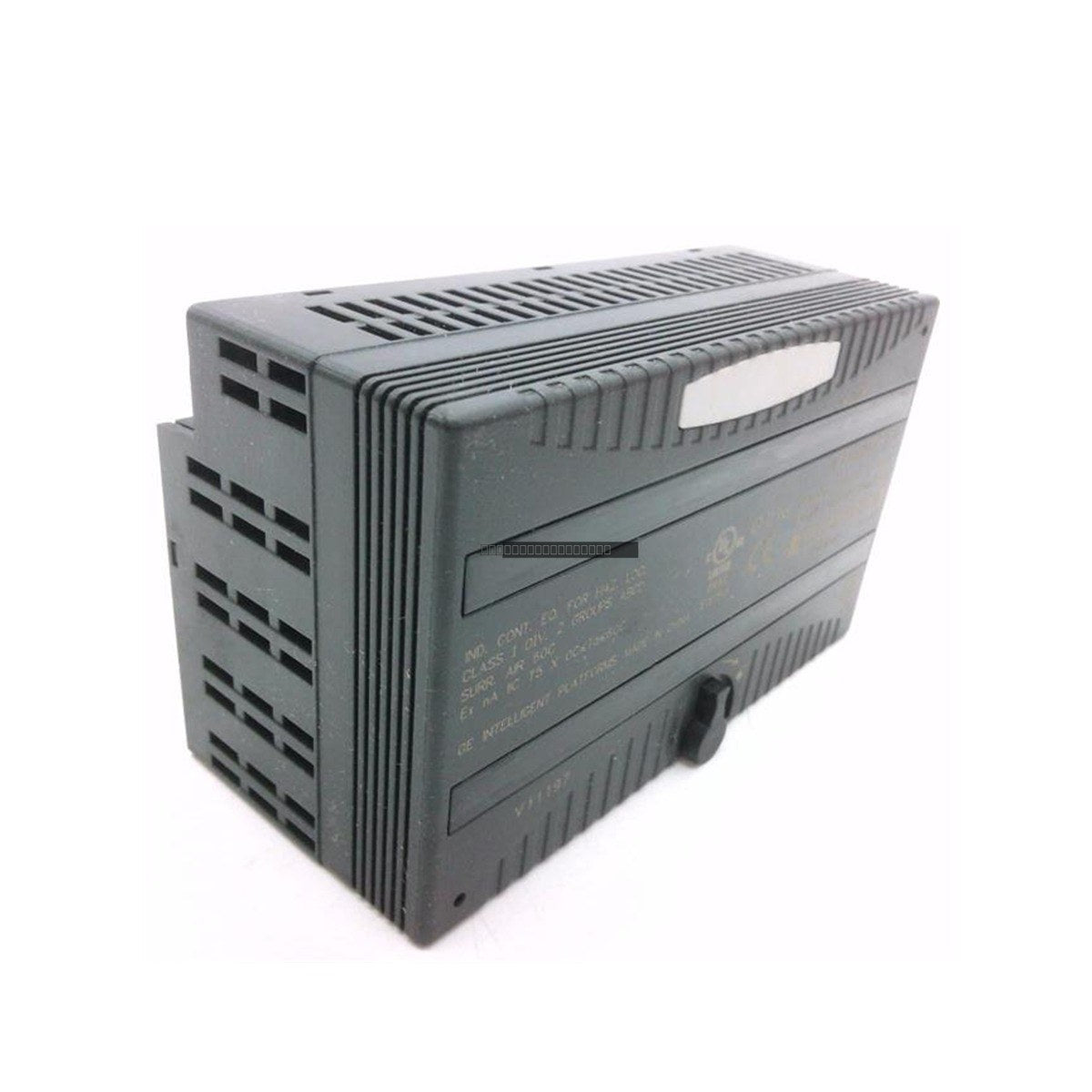

The General Electric IC200ALG331-AA is a 4-channel analog output module designed for the VersaMax PLC system. This module provides high-precision signal conversion, supporting both voltage and current output modes to interface with a wide range of industrial actuators, valves, and instrumentation. It features 16-bit digital resolution and a rapid update time of 7 milliseconds, ensuring responsive control in automated processes.

Features

• Four independent analog output channels.
• Selectable output ranges: -10 to +10 VDC and 4-20 mA (1 to 20 mA).
• High-resolution 16-bit digital-to-analog conversion.
• Integrated LED status indicators for Field Power (FLD PWR) and Module Health (OK).
• Robust isolation: 250 VAC continuous input-to-logic isolation and 1500 VAC for 60 seconds input-to-ground isolation.
• Compact single-slot module design for efficient rack utilization.

Technical Specifications

Installation Guidelines

• Ensure the PLC system is powered down before installing or removing the module from the I/O rack.
• The module is designed for single-slot mounting; ensure it is fully seated and the locking mechanism is engaged.
• Use shielded twisted-pair cabling for analog signals to minimize EMI interference.
• Maintain proper grounding practices to protect against noise and potential surges.
• Verify that the external power supply is within the 18-30 VDC range before applying power to the field terminals.
• Handle with care to prevent electrostatic discharge (ESD) damage to the internal circuitry.

FAQ

What is the difference between IC200ALG331 and IC200ALG331-AA?

The IC200ALG331-AA is a revision of the base IC200ALG331 model. In most VersaMax applications, they are functionally interchangeable, but it is recommended to check your system's hardware configuration software to ensure the specific firmware revision is supported.

Does this module require external power?

Yes, the module requires an external power supply of 18-30 VDC to drive the analog output signals.
