Description

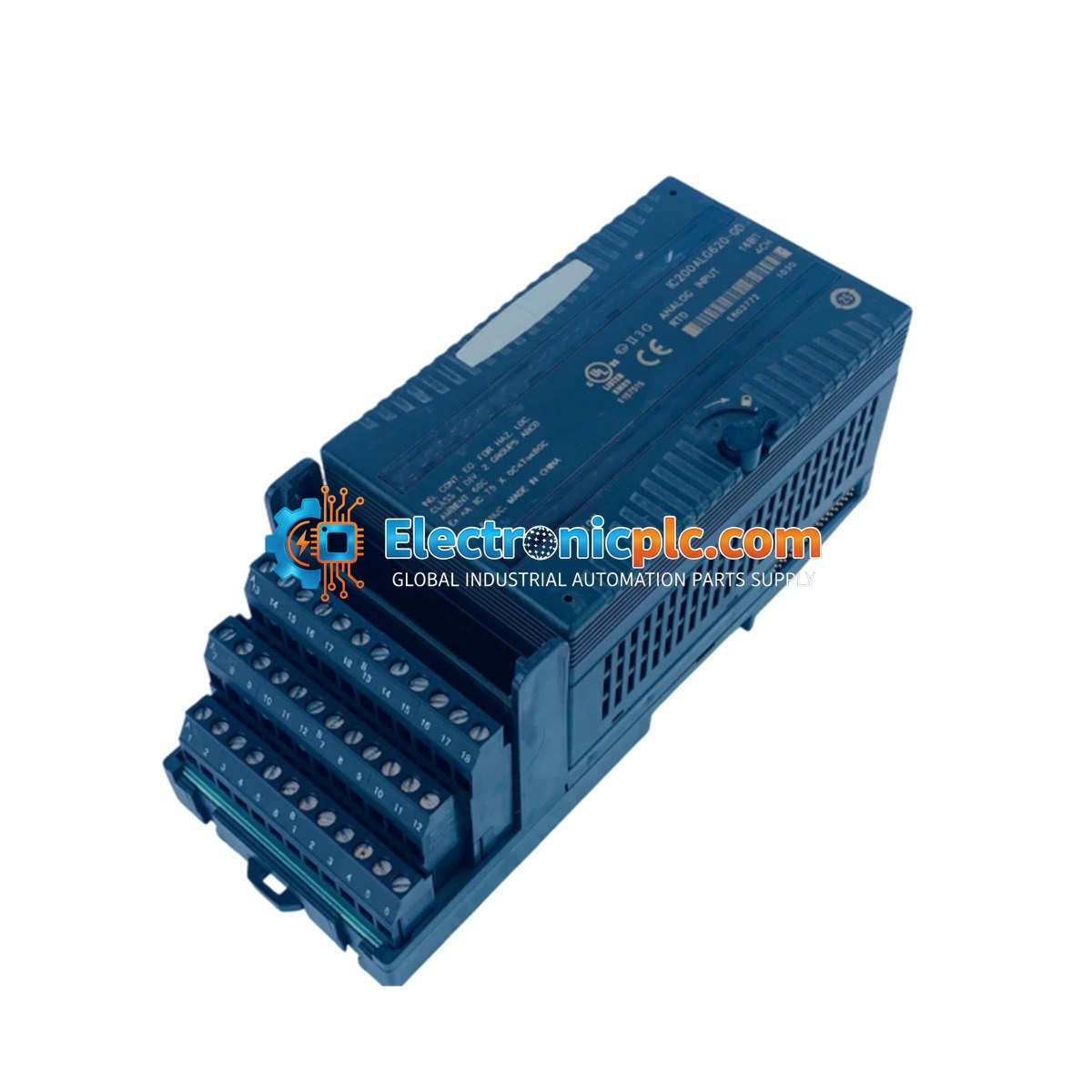

The General Electric IC200ALG620-CA is a high-performance analog input module designed for the VersaMax I/O system. This module provides four channels dedicated to RTD (Resistance Temperature Detector) and resistance measurements, offering high-precision data acquisition for industrial automation processes. It supports both 3-wire and 4-wire RTD configurations, ensuring compatibility with a wide range of temperature sensing instrumentation.

Features

• 4-channel RTD/Resistance input capability
• 16-bit resolution for high-accuracy signal processing
• Supports 3-wire and 4-wire RTD wiring configurations
• Resistance input ranges: 0-500 Ohms and 0-3000 Ohms
• Robust isolation: 1500 VAC (Input to Frame) and 250 VAC (Input to Logic)
• Fast update rate of 210 milliseconds

Applications

This module is engineered for industrial environments requiring reliable temperature monitoring. Typical applications include process control systems, HVAC monitoring, chemical processing, and power generation plant instrumentation where RTD sensors are utilized for thermal management and process feedback.

Technical Specifications

Installation Guidelines

• Ensure the VersaMax backplane power is disconnected before installing or removing the module.
• Mount the module onto a standard DIN rail or compatible VersaMax carrier.
• Use shielded twisted-pair cabling for RTD inputs to minimize electromagnetic interference (EMI).
• Maintain proper grounding practices to ensure signal integrity and module protection.
• Ensure the ambient temperature remains within the specified 0 to 60 degC range to prevent thermal degradation.
• Handle with standard ESD precautions to avoid damage to sensitive internal components.

FAQ

What types of RTDs are compatible with the IC200ALG620-CA?
The module is designed to work with 3-wire and 4-wire RTD configurations, supporting resistance ranges of 0-500 Ohms and 0-3000 Ohms.

What is the resolution of this module?
The module provides 16-bit resolution, specifically 15 bits plus sign.
