Description

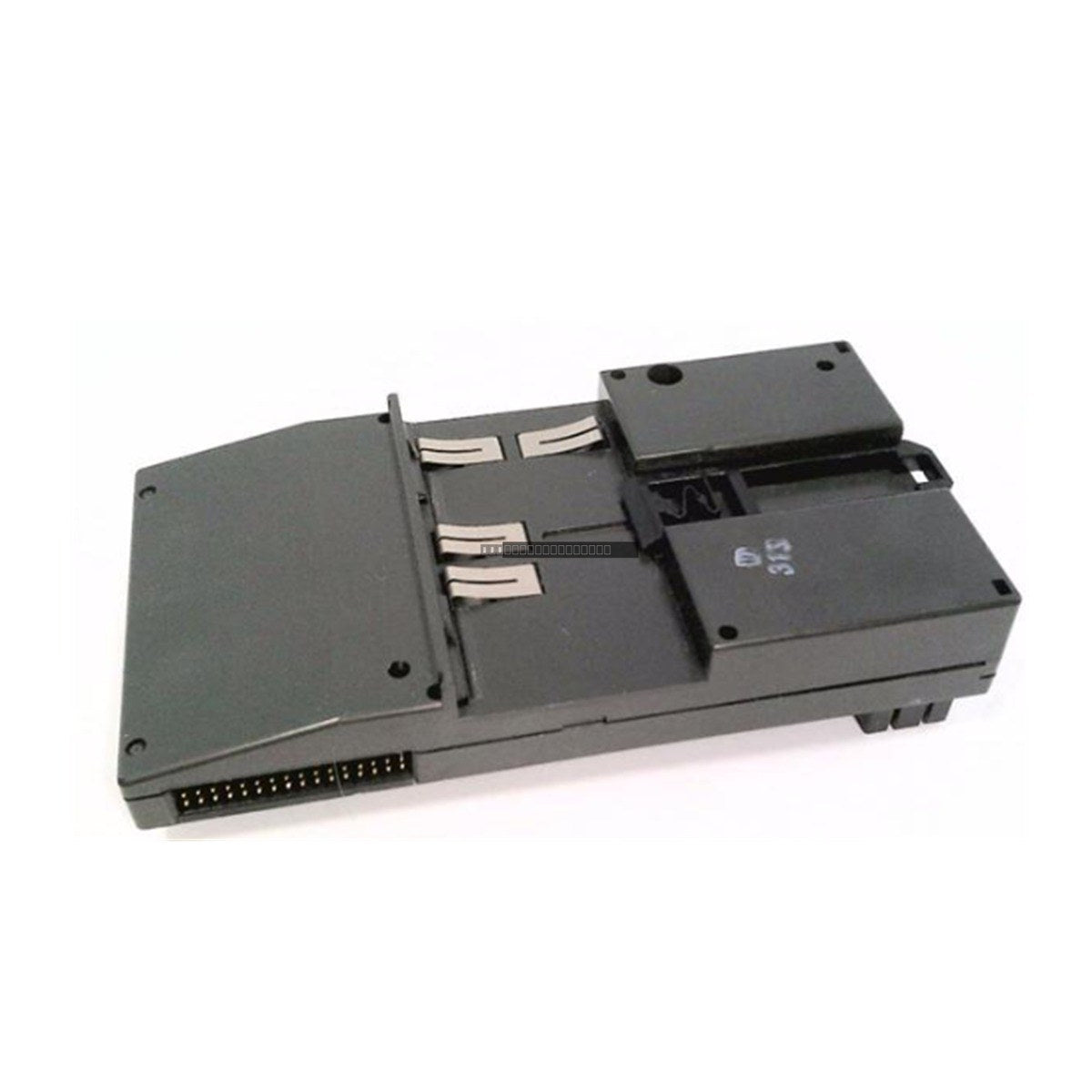

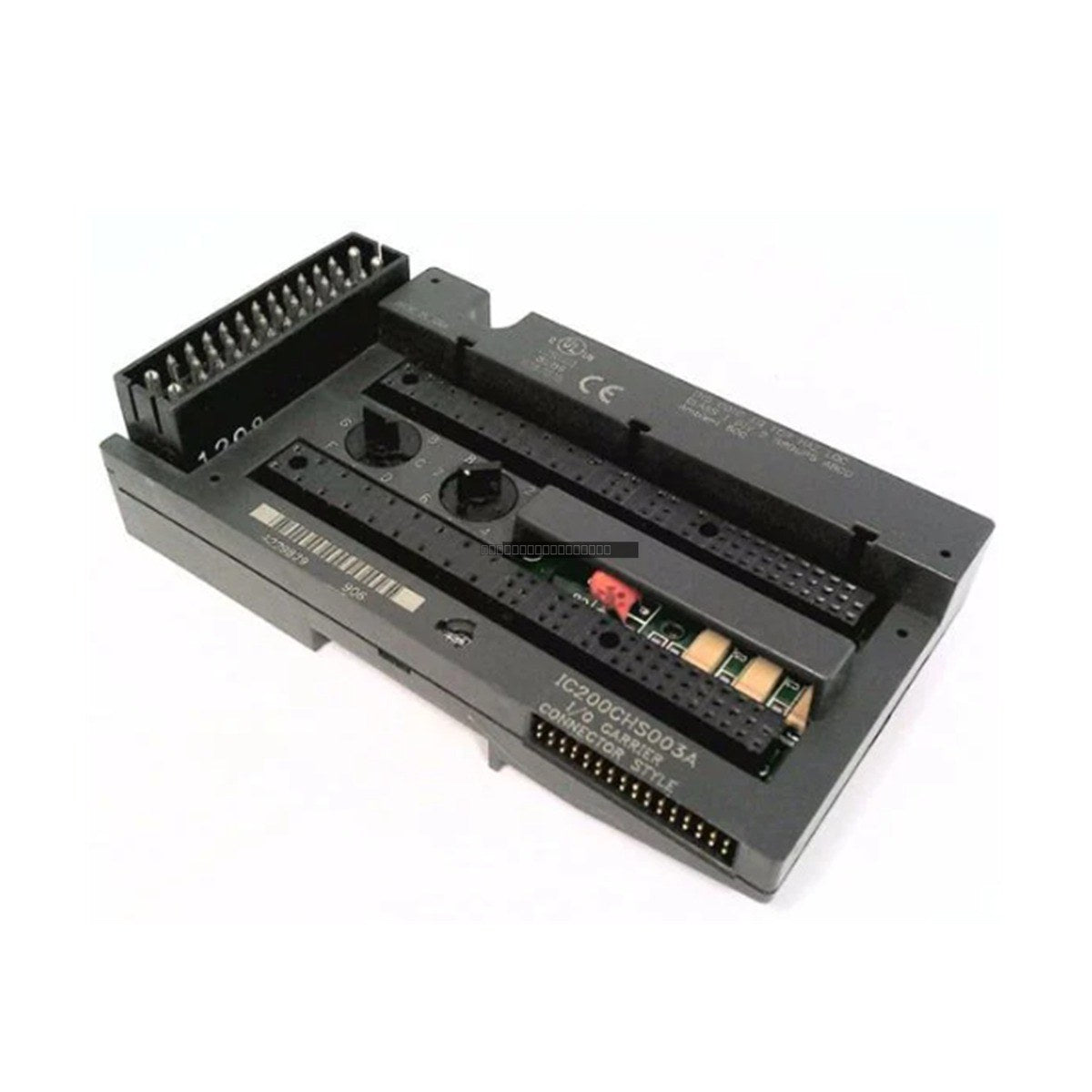

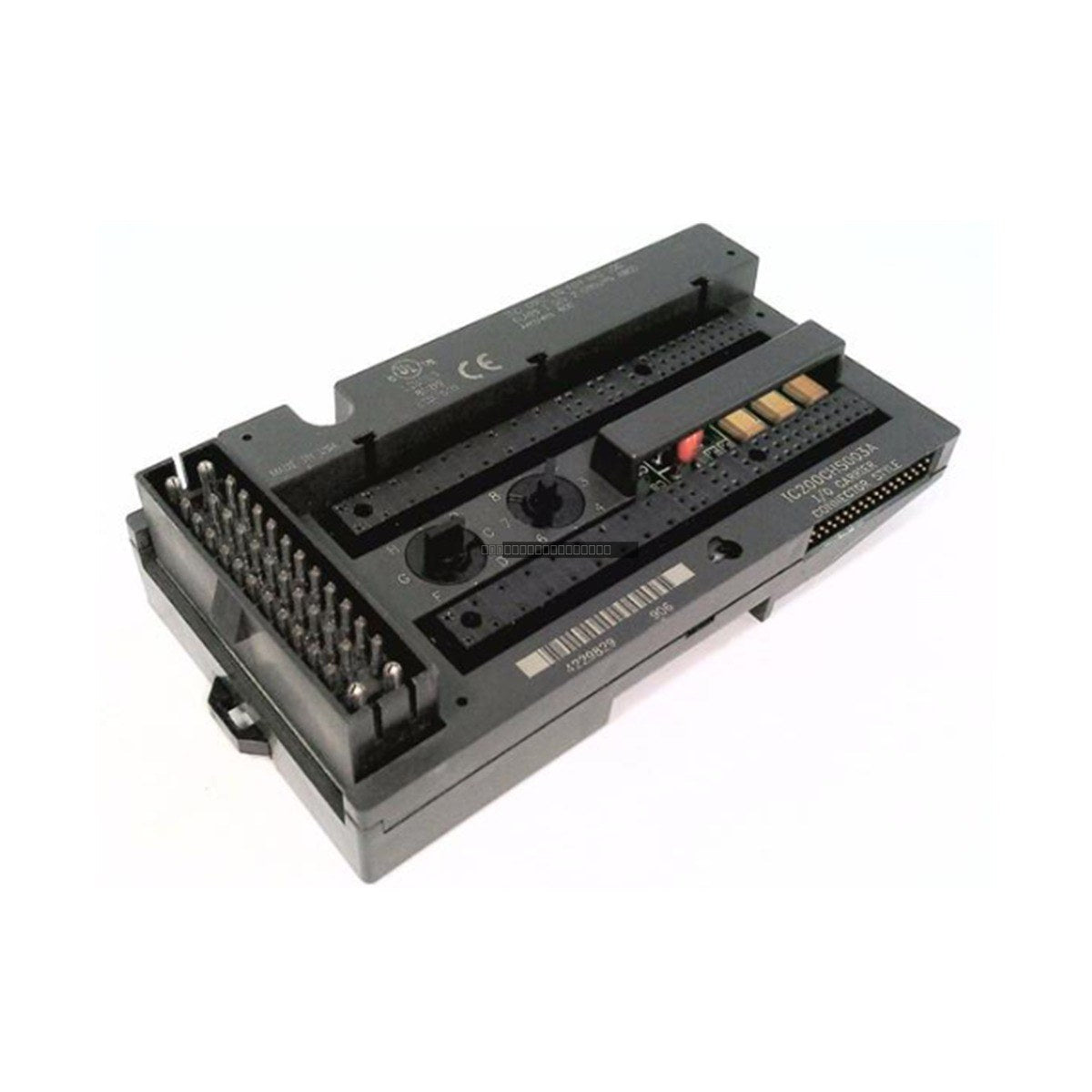

The GE Fanuc IC200CHS003 is a high-density I/O carrier specifically engineered for the Versamax automation platform. This component serves as the essential physical interface and field wiring termination point for Versamax I/O modules, supporting up to 32 discrete I/O points. By providing a centralized 36-pin connector architecture, the carrier simplifies complex control system wiring, reduces potential connection failures, and facilitates rapid module replacement during maintenance cycles.

Features

• Supports high-density configurations with up to 32 I/O points.
• Integrated 36-pin connector for streamlined field device integration.
• Four common power connection points for flexible circuit grouping and power distribution.
• Robust ABS housing designed for standard industrial control cabinet environments.
• DIN rail mounting capability for efficient space utilization and secure installation.
• Low contact resistance (less than 10 milliohms) to maintain signal integrity.

Applications

This carrier is widely utilized in industrial automation applications, including manufacturing process control, distributed I/O systems, and machine automation. It is designed to interface field sensors and actuators with the Versamax PLC backplane, ensuring reliable signal transmission in demanding industrial settings.

Technical Specifications

Installation Guidelines

• Ensure the DIN rail is securely mounted and grounded according to local electrical standards before installing the carrier.
• Power down the system before inserting or removing any I/O modules from the carrier to prevent electrical arcing or damage to the backplane pins.
• Ensure that field wiring is properly routed and strain-relieved to prevent mechanical stress on the 36-pin connector.
• Maintain adequate clearance around the unit to allow for heat dissipation and airflow within the cabinet.
• Verify that the power supply voltage does not exceed the rated transient protection limits of 300 VAC.

FAQ

What is the primary function of the IC200CHS003?
The IC200CHS003 acts as a base carrier that provides the mechanical mounting and electrical termination for Versamax I/O modules, allowing field devices to connect to the PLC system via a 36-pin interface.

Can this carrier be used with other PLC series?
No, this carrier is specifically designed for the GE Fanuc Versamax series and is not compatible with other PLC platforms.
