Description

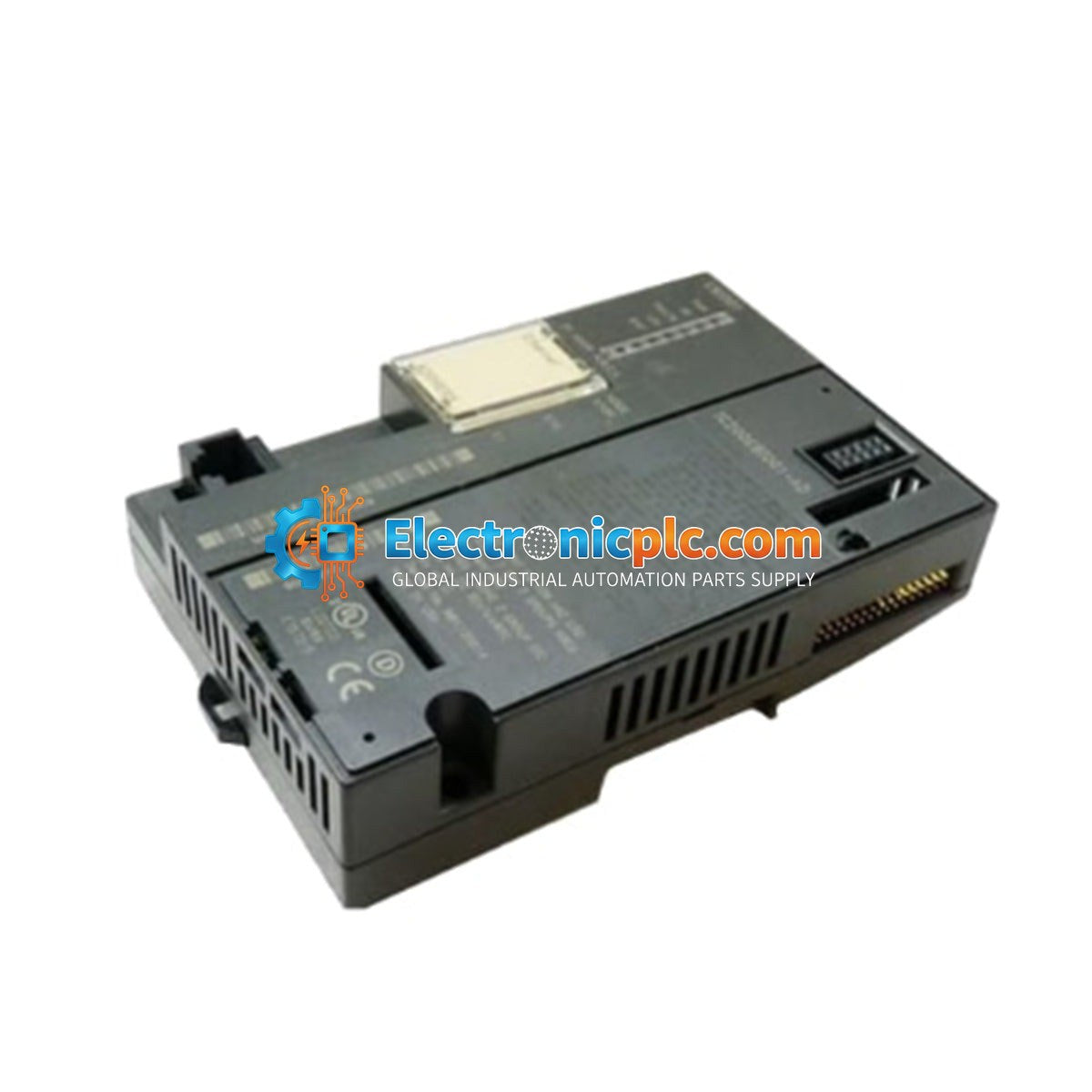

The General Electric IC200ERM001 is an isolated Expansion Receiver Module designed for the VersaMax PLC and I/O station product line. This module is essential for extending the I/O bus, allowing for the connection of remote expansion racks up to 2,460 feet (750 meters) away from the main controller. It provides 500VDC isolation, ensuring robust signal integrity in industrial environments. The module must be used in conjunction with an Expansion Transmitter Module (such as the IC200ETM001) located at the main PLC rack.

Features

• Isolated expansion interface for VersaMax I/O systems.
• Supports daisy-chaining of up to 7 expansion racks.

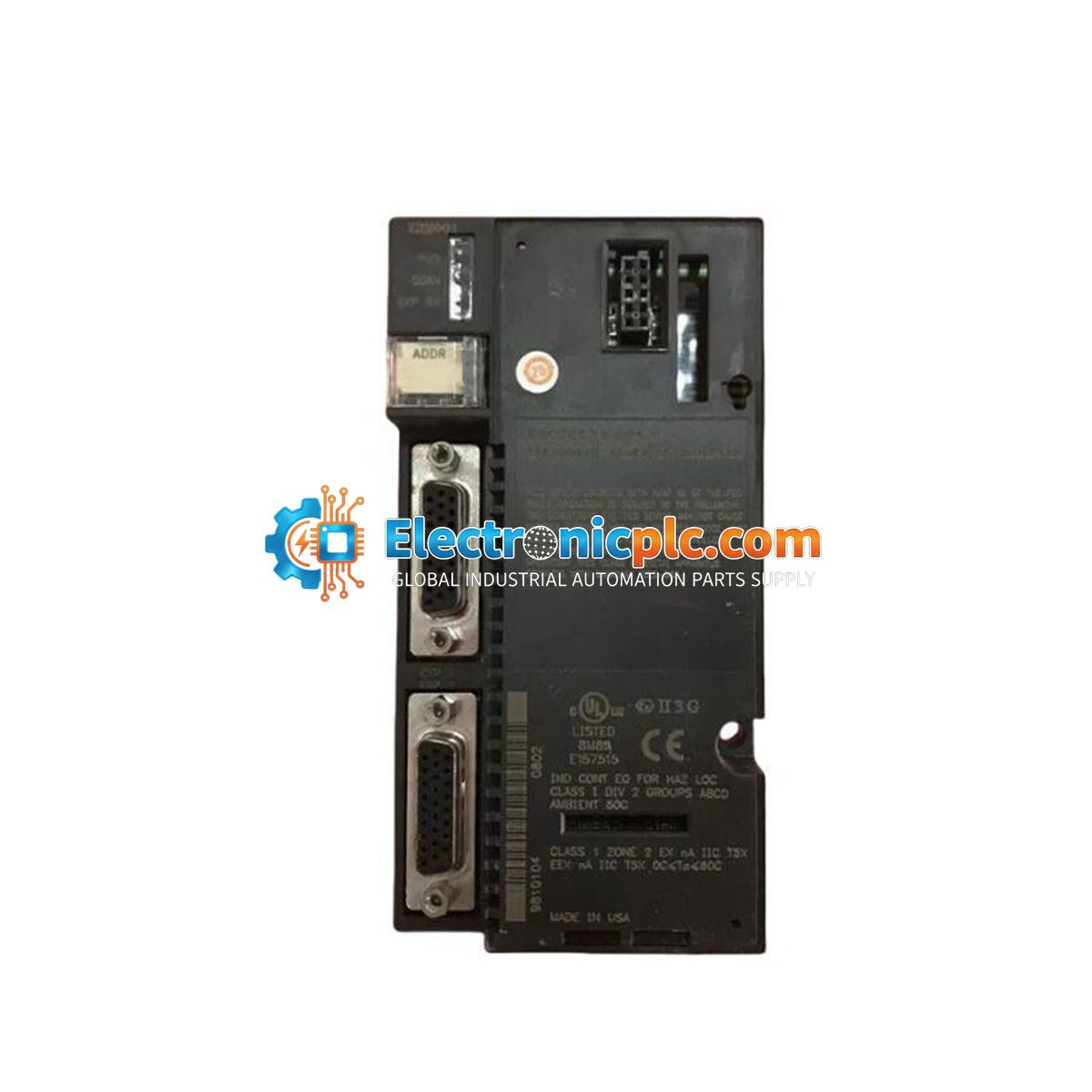

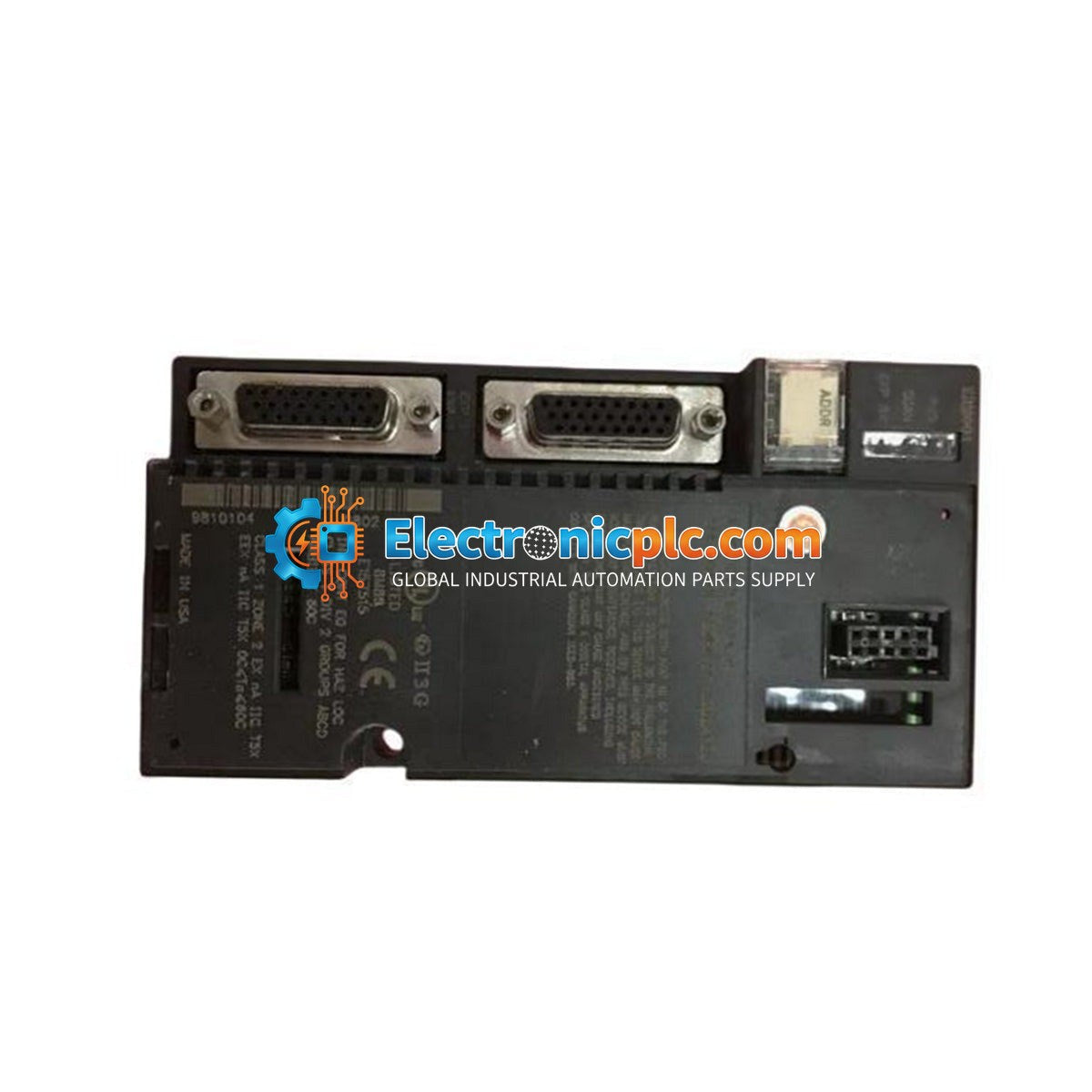

• Equipped with two 26-pin female D-shell ports for upstream and downstream communication.
• Integrated LED indicators for real-time power and expansion bus status monitoring.
• Provides operating power to modules within the expansion rack via the backplane.
• 500VDC isolation for enhanced noise immunity.

Applications

• Factory Automation: Synchronizes multiple machines across extended production lines.
• Material Handling: Facilitates control for large-scale conveyor systems and sorters.
• Automotive Plants: Supports high-speed discrete I/O for robotic assembly and painting cells.
• Process Control: Enables modular distributed control for water treatment and light chemical processing.

Technical Specifications

Installation Guidelines

• The module must be installed in the leftmost position (Slot 0) of the expansion rack.
• Mount all modules and carriers on the same section of 35mm x 7.5mm DIN rail.
• Ensure the DIN rail has a conductive (unpainted) finish to facilitate proper grounding.
• For optimal stability, secure the DIN rail to the panel using screws spaced approximately 6 inches (15.24 cm) apart.
• The module snaps onto the DIN rail without the need for specialized tools.
• Always power down the system before installing or removing modules to prevent electrical damage.

FAQ

What is the IC200ERM001 used for?

The GE IC200ERM001 is an isolated Expansion Receiver Module used within the VersaMax PLC system to extend I/O capabilities to remote racks.

How many expansion racks can I connect?

The system supports up to 7 expansion racks per system, for a total of 8 racks including the main rack.

Does the IC200ERM001 require external power?

No, the module is powered directly through the backplane (3.3V-5V).

What is the maximum distance for expansion?

Expansion racks can be located up to 750 meters (approximately 2460 feet) from the main rack.

What do the LED indicators show?

The LEDs provide visual status updates for the internal power supply and the health of the expansion bus communication.
