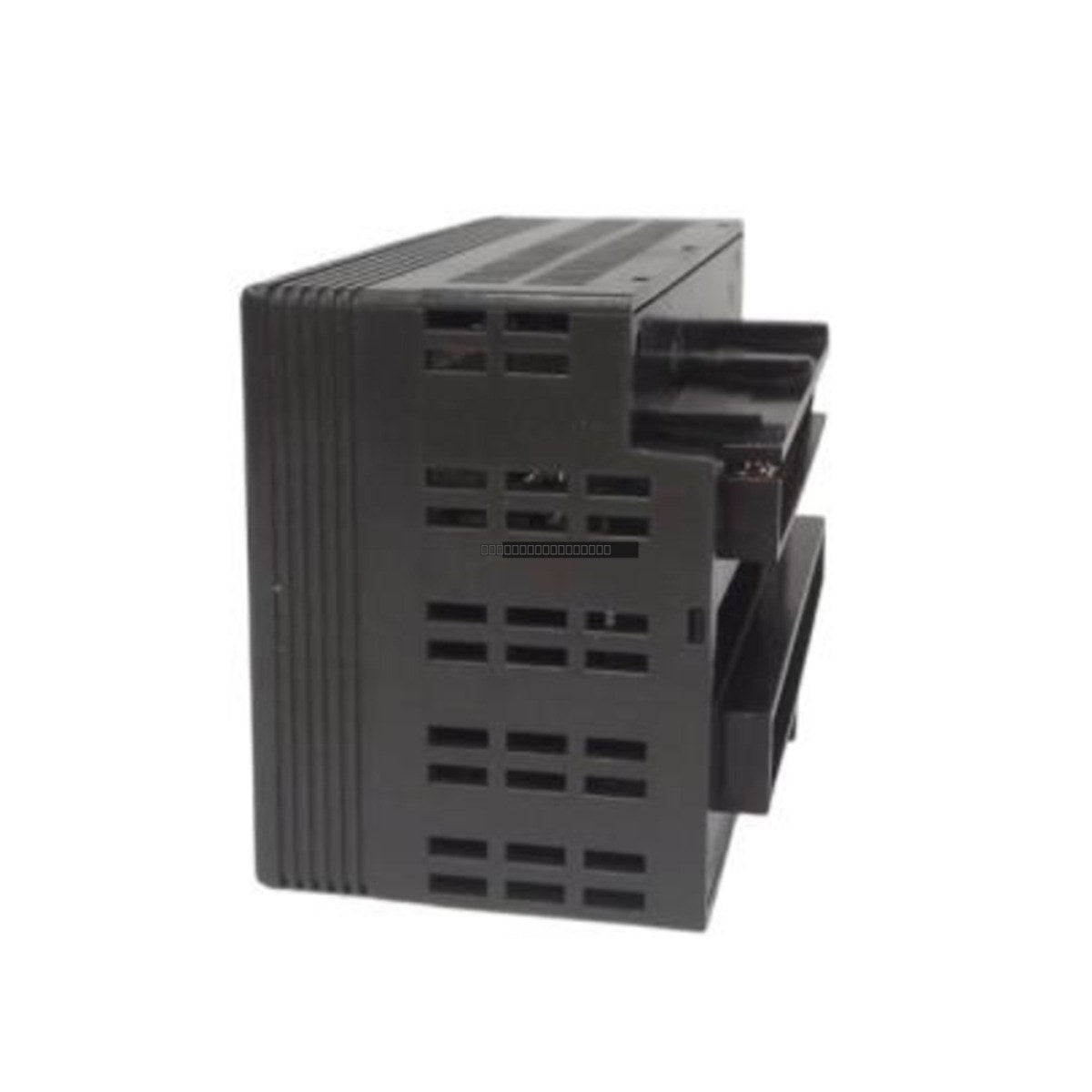

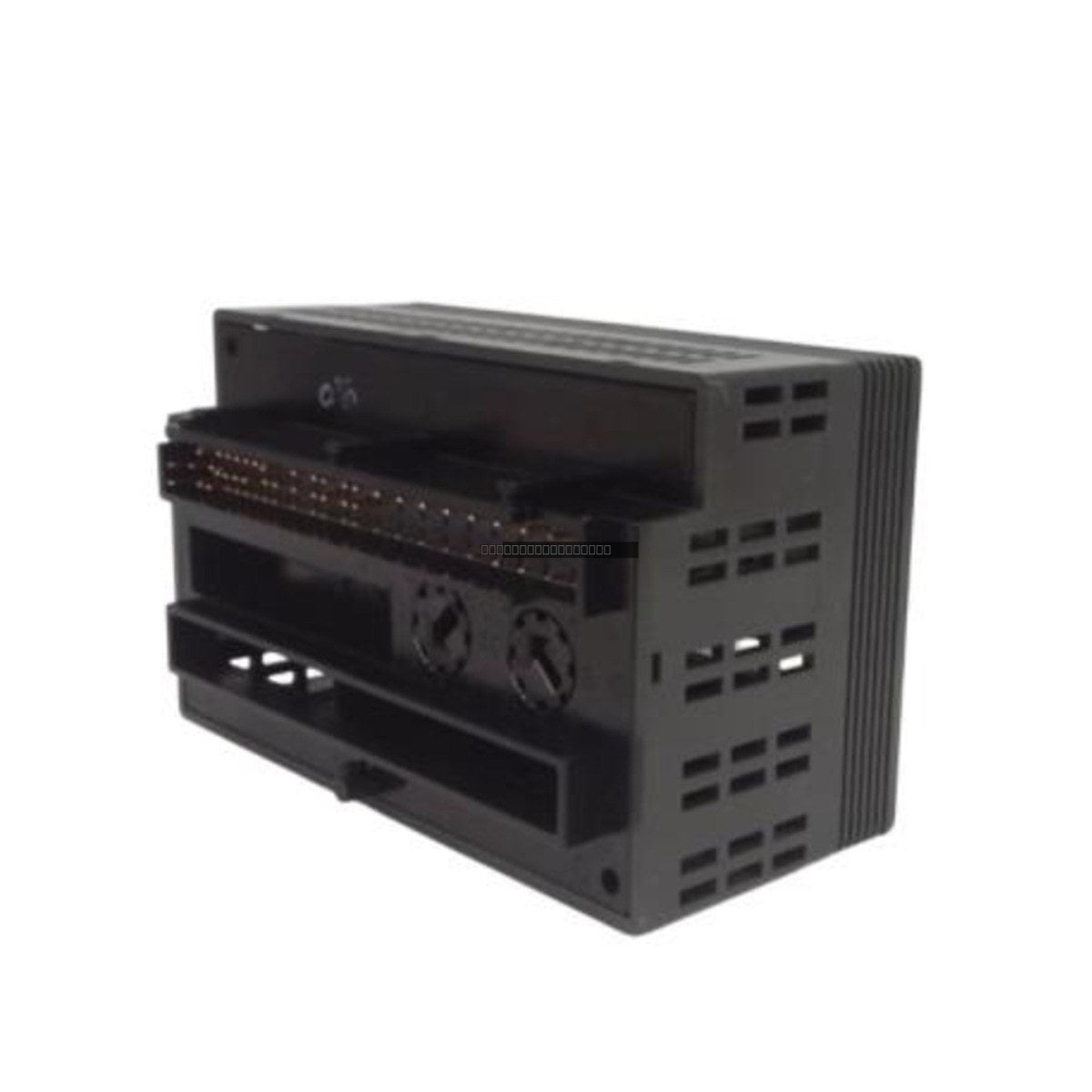

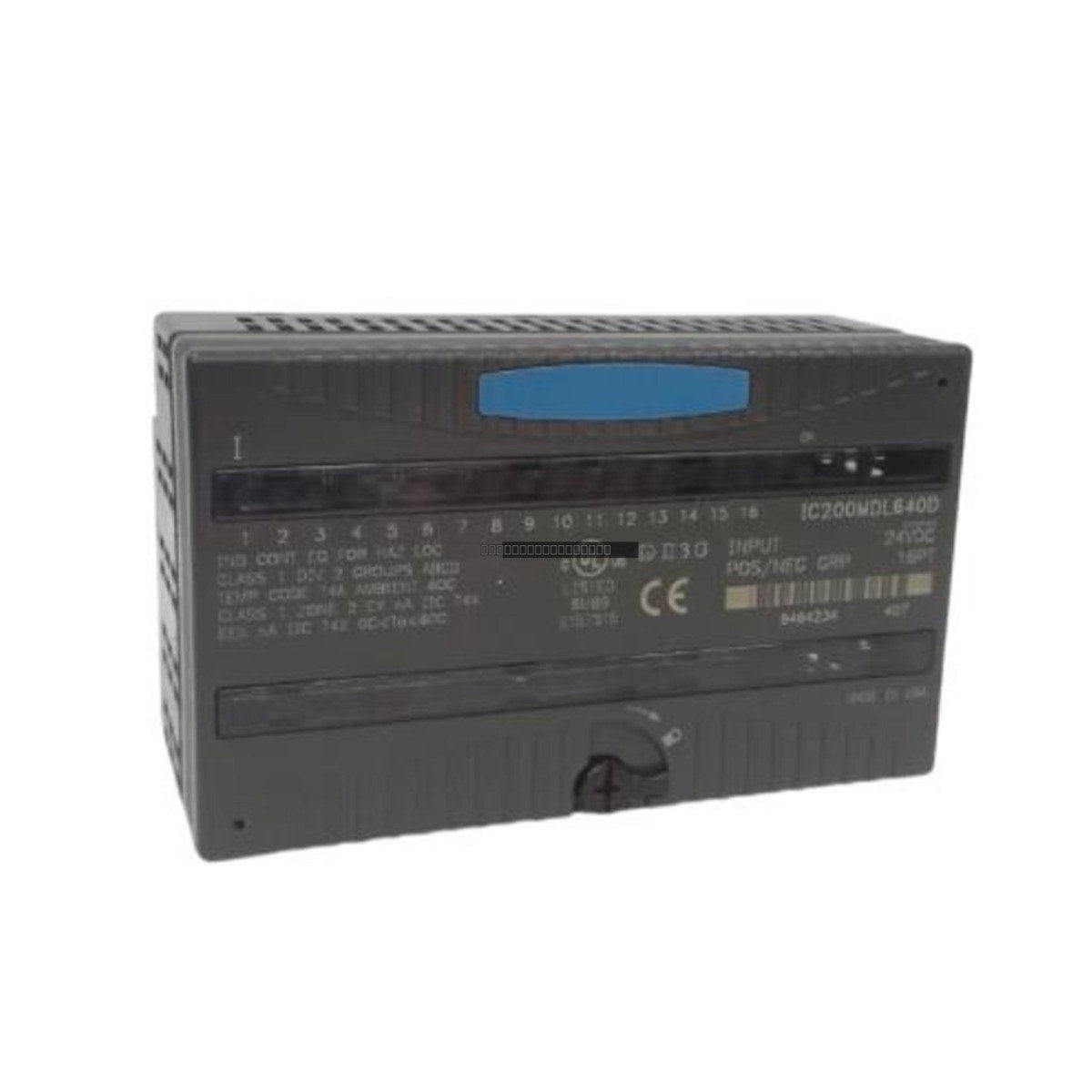

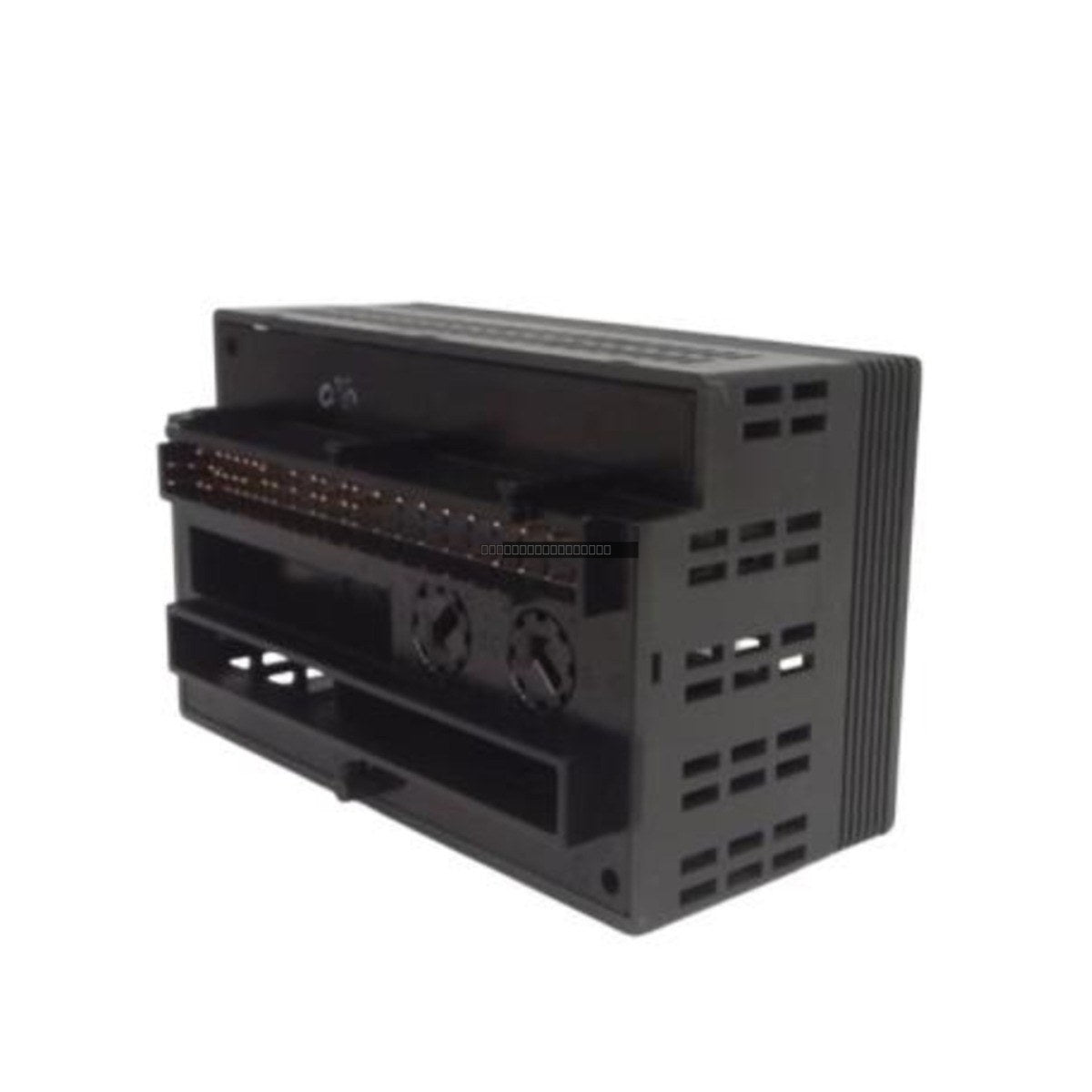

The General Electric IC200MDL640 is a 16-point discrete input module designed for the VersaMax I/O system. This module operates with a nominal input voltage of 24V DC and supports both positive and negative logic configurations, providing flexibility for diverse industrial control applications. The 16 input points are organized into two groups of eight, with each point featuring an individual LED status indicator for simplified diagnostics.

Features

• 16 discrete input points arranged in two groups of 8.
• Supports both positive and negative logic input wiring.
• Configurable input filtering (0 ms, 1.0 ms default, 7.0 ms).
• Integrated LED status indicators for each input point.
• Hot-swappable design for maintenance without system downtime.
• Powered directly via the backplane; no external power supply required for internal operation.

Technical Specifications

Applications

• Automotive assembly and painting lines.
• Power generation control systems.
• Water treatment and chemical processing facilities.
• Steel and aluminum smelting operations.
• Oil and gas monitoring and shutdown systems.

Installation Guidelines

• Ensure the system backplane is properly grounded before module installation.
• The module supports hot insertion; however, exercise caution to avoid backplane electrical disruptions during the process.
• Connect input devices between the common terminal and the specific input terminal.
• Use a shorting bar with the B terminal when additional bussed terminals are required for field wiring.
• Maintain proper ventilation within the enclosure to ensure optimal operating conditions.

FAQ

What is the IC200MDL640?

It is a 24V DC, 16-point discrete input module from the GE VersaMax series, capable of handling both positive and negative logic signals.

Does this module require external power?

No, the module is powered via the backplane and does not require an external power supply for its internal operations.

What is the input response time?

The basic on/off response time is 0.5 ms. The module also features configurable input filtering, with a default setting of 1.0 ms.

Can this module be replaced while the system is running?

Yes, the IC200MDL640 supports hot-swapping, allowing for replacement without powering down the entire system, provided standard precautions are taken.
