Description

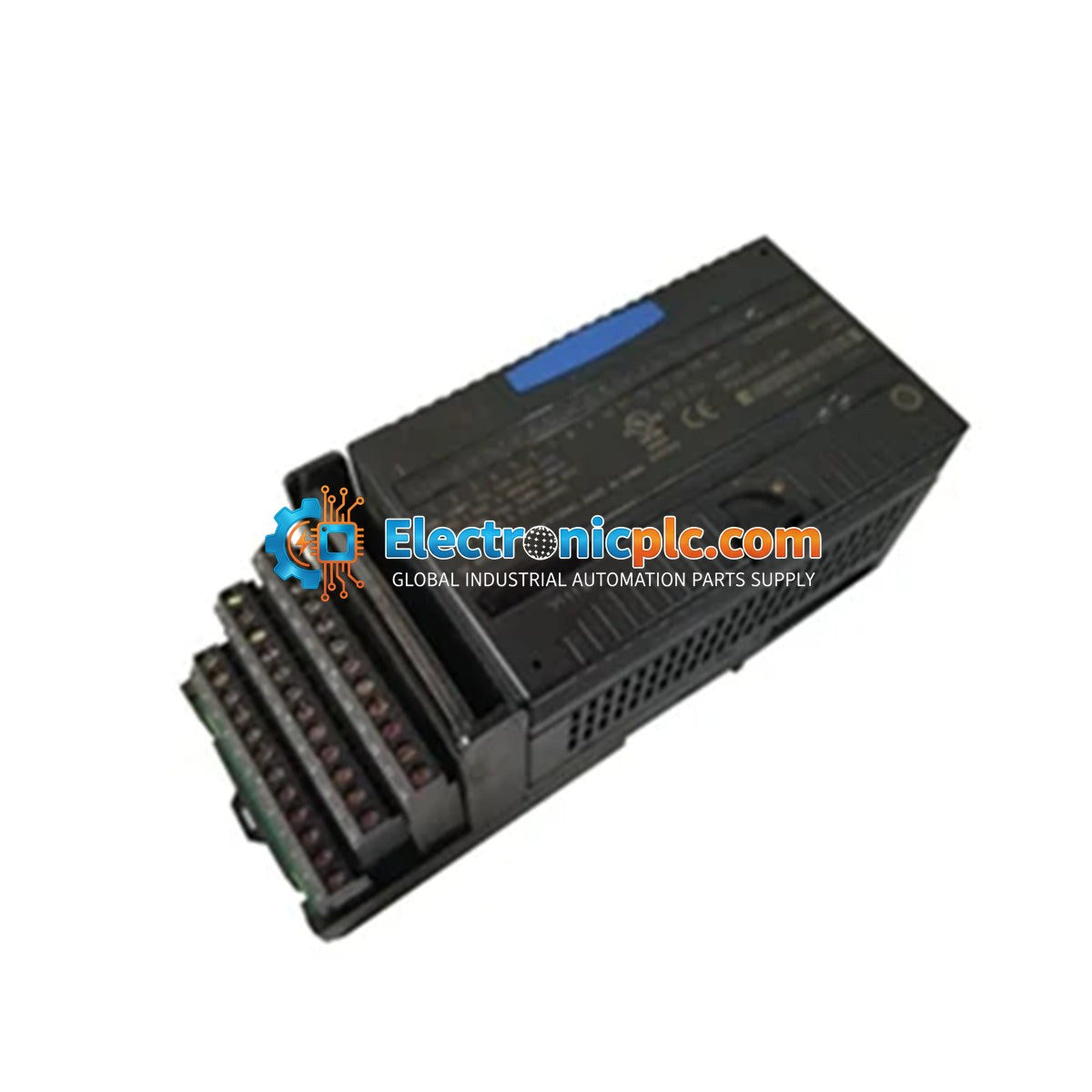

The General Electric IC200MDL740 is a 16-point discrete output module designed for the VersaMax I/O system. This module provides 16 sourcing-type (positive logic) outputs, operating with a nominal 12/24 VDC supply. It is engineered for industrial automation applications requiring reliable, high-speed switching of field devices such as solenoids, contactors, and indicators. The module features a compact, modular design that supports hot-swapping, allowing for maintenance and replacement without interrupting the backplane power or requiring extensive rewiring.

Features

• 16-point sourcing (positive logic) discrete output configuration.
• Supports 12/24 VDC nominal external power supply (10.2 to 30 VDC range).
• 0.5 Amp per point output current capacity.
• Fast response times: 0.2 ms maximum ON and 1.0 ms maximum OFF.
• Integrated LED status indicators for real-time monitoring of each output point.
• Hot-swappable design for reduced downtime during maintenance.
• Optical isolation between the field side and the backplane.

Applications

• Packaging and bottling lines for solenoid and actuator control.
• Material handling systems, including conveyors, sorters, and palletizers.
• Water and wastewater treatment facilities for valve and pump control.
• Distributed I/O nodes in energy and oil/gas infrastructure.
• General industrial and commercial automation control systems.

Technical Specifications

Installation Guidelines

• Mounting: The module is designed for rack-mounting using compatible VersaMax carriers. Ensure the carrier is securely fastened to the DIN rail or panel.
• Wiring: Connect the positive side of the external DC supply to the DC+ terminal and the negative side to the DC- terminal.
• Inductive Loads: When driving inductive loads such as solenoids or motor starters, external suppression circuits (e.g., flyback diodes) must be installed to protect the module from voltage spikes.
• Hot-Swapping: The module supports hot insertion/removal; however, ensure proper ESD precautions are taken when handling the device.
• Shorting Bars: If additional bussed terminals are required, use a shorting bar with a minimum 2A current-carrying capacity.

FAQ

What is the IC200MDL740 module?

It is a 16-point, 24VDC positive logic (sourcing) output module from the VersaMax family. It switches loads to the positive side of the DC supply.

What is the required power supply?

The module operates with a 24VDC nominal external power supply, with an operating range of 10.2 to 30VDC.

Does the IC200MDL740 provide isolation?

The IC200MDL740 provides optical isolation between the field side and the backplane.

What is the response time?

The output response time is 0.2 milliseconds maximum for "on" and 1.0 millisecond maximum for "off".

What is the backplane current consumption?

It consumes a maximum of 45mA from the 5V output power supply.
