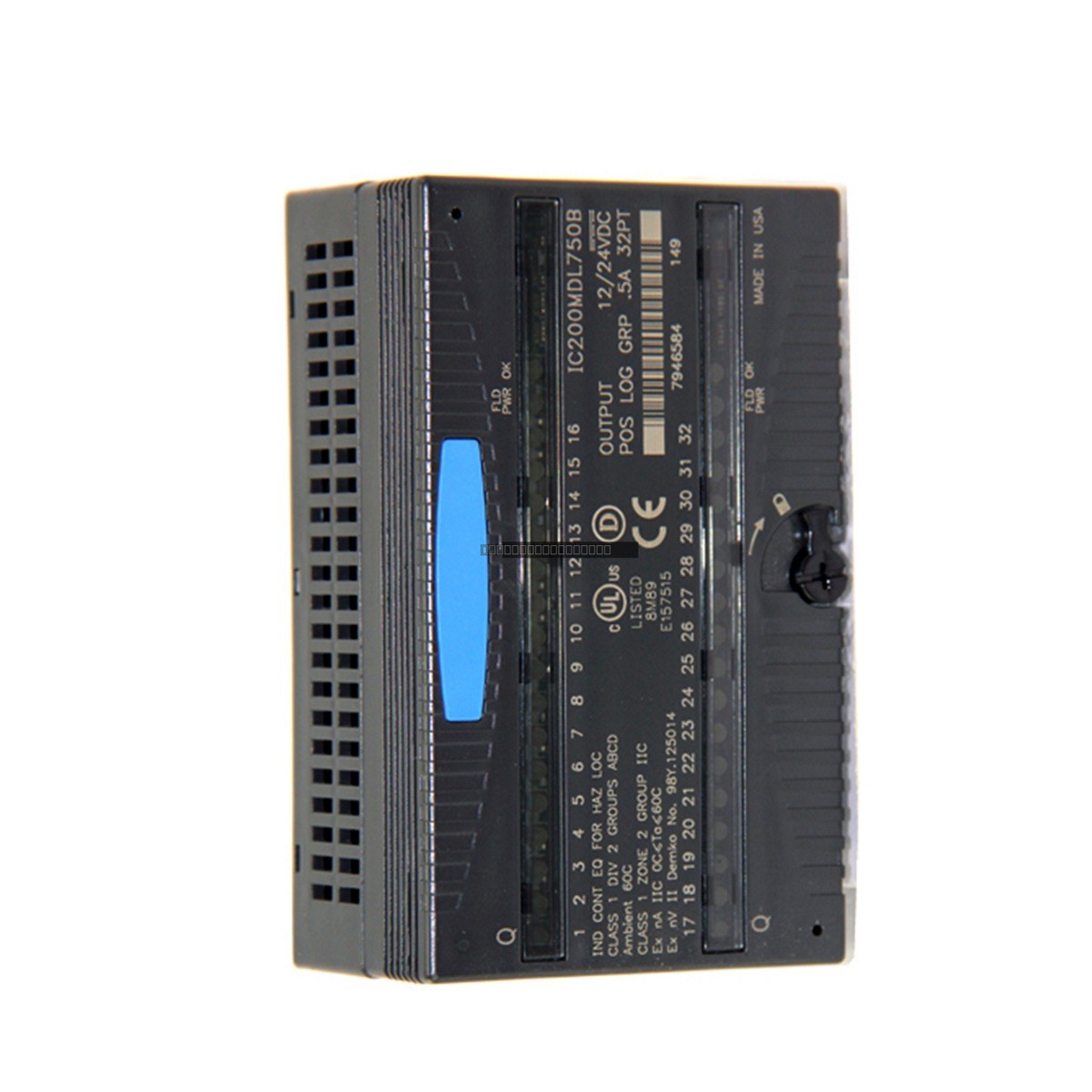

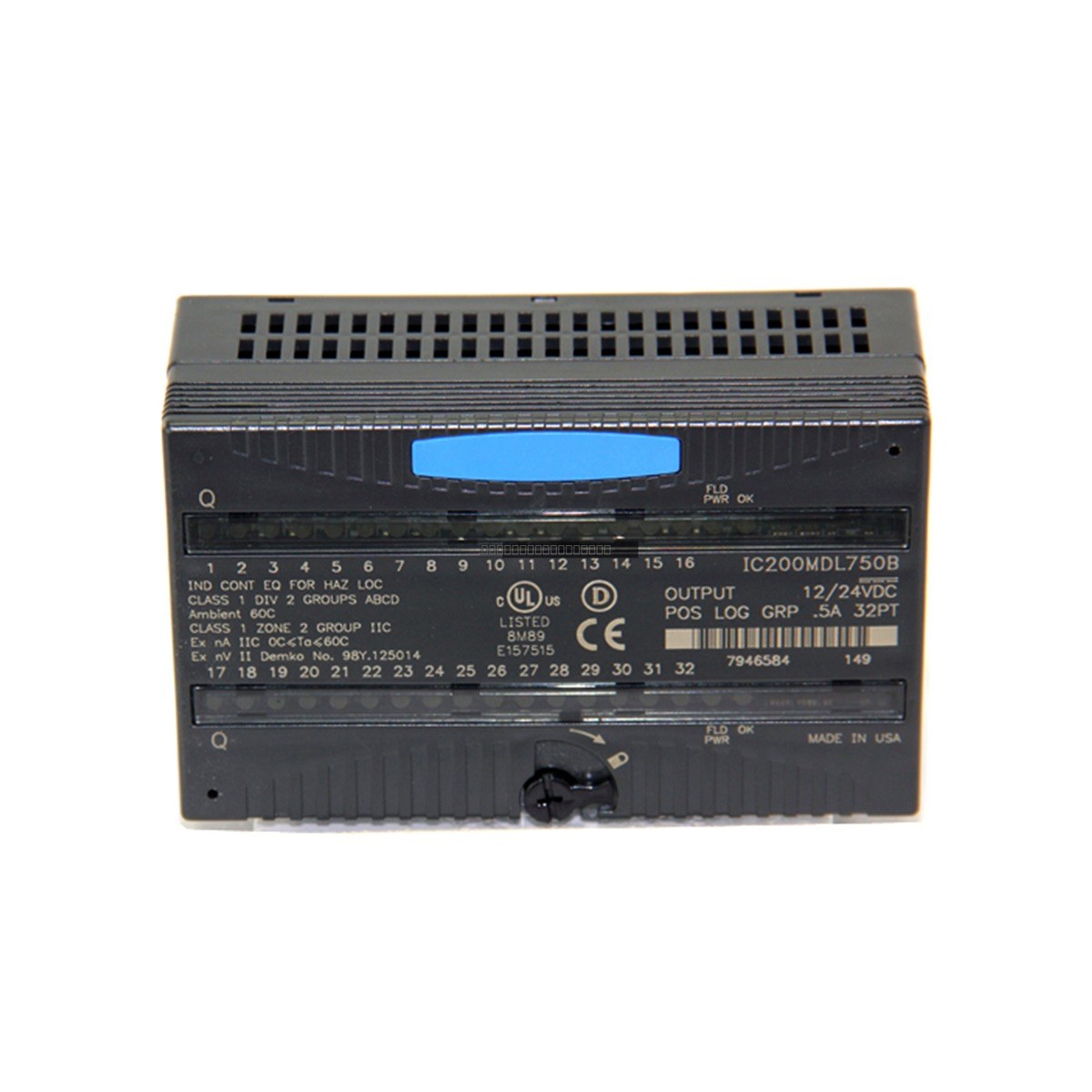

The General Electric IC200MDL750 is a high-density discrete output module designed for the VersaMax I/O system. This module features 32 output channels, organized into two isolated groups of 16 points each. It is engineered for positive logic (sourcing) applications, where the module switches the load to the positive side of the DC supply.

Features

• 32-point discrete output capacity
• Positive logic (sourcing) configuration
• Two independent output groups of 16 channels each
• Nominal output voltage range: 12/24 VDC (10.2 to 30 VDC operating range)
• Maximum output current: 0.5 A per point
• Integrated LED status indicators for each channel and field power monitoring

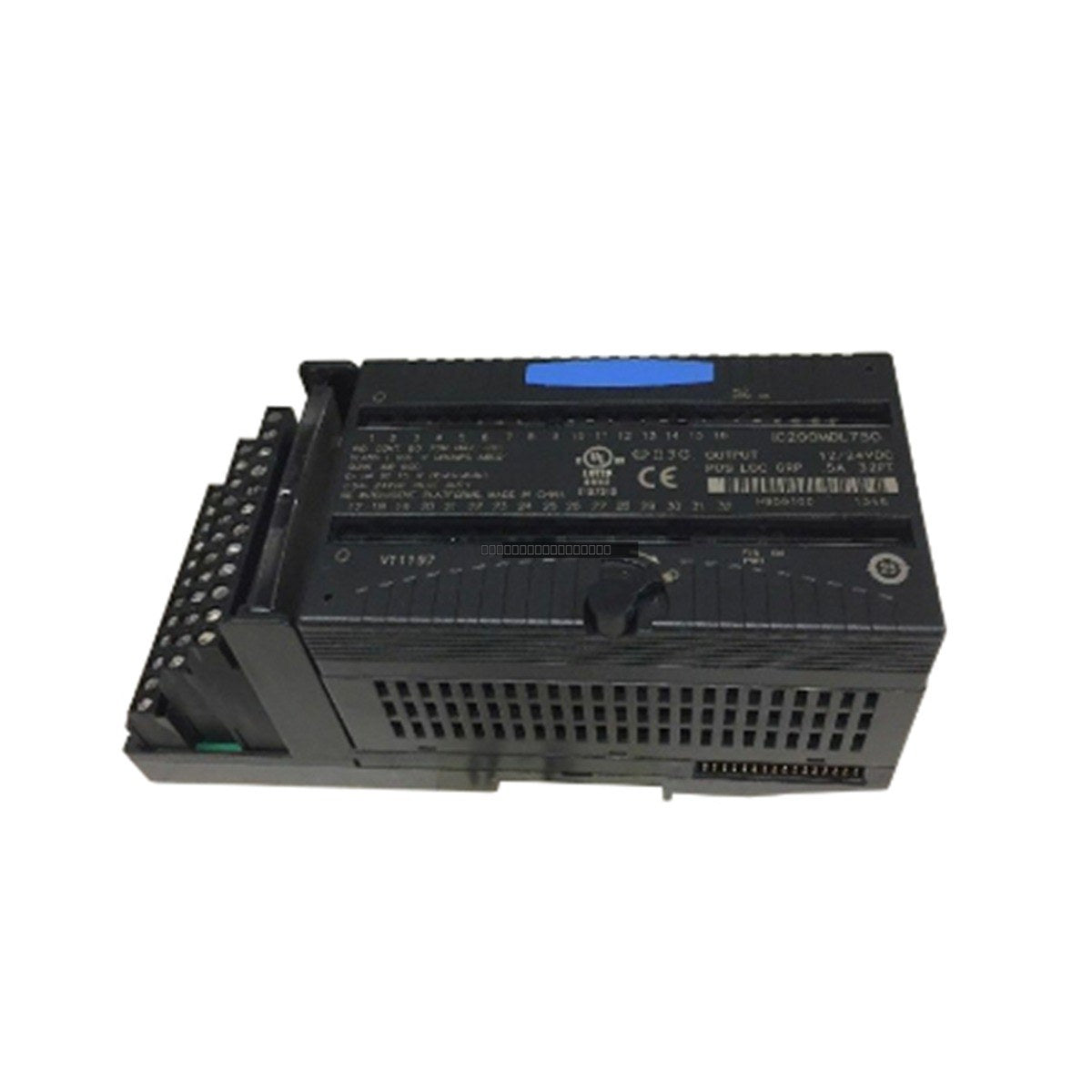

• Compatible with VersaMax carrier bases for DIN-rail mounting

Technical Specifications

Applications

• Automated production line synchronization
• Material handling and conveyor control systems
• Robotic assembly and painting processes
• Distributed process control for water treatment and light chemical manufacturing

Installation Guidelines

• Ensure the system power is disconnected before installing or removing the module from the carrier base.
• Mount the module onto a standard 35 mm DIN rail using a compatible VersaMax carrier base.
• Ensure proper grounding of the carrier base to minimize electrical noise.
• Verify that field power is applied to the module to enable output LED status monitoring.
• Route signal wiring away from high-voltage or high-EMI sources to maintain signal integrity.
• Observe the 0.5 A per point current limit to prevent module damage.

FAQs

What is the IC200MDL750?

It is a 32-point, 12/24VDC positive logic discrete output module belonging to the GE VersaMax I/O series, used for switching DC loads.

What is the maximum current capacity?

The module is rated for a maximum of 0.5 A per output point.

How are the output channels grouped?

The 32 channels are arranged in two groups of 16. While individual channel isolation is not provided, each of the two groups can be isolated from the other.
