Description

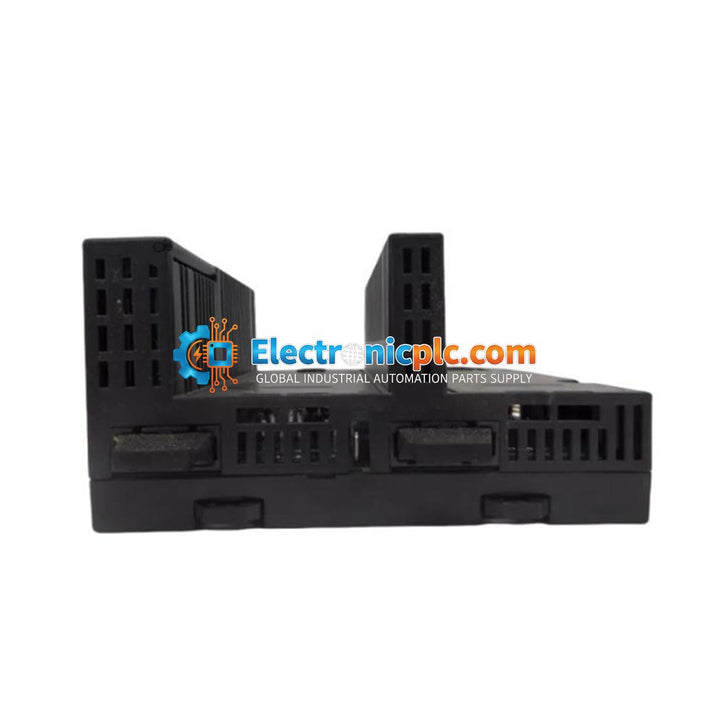

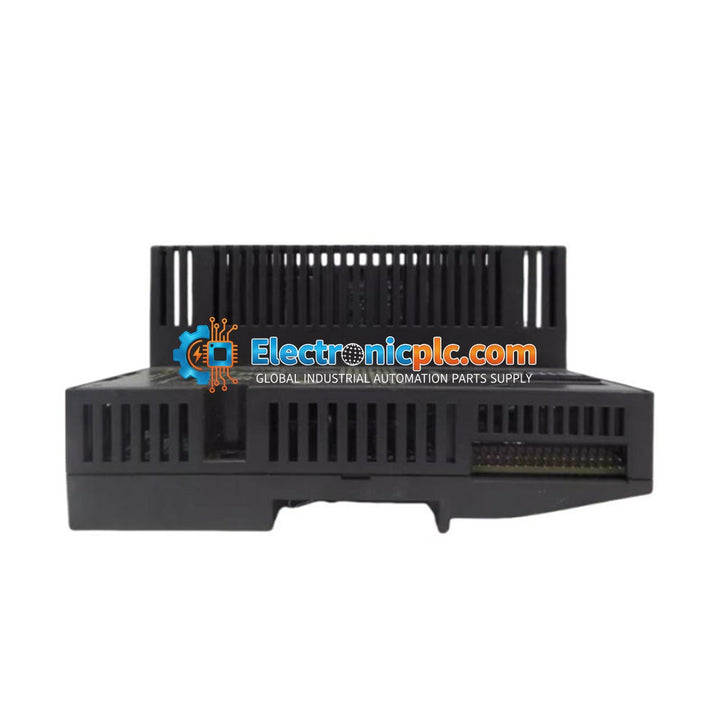

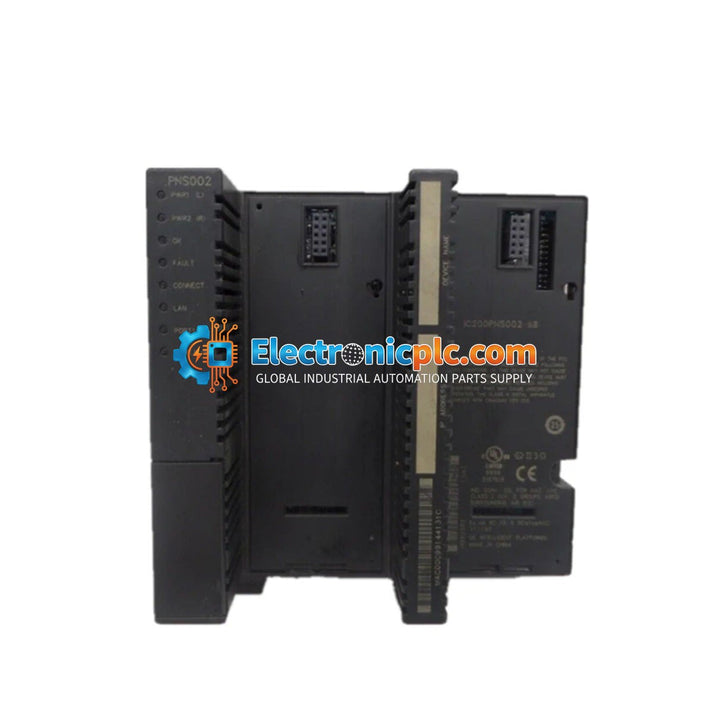

The General Electric IC200PNS002 is a high-performance PROFINET Scanner (PNS) module within the VersaMax series. Designed for robust industrial communication, this module acts as a bridge between VersaMax I/O stations and a PROFINET network. It features integrated fiber-optic connectivity and a built-in switch, making it ideal for environments requiring high immunity to electromagnetic interference (EMI). The module supports up to 2880 bytes of total I/O data and is compatible with various network topologies, including daisy-chain, star, and ring configurations.

Features

• Dual 100 Mbps SC-Duplex Multi-Mode Fiber (MMF) ports.
• Supports Media Redundancy Protocol (MRP) in client mode for ring topology reliability.
• Integrated switch functionality for flexible network architecture.
• Supports redundant power supplies with hot-swap capability for de-energized units.
• Firmware field-upgradable via dedicated USB port.
• Standard PROFINET alarm and diagnostic reporting for efficient troubleshooting.
• Configuration support via Classless InterDomain Routing (CIDR).

Applications

• Urban infrastructure including water supply, sewage treatment, and tunnel ventilation.
• High-EMI environments such as power substations and large motor drive stations.
• Petrochemical facilities requiring fiber-optic isolation in hazardous areas.
• Long-distance I/O communication in paper and steel mills.

Technical Specifications

Installation Guidelines

• Ensure the module is installed in a clean, dry environment within the specified temperature range.
• The module features an integrated carrier; no external carrier is required for mounting.
• Always power down the system before inserting or removing the module to prevent electrical damage.
• Ensure fiber-optic cables are routed away from high-voltage power lines to maintain signal integrity.
• Verify that the PROFINET device name is correctly assigned via the network port using a DCP-compliant tool.
• Use shielded cables and proper grounding practices to minimize potential EMI/RFI impact on the control cabinet.

FAQs

What is the primary function of the IC200PNS002?

The IC200PNS002 serves as a PROFINET Scanner that connects VersaMax I/O modules to a PROFINET network via fiber-optic media.

Can the USB port be used for configuration?

No, the USB port on the IC200PNS002 is reserved exclusively for firmware updates. Network configuration and device naming must be performed through the fiber-optic ports using Proficy Machine Edition.

Does the module support redundant power?

Yes, the module supports redundant power supplies, and the secondary supply can be hot-swapped if it is de-energized.
