Description

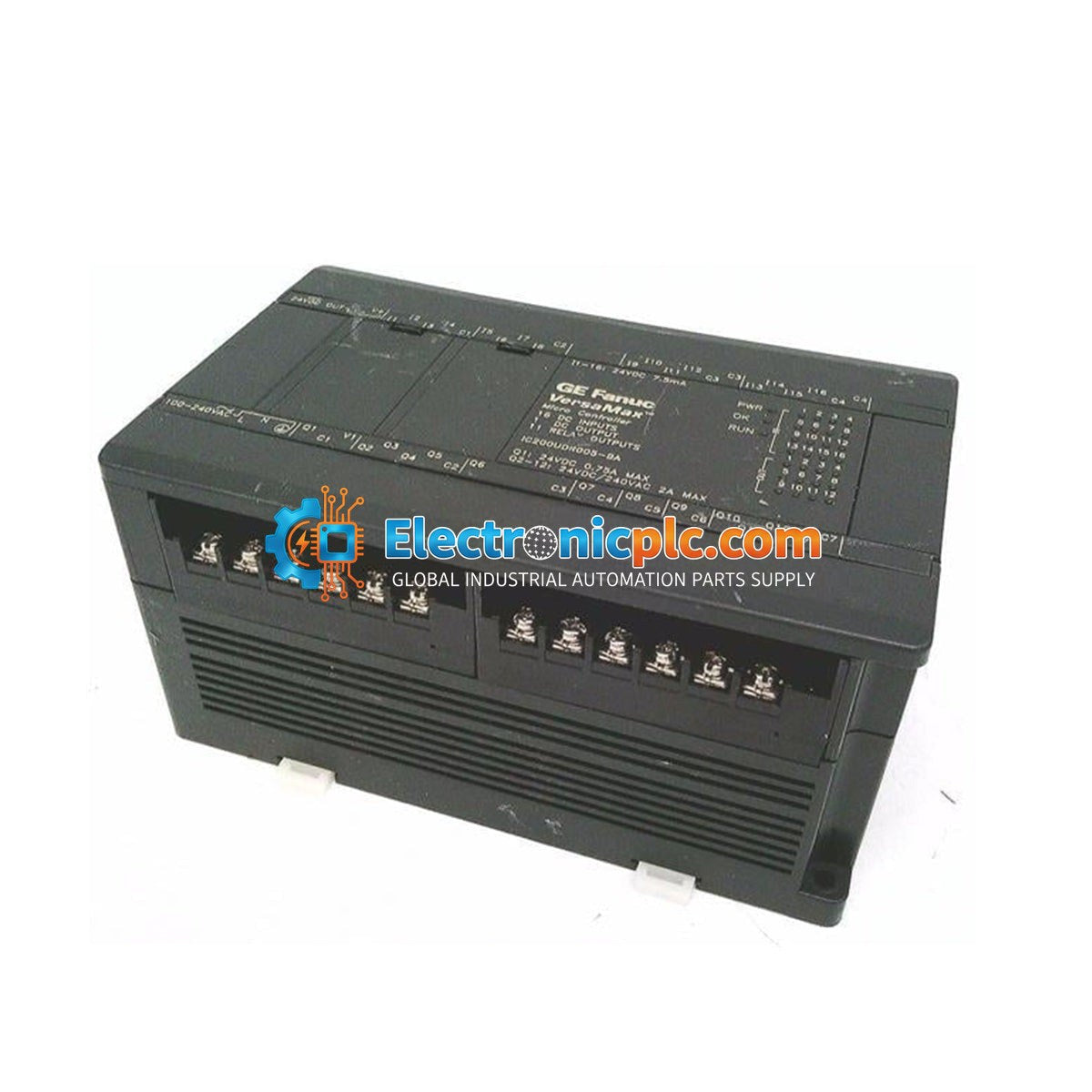

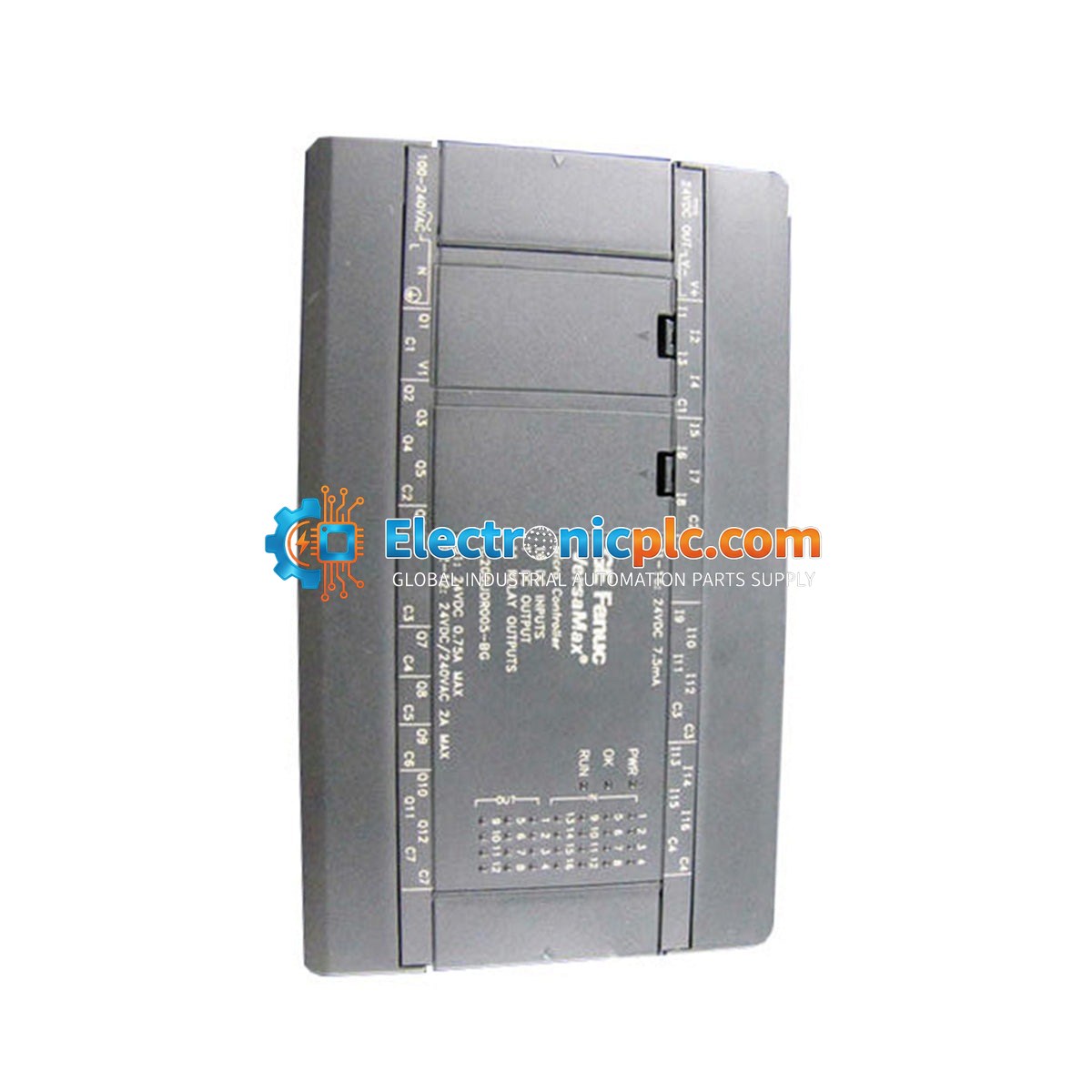

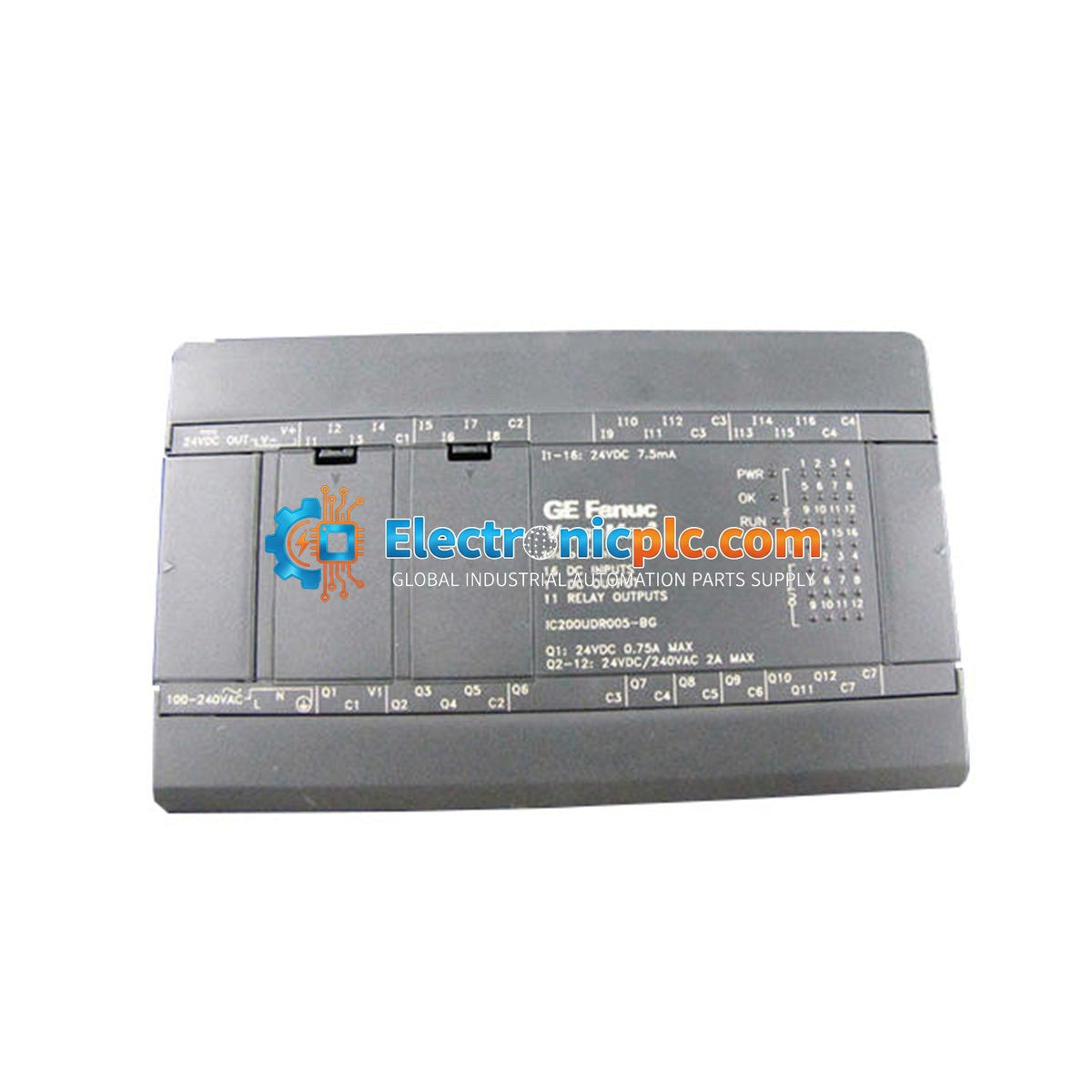

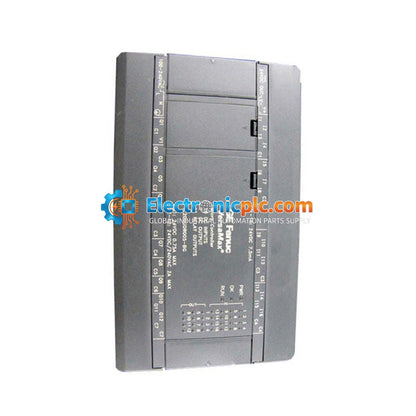

The General Electric IC200UDR005-BD is a high-performance VersaMax Micro PLC controller designed for compact industrial automation applications. This all-in-one unit integrates processing, I/O, and power supply capabilities into a single, space-saving footprint, making it ideal for small-to-medium scale machine control and process monitoring tasks.

Features

• Integrated 28-point I/O configuration for versatile control.
• 16 discrete 24 VDC inputs for sensor and switch interfacing.
• 11 relay outputs capable of handling 2 A loads for flexible actuator control.
• Dedicated 24 VDC output channel for auxiliary device power.
• Wide-range 100-240 VAC power supply input for global compatibility.
• Compact design optimized for DIN-rail mounting in control cabinets.

Technical Specifications

Installation Guidelines

• Ensure the controller is mounted on a standard DIN rail in a clean, dry environment with adequate ventilation.
• Maintain proper clearance around the unit to allow for heat dissipation and cable routing.
• Always power down the system before connecting or disconnecting any I/O wiring or communication cables.
• Use shielded cables for I/O signals to minimize electromagnetic interference (EMI) in high-noise industrial environments.
• Verify that the supply voltage matches the 100-240 VAC nominal requirement before applying power.
• Observe correct polarity when wiring the 24 VDC input and output circuits.

FAQ

What is the primary function of the IC200UDR005-BD?

This module serves as a compact Programmable Logic Controller (PLC) capable of managing discrete inputs and relay-based outputs for machine automation and process control.

Does this unit require an external power supply?

No, the IC200UDR005-BD features an integrated 100-240 VAC power supply, allowing it to be powered directly from standard AC mains.

Can the relay outputs handle high-current loads?

The relay outputs are rated for 2 A. For loads exceeding this current, it is recommended to use an external interposing relay to protect the internal contacts of the PLC.
