Description

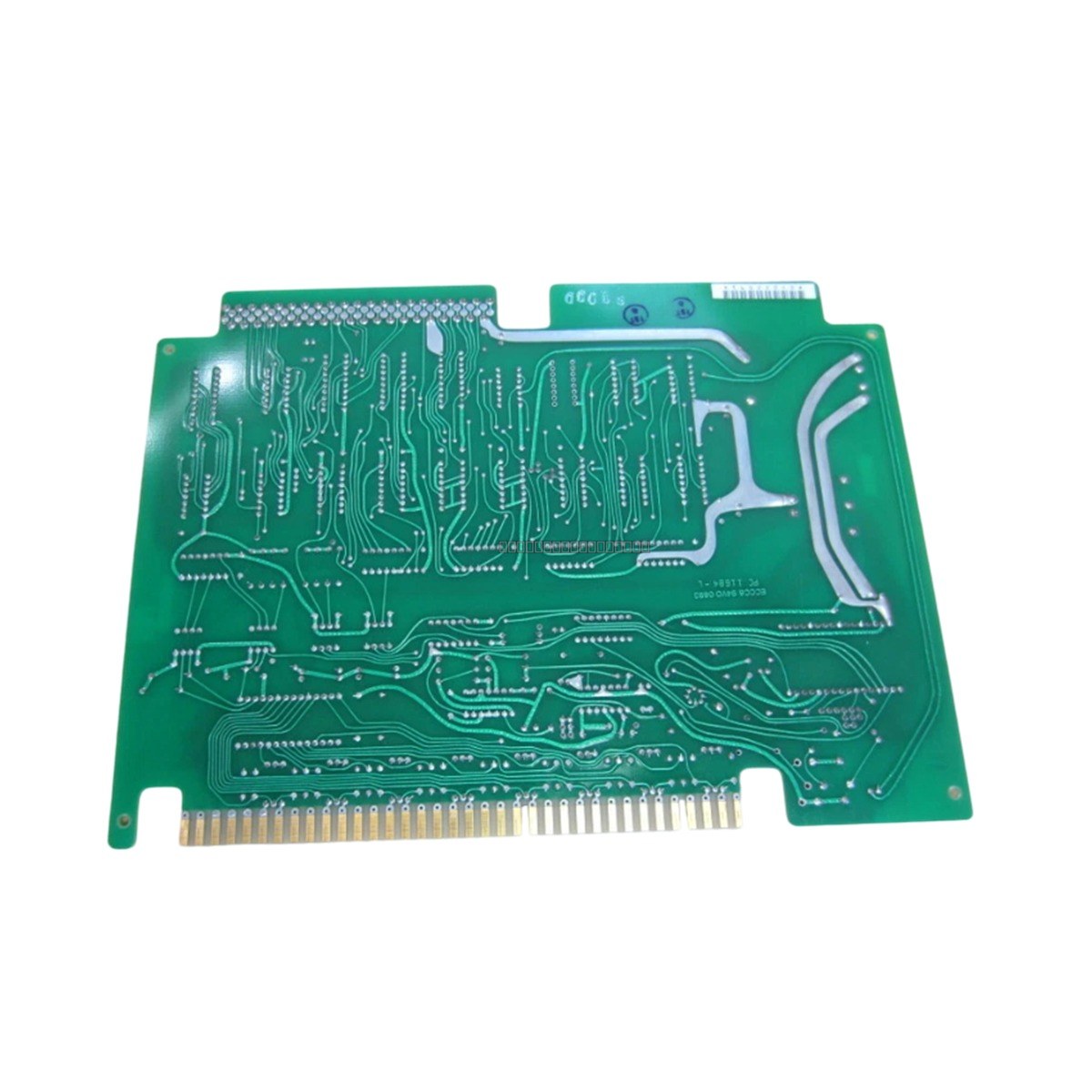

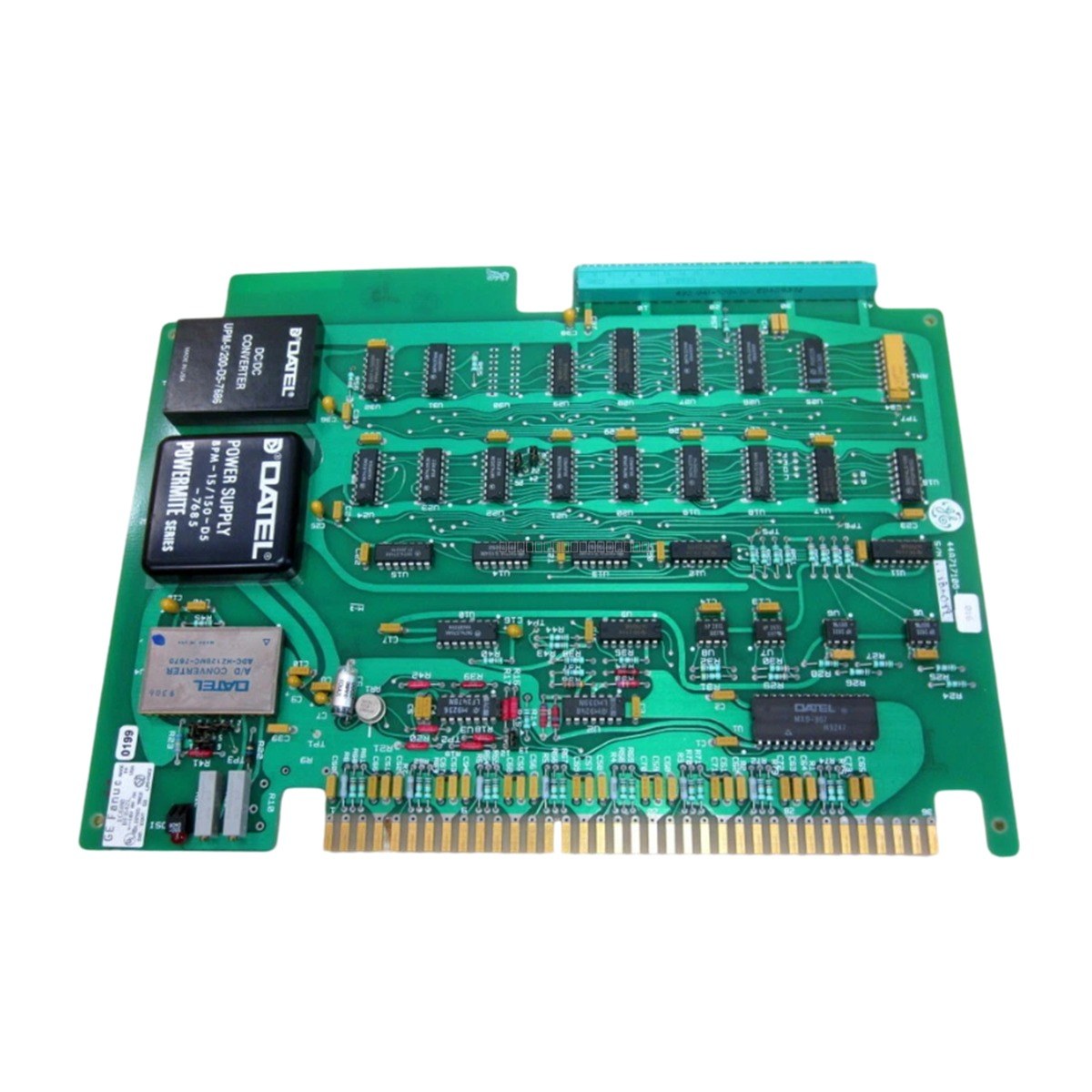

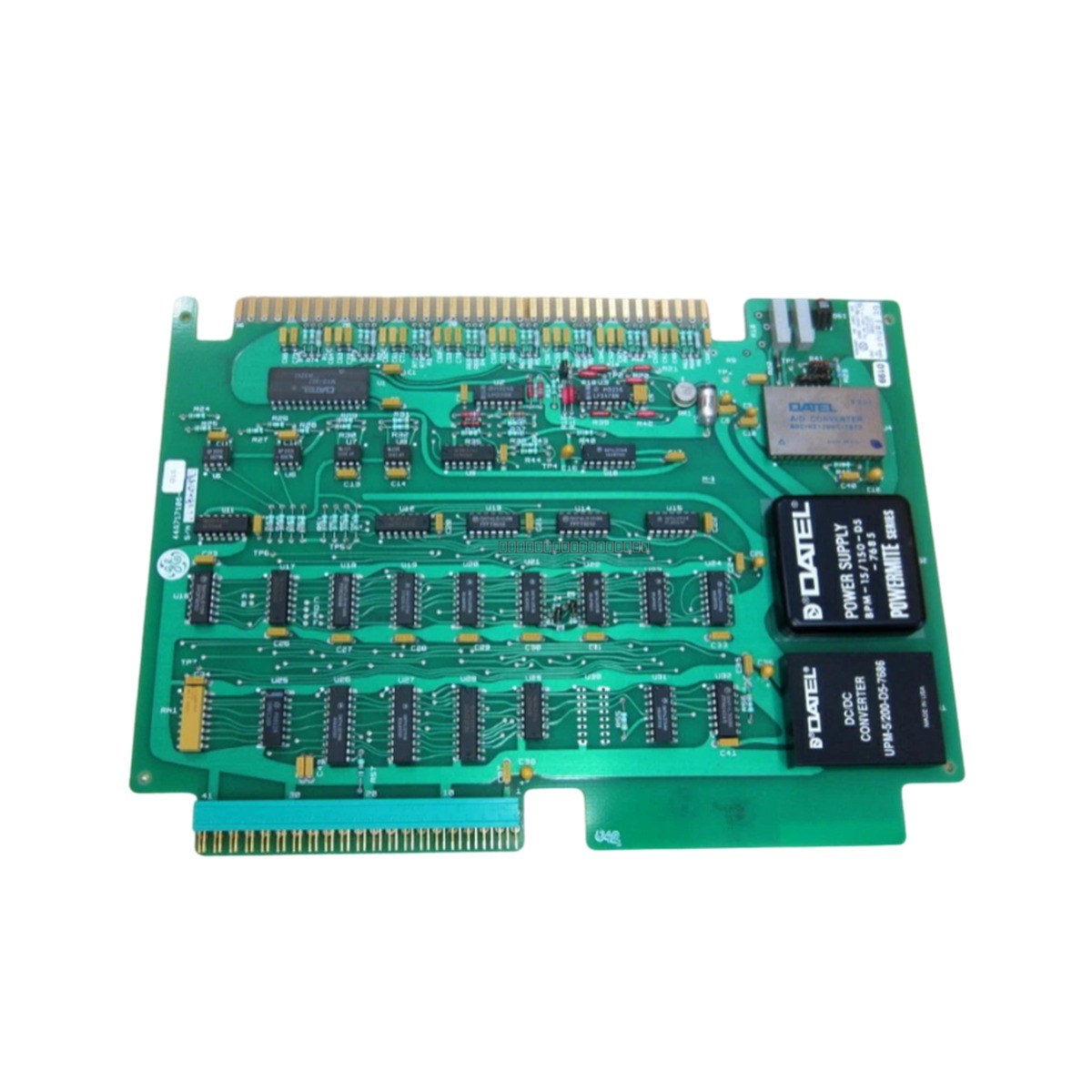

The General Electric IC600BF842 is an analog input module designed for the Series Six programmable controller system. This module is engineered to interface field analog signals with the PLC, providing reliable data acquisition for industrial control processes. Please note that this component has been discontinued by the manufacturer.

Features

• Compatible with General Electric Series Six PLC systems
• Provides 8 channels of analog input
• Input signal range: -10VDC to +10VDC
• Designed for integration into standard Series Six I/O racks

Technical Specifications

Installation Guidelines

• Ensure the PLC rack power is disconnected before installing or removing the module to prevent electrical damage.
• Verify that the module is properly seated in the designated I/O slot and that the locking mechanisms are engaged.
• Use shielded twisted-pair cabling for analog signal inputs to minimize electromagnetic interference (EMI) and noise.
• Ensure proper grounding of the I/O rack chassis to a common earth ground to maintain signal integrity.
• Maintain adequate ventilation around the rack assembly to prevent overheating during operation.

FAQ

Is the IC600BF842 still in production?

No, the IC600BF842 has been discontinued by General Electric. We provide this unit as a spare part for legacy system maintenance.

What is the input range for this module?

This module accepts analog input signals in the range of -10VDC to +10VDC.
