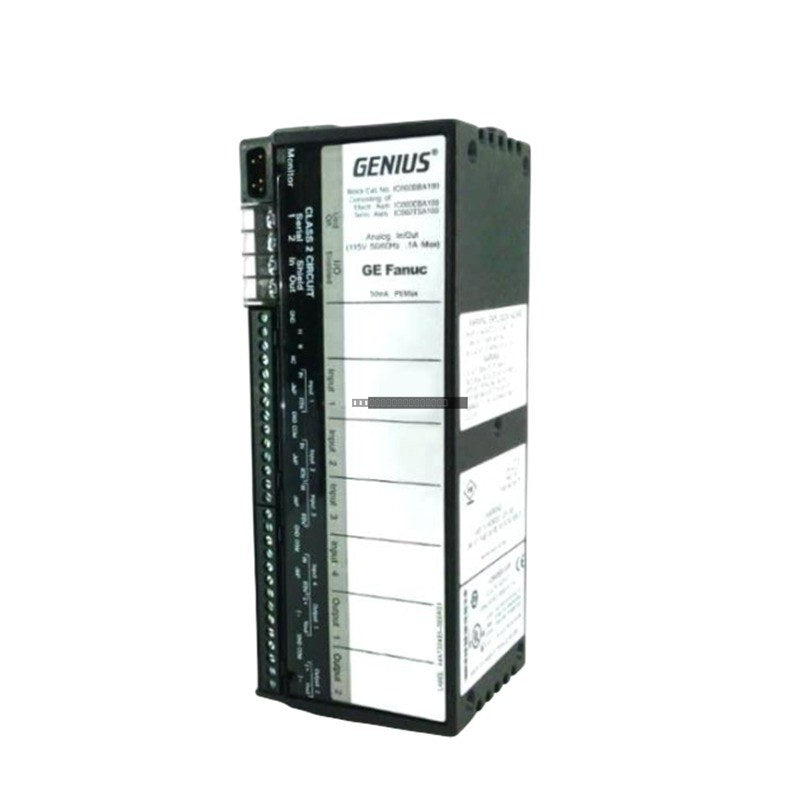

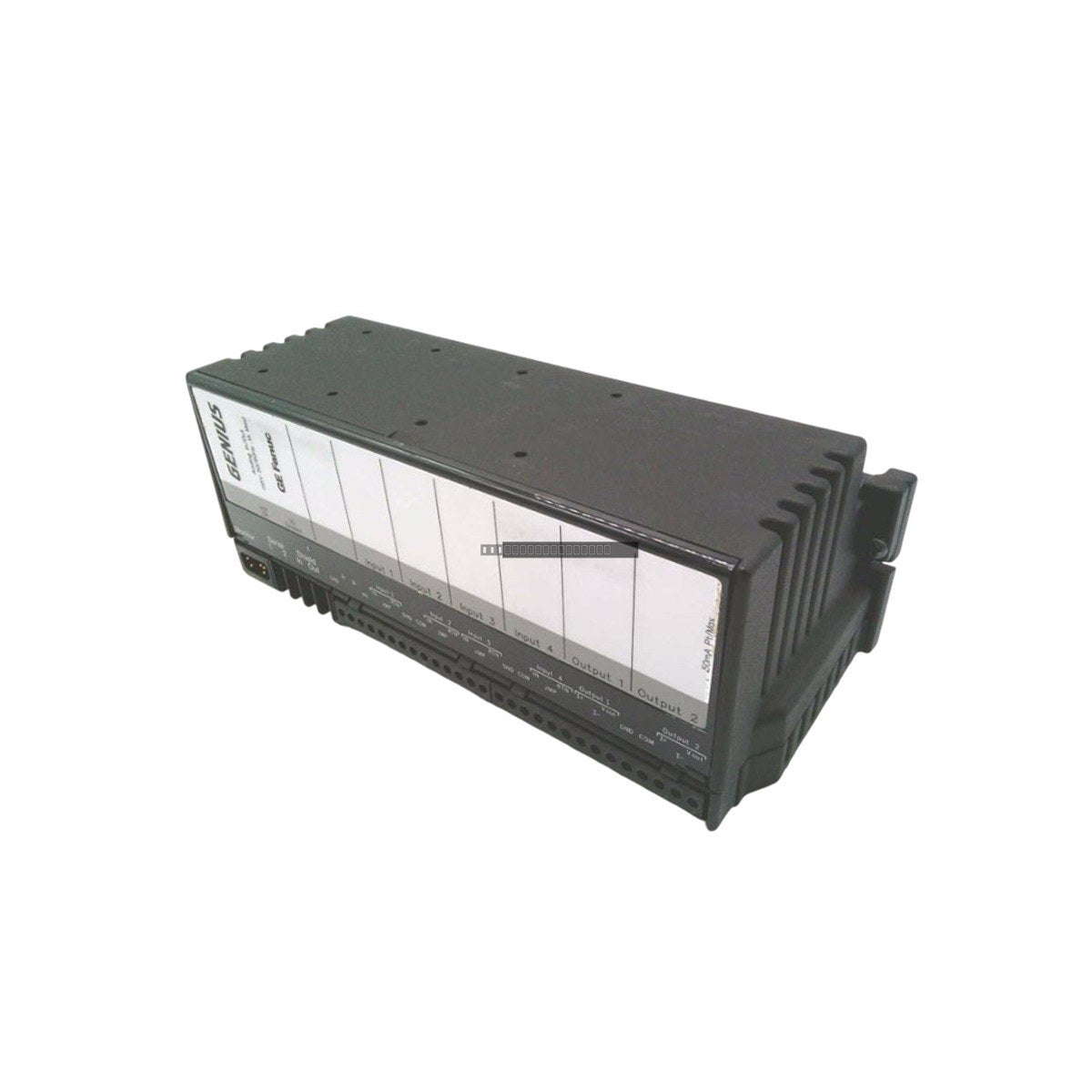

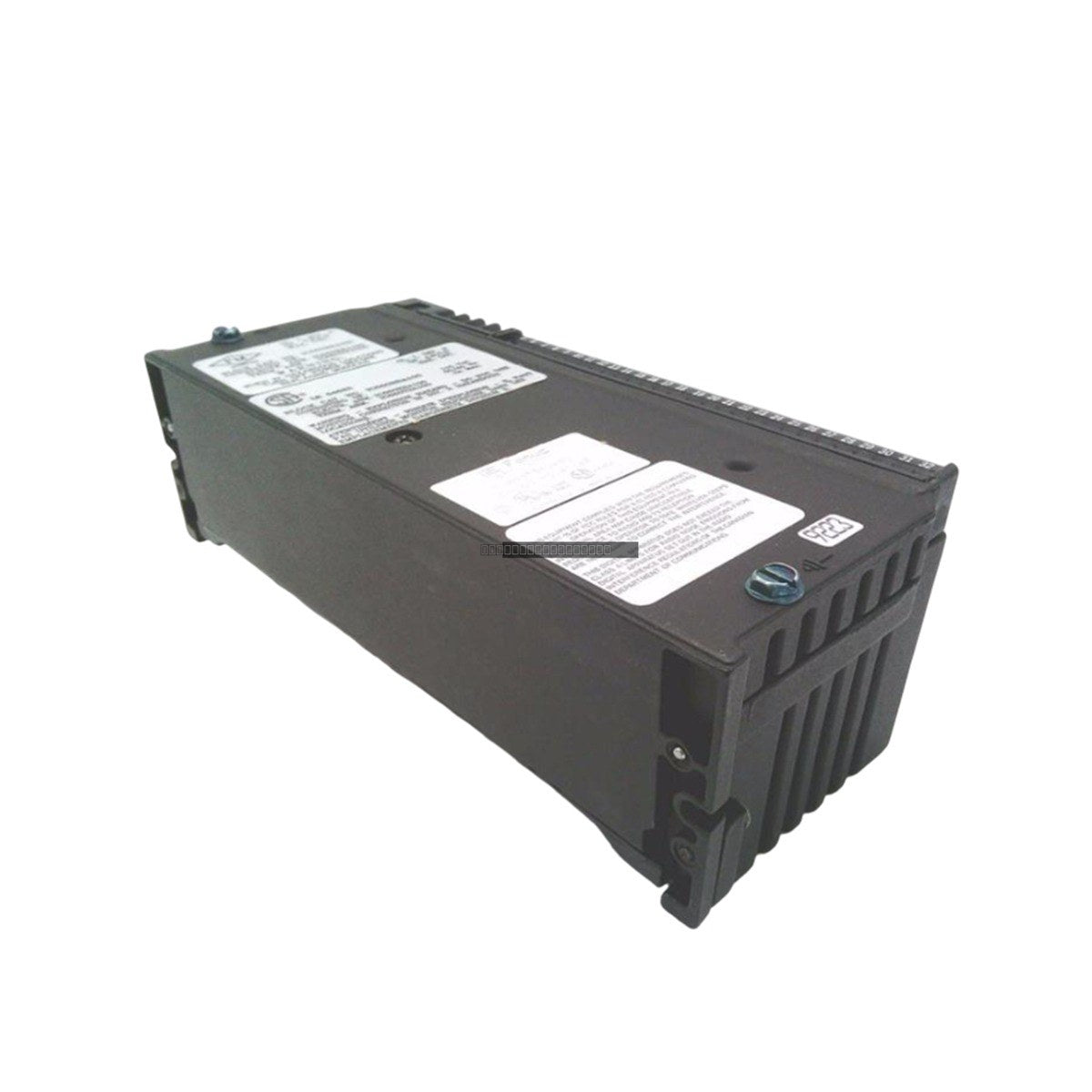

The General Electric IC660BBA100 is a component of the Genius I/O series, specifically designed as a versatile analog I/O block for industrial control environments. This module provides reliable signal processing capabilities, enabling the integration of various analog field devices into a broader automation system.

Features

• Configurable I/O: Features 4 analog inputs and 2 analog outputs.
• Precision Conversion: Offers 12-bit plus sign resolution for accurate data acquisition.
• Flexible Circuit Ranges: Supports multiple signal types including 0-10 VDC, +/-10 VDC, +/-5 VDC, 0-5 VDC, and 4-20 mA.
• Diagnostic Indicators: Integrated status LEDs for Unit OK and I/O Enabled status monitoring.
• Isolation: Provides 1500 Volts of block-to-block isolation for enhanced signal integrity.

Applications

This analog block is commonly utilized in industrial automation systems where high-precision monitoring and control of process variables are required. It is suitable for interfacing with sensors, actuators, and transducers that output or require standard analog voltage or current signals.

Technical Specifications

Installation Guidelines

• Ensure the system power is completely disconnected before attempting to install or remove the I/O block.
• Mount the unit in an environment compliant with the specified heat dissipation requirements to prevent overheating.
• Use shielded cabling for all analog signals to minimize the impact of electromagnetic interference (EMI).
• Verify that the power supply voltage matches the 115 VAC rating before energizing the block.
• Practice standard ESD (Electrostatic Discharge) precautions when handling the module to prevent damage to internal circuitry.

FAQ

What is the primary function of the IC660BBA100?
It is an analog I/O block from the GE Genius I/O family used to bridge analog field signals to a digital control network.

Can the input/output ranges be adjusted?
Yes, the module supports multiple selectable ranges including voltage (0-10V, +/-10V, etc.) and current (4-20 mA) configurations.
