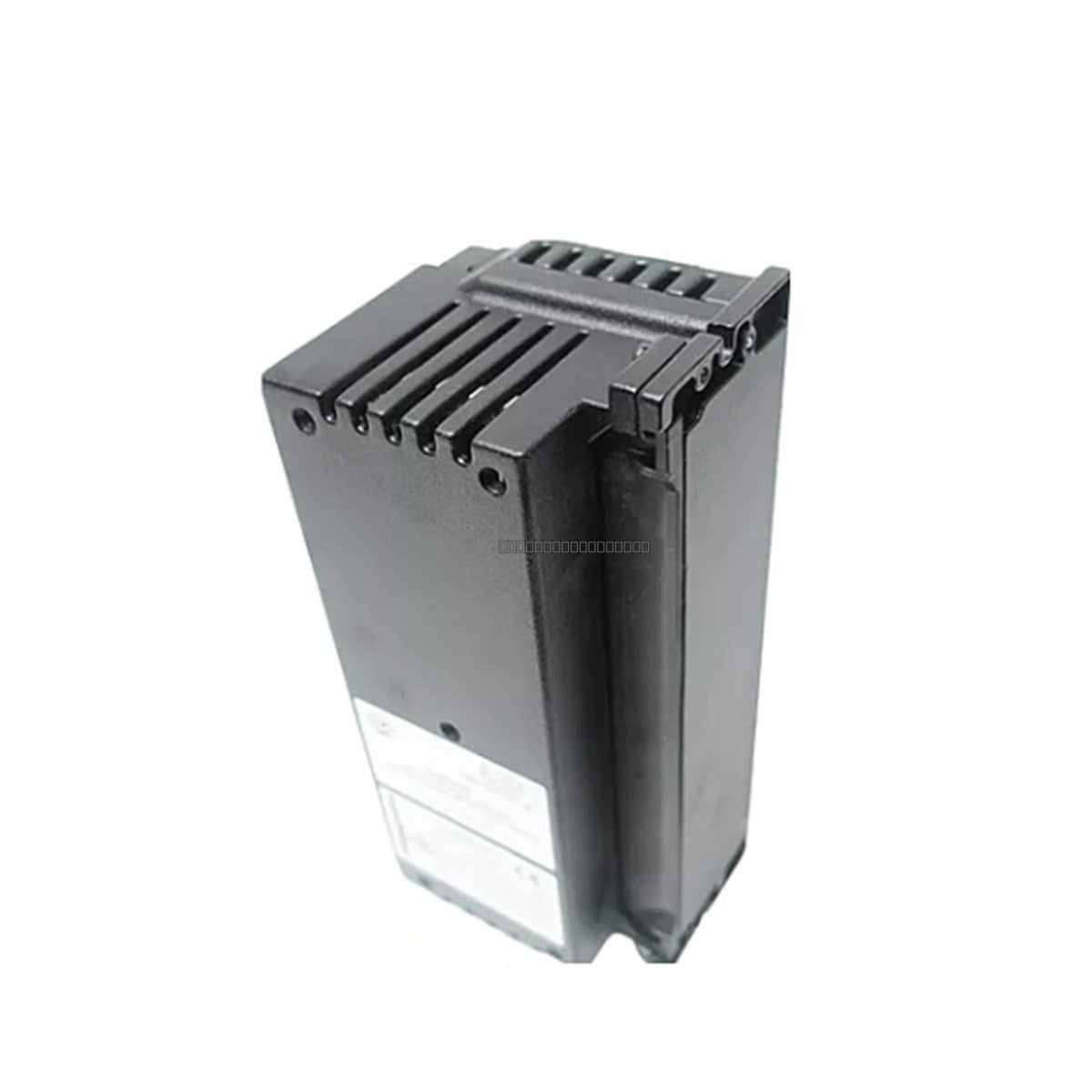

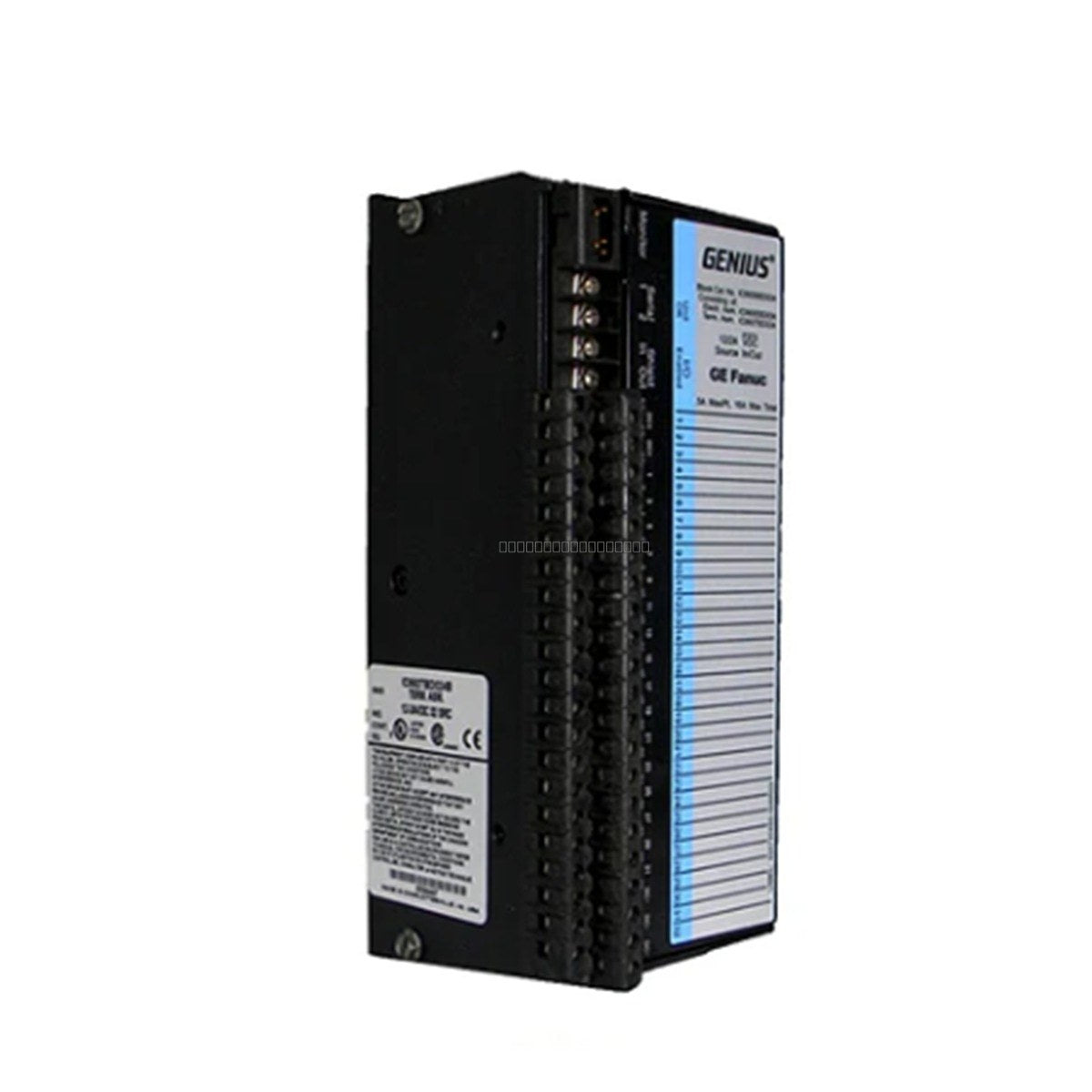

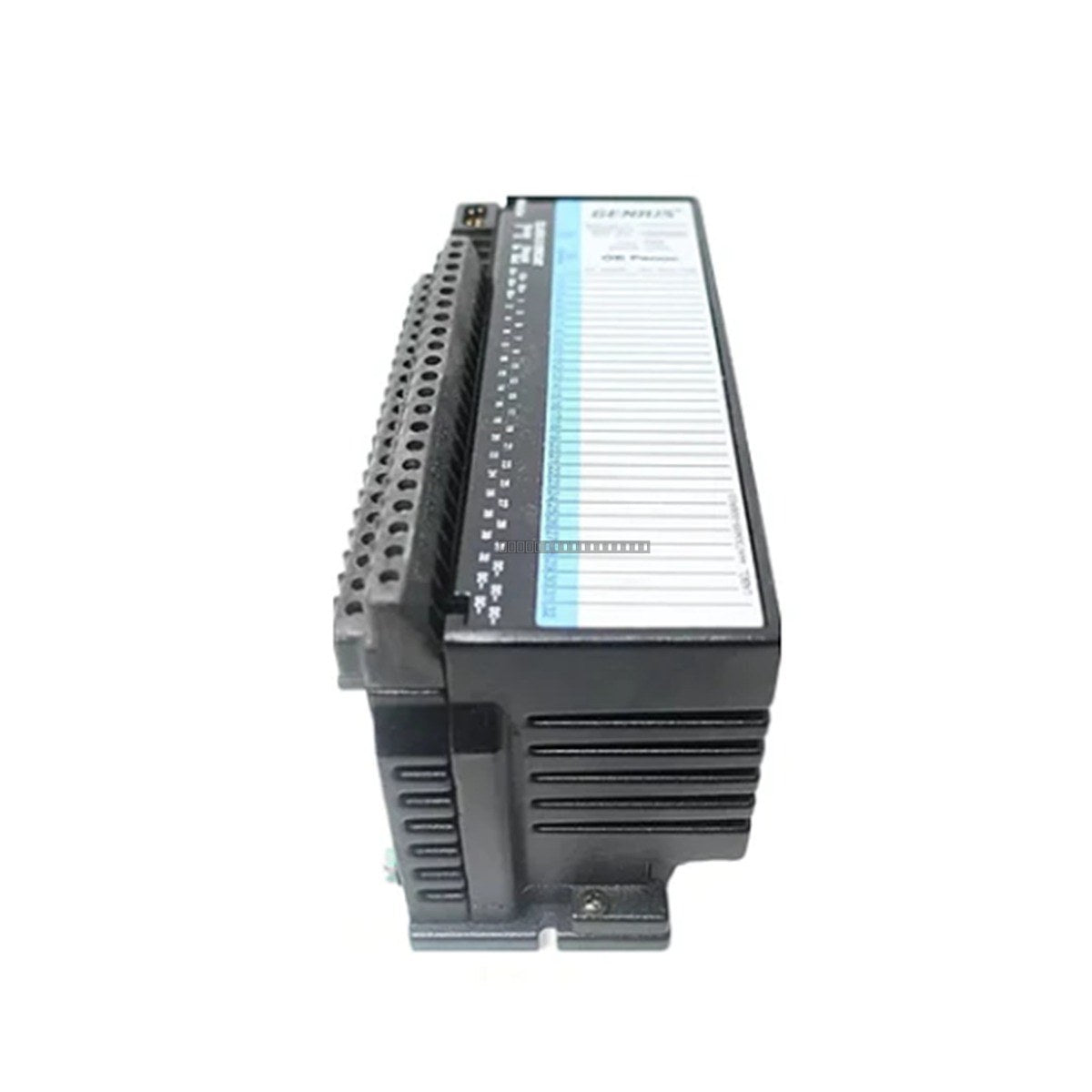

The IC660BBD120 is a high-speed counter module within the GE Genius I/O series. This block is designed for high-performance pulse processing and motion control applications, capable of operating independently of a CPU for rapid input sensing and output response. The module consists of two primary components: the terminal base assembly (IC660TBD120) and the electronics assembly (IC660EBD120).

Features

• 12 discrete inputs (5V DC to 30V DC) supporting frequencies up to 200 kHz.
• 4 output channels (4.75V DC to 5.25V DC at 200mA).
• Configurable counter modes: supports 1, 2, or 4 counters of varying complexity.
• Direct processing capability allows the block to sense inputs and trigger outputs without CPU intervention.
• Built-in protection against power surges on outputs.
• Software-configurable parameters and failed switch diagnostics.
• Supports 115 VAC or 10-30 VDC block power, including backup battery operation.

Applications

• Turbine Flowmeter monitoring and meter proving.
• High-speed velocity measurement and motion control.
• Automated material handling and logistics counting systems.
• Industrial automation tasks requiring fast, stand-alone I/O processing.

Technical Specifications

Installation Guidelines

• The Genius I/O block is open-type equipment and must be mounted within a protective enclosure suitable for the industrial environment.
• Ensure the installation area is clean and free of airborne contaminants.
• Maintain adequate airflow for cooling; leave at least 2 inches of clearance between blocks.
• The block may be mounted in any orientation (upright or inverted).
• Secure the block using 8-32 screws/bolts; use star washers to ensure proper ground integrity.
• Always disconnect power before installing or removing the electronics assembly from the terminal base.

FAQs

What is the IC660BBD120?

It is a configurable, self-contained high-speed counter block from the GE Genius I/O series, designed to directly process rapid pulse signals.

What are the main I/O specifications?

It features 12 discrete inputs supporting frequencies up to 200 kHz and 4 output channels.

What is the operating voltage?

This module can be powered by 115VAC or 10-30VDC. It supports mixed power configurations, allowing 115VAC as the main supply and 10-30VDC as a backup.
