Description

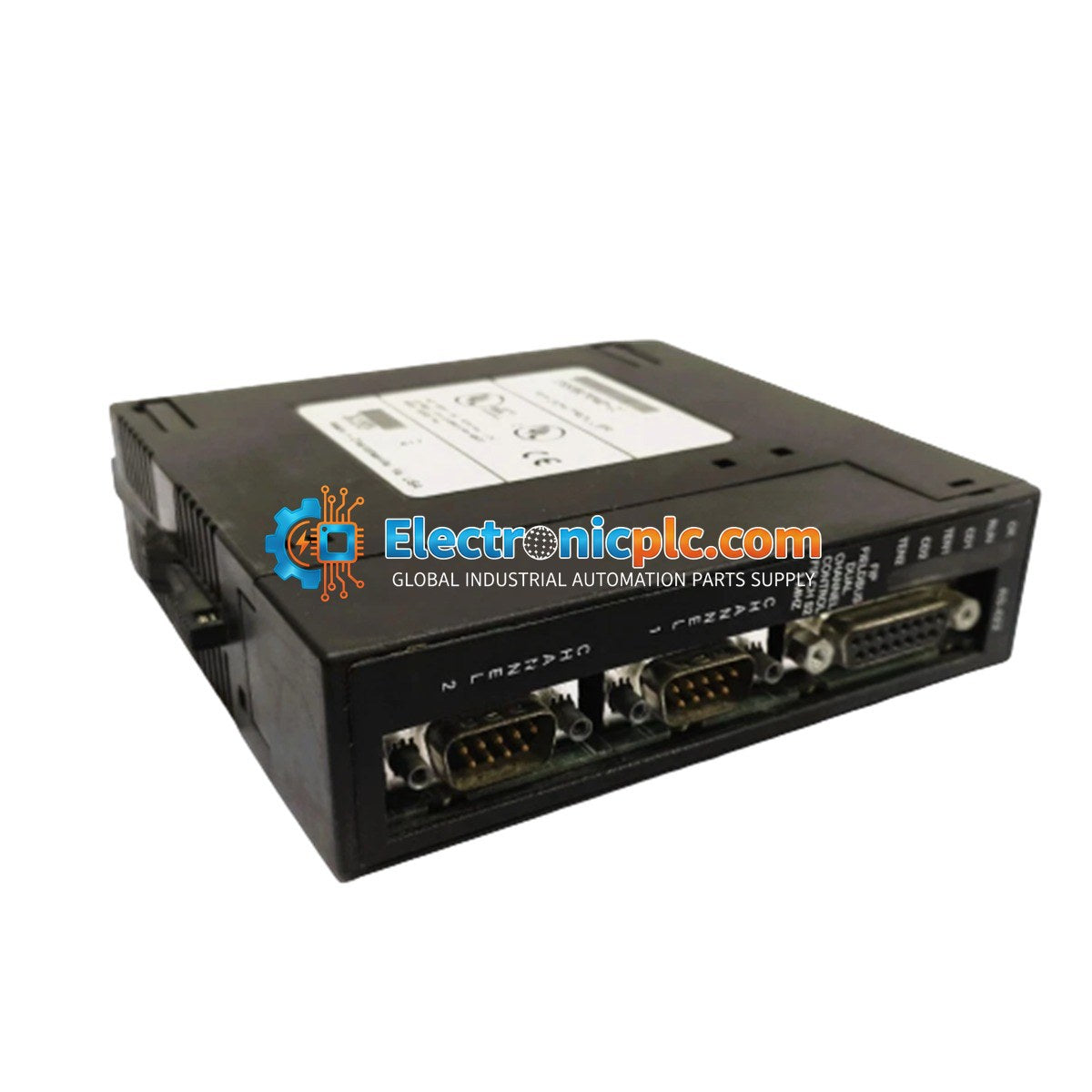

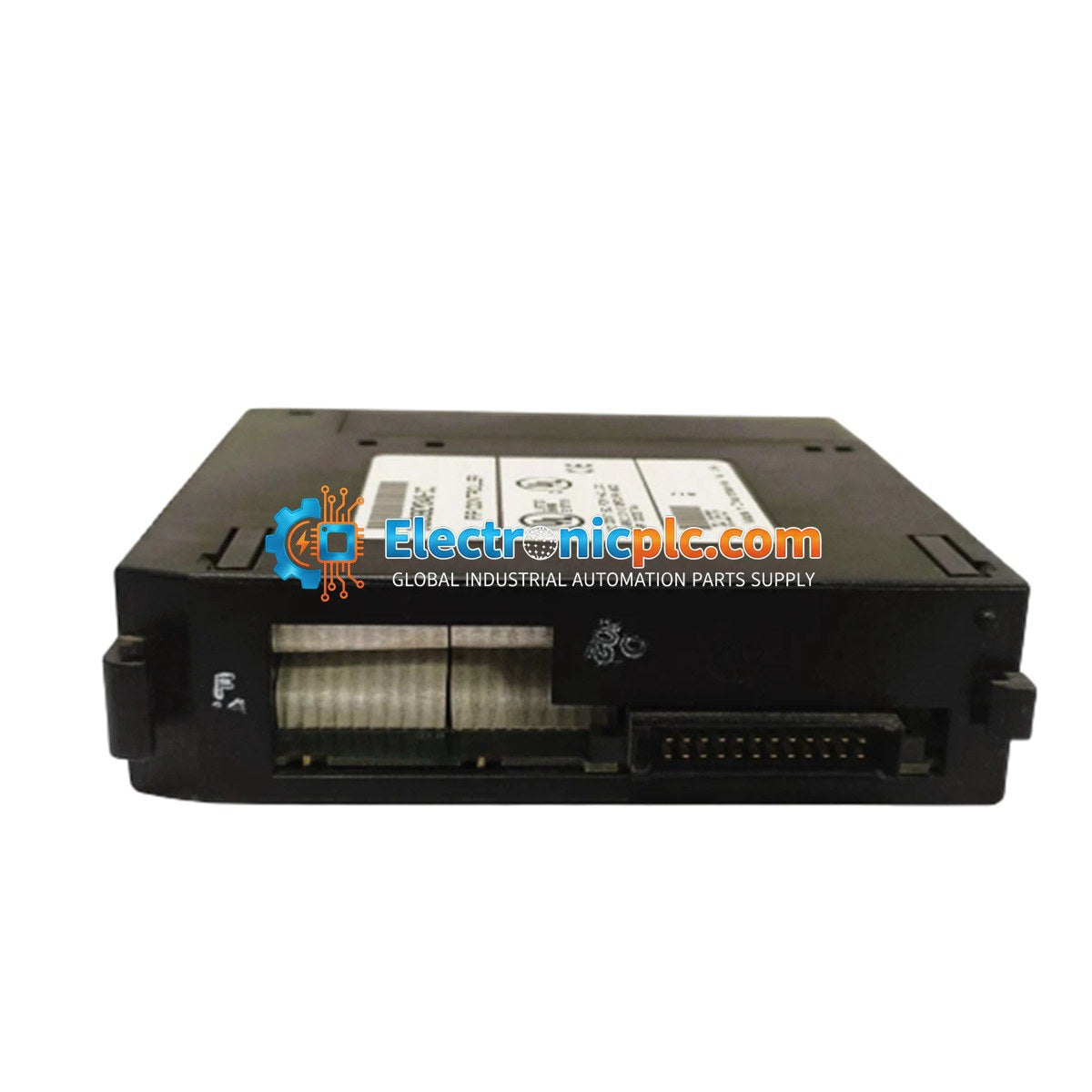

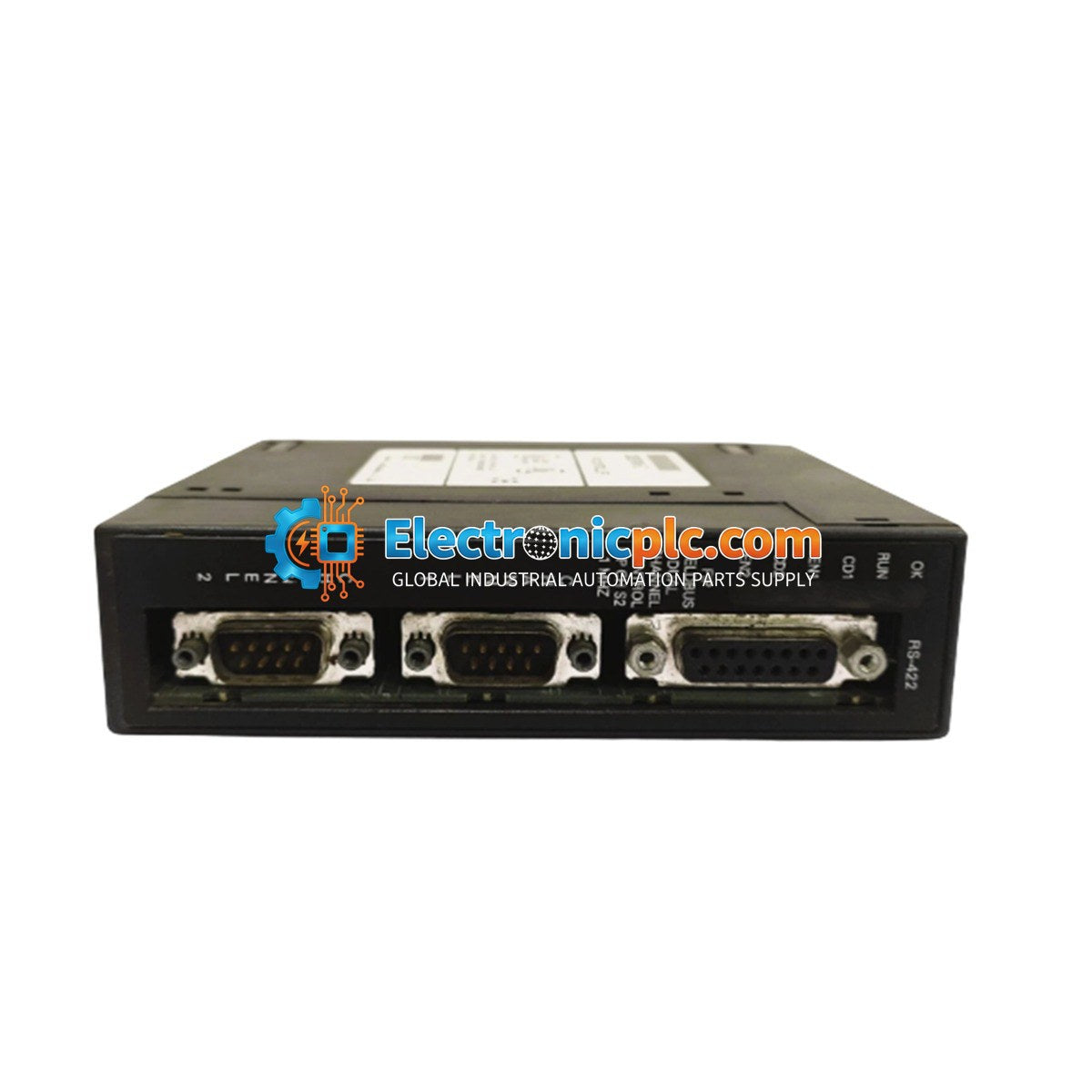

The IC693BEM340 is a FIP (Factory Instrumentation Protocol) Bus Controller module designed for the General Electric Series 90-30 PLC platform. This communication module acts as a bridge, allowing the PLC to interface with FIP bus networks, facilitating robust data exchange between the controller and remote field devices or other network nodes. It is engineered to provide reliable communication in demanding industrial environments.

Features

• Designed specifically for the GE Series 90-30 PLC system architecture.
• Supports FIP Bus communication protocols for distributed control applications.
• Robust construction suitable for standard industrial operating temperature ranges.
• Integrated diagnostic capabilities for network status monitoring.

Technical Specifications

Installation Guidelines

• Ensure the PLC rack power is disconnected before installing or removing the module to prevent electrical damage.
• Verify the module is correctly seated in the designated slot of the Series 90-30 baseplate and secured with the provided mounting hardware.
• Ensure the power supply capacity of the rack is sufficient to support the 1.2A maximum current draw of this module.
• Route communication cabling away from high-voltage power lines and sources of electromagnetic interference (EMI) to maintain signal integrity.
• Maintain proper ventilation within the control cabinet to ensure the module operates within its specified temperature range.

FAQ

What is the primary function of the IC693BEM340?

The IC693BEM340 serves as a FIP Bus Controller, enabling the Series 90-30 PLC to communicate over a FIP network, which is essential for distributed I/O and multi-node industrial control systems.

How much power does this module require?

The module typically consumes 800mA, though it can draw up to a maximum of 1.2 Amps. Always ensure your rack power supply has adequate overhead to handle this load.

Can this module be used in extreme temperatures?

The module is rated for standard industrial operation between 0 and +55 degC. It should not be operated outside of this range to ensure long-term reliability.
