Description

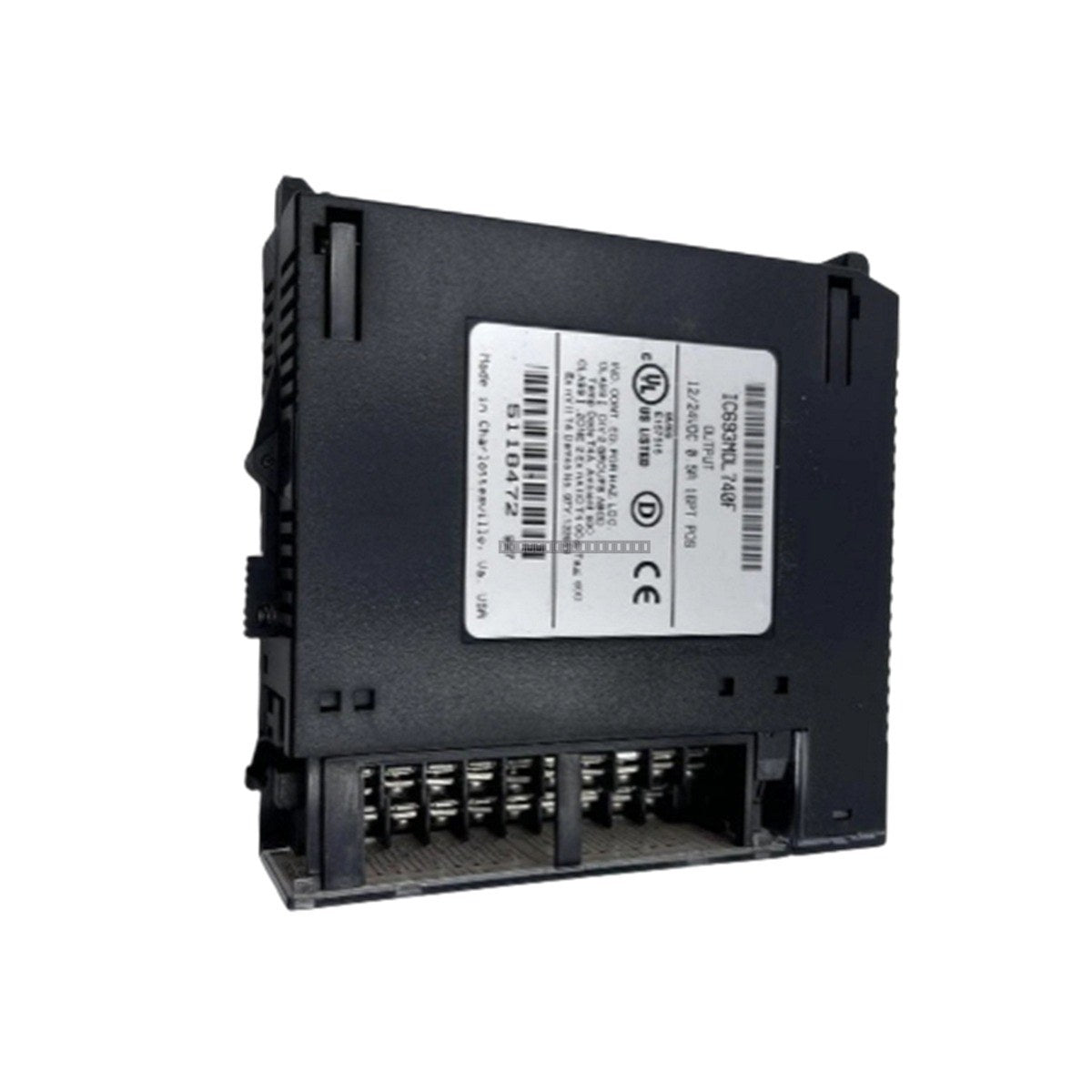

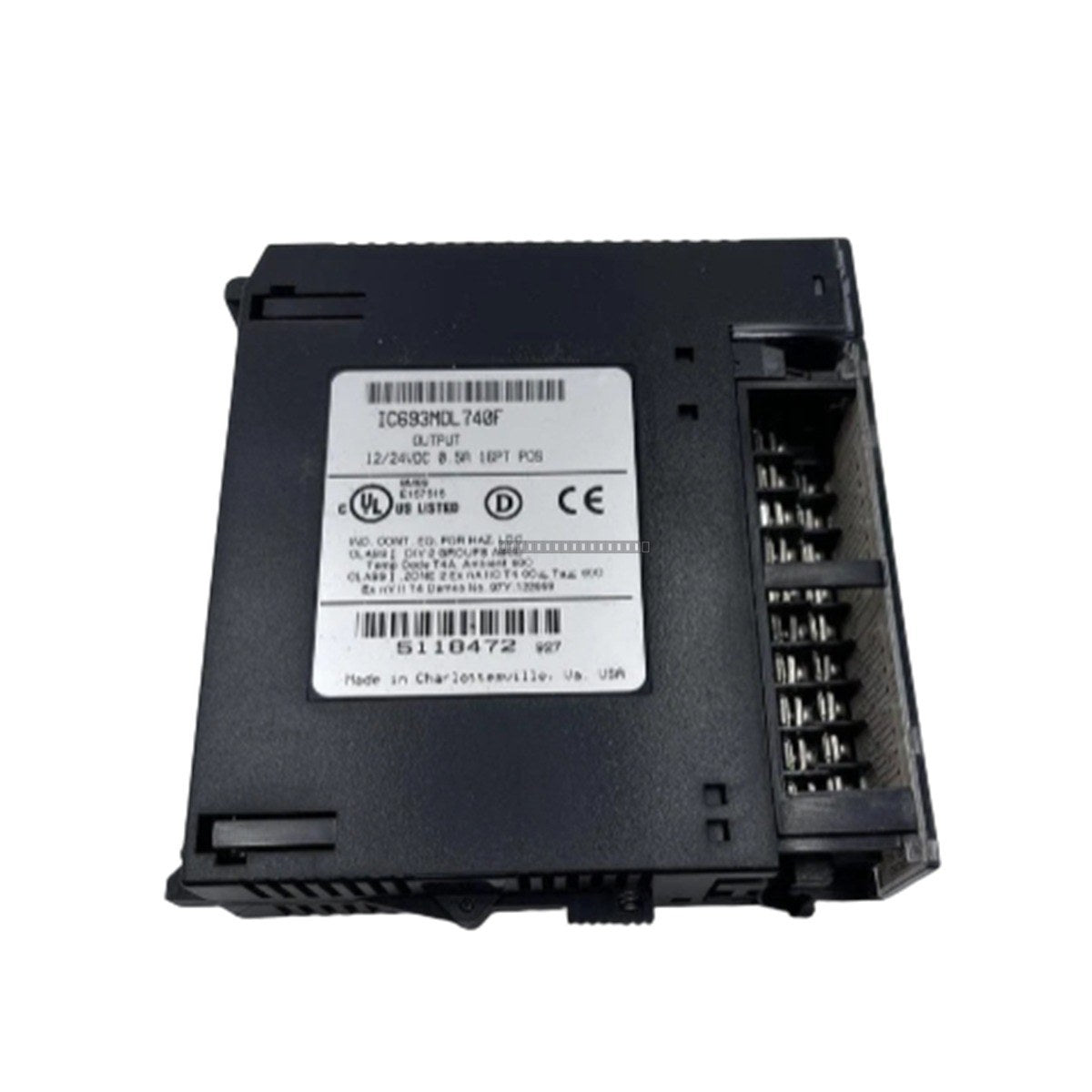

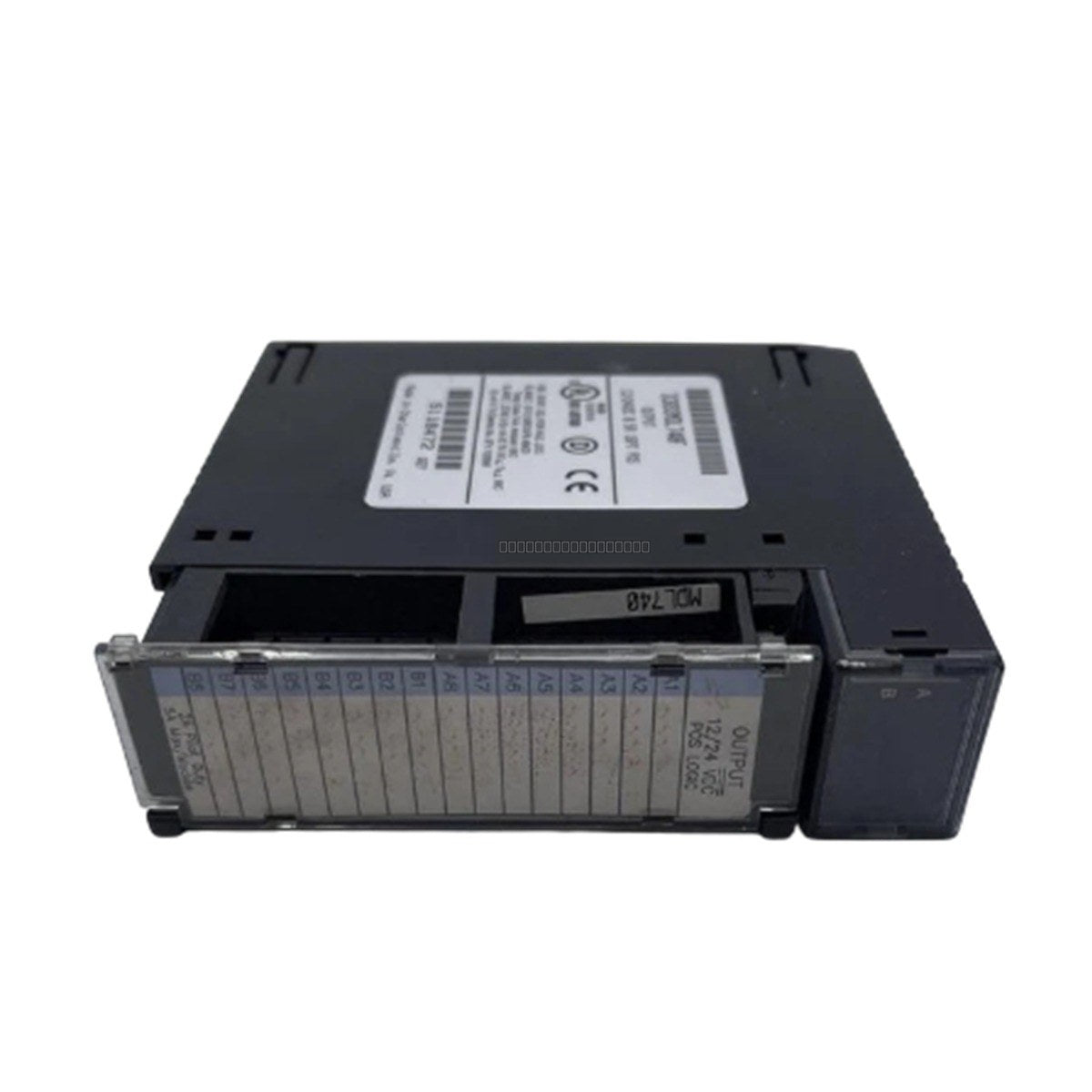

The IC693MDL740F is a 16-point DC output module designed for use with the GE Fanuc Series 90-30 Programmable Logic Controller (PLC) system. This module provides a reliable interface for controlling discrete field devices such as solenoid valves, motor starters, and industrial indicators. Operating on a 12/24 VDC logic level, it utilizes a positive logic configuration to source current from the power bus to connected loads, ensuring stable performance in demanding automation environments.

Features

• 16 independent output points for versatile control of field devices.
• Positive logic (source-type) output configuration.
• Galvanic isolation between output points and the PLC backplane to minimize electrical noise.
• Integrated protection circuitry against over-current and short-circuit conditions.
• Designed for high reliability and rapid response times in industrial process control.
• Standard terminal block interface for secure field wiring and simplified maintenance.

Applications

This module is suitable for a wide range of industrial automation applications, including manufacturing assembly lines, process control systems, and machinery management where discrete DC output control is required for field actuators and indicators.

Technical Specifications

Installation Guidelines

• Ensure the PLC system power is disconnected before installing or removing the module from the rack.
• Verify that the module is fully seated in the backplane slot and secured with the provided mounting hardware.
• Use appropriate wire gauges for field connections to the terminal block to ensure secure contact.
• Maintain proper grounding practices for the PLC chassis to reduce EMI/RFI interference.
• Ensure adequate ventilation in the control cabinet to maintain operating temperatures within the 0 to 60 degC range.
• Handle with care to prevent electrostatic discharge (ESD) damage to the internal circuitry.

FAQ

What is the output type of the IC693MDL740F?
The IC693MDL740F is a positive logic (source-type) DC output module, meaning it sources current from the power supply to the load.

Can this module drive inductive loads?
Yes, the module is designed to drive both resistive and inductive loads within its rated current capacity of 0.5 A per point.

Is the module galvanically isolated?
Yes, the output points are galvanically isolated from the backplane to protect the PLC from electrical noise and potential surges.
